Sexi Video 1080P HD Screen P3 P4 P5 P6 P8 P10 Outdoor Full Color LED Display
Product Description
i

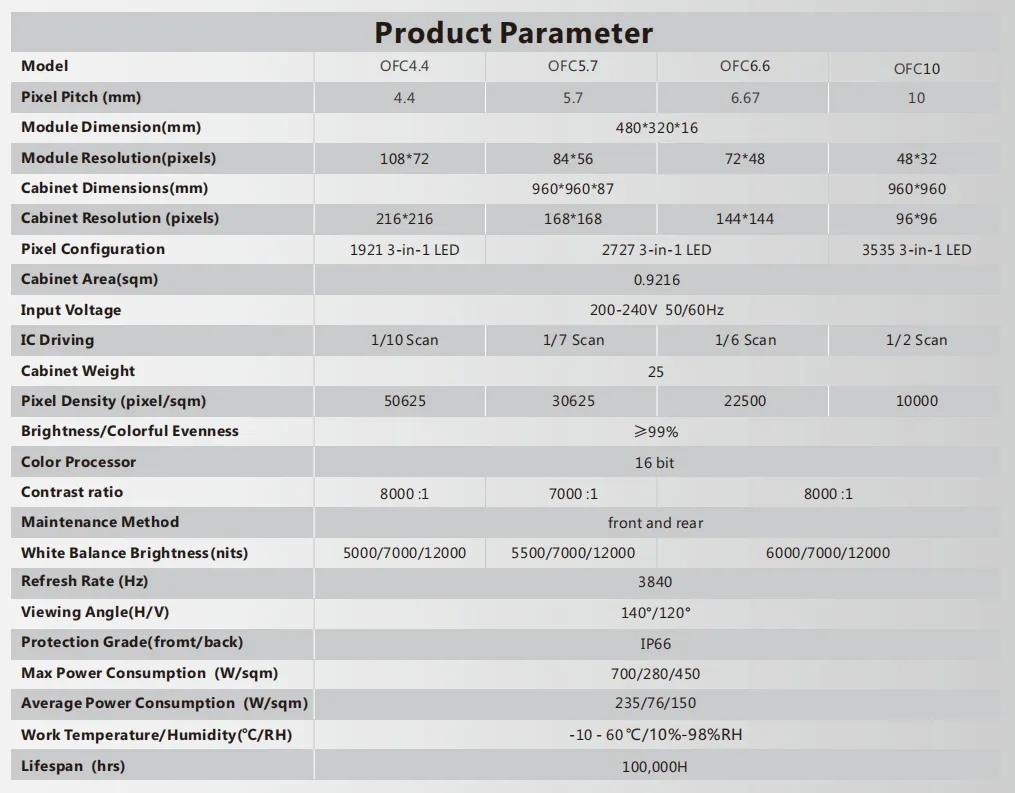

Basic Specifications
Model NO.SF-QE
Pixel Pitch10mm
Pixel Configuration1R, 1G, 1B
Display FunctionVideo, Image, Text, Market Display
Power ConsumptionAverage 250W/M2
Pixel Density10000 dot / m²
Scanning Mode1/8 Scan
ApplicationOutdoor Advertising
CertificationCE, RoHS, CCC, FCC

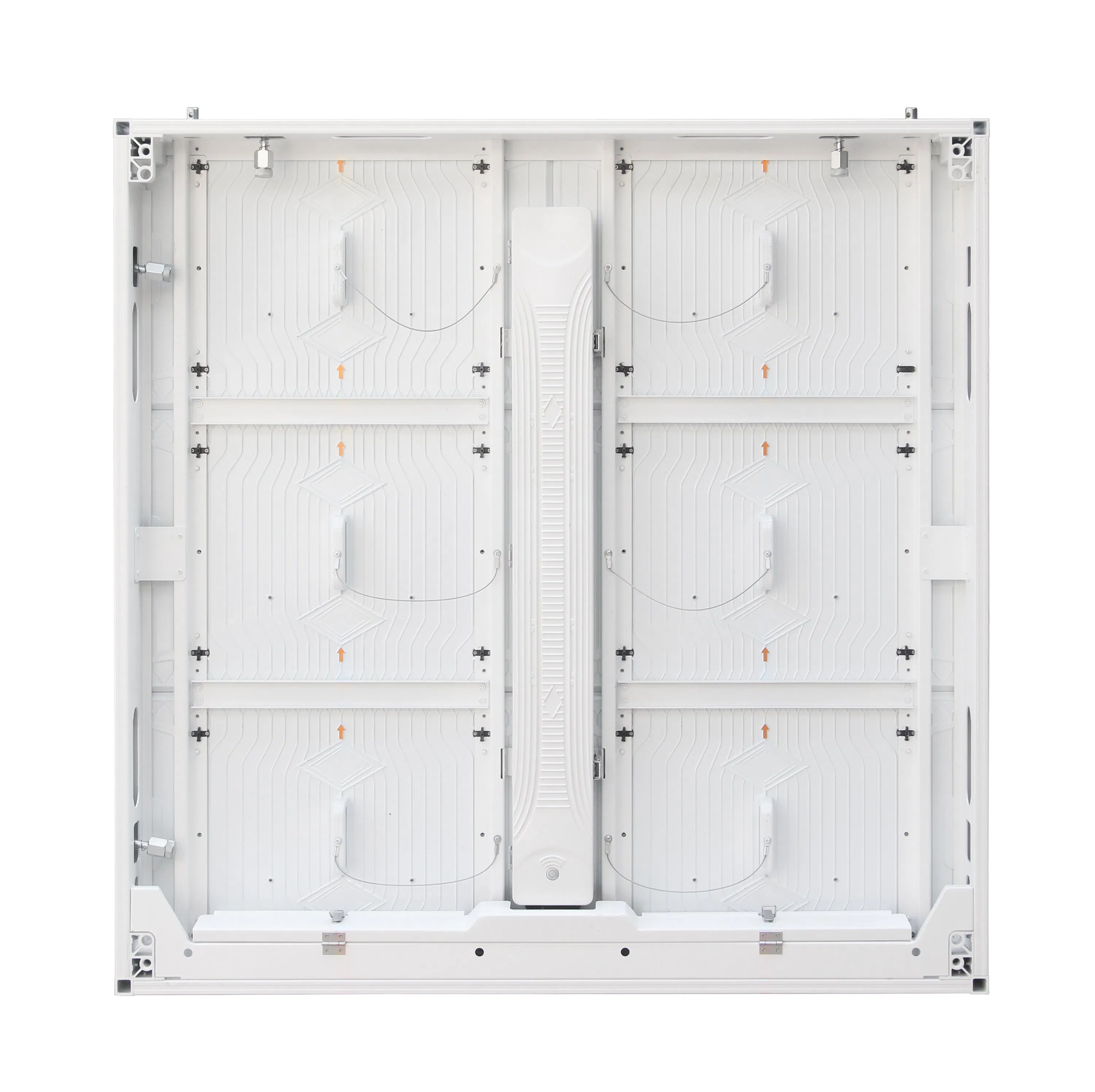

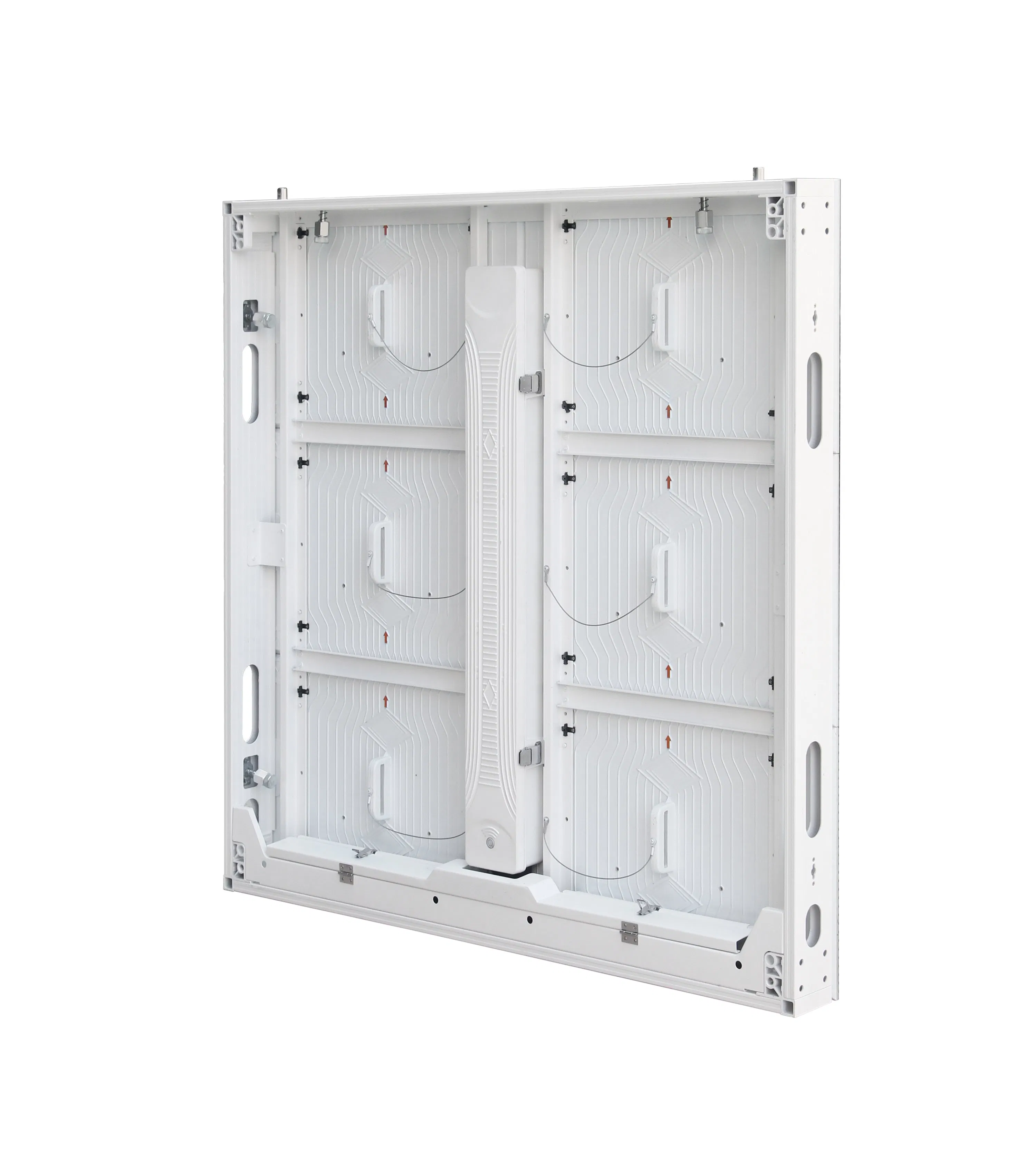

Cabinet MaterialDie Cast Aluminum
Best Viewing Distance>20m
Cabinet Size960mm*960mm / 1000*1000mm
LED TypeNationstar SMD3535
Refresh Rate3840Hz-7680Hz
Protection LevelIP65 / IP67
HS Code8528591090
★
Key Features
- Ultra-light weight aluminum profile cabinet frame.
- Fixed installation type, designed for safety and long-term stability.
- Equipped with professional NovaStar or ColorLight controllers.

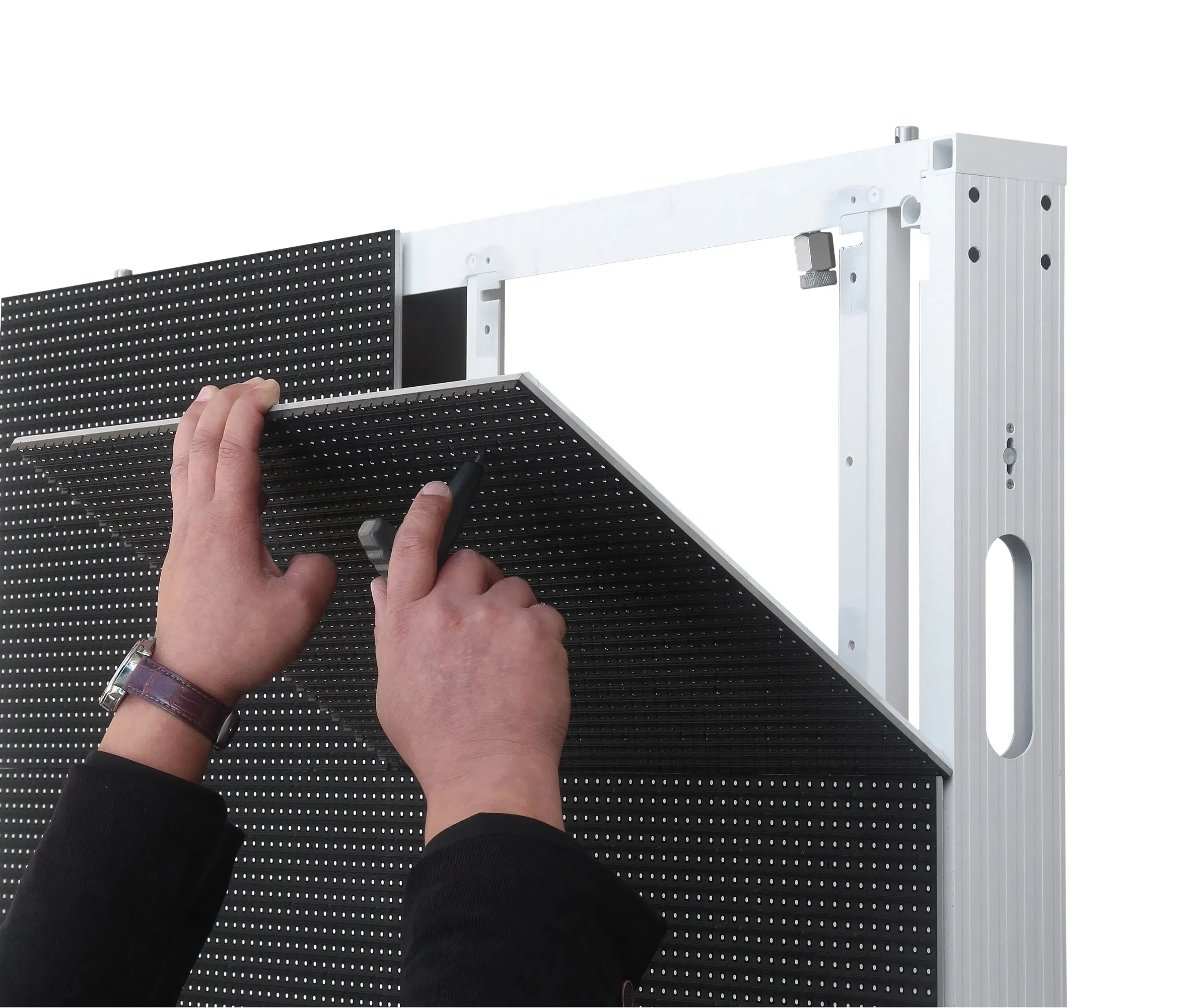

- Supports both front and back maintenance for labor cost efficiency.
- 256-level brightness adjustment and custom white balance.
- High refresh rate (up to 7680Hz) to eliminate flickering during filming.
- Customizable frame colors (Black or White).
Unique Advantage: The high configuration model can reach 10,000 nit brightness with an ultra-thin design of only 87mm thickness.
📷

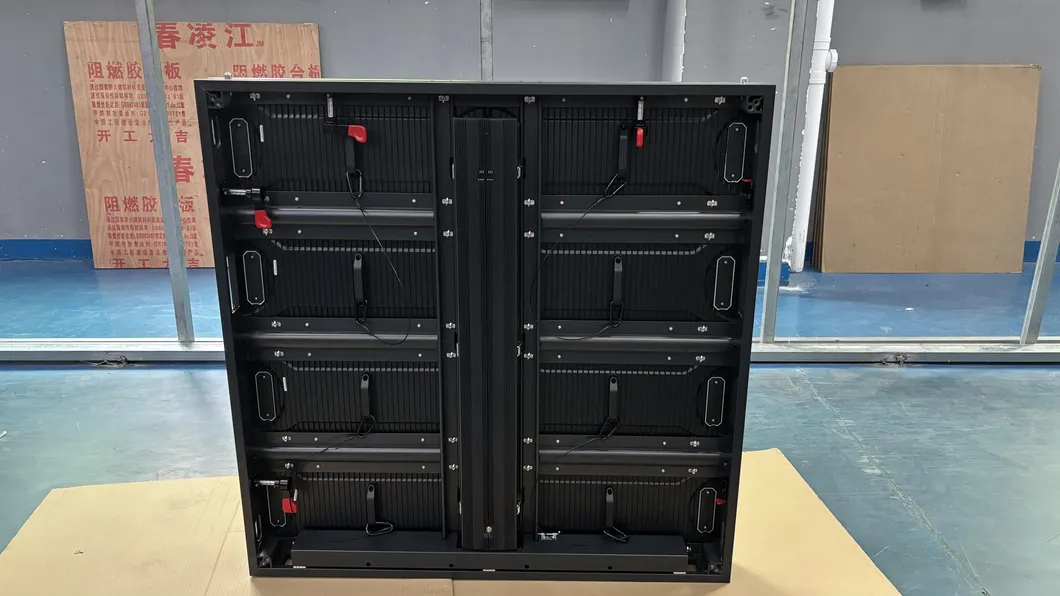

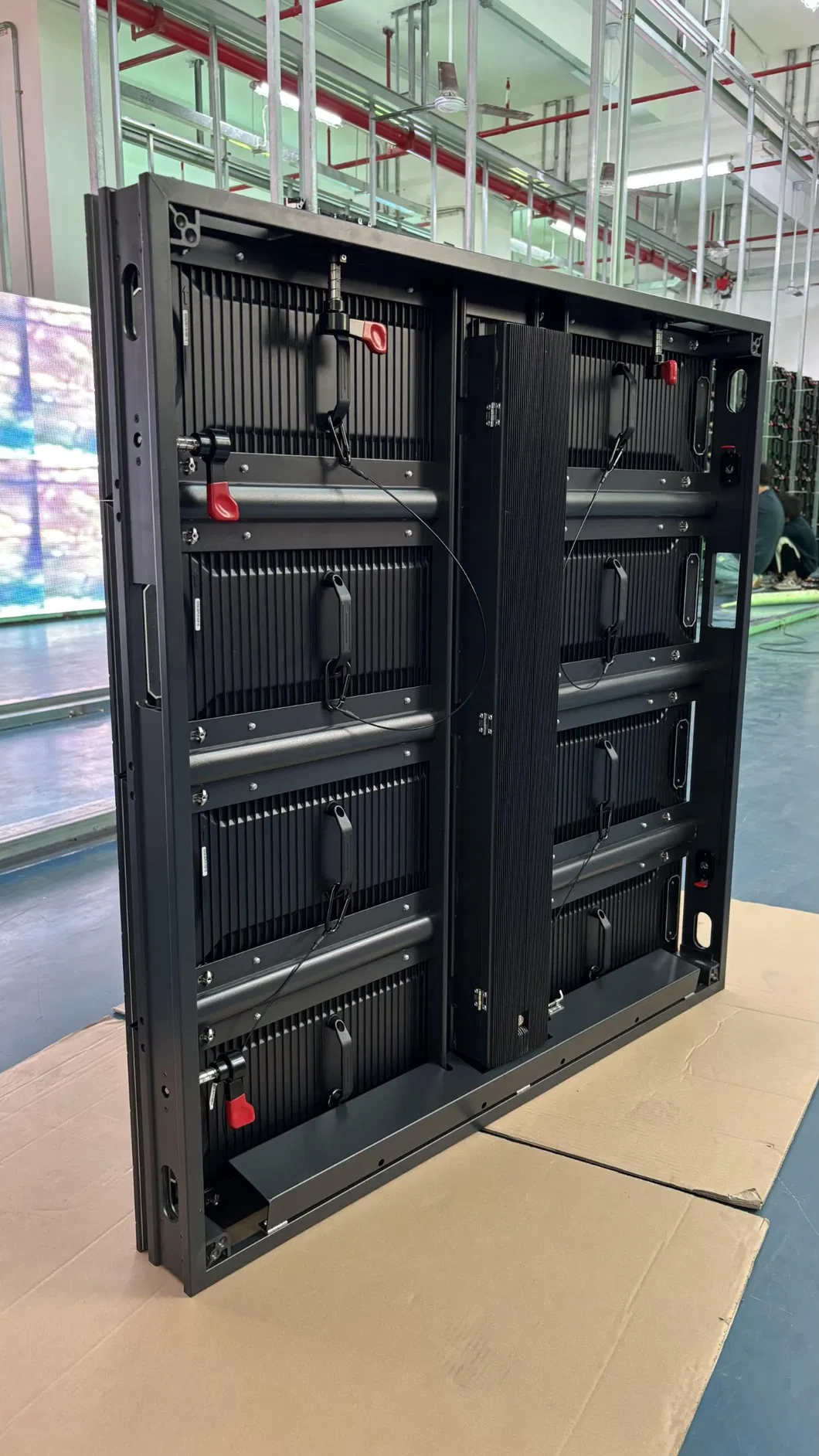

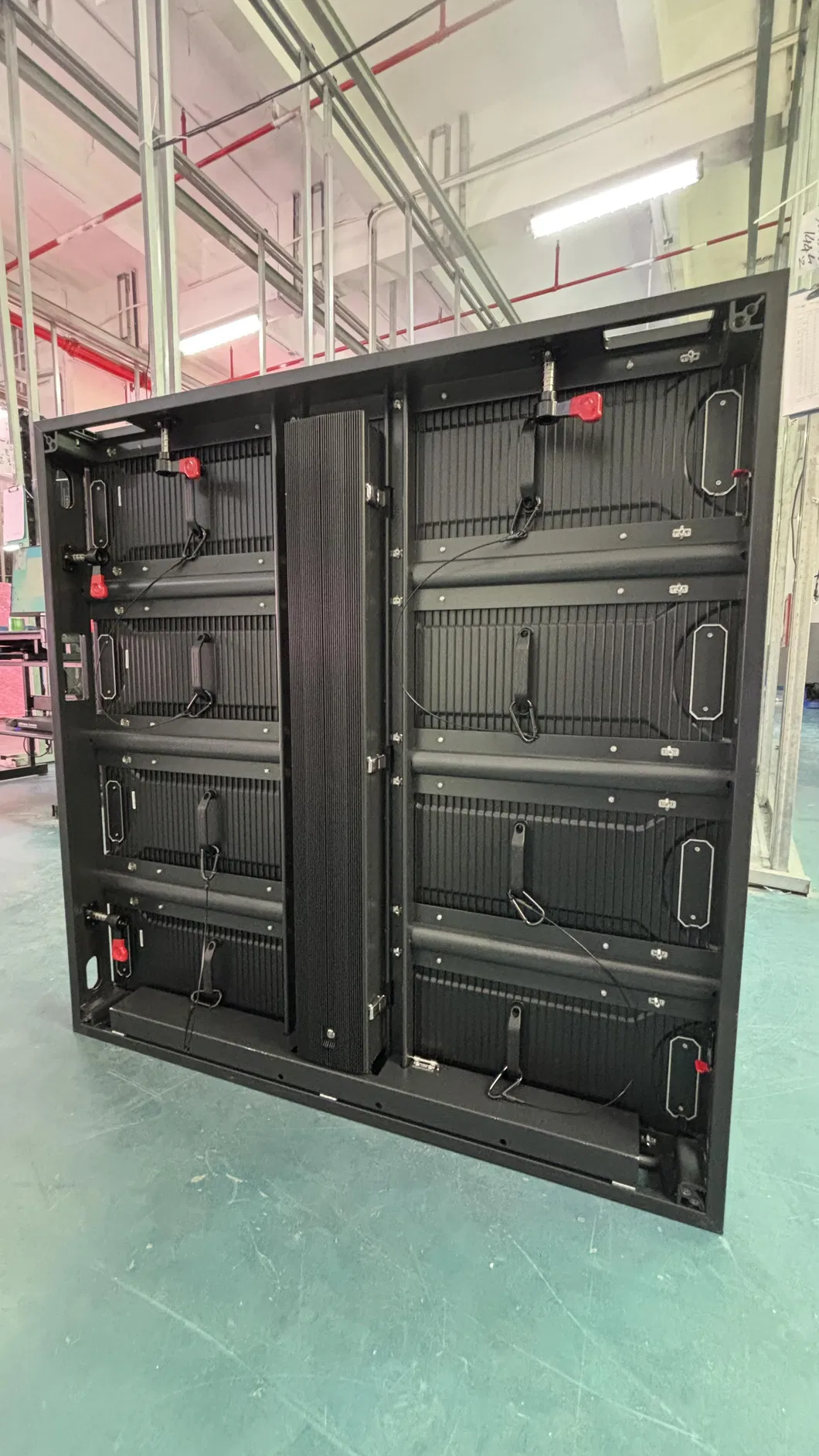

Product Showcase
⚙

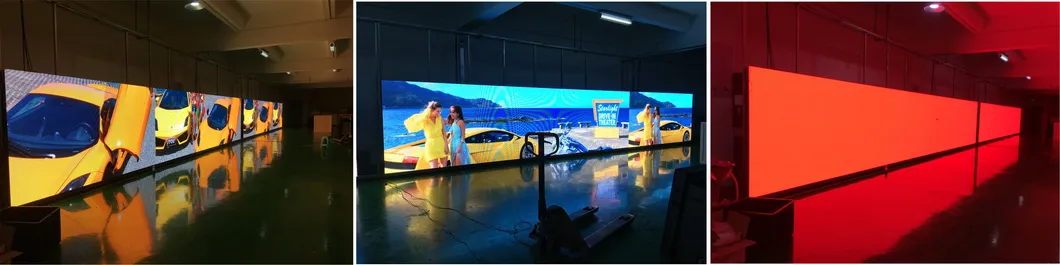

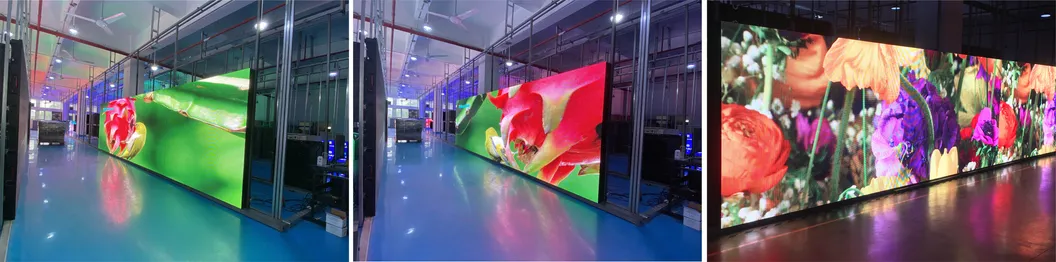

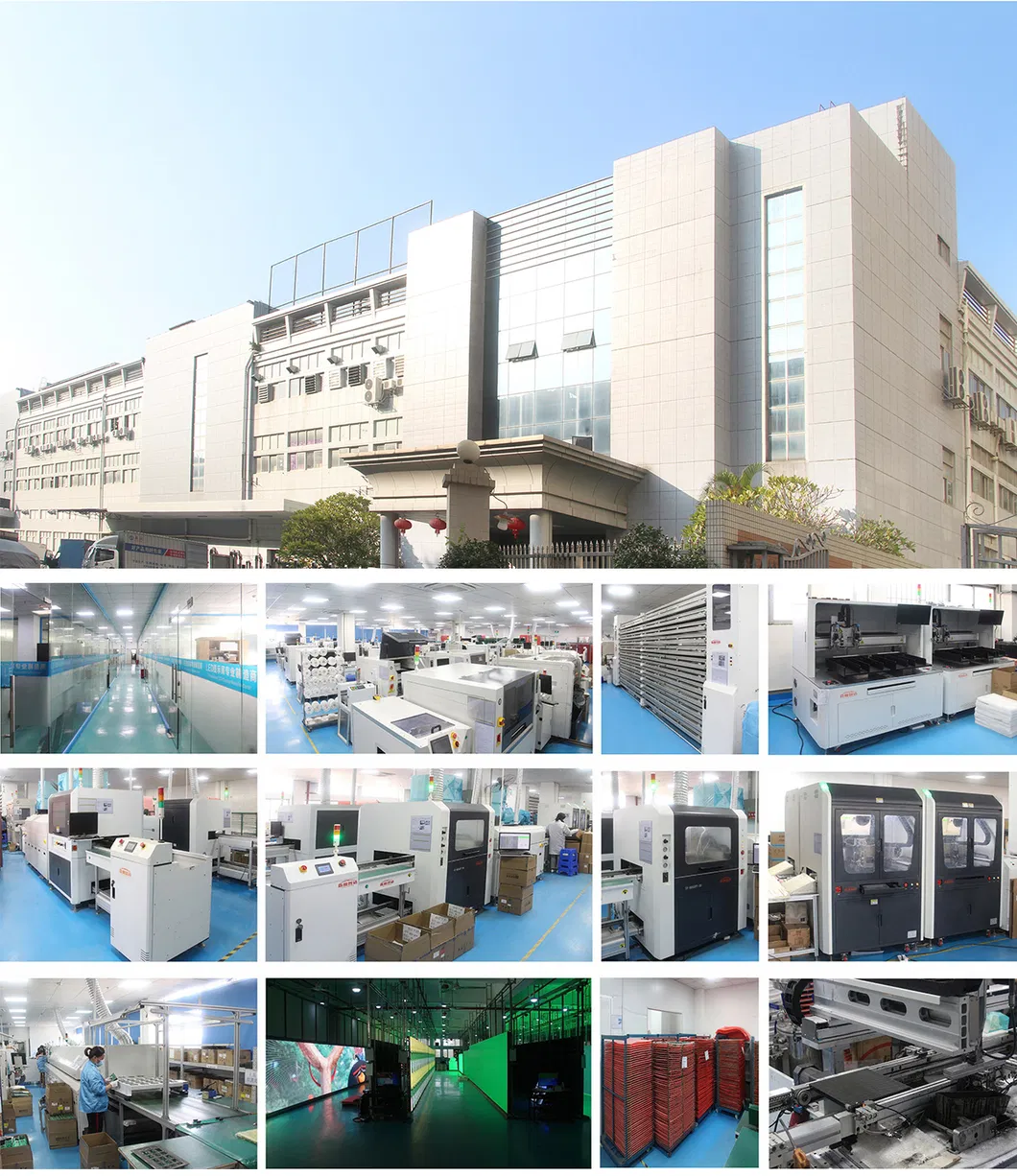

Aging Test & Factory
✈

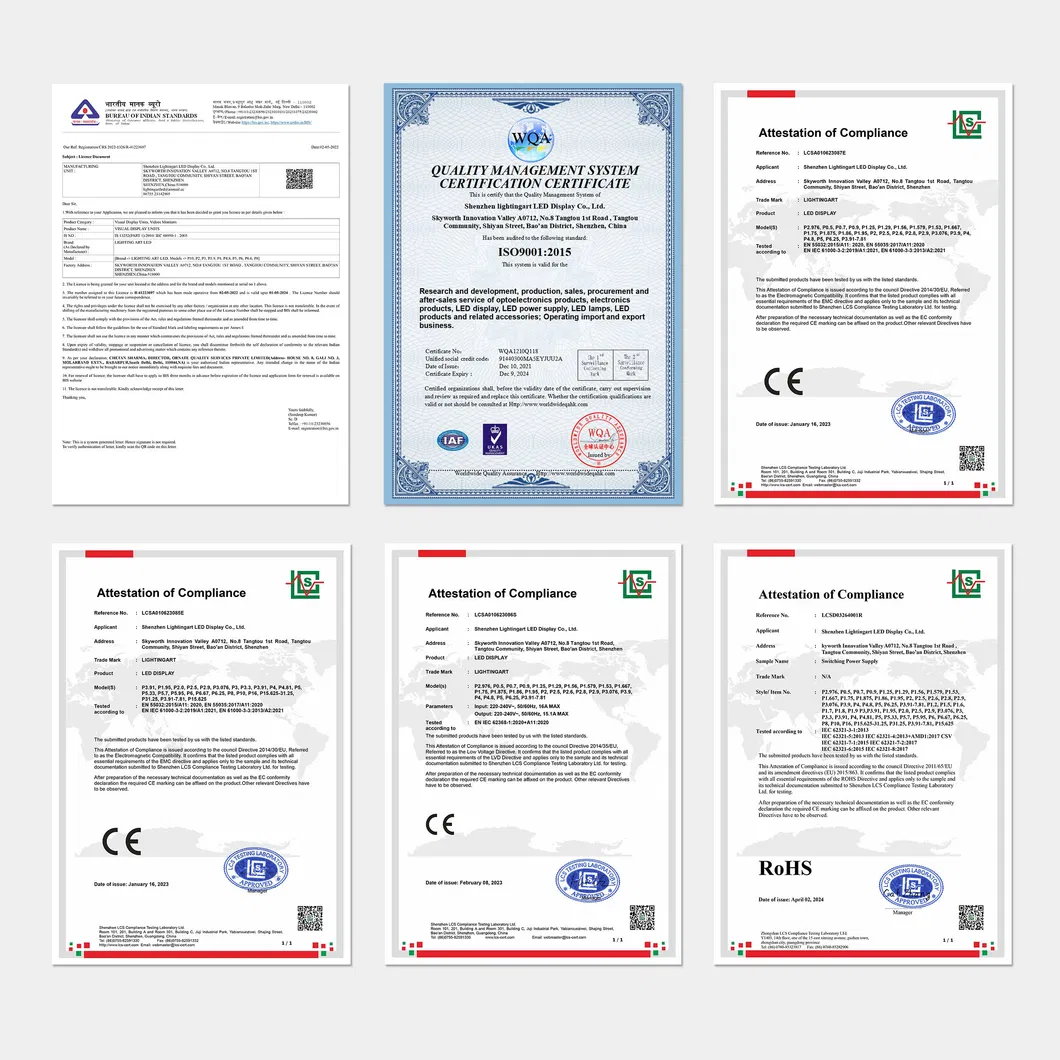

Logistics & Certifications
• Production Time: Approx 25 days for 0-500 m² (including aging test).
• Payment: T/T, 30% advance, 70% before shipping.
• Trade Terms: EXW, FOB, CIF, DDU, DDP.
• Packaging: Plywood case or flight case options.
?
Frequently Asked Questions
1. What is the maximum brightness of this outdoor LED screen?
The high-configuration type can reach up to 10,000 nits, ensuring clear visibility even under direct sunlight.
2. Does the screen support front maintenance?
Yes, it supports both front and back maintenance, which makes it very flexible for different installation environments and saves on labor costs.
3. What is the waterproof rating for outdoor use?
The display features an IP65 or IP67 protection level, making it fully suitable for permanent outdoor fixed installations.
4. What is the standard production time for an order?
For orders up to 500 m², the production time is typically around 25 days, which includes a rigorous factory aging test.
5. What kind of warranty and after-sales service do you provide?
We offer a 2 to 5-year warranty depending on the specific product, along with 24-hour free online technical support for life.
6. Can the cabinet size and color be customized?
Yes, the standard sizes are 960x960mm and 1000x1000mm, but we offer customized services for new designs, including frame color options like black or white.
