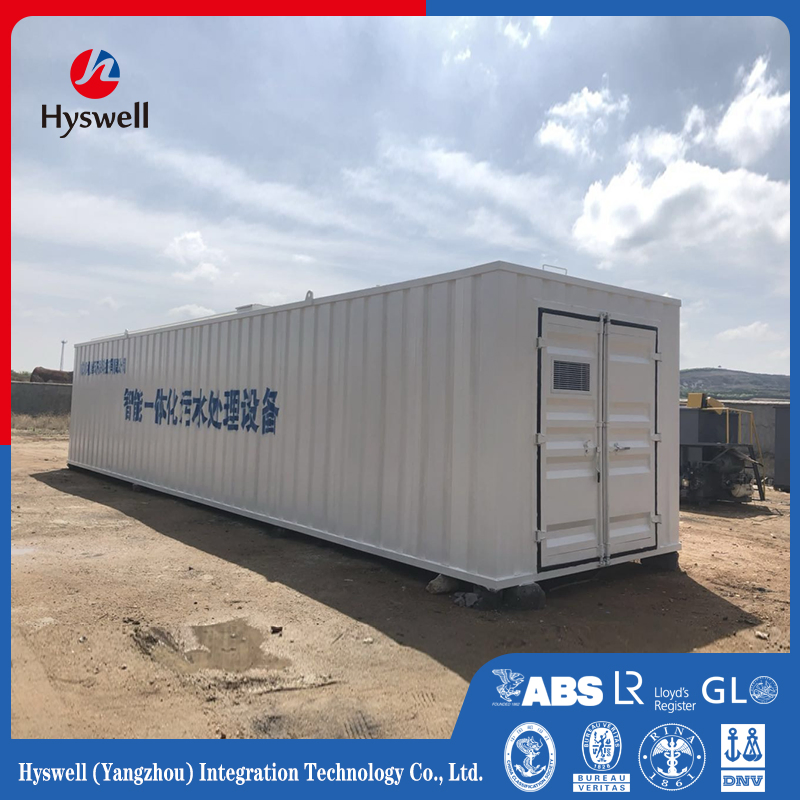

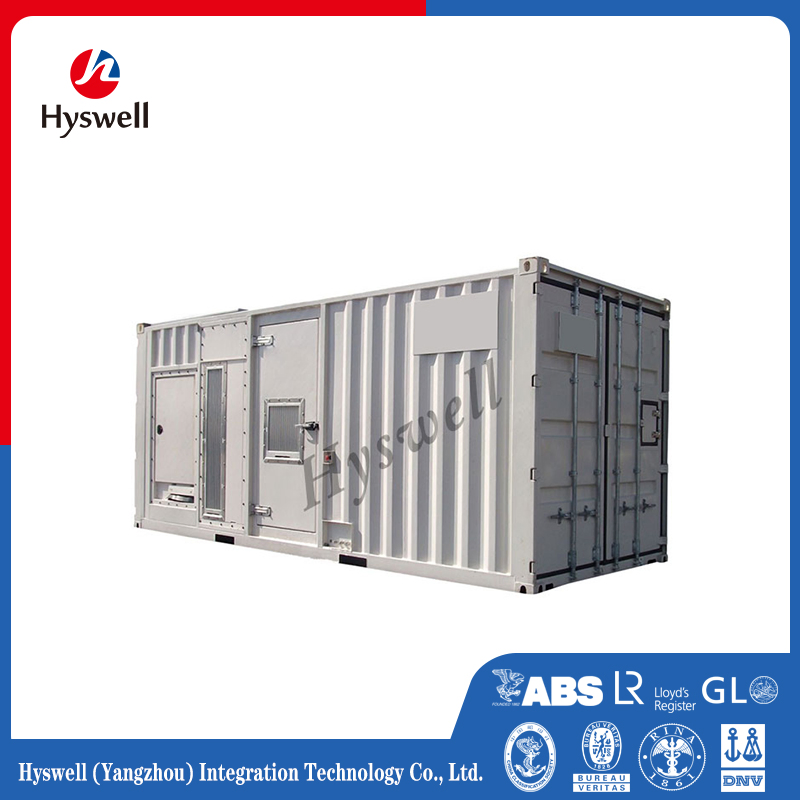

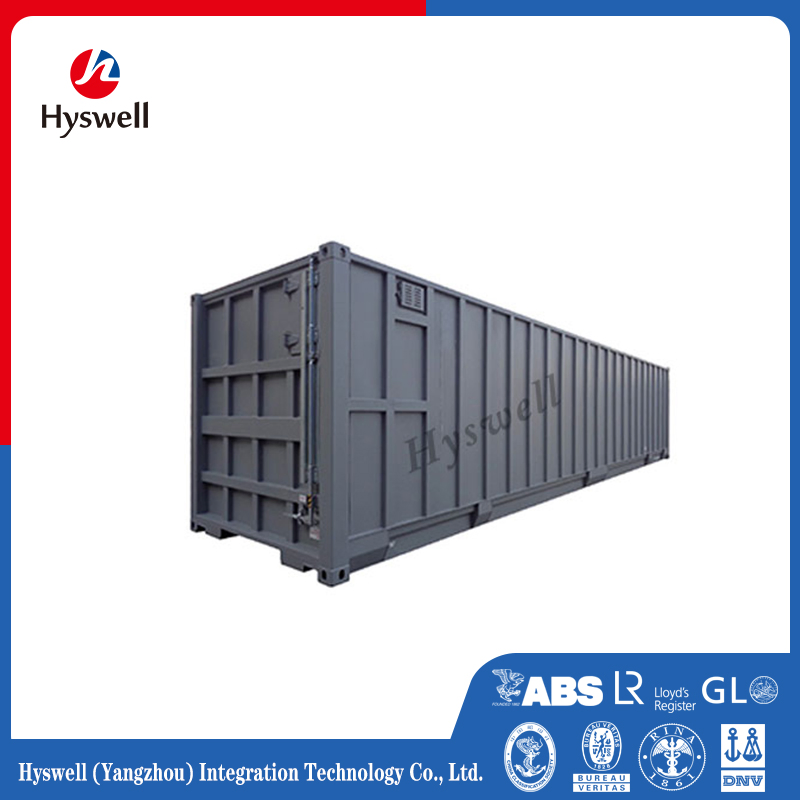

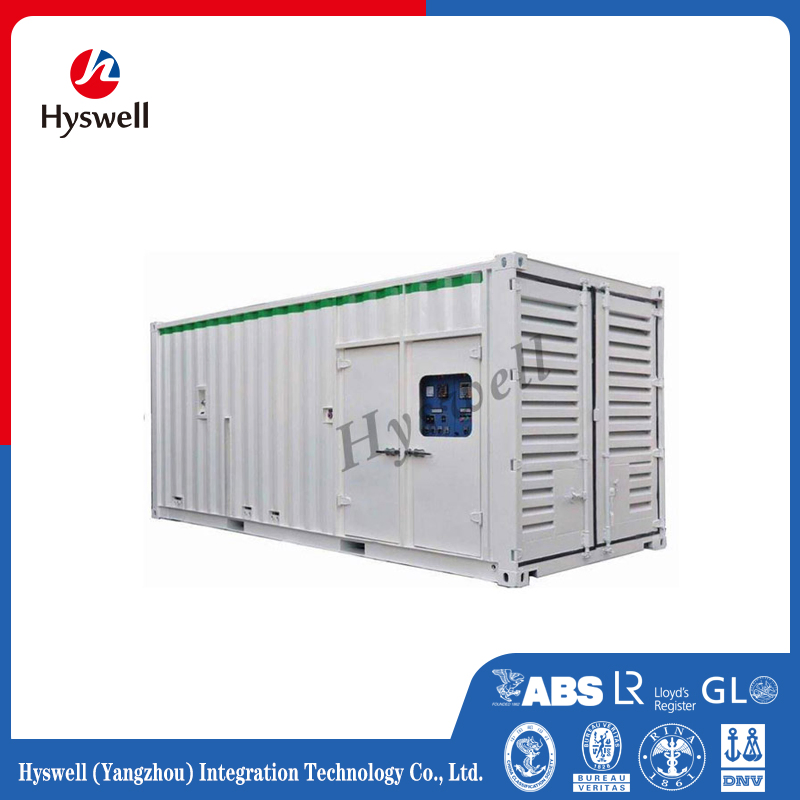

40feet Special Containers for Waste Water Treatment Systems
Product Description
⚙ Basic Specifications
Model NO.
20230709
Container Material
Steel
Door Type
Swing Doors
Insulation
Polyurethane Foam
Size
40 feet
Telematics
GPS Tracking
Temp Control
Liquid Nitrogen System
Temp Range
-40℃ to +30℃
Customization
Available
Type
Ventilated Container
Volume
12.01m * 2.33m * 2.15m
Structure
Steel Structure
Gross Weight
30.4t
Experience
>10 Years
Producing Period
20 Days
Life Span
25 Years
Warranty
1 Year
HS Code
86090090

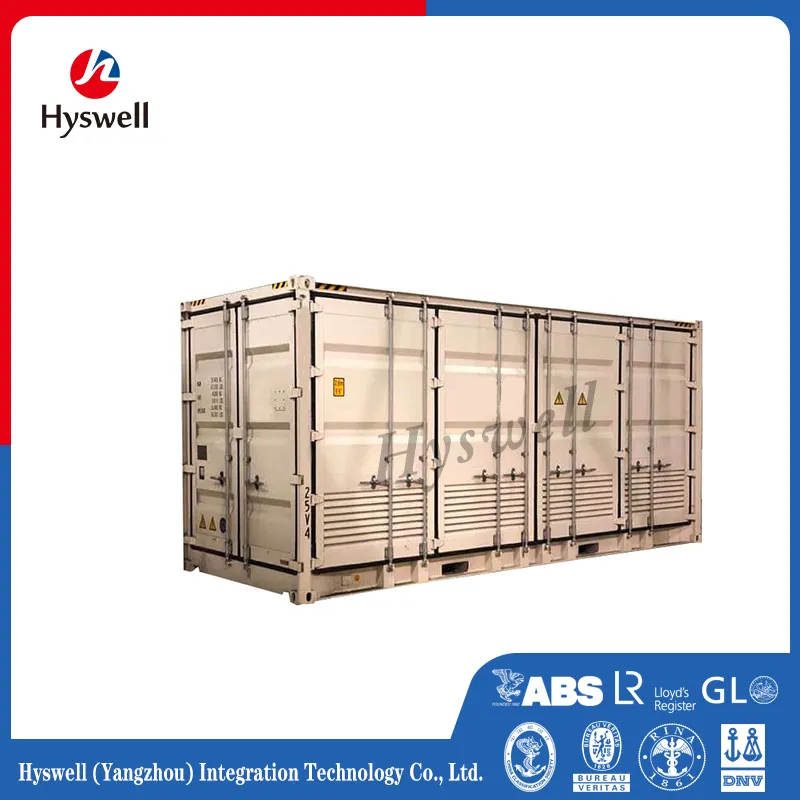

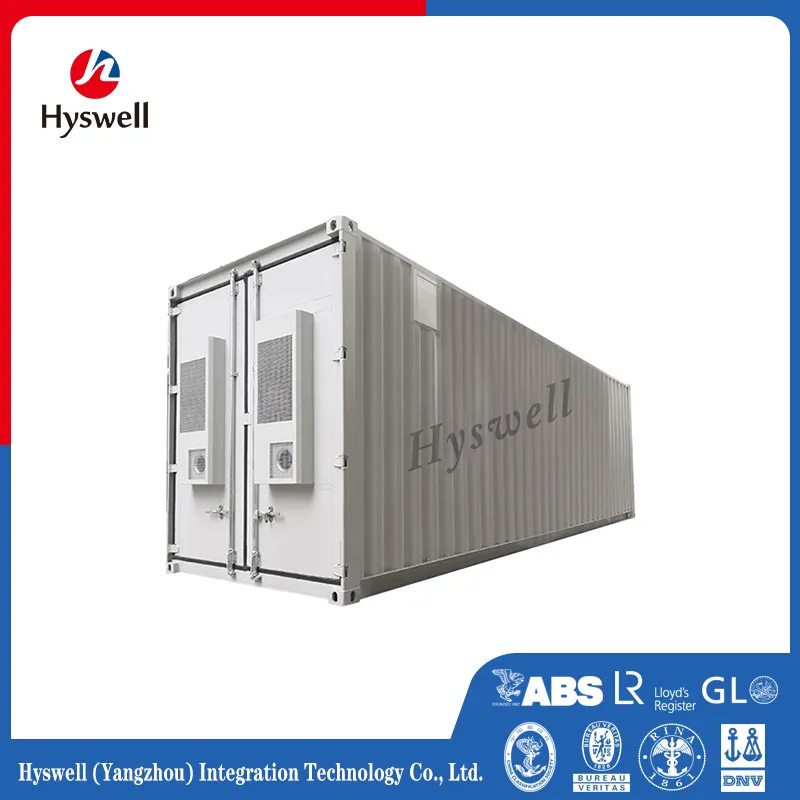

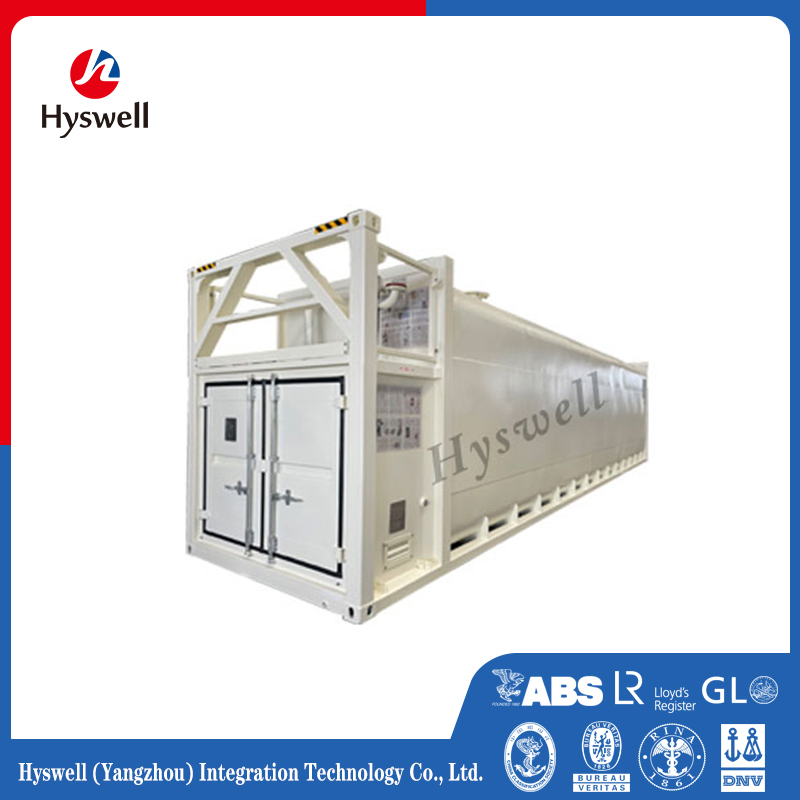

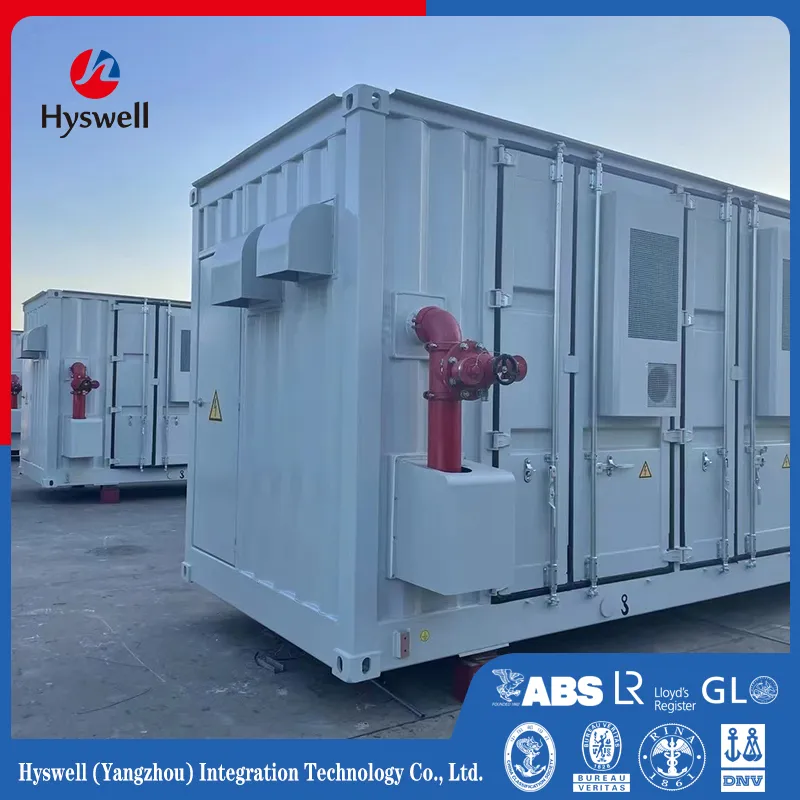

🖼 Product Visuals
📊 Technical Dimensions & Capacity
| No. | Type | External Dimensions (mm) | Internal Dimensions (mm) | Door Opening (mm) | Max Gross | Net Weight | Payload | Capacity | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Length | Width | Height | Width | Height | kg | kg | kg | Cu.m. | ||
| 1 | 10' | 2991 | 2438 | 2591 | 2840 | 2350 | 2392 | 2342 | 2280 | 10160 | 1250 | 8910 | 16 |
| 2 | 10'HC | 2991 | 2438 | 2896 | 2840 | 2350 | 2697 | 2342 | 2585 | 6810 | 1710 | 5100 | 18 |
| 3 | 20'GP | 6058 | 2438 | 2591 | 5898 | 2350 | 2392 | 2342 | 2280 | 30480 | 2050 | 28430 | 33.2 |
| 4 | 20'HC | 6058 | 2438 | 2591 | 5898 | 2350 | 2697 | 2342 | 2585 | 30480 | 2100 | 28380 | 37.4 |
| 5 | 40'GP | 12192 | 2438 | 2591 | 12032 | 2350 | 2392 | 2342 | 2280 | 30480 | 3340 | 27140 | 67.7 |
| 6 | 40'HC | 12192 | 2438 | 2896 | 12032 | 2350 | 2697 | 2342 | 2585 | 30480 | 3520 | 26960 | 76.4 |
| 7 | 20'OS | 6058 | 2438 | 2591 | 5898 | 2287 | 2302 | 5846 | 2188 | 30480 | 3110 | 27370 | 31 |
| 8 | 20'OSHC | 6058 | 2438 | 2896 | 5898 | 2224 | 2607 | 5846 | 2494 | 30480 | 3400 | 27080 | 34.2 |
| 9 | 40'OSHC | 12192 | 2438 | 2896 | 12032 | 2287 | 2401 | 5702*2 | 2241 | 30480 | 6800 | 23680 | 66.1 |
❓ Frequently Asked Questions
What is the temperature range for these special containers?
The containers support a wide temperature range from -40℃ to +30℃, controlled by a high-efficiency Liquid Nitrogen System.
Are custom dimensions available for specific projects?
Yes, customized dimensions are available to meet the specific requirements of your waste water treatment or logistics systems.
What is the expected lifespan and warranty?
These containers are built with a durable steel structure designed for a 25-year life span. We provide a 1-year warranty and 1-year after-sales service.
How long is the production period for an order?
The standard producing period is approximately 20 days, depending on the order volume and customization requirements.
Does the container include a tracking system?
Yes, each unit is equipped with a Telematics System featuring GPS Tracking for real-time monitoring.
What materials are used for insulation?
We use high-quality Polyurethane Foam to ensure superior thermal insulation and energy efficiency.
