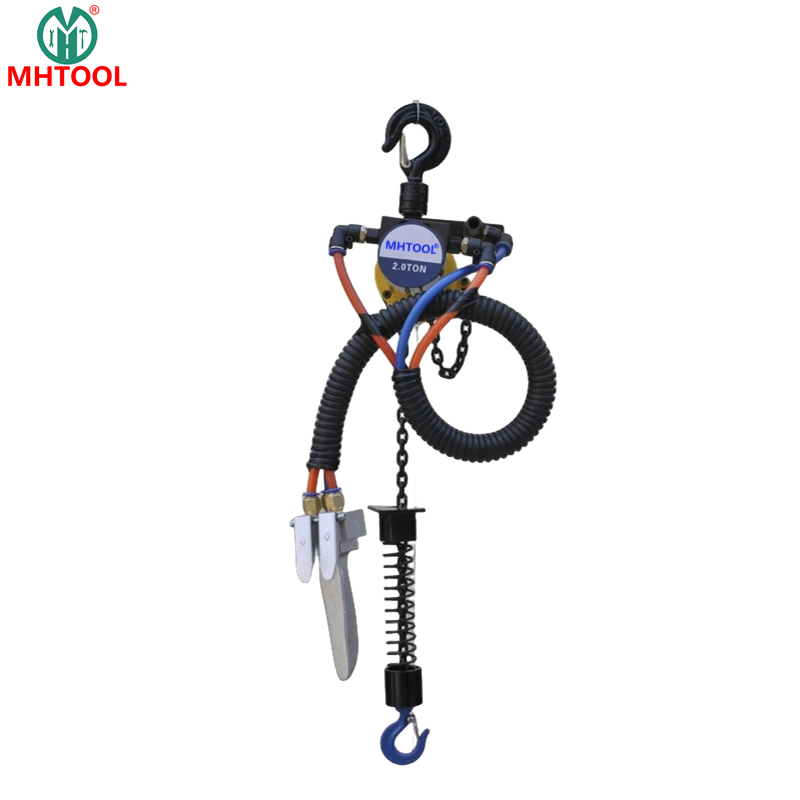

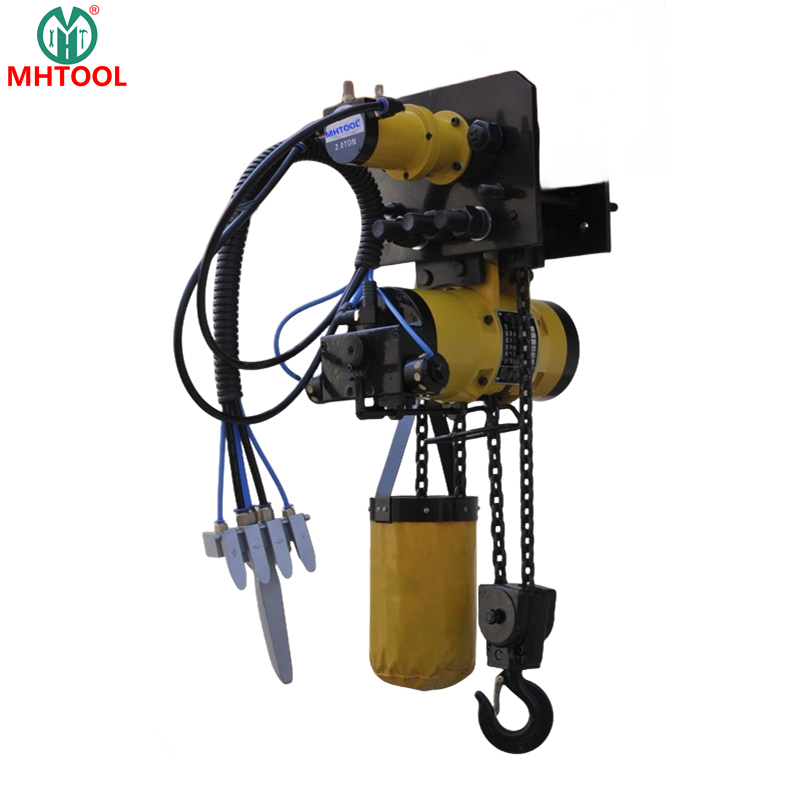

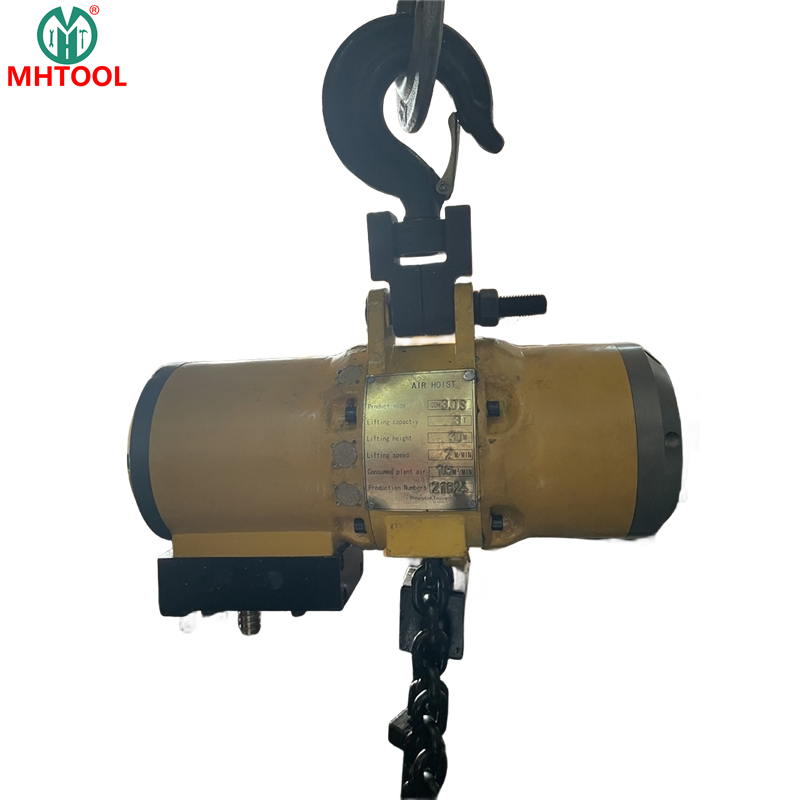

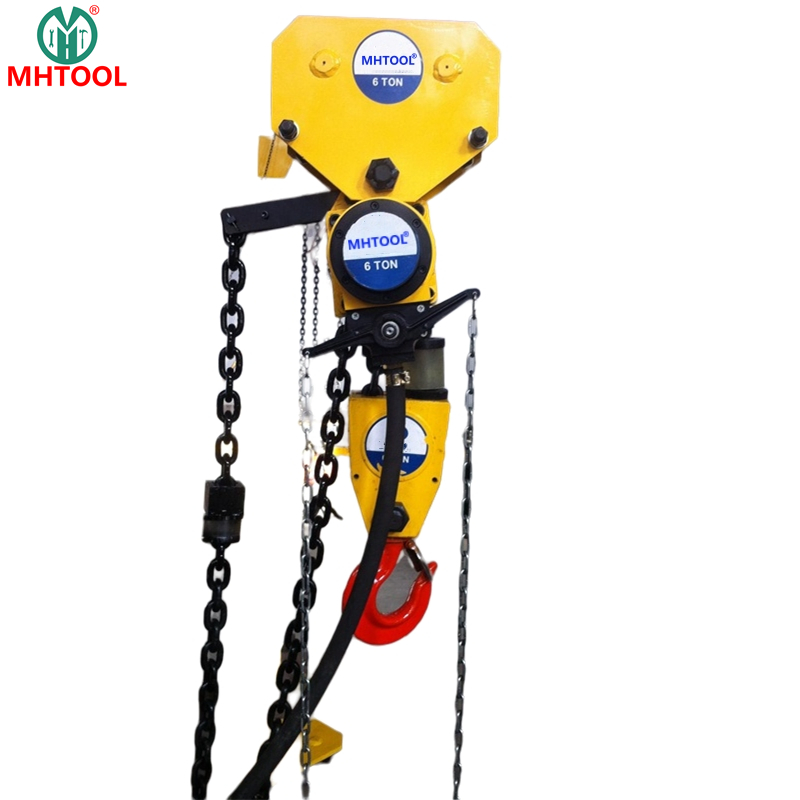

50ton Hook Suspended Pneumatic Air Chain Hoist for Complex and Dangerous Environment.
Product Description
Basic Specifications
Model NO.
QDH50.0-4D
Type
Pneumatic Air Hoist
Sling Type
Chain
Lift Speed
2~8m/min
Max Lifting Height
>20m
Chain Falls
2
Certification
CE, ISO9001:2000
Condition
New
Color
Yellow
HS Code
8425110000
Origin
China
Capacity
4000sets/Year

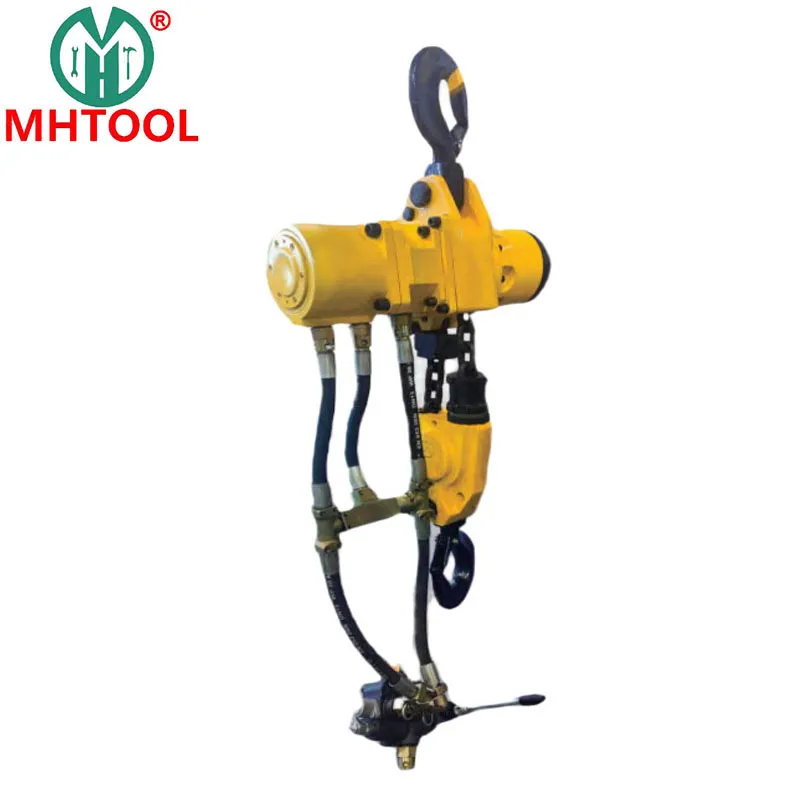

Hydraulic Hoist Overview
The hydraulic hoist is applicable to special working places such as marine vessels, oil mining platforms and coal mines. It features stable transmission, strong bearing capacity, and automatic lubrication to extend the service life of components. It meets special requirements for stepless speed change and low noise operation.
Technical Parameters (HYD Series)
| Model Items | HYD3 | HYD6 | HYD10 | HYD16 | HYD20 | HYD25 | HYD37 | HYD50 |
|---|---|---|---|---|---|---|---|---|
| Capacity (Ton) | 3 | 6 | 10 | 16 | 20 | 25 | 37 | 50 |
| Ascending Speed (m/min) | 4 | 2 | 1.7 | 1.1 | 0.8 | 1.1 | 0.7 | 0.5 |
| Descending Speed (m/min) | 4.5 | 2.3 | 2.1 | 1.5 | 1 | 1.2 | 0.8 | 0.5 |
| Rated Air Pressure (Mpa) | 13 | 13 | 13 | 13 | 13 | 15 | 15 | 15 |
| Air Consumption (L/min) | 48 | 48 | 48 | 48 | 48 | 80 | 80 | 80 |
| Motor Power (kW) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 6 | 6 | 6 |

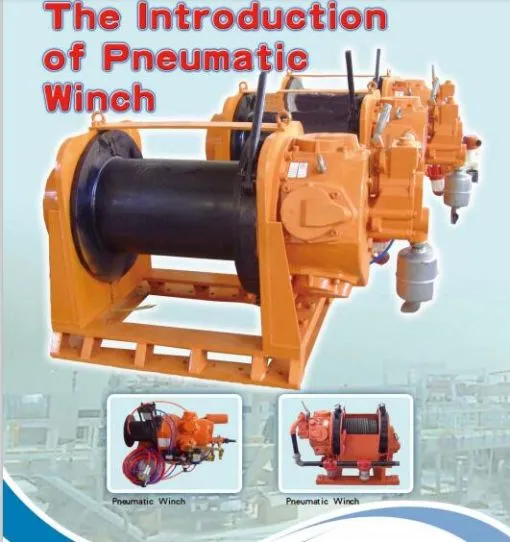

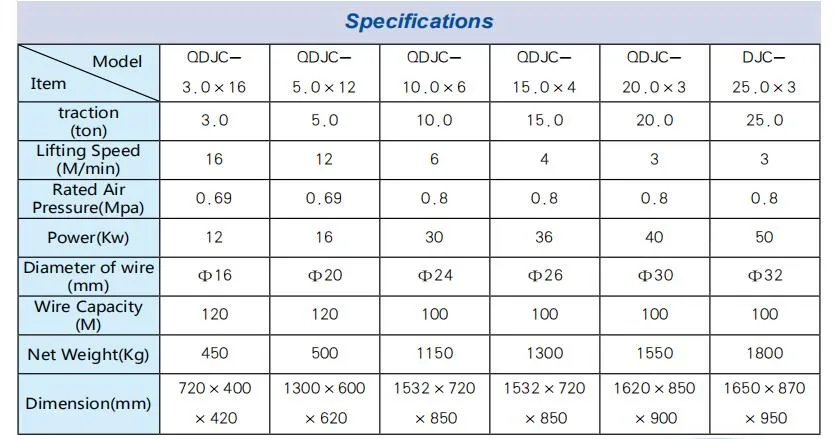

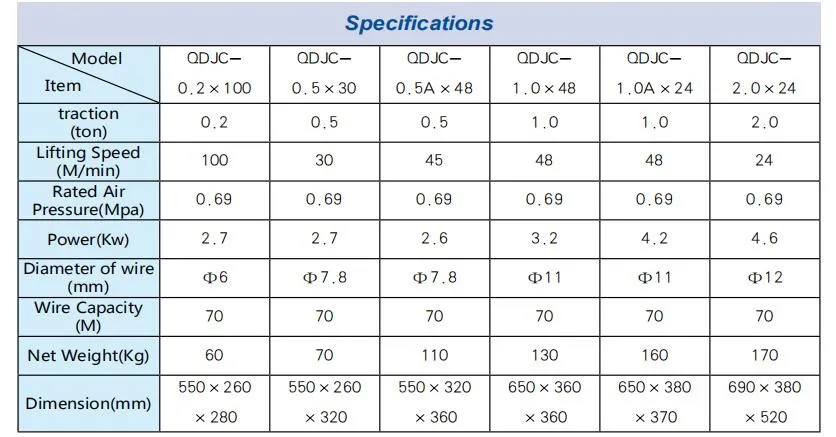

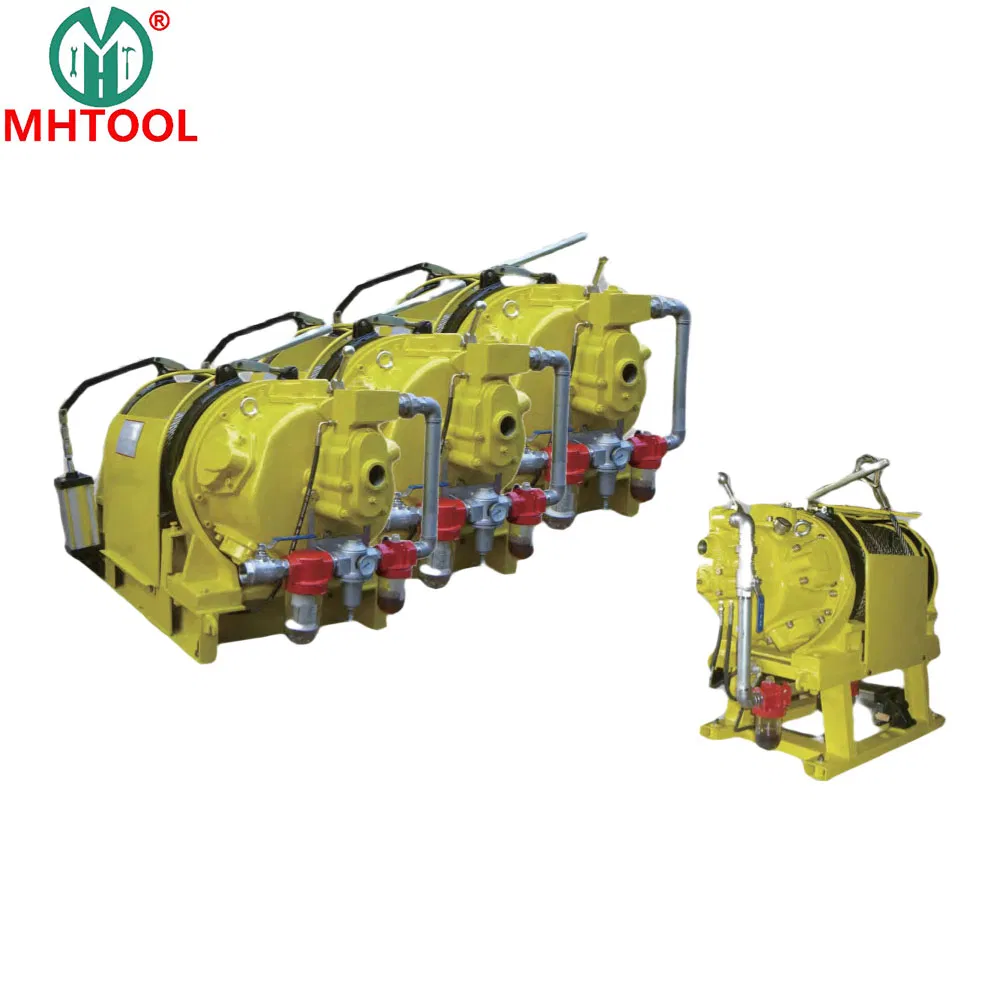

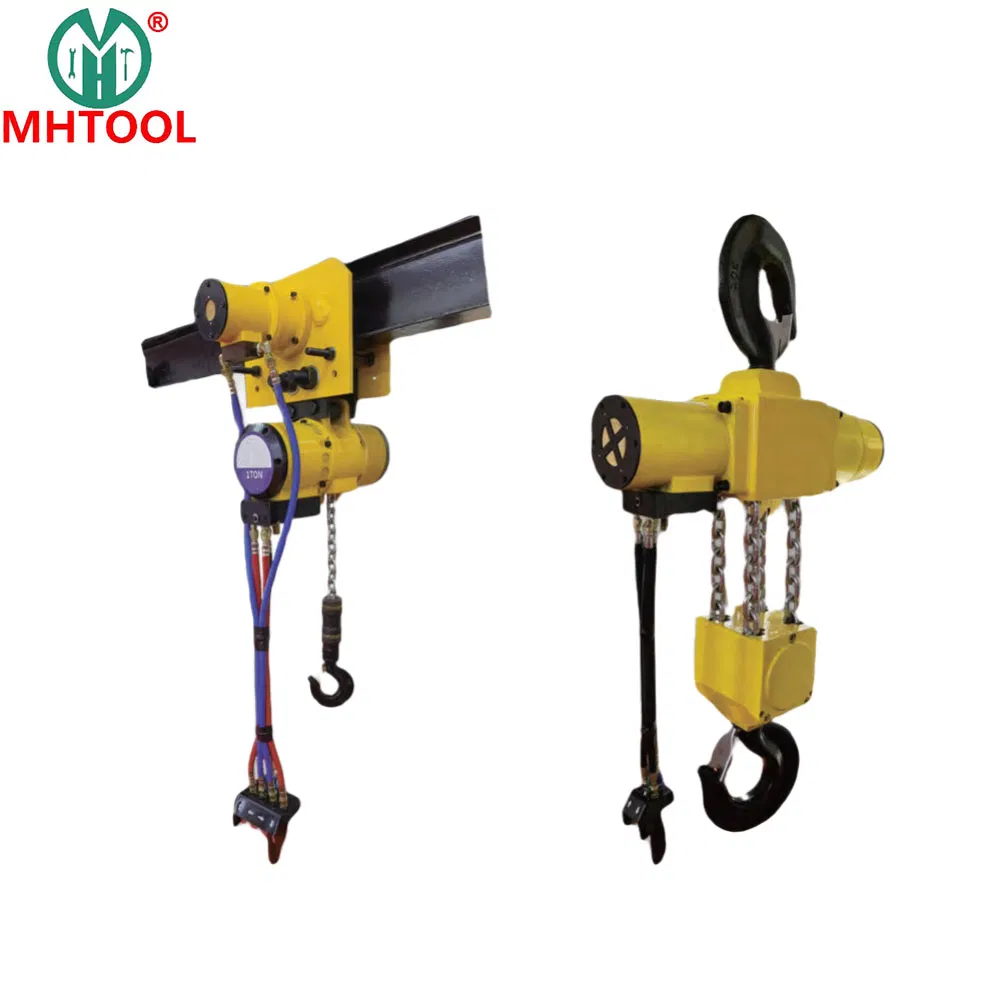

Pneumatic Air Chain Hoist & Winch
Applications:
Coal industry, Foundry industry, Chemical Industry, Pharmaceutical Industry, Nuclear power industry, Metallurgical industry, Appliance industry paint shop, Automotive, Machining, Textile Industry.
Key Advantages
- Suitable for complex and dangerous environments.
- Ideal for small work spaces.
- Fewer parts, minimal maintenance, and long service life.
- Lightweight design for easy operation.

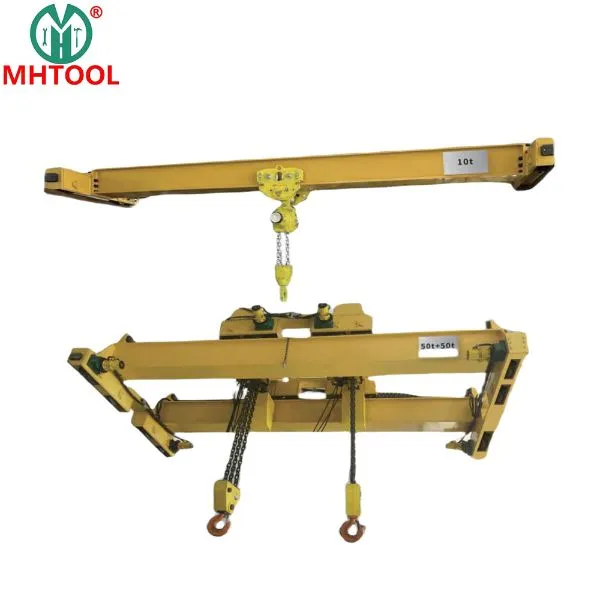

Pneumatic Traveling Crane Systems
| Technical Parameters of Single-beam Traveling Crane | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity (t) | 0.1 | 0.2 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | 6 | 8 | 10 |
| Hook Up (m/min) | 6 | 3 | 5.4 | 4 | 3.3 | 2 | 1.5 | 1.4 | 0.75 | 0.7 | 0.4 | 0.4 |
| Hook Down (m/min) | 8 | 4 | 10 | 7 | 6 | 3.5 | 3 | 3 | 1.5 | 1.4 | 1 | 1 |
| Trolley (m/min) | 10-13 | 10-13 | 8-10 | |||||||||
| Technical Parameters of Double-beam Traveling Crane | ||||
|---|---|---|---|---|
| Capacity (t) | 6+6 (12t) | 10+10 (20t) | 25+25 (50t) | 30+30 (60t) |
| Hook Up (m/min) | 1 | 0.8 | 0.5 | 0.36 |
| Hook Down (m/min) | 1.3 | 1.25 | 1 | 0.41 |
| Trolley (m/min) | 8 | 3 | 2.8 | 2.5 |
| Crane (m/min) | 10 | 8 | 6.5 | 6 |

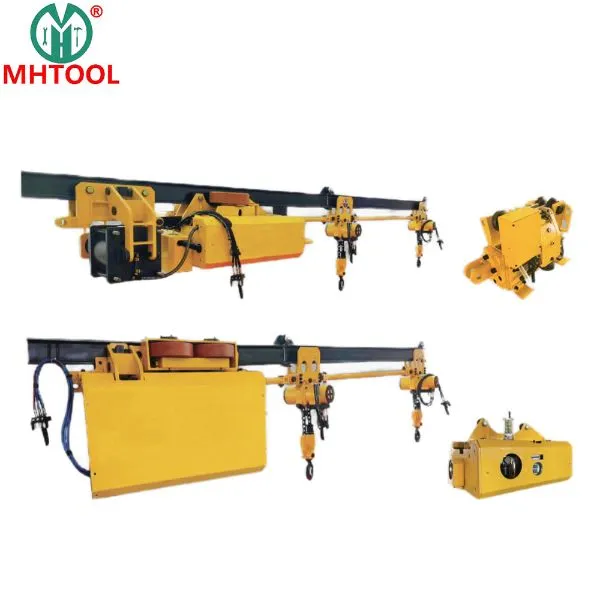

Pneumatic Monorail Crane
| Model | DQ25 | DQ30 | DQ40 | DQ50 | DQ60 | DQ80 | DQ100 |
|---|---|---|---|---|---|---|---|
| Traction (kN) | ≥25 | ≥30 | ≥40 | ≥50 | ≥60 | ≥80 | ≥100 |
| Traveling Speed (m/min) | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Weight (kg) | 1000 | 1000 | 1100 | 1500 | 1500 | 3000 | 3000 |
Frequently Asked Questions
What industries are pneumatic air hoists best suited for?
They are ideal for high-risk environments including the coal, chemical, pharmaceutical, and metallurgical industries, as well as marine vessels and oil mining platforms.
Can these hoists operate in dangerous environments?
Yes, the pneumatic design is specifically engineered for complex and dangerous environments where electric sparks must be avoided.
What is the maximum lifting capacity available?
Our series ranges from small units to heavy-duty hydraulic and pneumatic systems capable of lifting up to 50-60 tons.
Do the hoists require frequent maintenance?
No, these hoists are designed with fewer parts and feature automatic lubrication, resulting in a small amount of maintenance and a long service life.
Is the lifting speed adjustable?
Yes, the hydraulic and pneumatic systems support stepless speed change for precise control during lifting and lowering operations.
What certifications do your lifting products hold?
Our products are manufactured to high standards and hold CE and ISO9001:2000 certifications.
