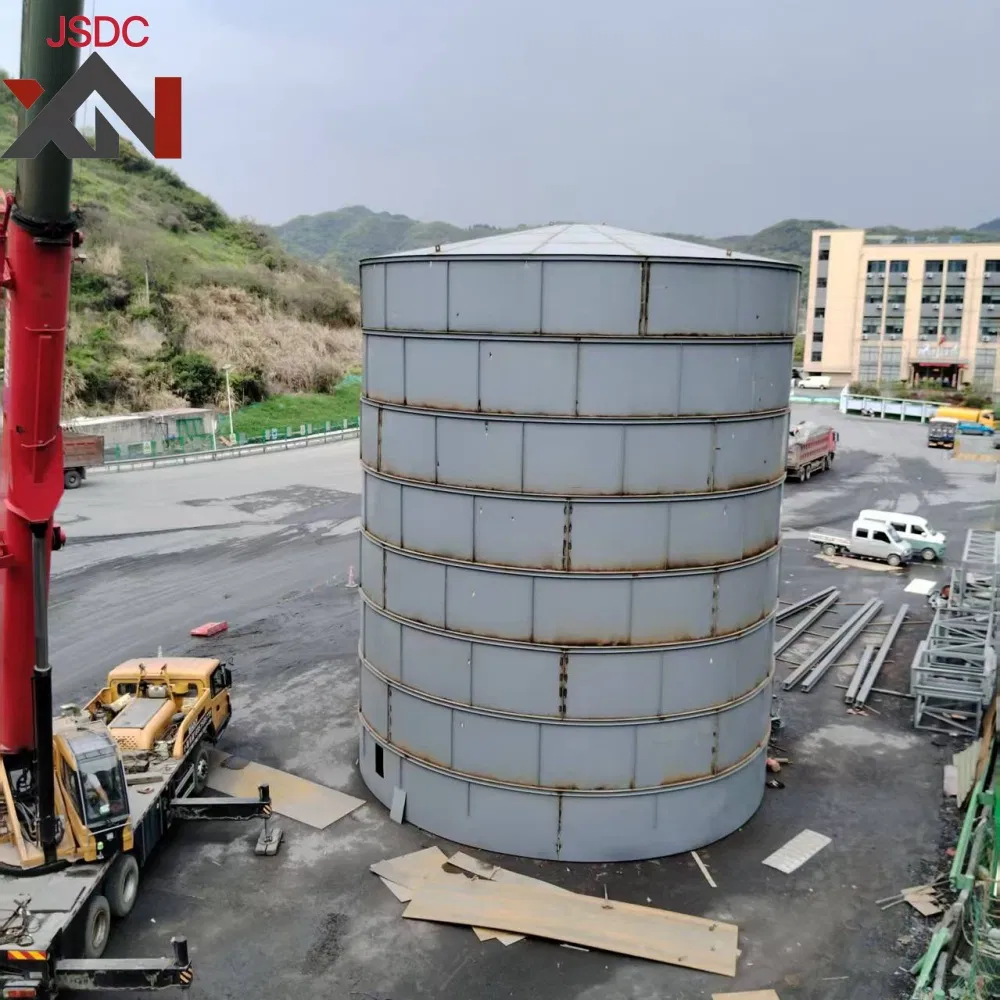

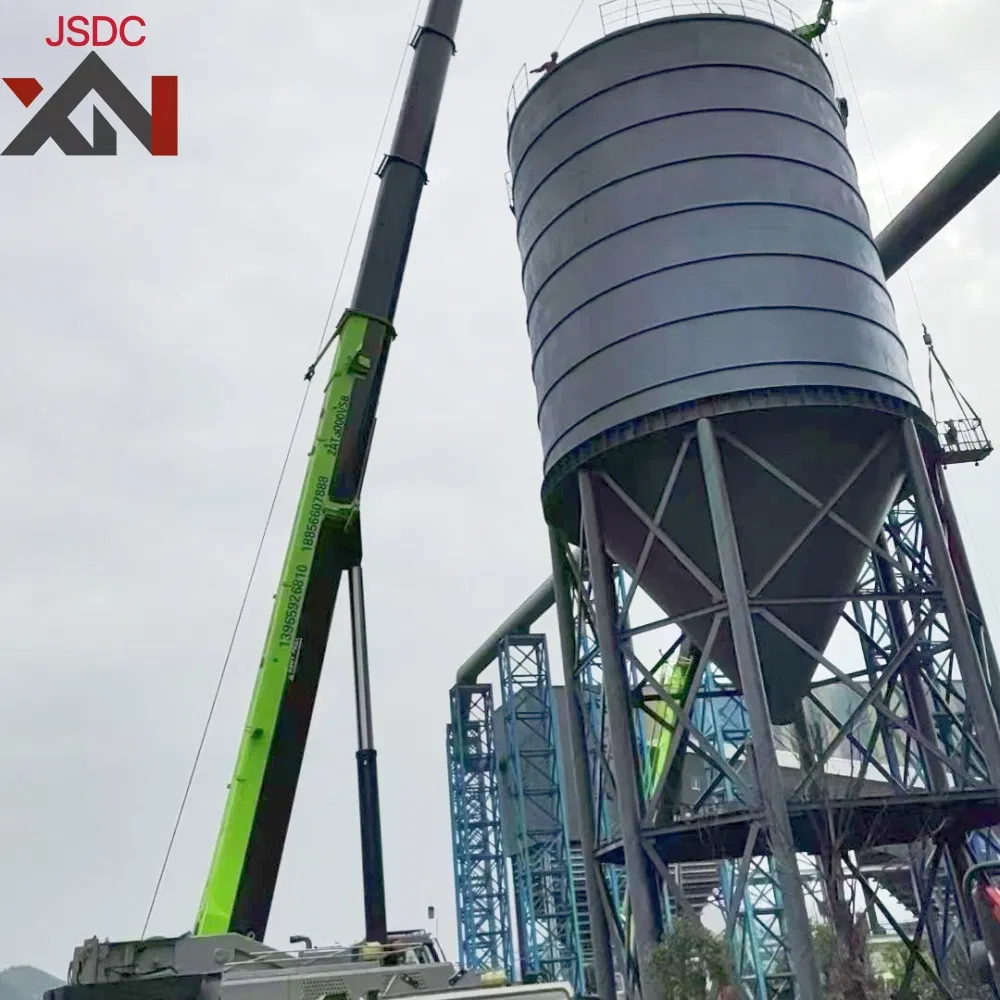

Automatic Material Silo Loading System
Product Description
Basic Specifications
Model NO.JSDCTCOD3-50m-0012
MaterialCarbon Steel (Q355b)
CertificationISO9001:2008, ISO9001:2000
Warranty2 Years
Lifespan25~40 Years
Bottom Type45 Degree Cone Bottom
ApplicationSand, Gravel, Coal, Cement
Capacity30CBM - 2000CBM
Silo Storage Transport System
The silo storage transport system is an integrated intelligent management platform designed for the storage and transportation of bulk materials such as grain, coal, and cement. It achieves efficient collaboration through IoT, automation control, and big data analysis technology.
1
Intelligent Management
Real-time monitoring of storage, temperature, and humidity with dynamic warning systems.
2
Automated Control
Integrated weighing and loading equipment to reduce manual intervention and improve efficiency.

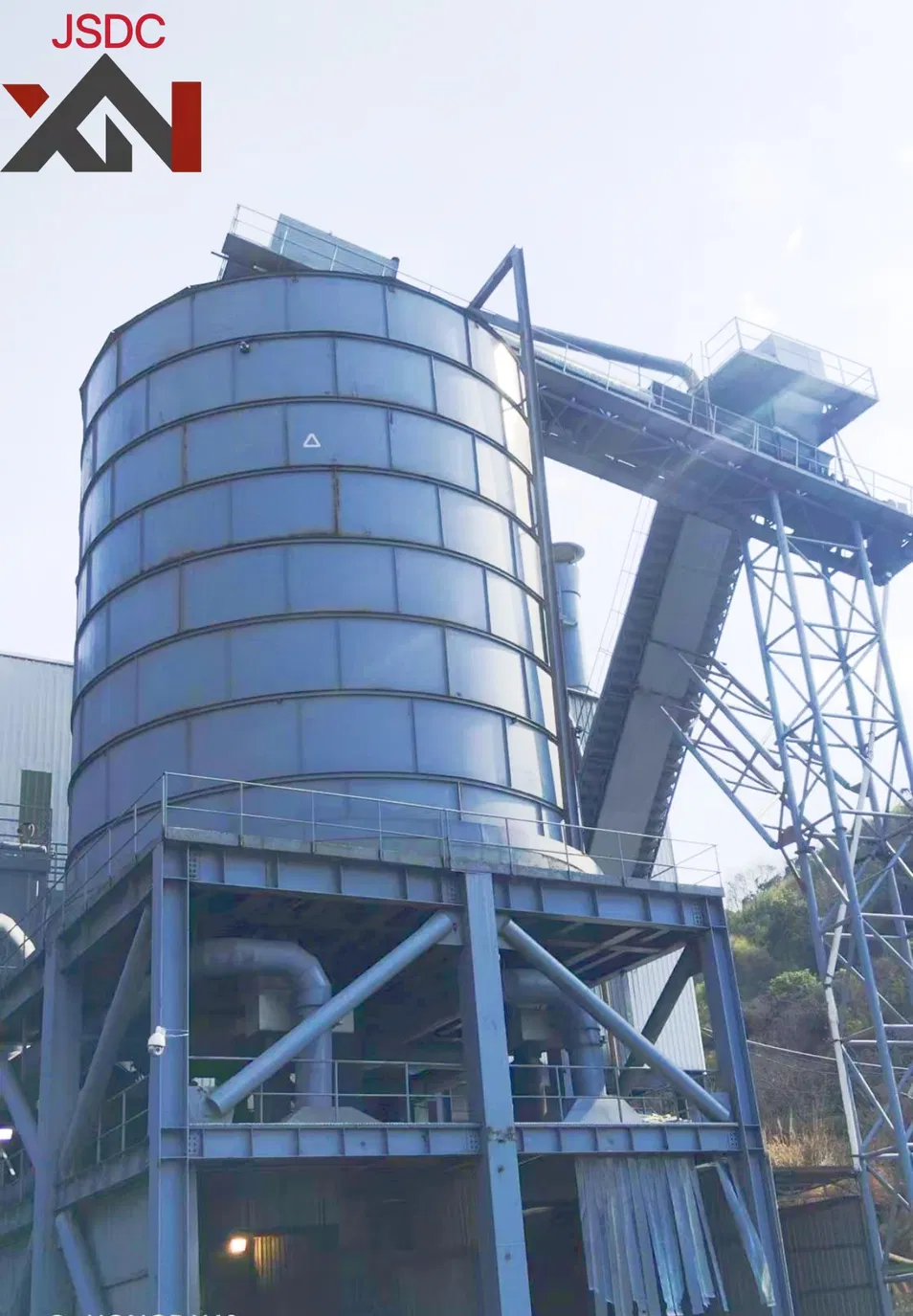

Industry Applications
Agriculture & Building Materials
Grain Storage: Sealed silos prevent moisture and insects for wheat, corn, and beans.
Cement & Sand: Large capacity silos (4-8 cubic meters) with sealed designs to prevent clumping.
Cement & Sand: Large capacity silos (4-8 cubic meters) with sealed designs to prevent clumping.

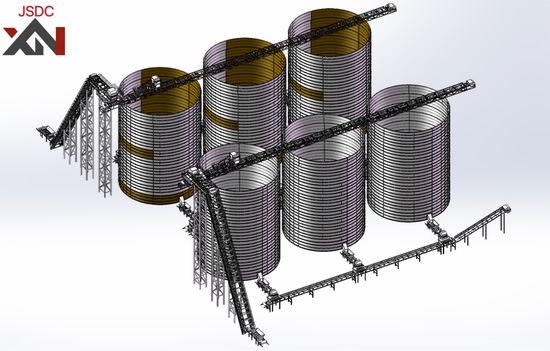

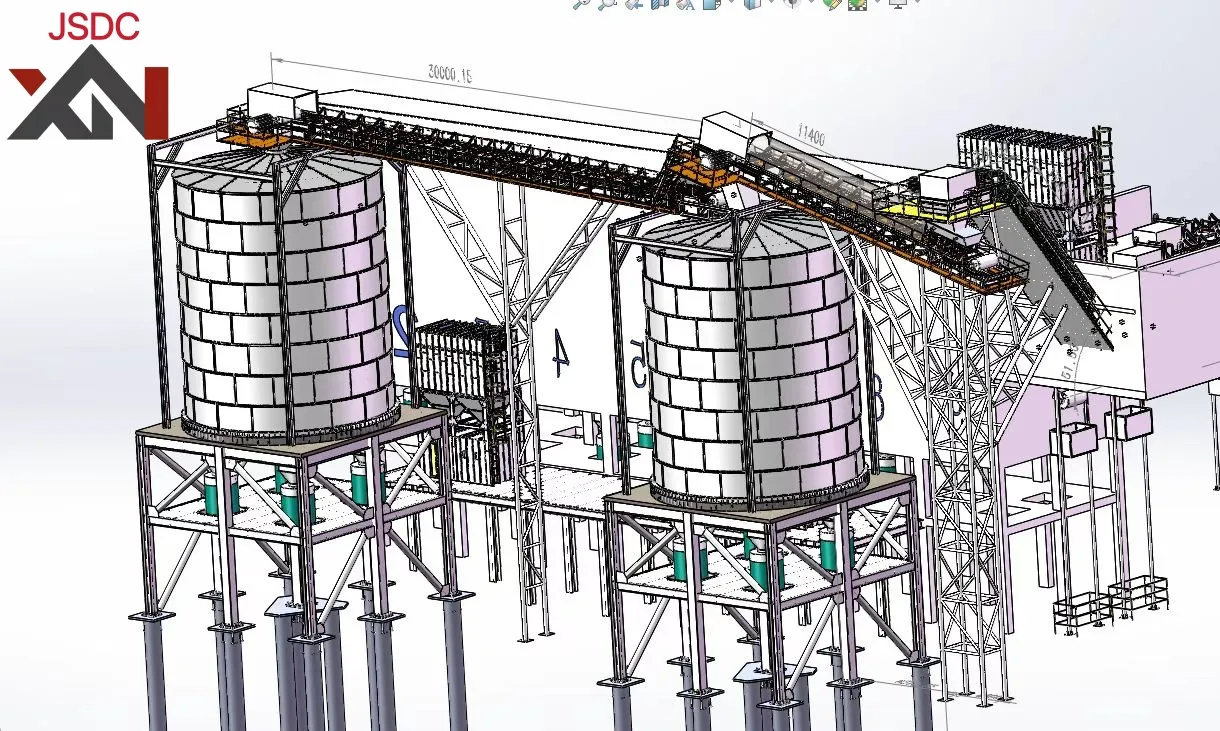

3D Dynamic Demonstration
Our technical team provides 3D dynamic models for realistic, interactive representations of complex structures, ensuring clarity and alignment for all stakeholders.
3D SYSTEM DEMONSTRATION VIDEO
Successful Projects

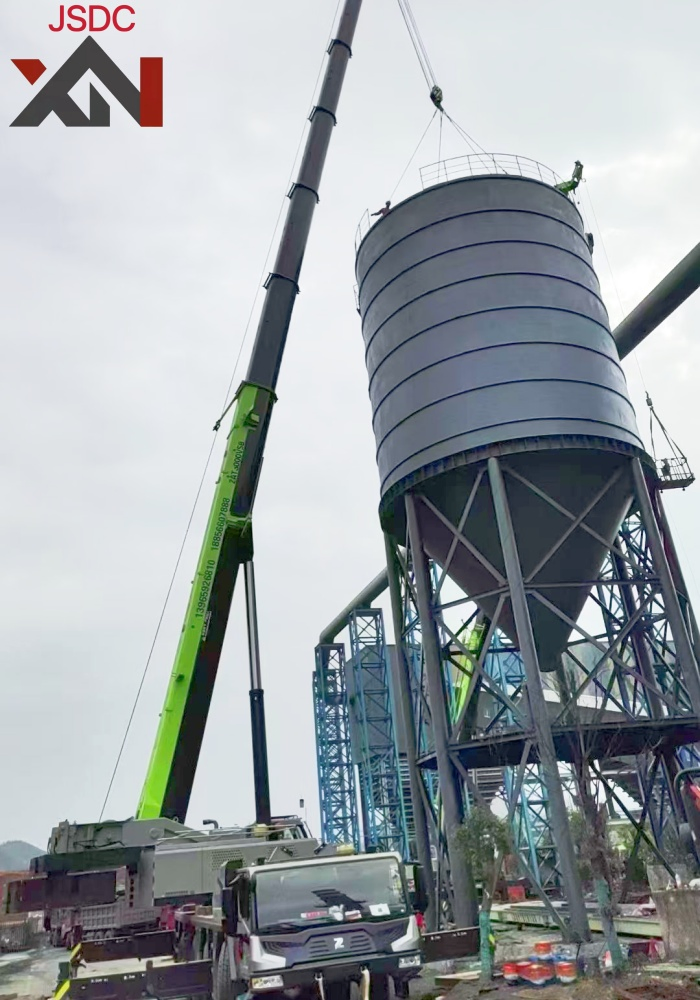

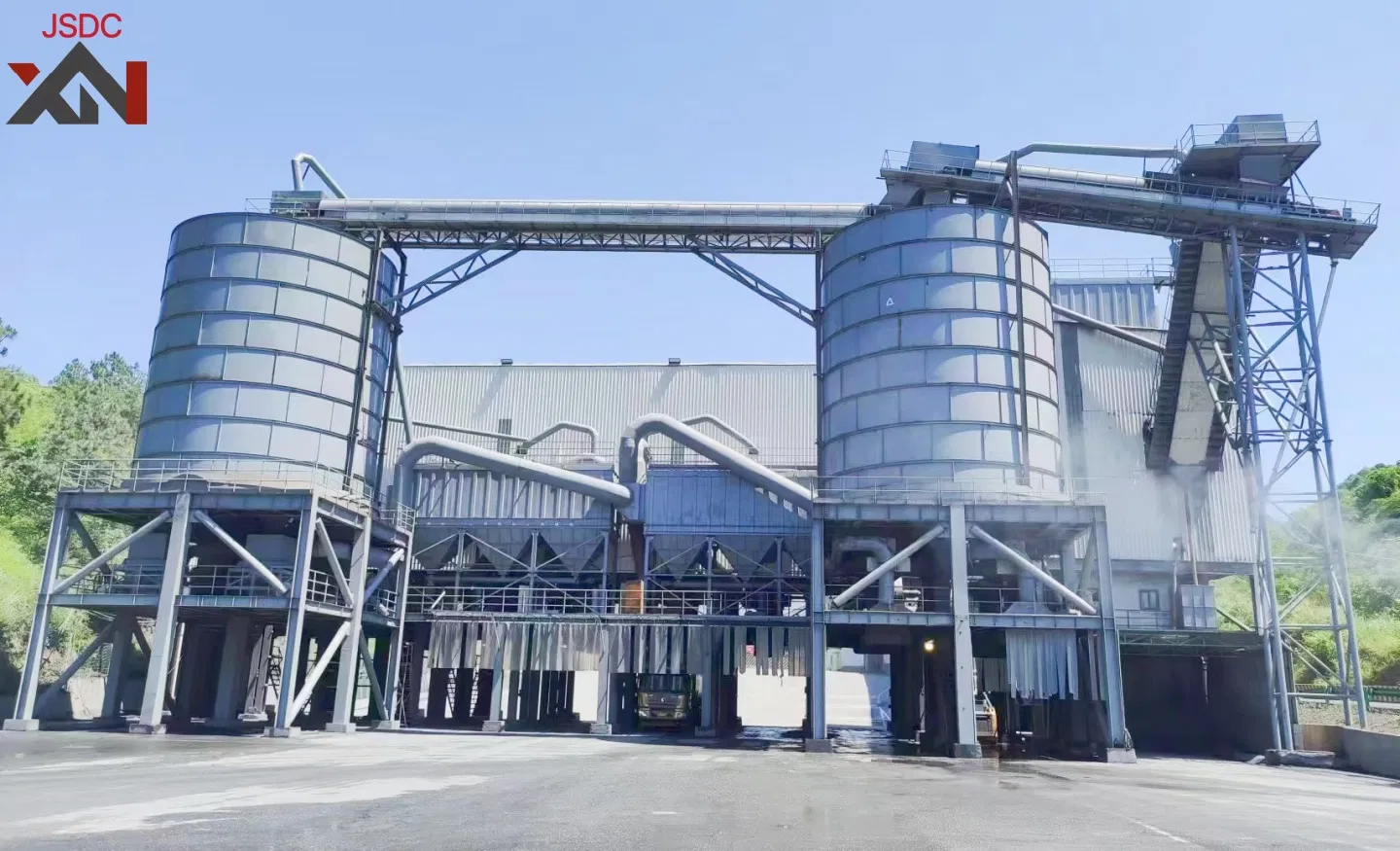

500 Ton Cement Silo System
Features a 45° large angle feeding cone to ensure smooth material flow and eliminate blockages. The warehouse board uses a gradient thickness design (10-8-6-4mm) for optimal stability.

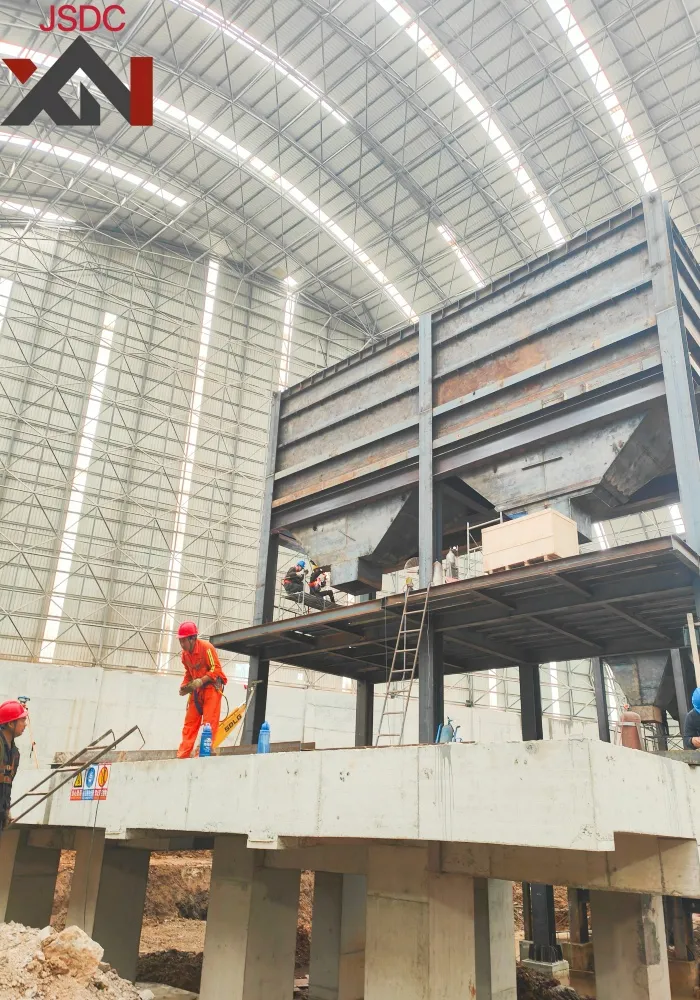

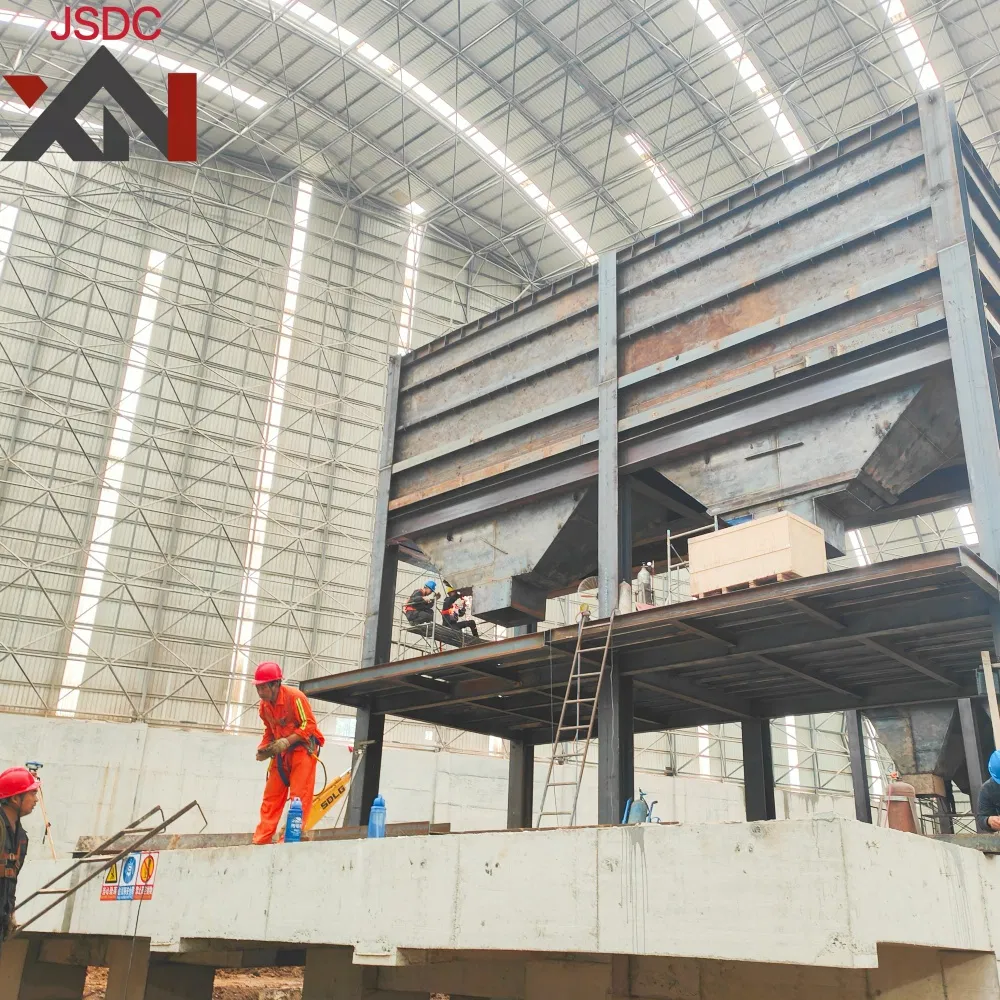

Sand & Stone Aggregate Transition Silo
Constructed with high-strength Q355B plates. Integrated automation control system achieves precise and rapid turnover, replacing manual operations.
Professional Installation
Our team has over ten years of experience in installing large industrial silos. We follow strict standardized operating procedures from basic inspection to system debugging.

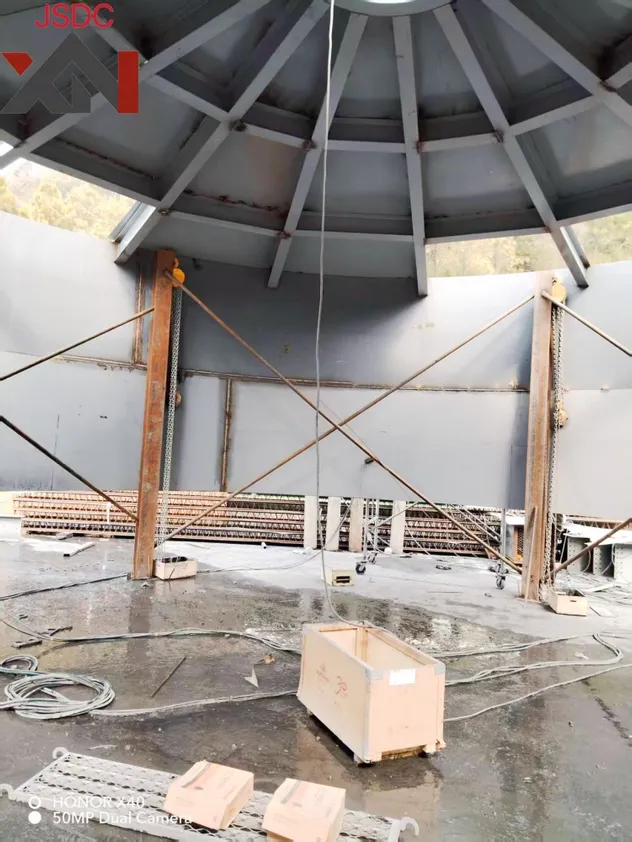

Inside View

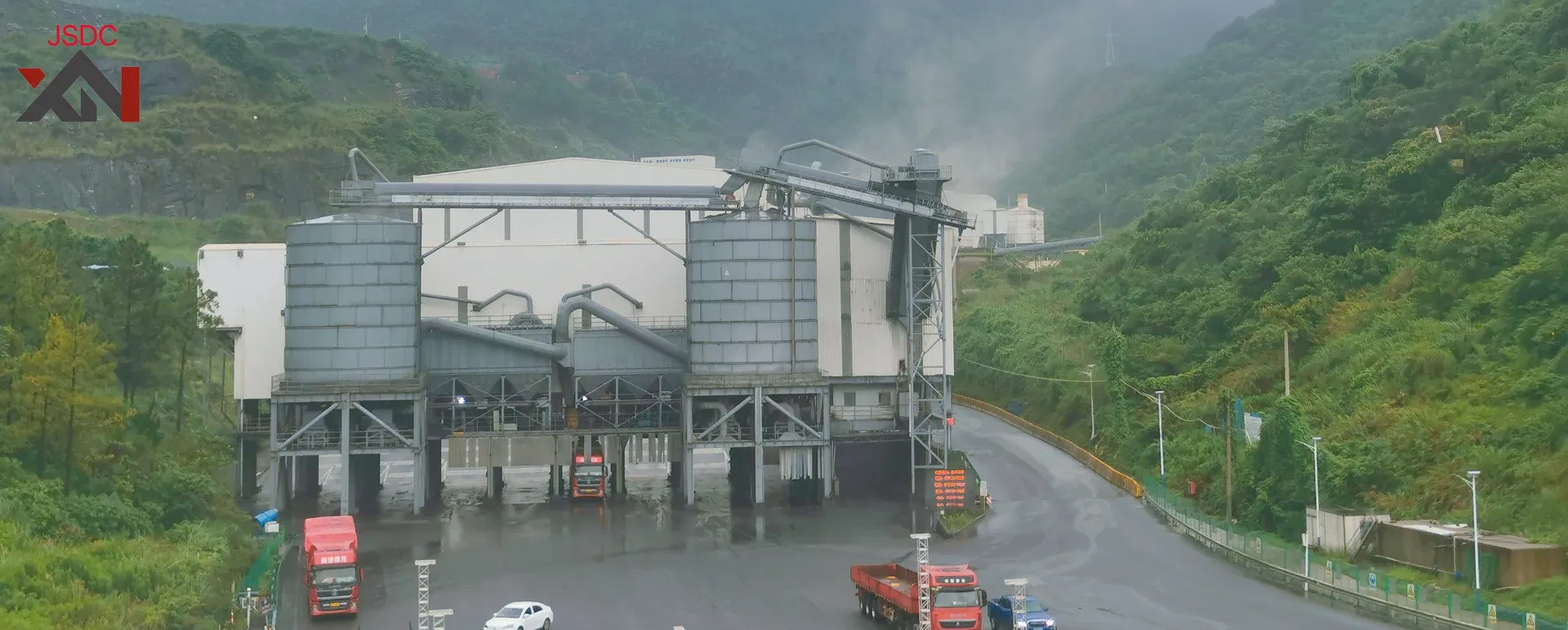

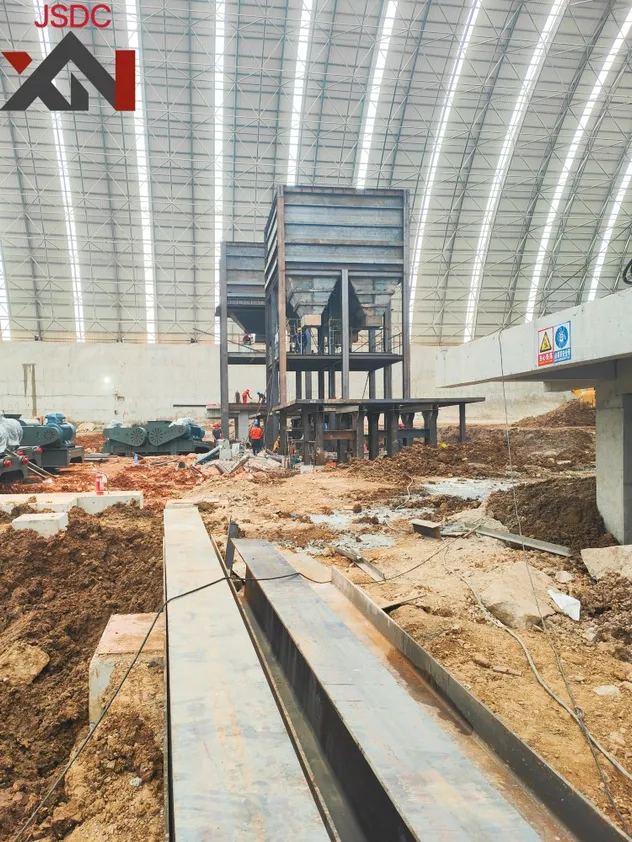

Installation View

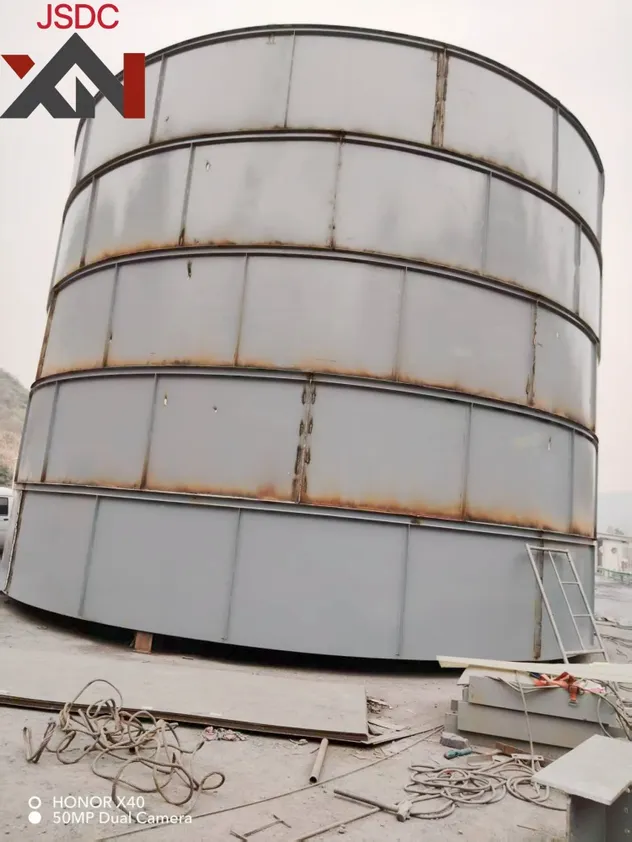

Outside View

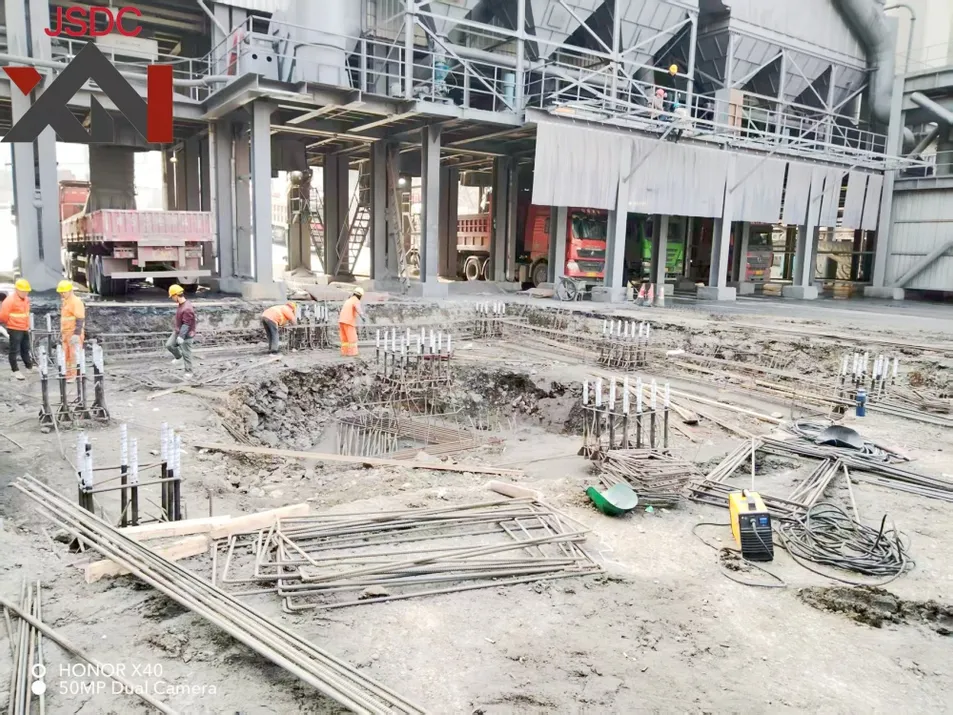

Foundation Construction

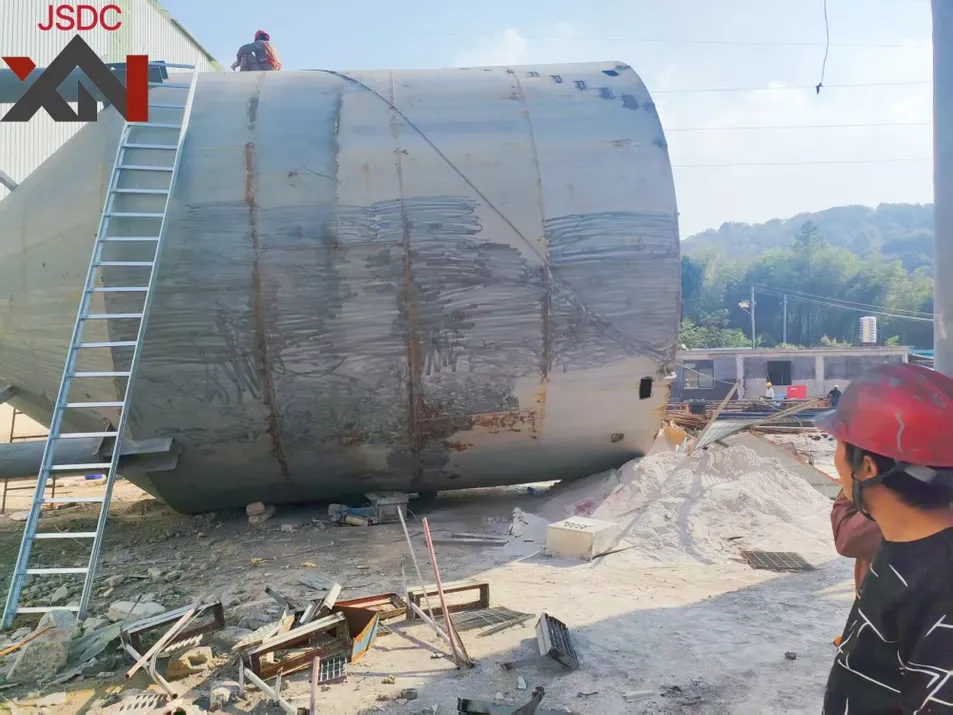

Silo Body Welding
Technical Specifications (1400T System)
| Component | Main Profiles | Qty (MT) | Material |
|---|---|---|---|
| GZ-1-30 | H-beam | 32 | Q355B |
| Silo Body | Plate, Channel, Angle Steel | 43 | Q355B |
| Silo Platform | Steel Structure | 59 | Q355B |
| Ring Beam | Reinforced Plate | 0.45 | Q355B |
| Maintenance Platform | Patterned Board | 4 | Q235B |
After-Sales & Certifications
Standard Warranty: 12 months or 2,000 operating hours.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.
ISO 9001
ISO 14001
ISO 45001
Frequently Asked Questions
Can pile driving be done on site?
Yes, our professional installation team is equipped to handle on-site pile driving and foundation preparation based on the specific geological conditions of your venue.
What are the venue area and height requirements?
Venue requirements depend on the silo capacity. We provide customized layouts to optimize your available space, whether it's for a compact 30CBM unit or a large 2000CBM system.
What materials can be stored in these silos?
Our systems are versatile and suitable for various bulk materials including cement, fly ash, mineral powder, grain, coal, and sand aggregates.
How is the transport capacity determined?
Capacity is calculated based on your required shipping tons per hour. This determines the selection of conveying equipment and loading speeds to ensure no bottlenecks in your logistics.
What environmental protections are integrated?
We offer high-degree sealing and advanced dust removal designs to minimize noise and dust emissions, ensuring compliance with strict environmental standards.
What is the typical lifespan of the storage system?
Using high-quality Q355B carbon steel and professional anti-corrosion treatments, our silos are designed for a durable service life of 25 to 40 years.
