Full Automatic Waste Tire Crushing Machine for Making Rubber Crumb to Rubber Powder Manufactures Plant Tyre Recycling Production Line Use
Product Description
📊 Overview & Basic Information
| Model NO. | XKP-560 XKP-610 XKP-680 | Service Life | ≥15 Years |
|---|---|---|---|
| Certification | CE, ISO | Voltage | 415V |
| Structure | Horizontal | Weight (Kg) | 26000 Kg |
| Core Components Warranty | 1 Year | Applicable Industries | Manufacturing Plant |
| Key Selling Points | Long Service Life & High Capacity | Roller Materials | Casted Steel |

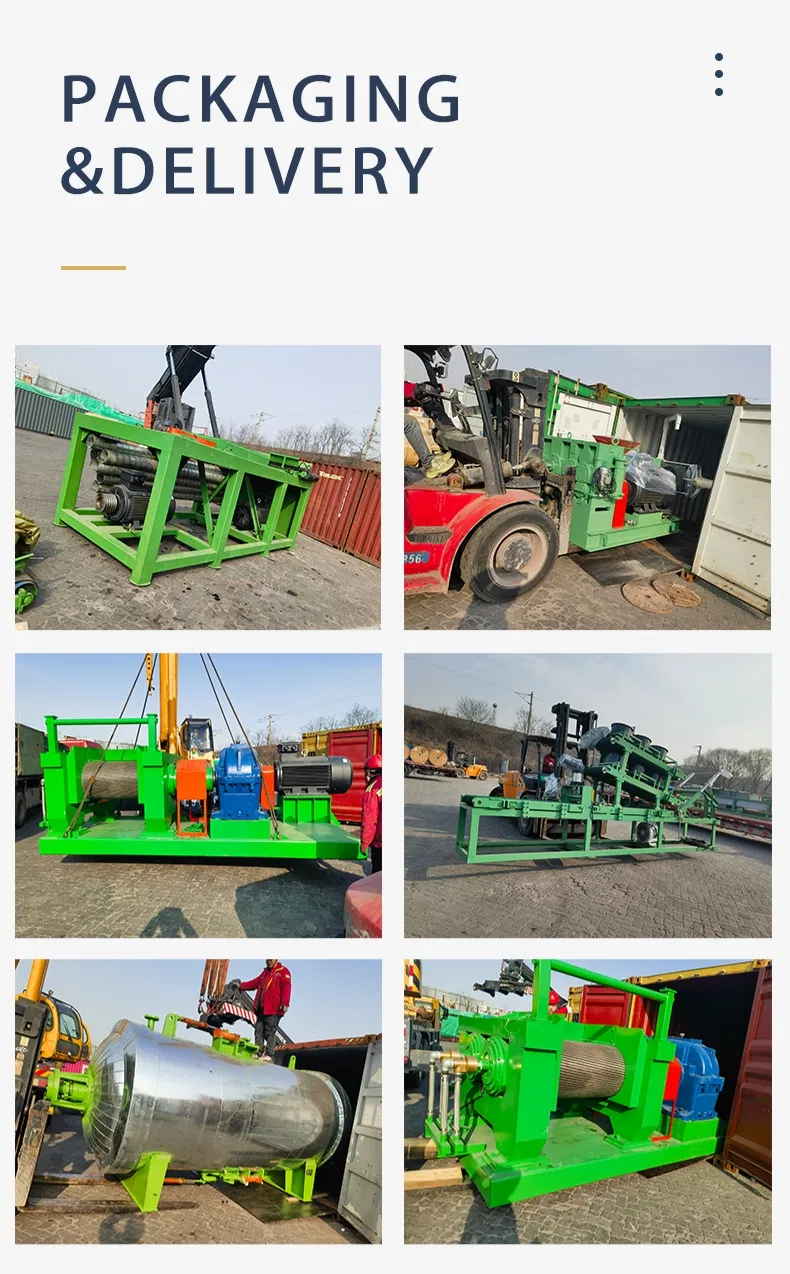

📦 Packaging & Delivery
Package Size: 585.00cm * 200.00cm * 175.00cm
Package Gross Weight: 24000.000kg

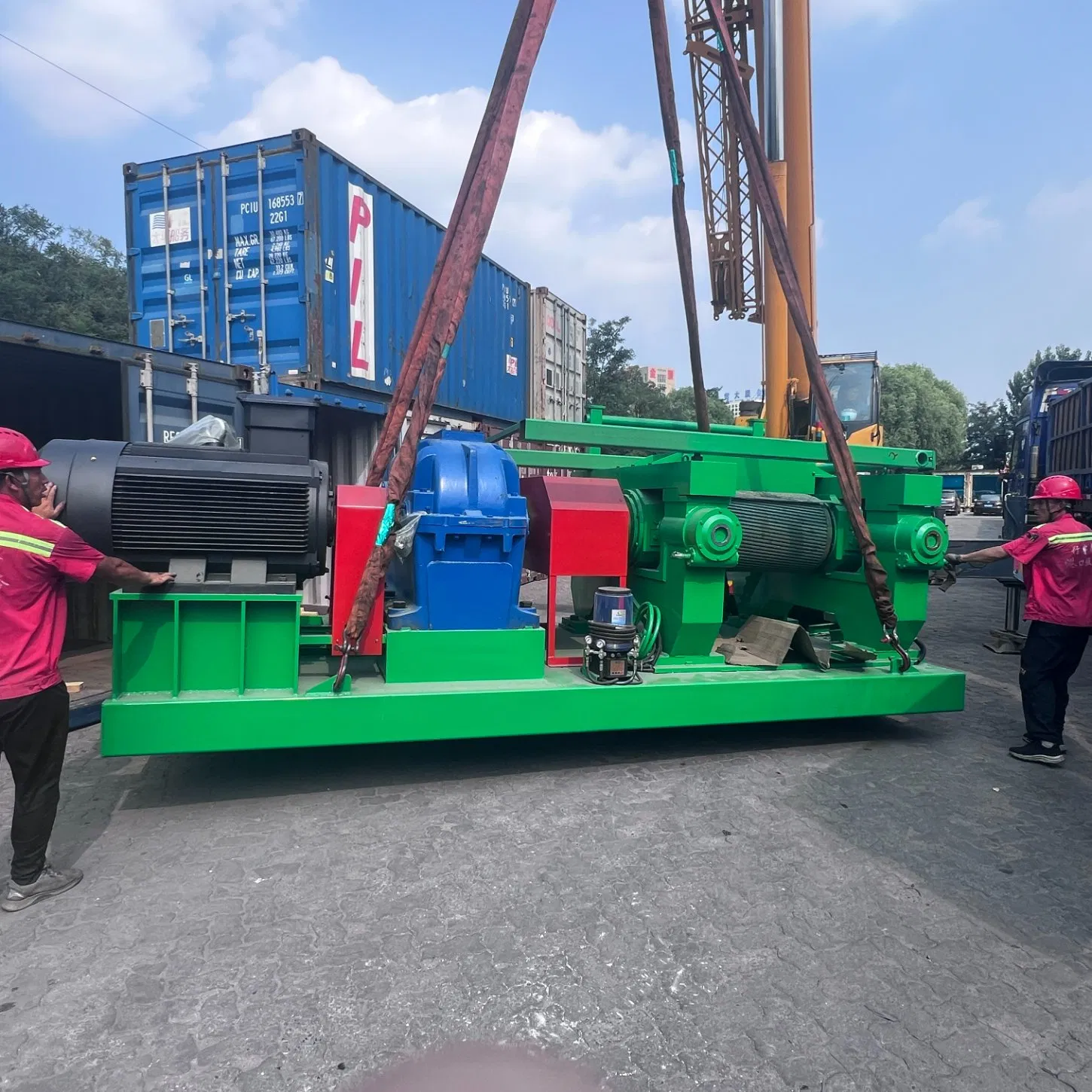

Transport Package: Suitable to Long Sea Transportation
🛠️ Product Description

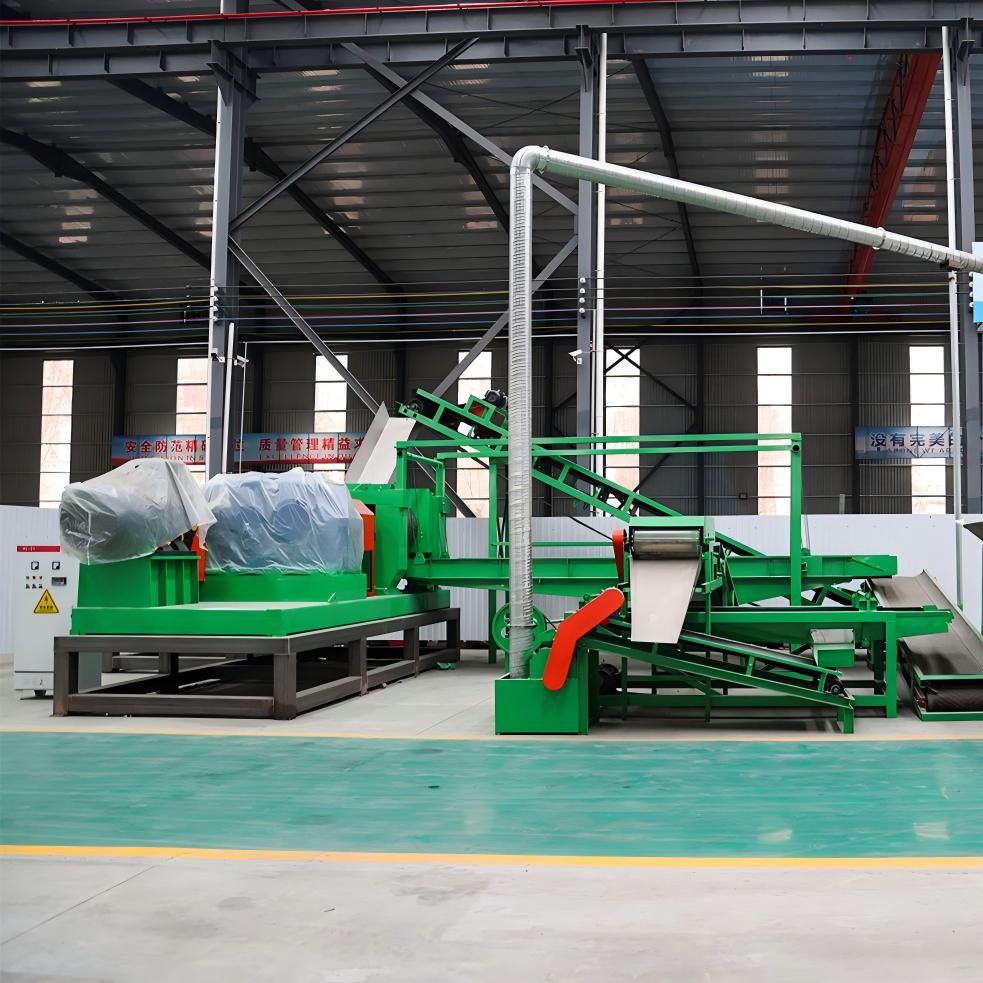

Full Automatic Rubber Crumb Production Line Rubber Powder Making Machine
XKP-560 / XKP-610 / XKP-680 / XKP-710
🚀 Why Choose Our Solutions
💡 Our Advantages
As a professional provider of rubber machines, our product range covers kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, tire reclaimed rubber machines, butyl reclaimed rubber machines, EPDM reclaimed rubber machines, and rubber powder machines.
We enjoy a good reputation with reasonable prices, top-tier quality, and reliable delivery. We sincerely welcome global clients to establish stable business relations and develop markets based on equality and mutual benefit.
🔍 Key Features & Application

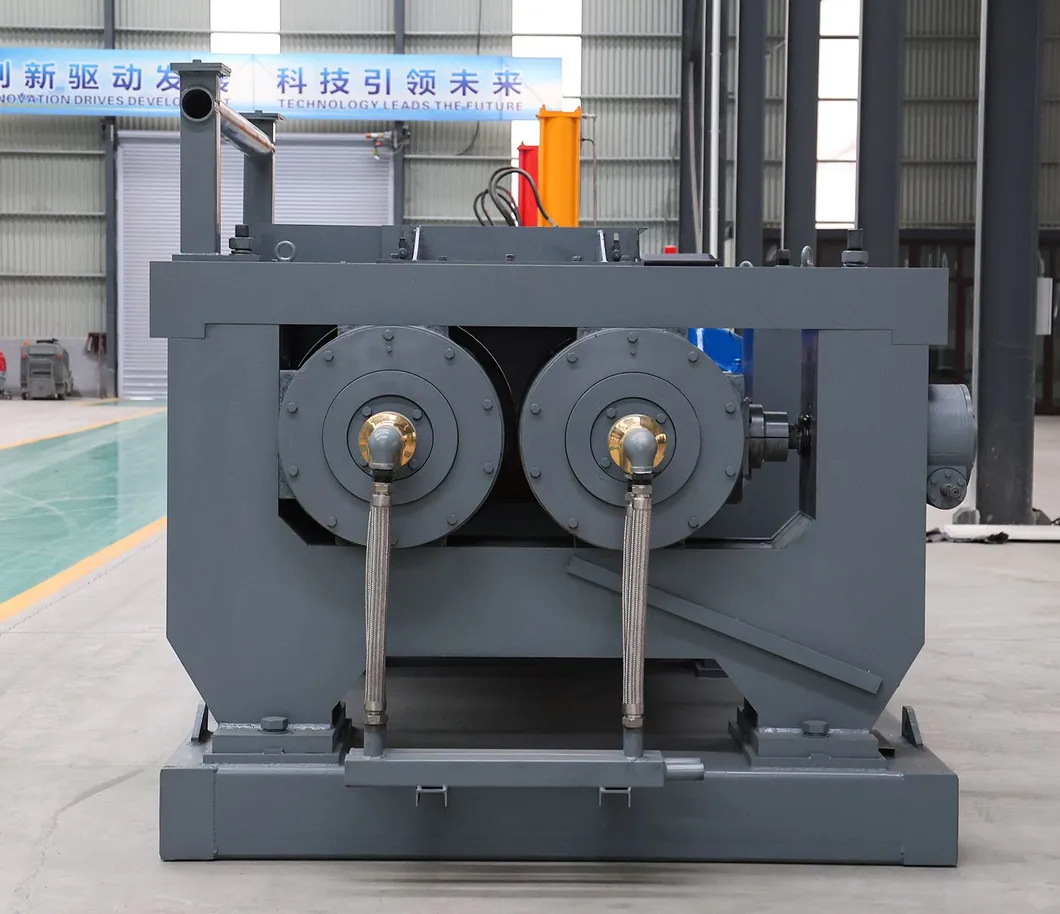

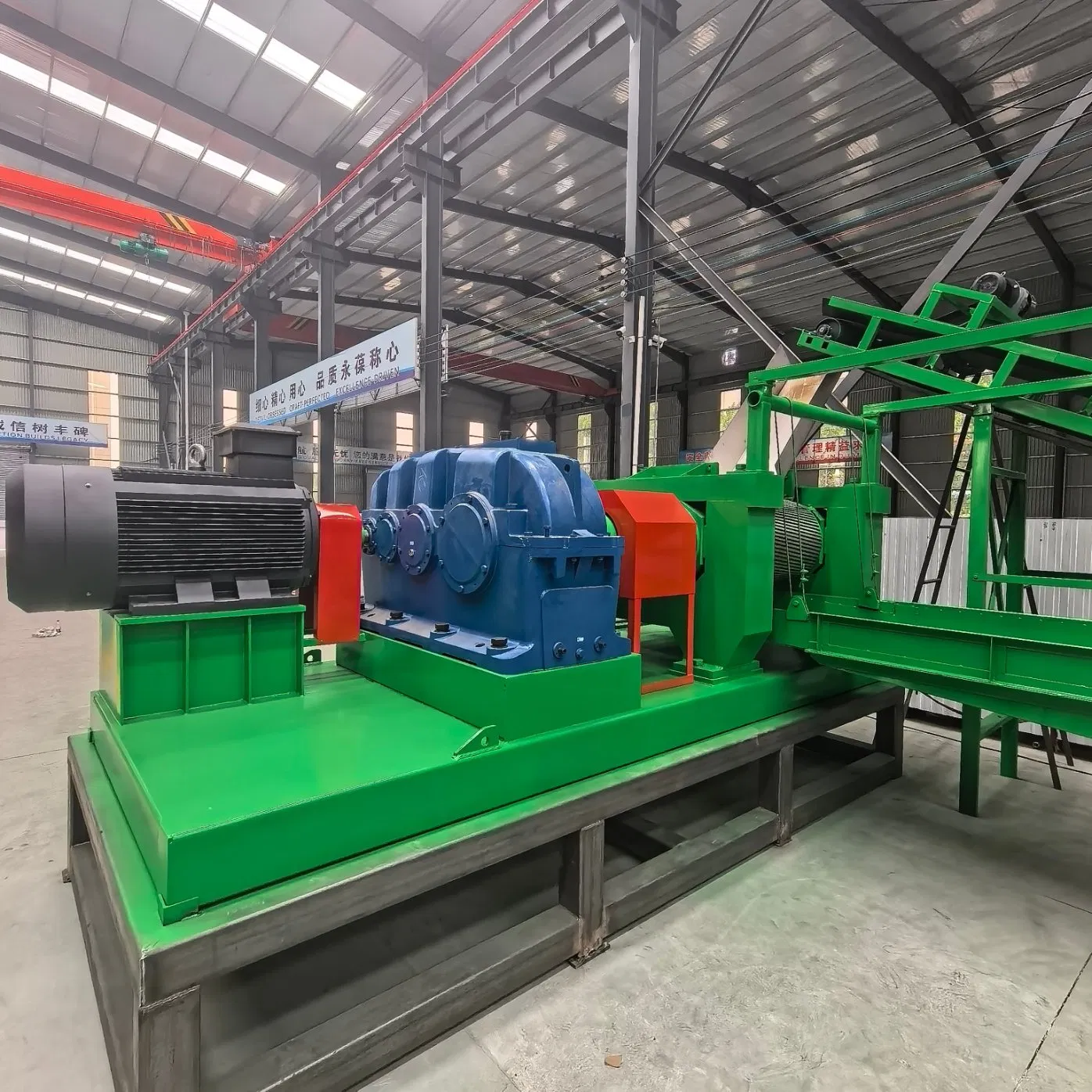

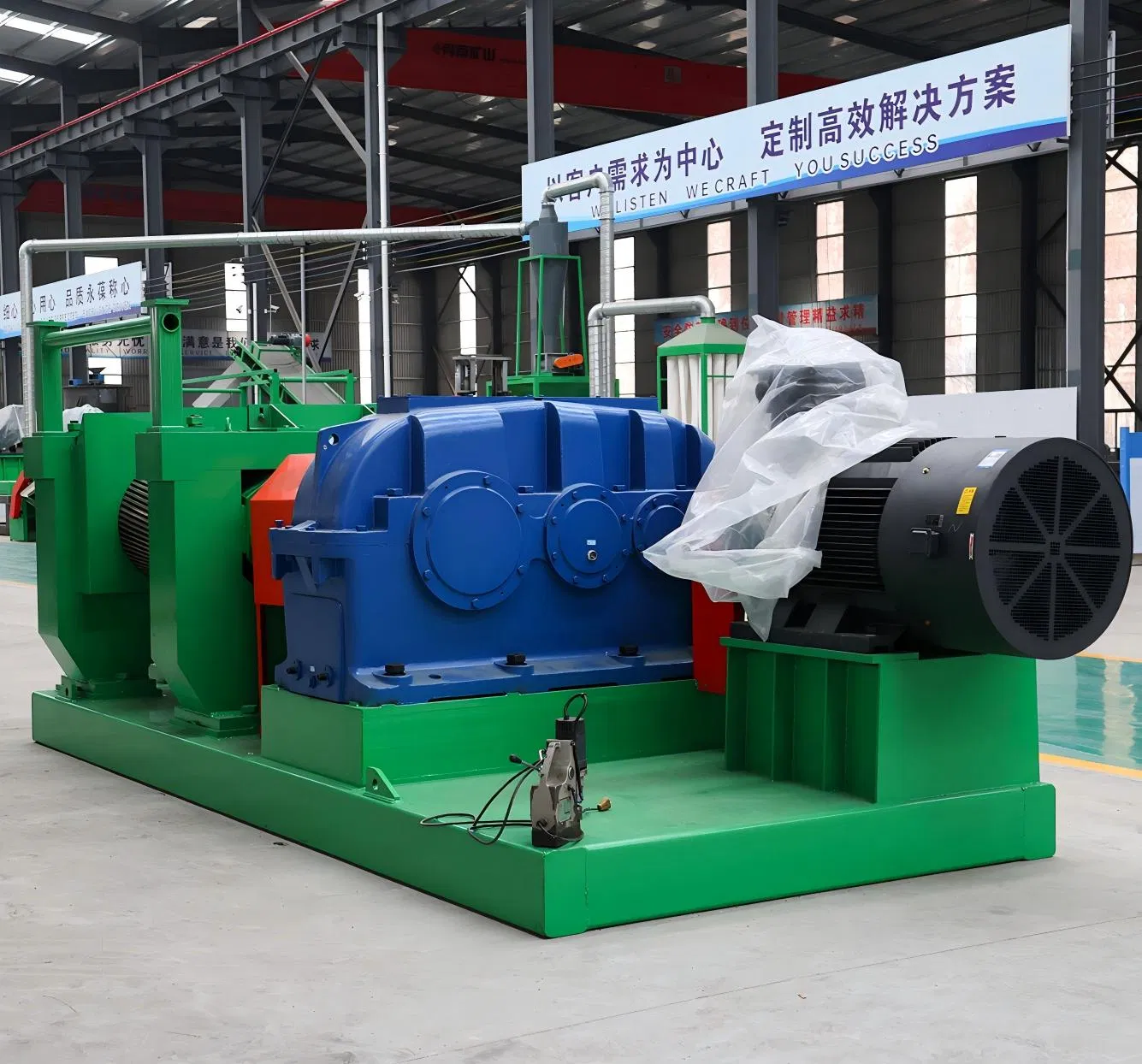

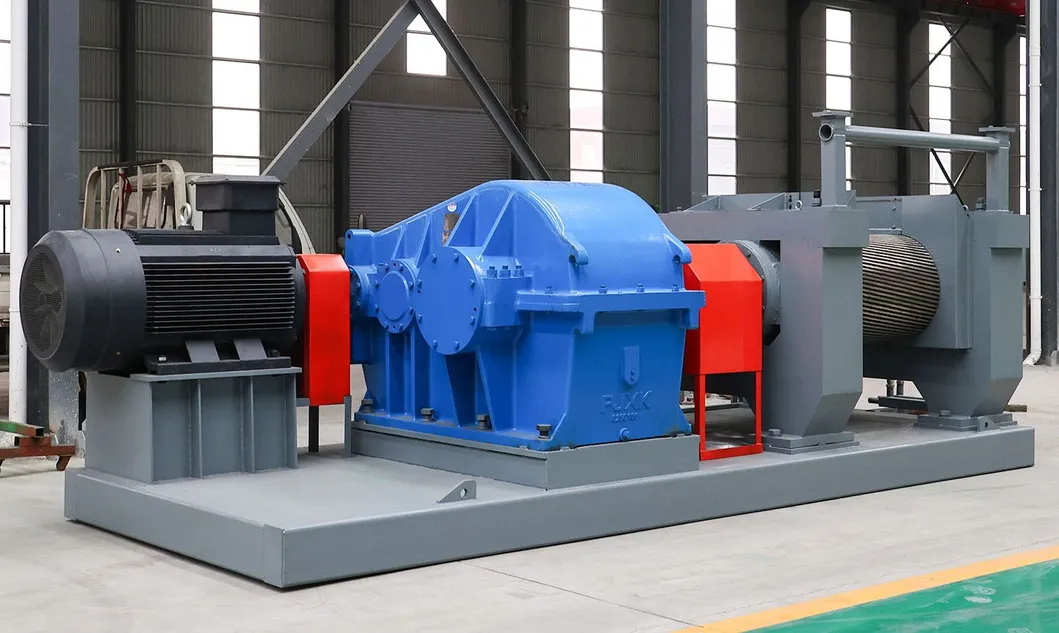

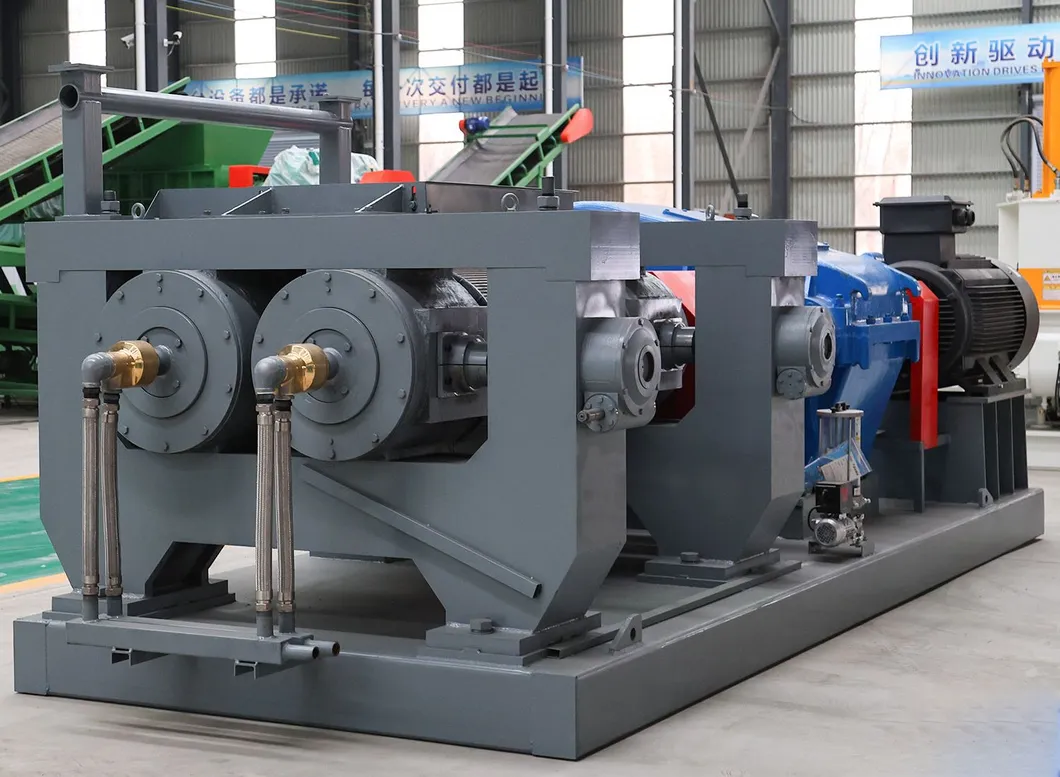

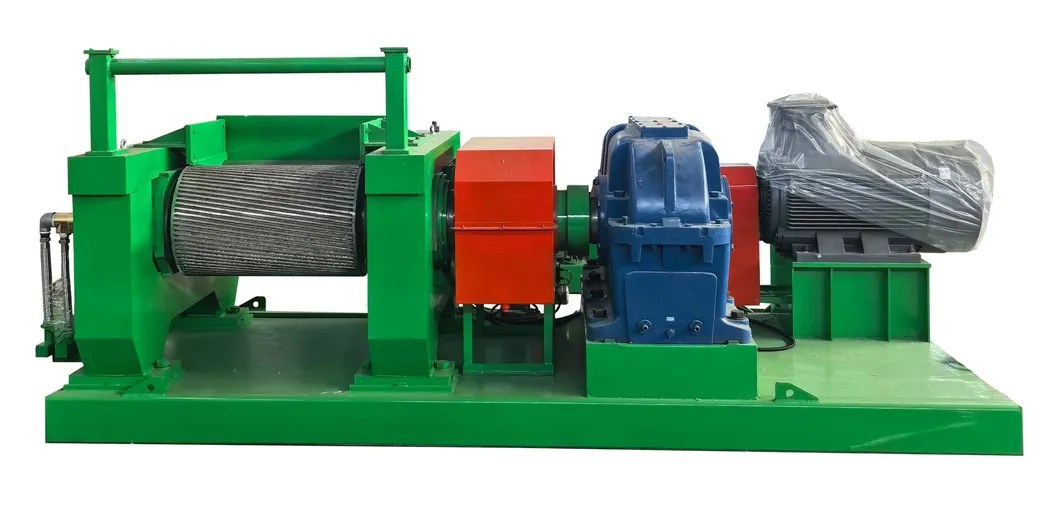

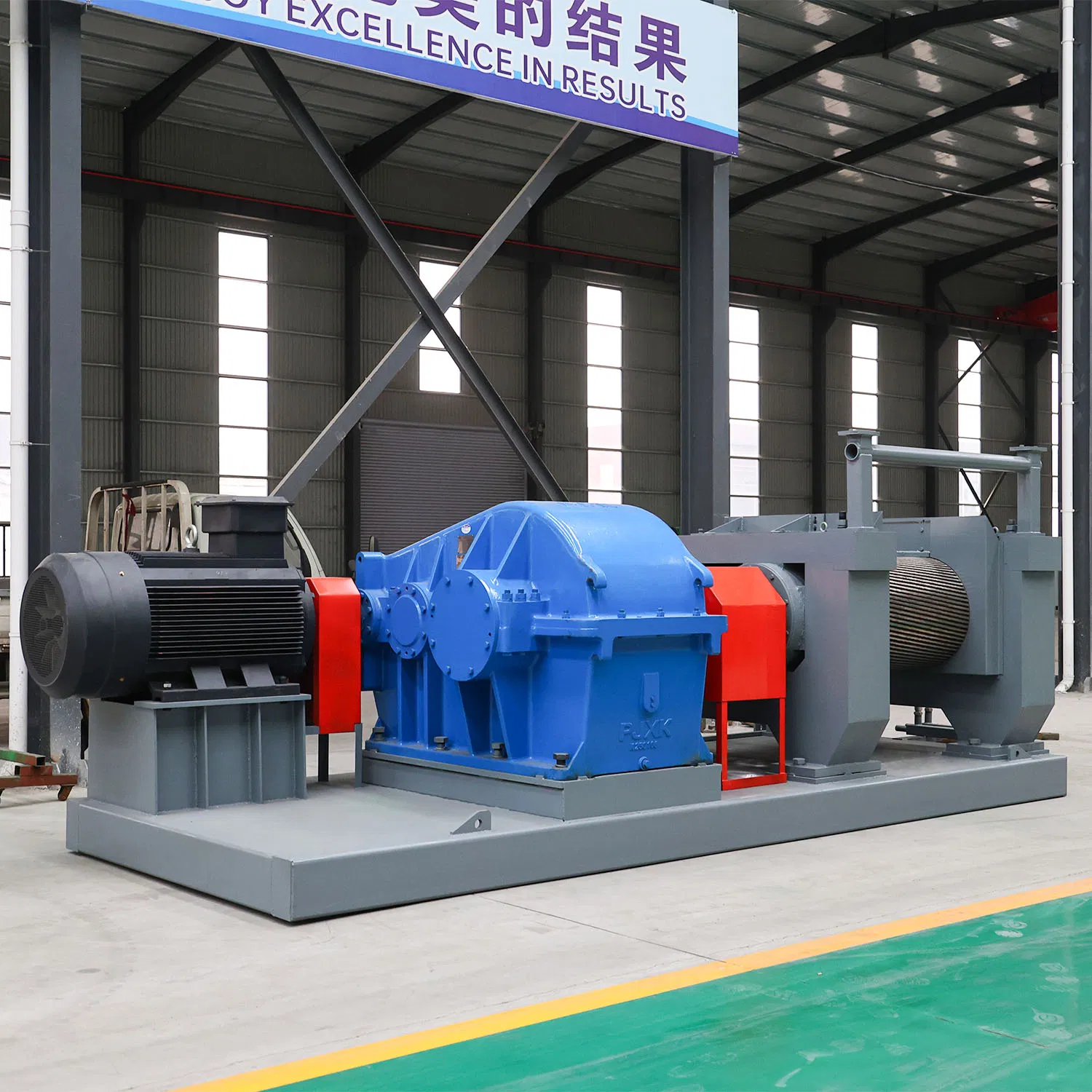

Cracker Mill / Rubber Crusher / Rubber Breaker
- Application: Used for the breaking process from used tire scrap to rubber powder.
- Strength: Strong quality machine construction with significantly higher capacity.
- Rollers: Made of chilled cast iron or casted steel with wear-resistant hard surfaces. Grooved design for efficiency.
- Cooling: Bored rolls can be cooled homogeneously via steam or cooling water.
📏 Product Parameters
| Type | XKP-560 | XKP-610 | XKP-680 | XKP-710 |
|---|---|---|---|---|
| Grooved roller dia. | 560mm | 610mm | 680mm | 710mm |
| Smooth roller dia. | 510mm | 560mm | 610mm | 610mm |
| Working length | 800mm | 1000mm | 1000mm | 1100mm |
| Motor power | 132KW/160KW | 185KW/200KW | 250KW | 280KW |
| Lubrication | Grease pump automatic lubricating | |||
| Capacity (24mesh) | ~900kg/h | 1000-1300kg/h | 1200-1500kg/h | 1300-1600kg/h |
📷 Machine Gallery
⚙️ Assistant Equipment
- Hopper
- Big & Small vibrating screens
- Feeding & Return conveyors
- Magnetic separating conveyors
- Cooling air delivery equipment
- Bag-type dust collector
- Distribution cabinet & control box
🔗 Related Equipment

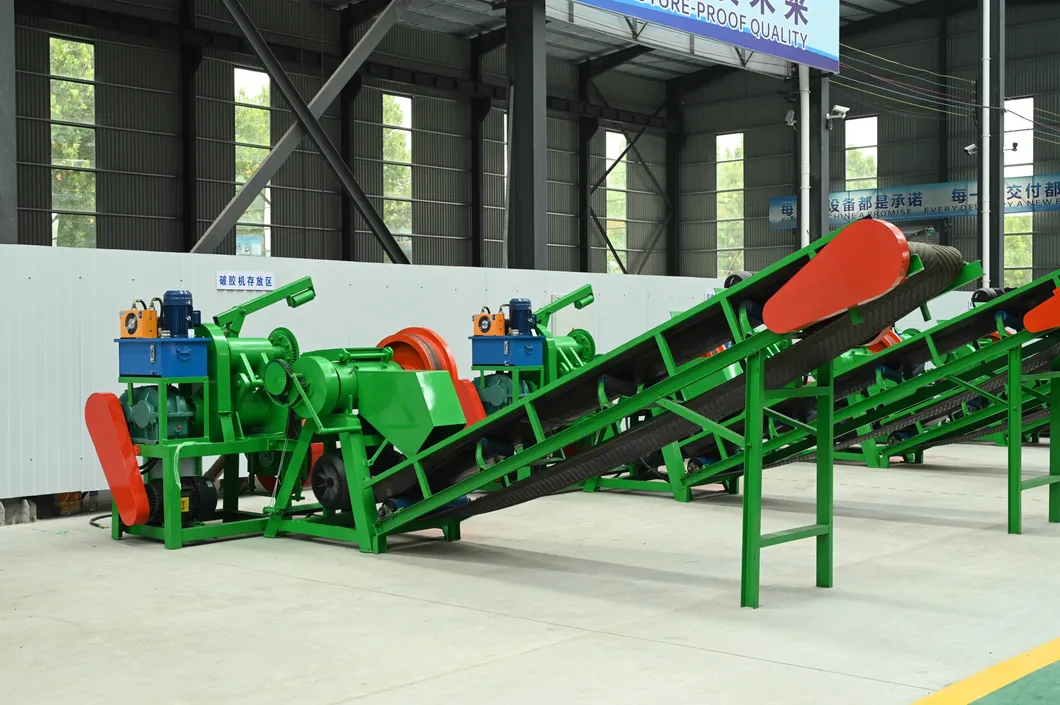

Semi-automatic Strip Block Cutter
Cuts steel tires into blocks (50*50mm or 50*70mm). Features safety operation and reduced labor intensity.

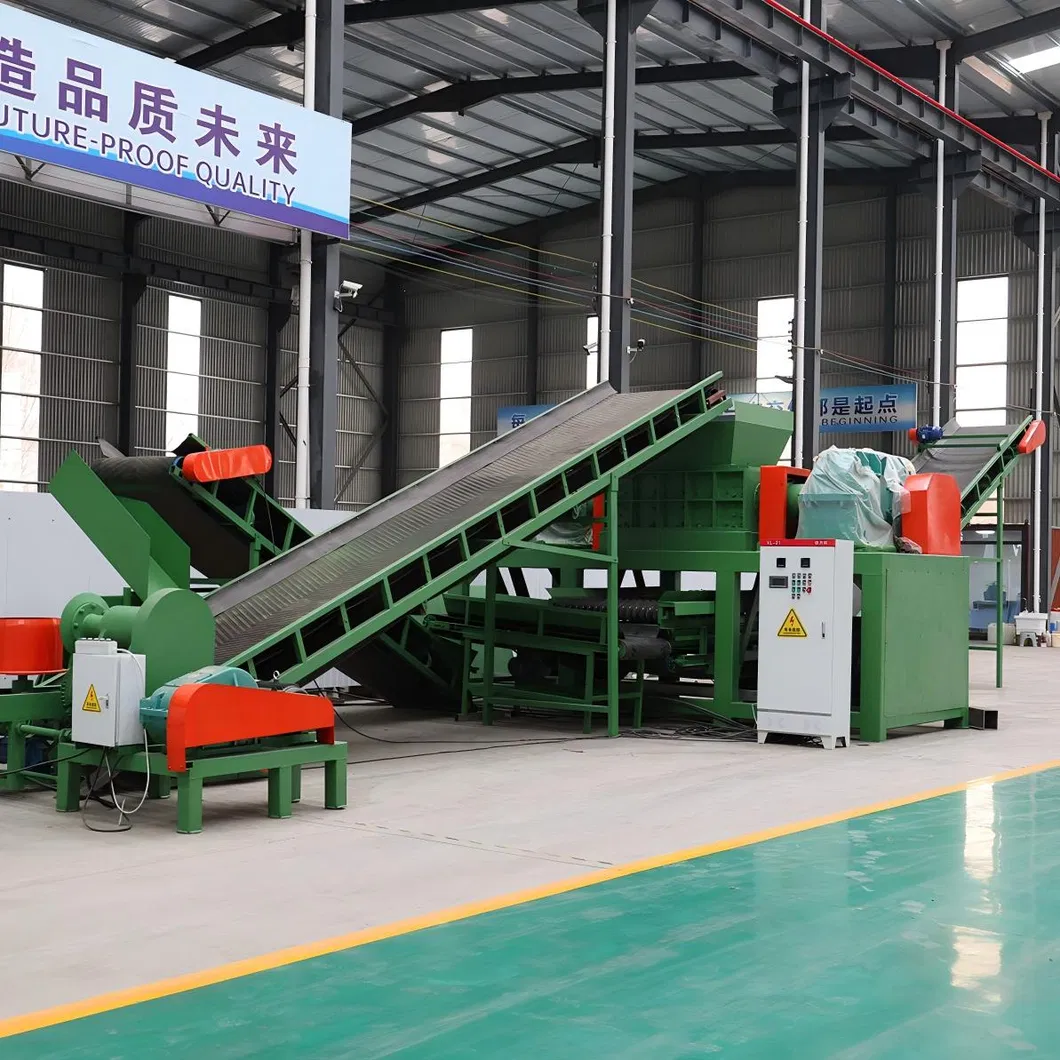

Tire Shredder Machine
Specialized for tearing waste tires into small pieces for resource recycling. Processes whole tires into 50*70mm blocks.

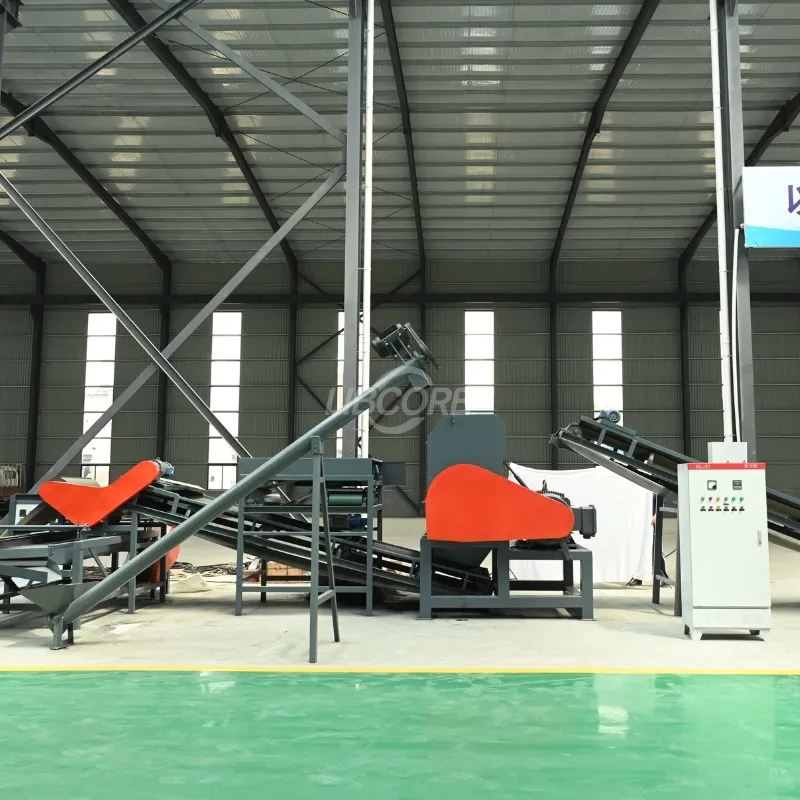

Tire Steel Wire Separator
Used to separate rubber particles from embedded steel wires, providing pure raw materials for rubber powder production.

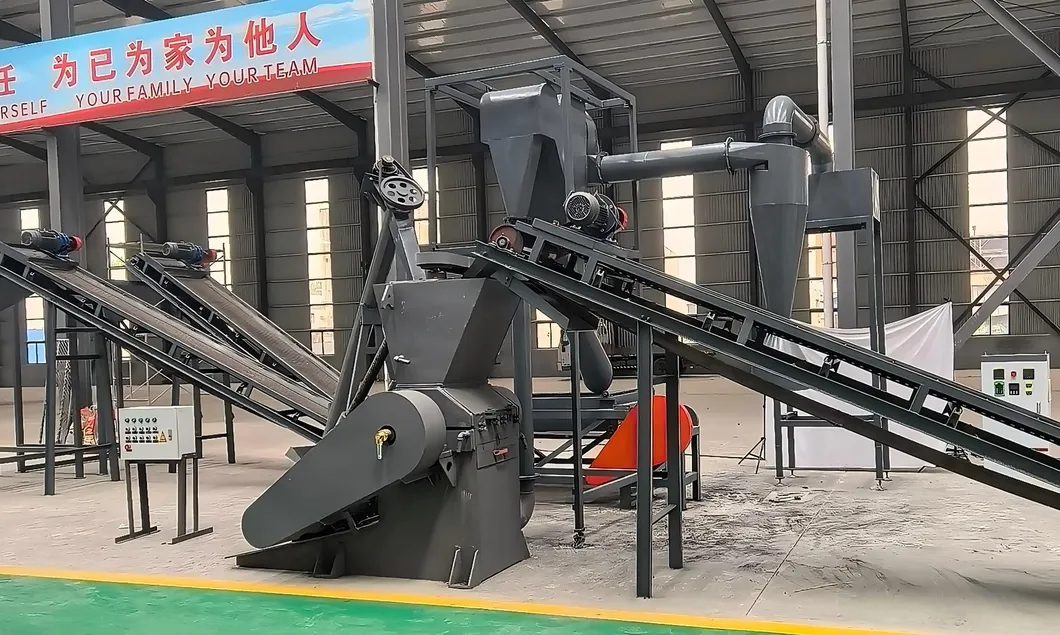

Rubber Granules Production Line
Crushes and screens waste tires into specified granules (1-10mm specification).

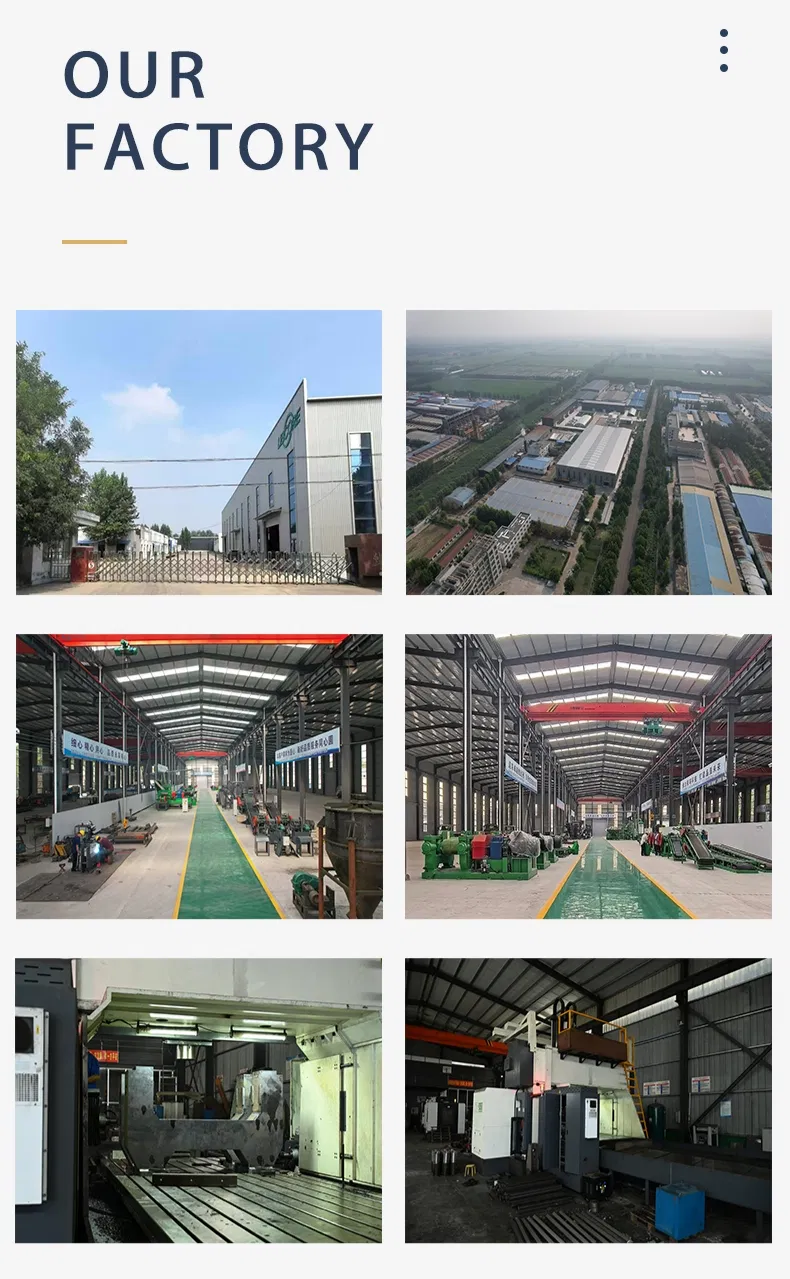

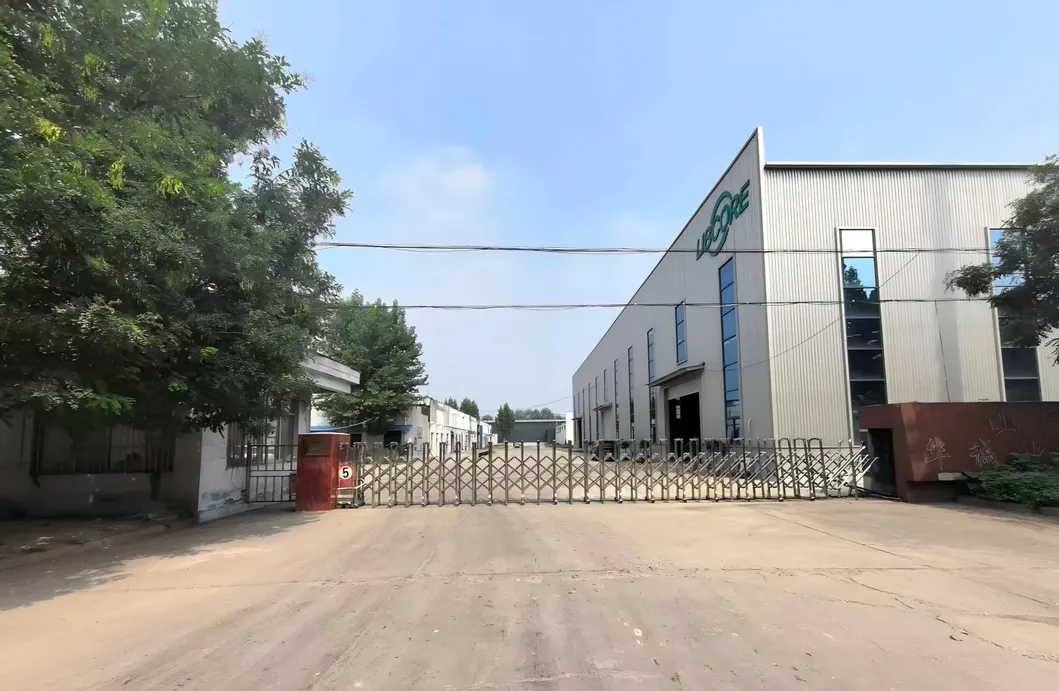

🏭 Production Capability
