Automotive Supply Chain Radio Shuttle Solution, From Raw Material to Finished Goods
Product Description
Basic Information
Model NO.
NDCS101012
Type
Shuttle Robot
Material
Steel
Height
5m - 15m
Load Capacity
>500kg
Usage
Warehouse, Industrial, Food & Beverage
Operation
Unmanned Operation
Lifting Type
Mechanical
Full Load Speed
45m/Min
Effective Work Hour
8h
Product Description

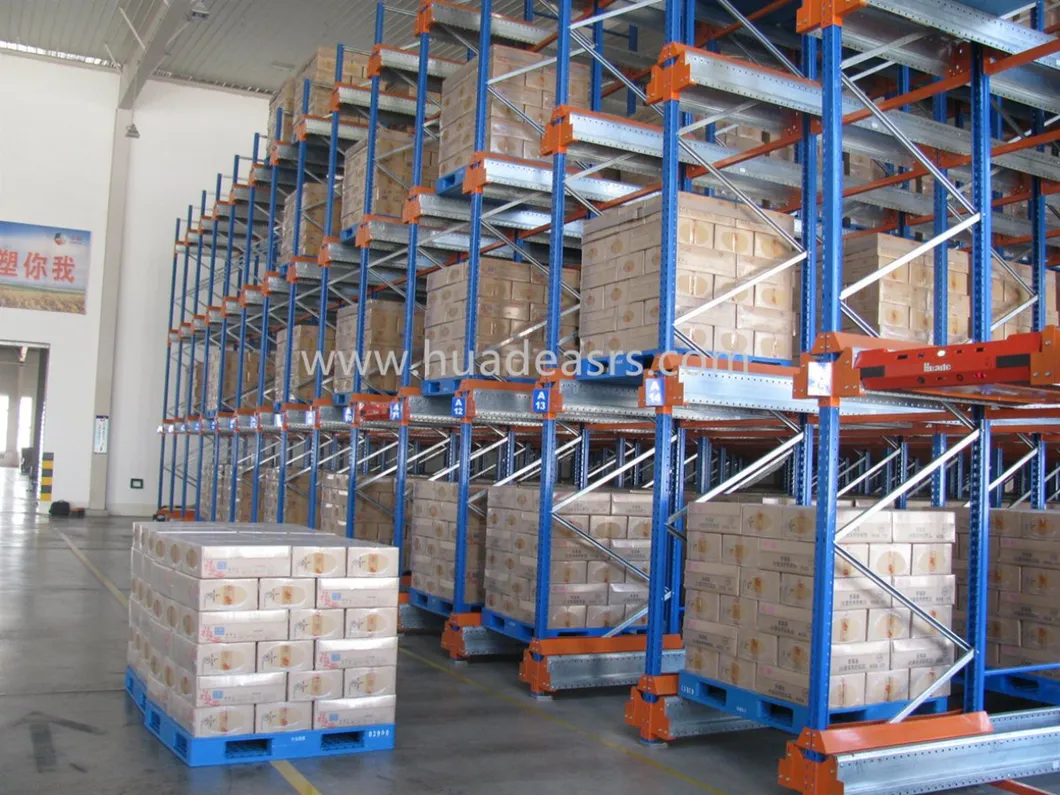

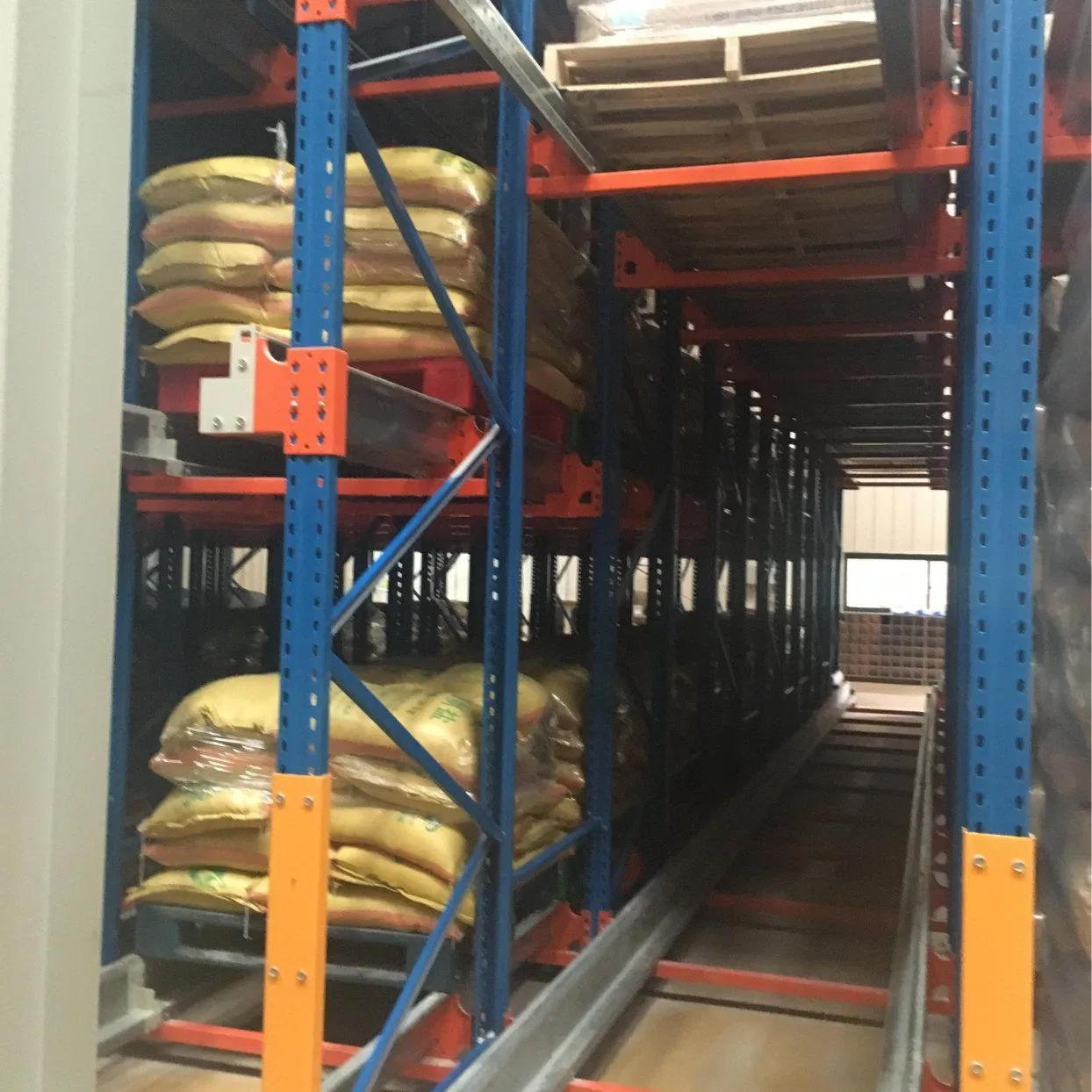

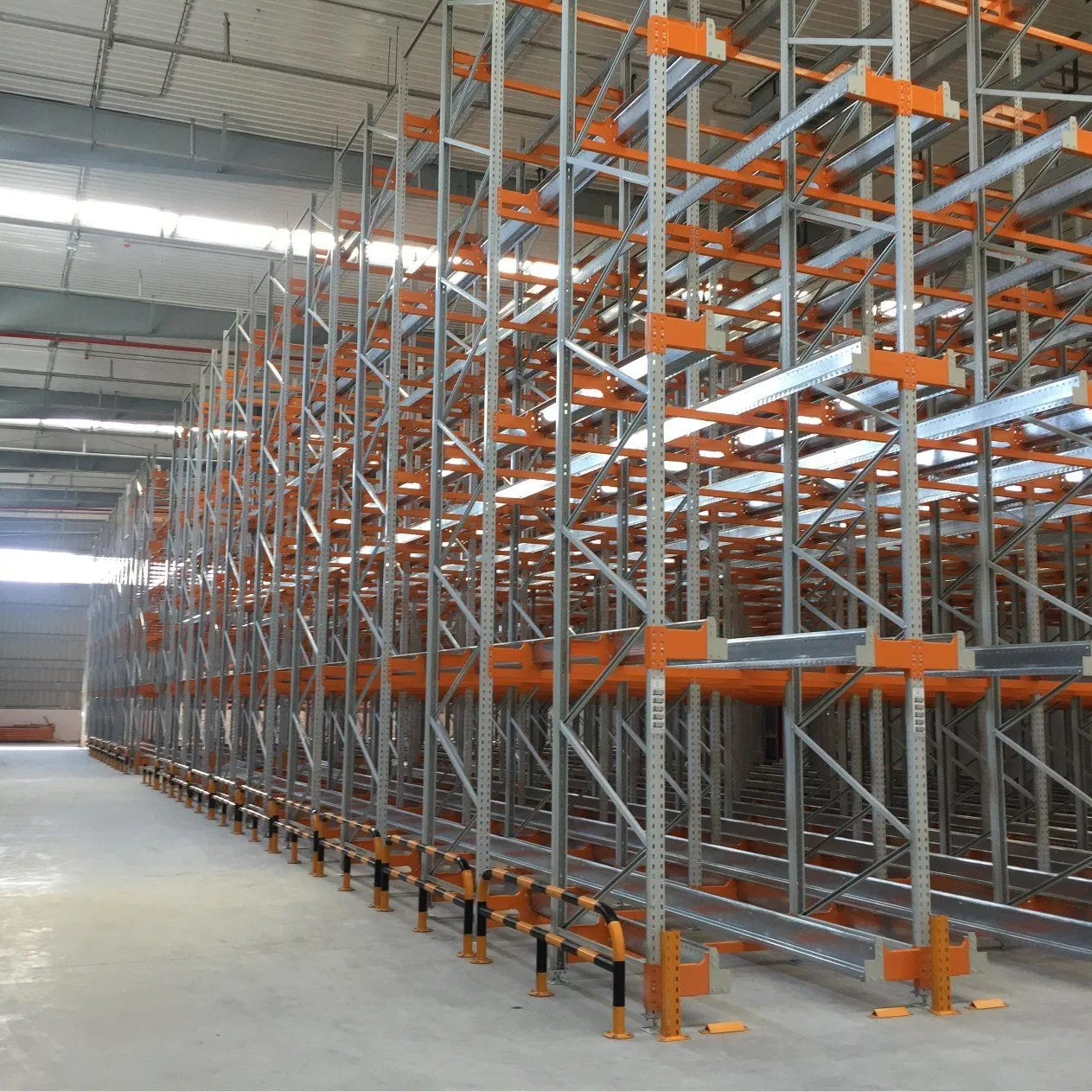

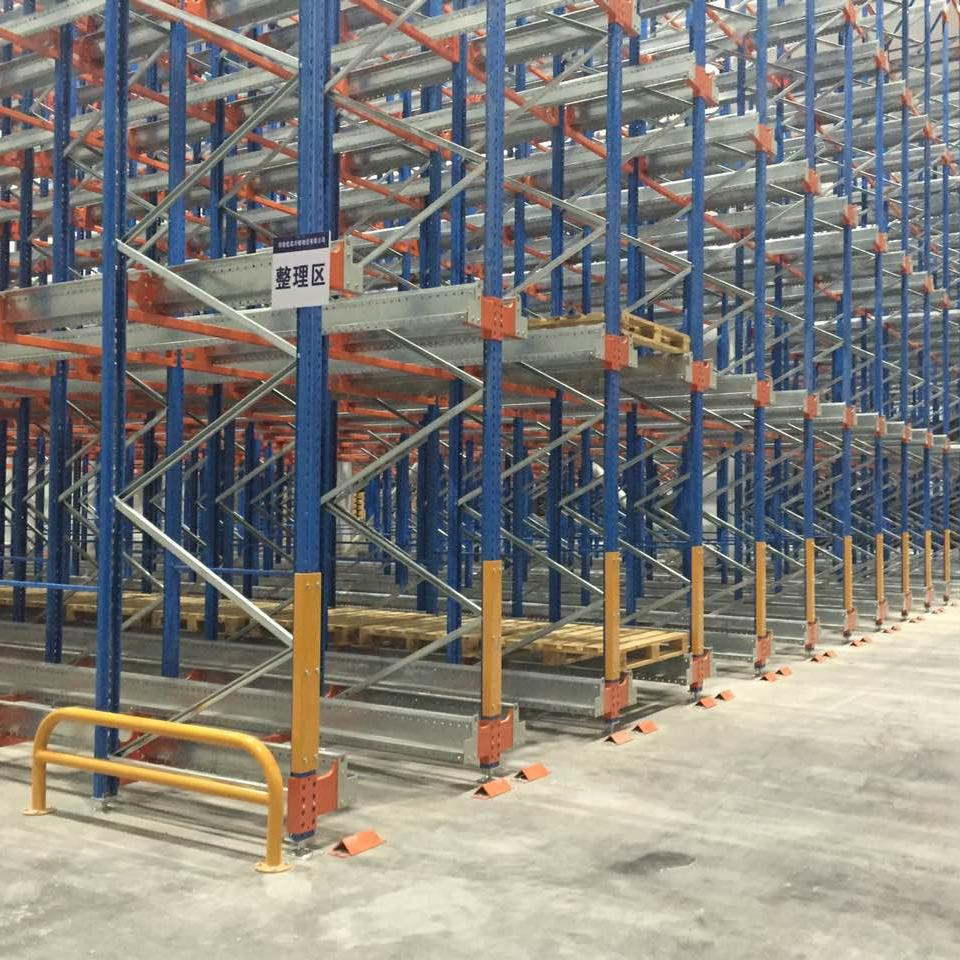

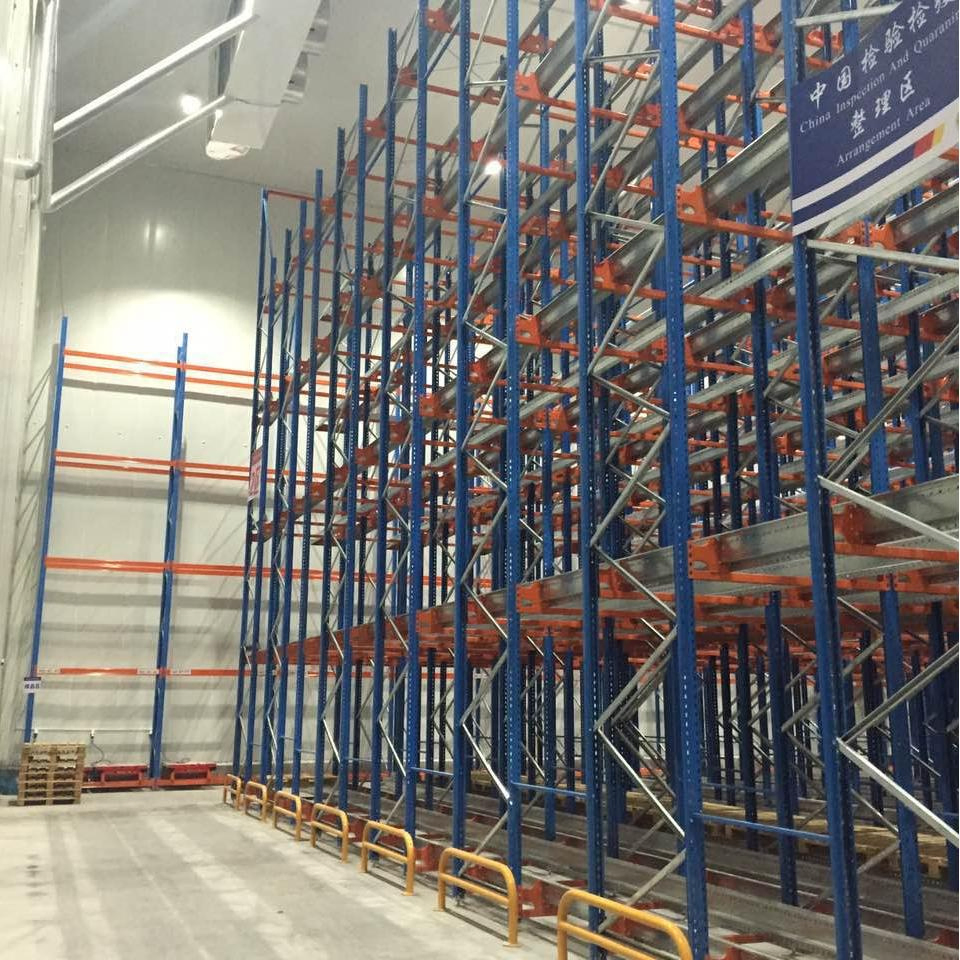

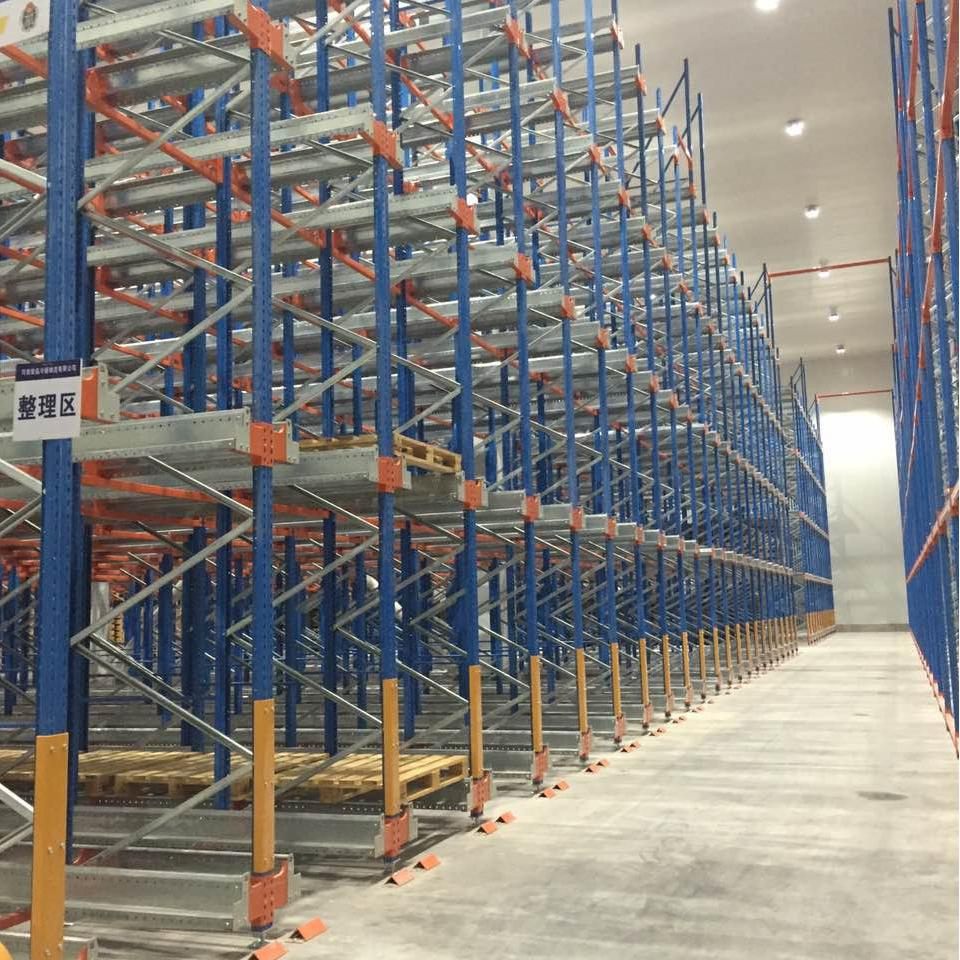

The Radio Shuttle Pallet Rack System is a semi-automated system working in conjunction with forklift trucks for the storage of goods with low variety but high volumes per SKU. This system is highly recommended in manufacturing businesses, especially fast-moving consumer goods, food, beverage, and cold chain industries.
System Features

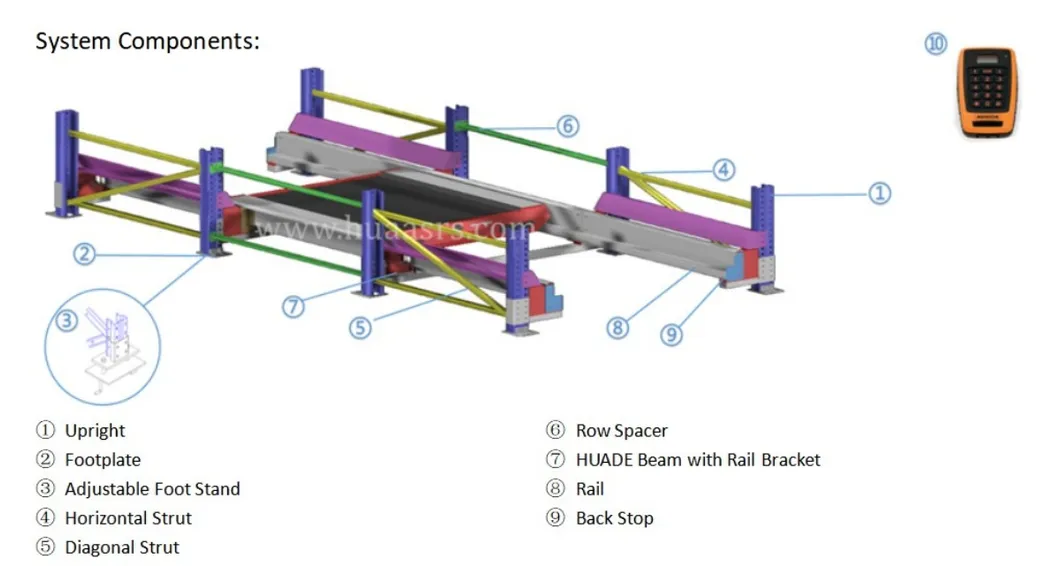

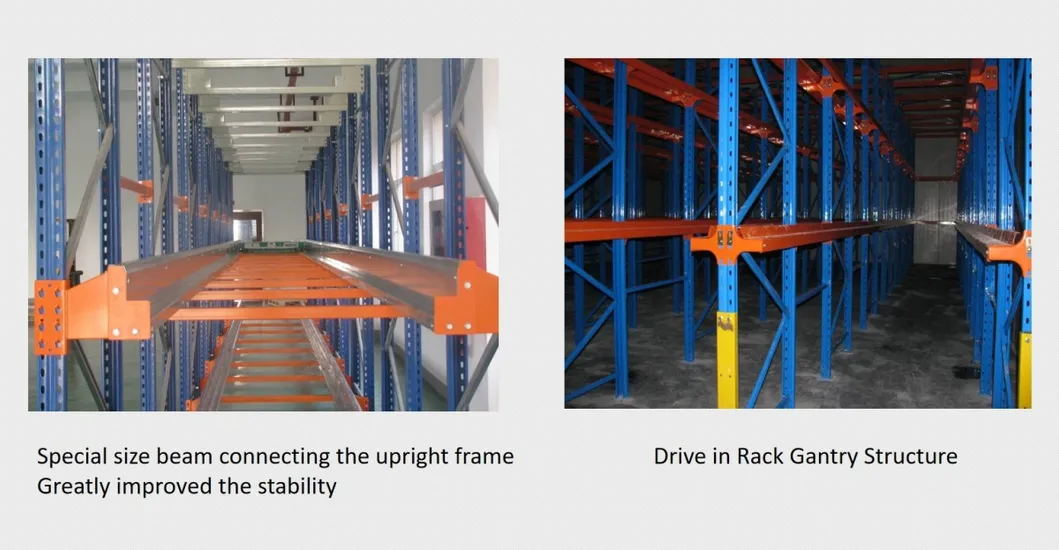

- Upright frame connected by supported beams, overcoming instability issues.
- Lane length can reach 50m or more, achieving 80% space efficiency.
- Loading and unloading speeds are 60% faster than traditional drive-in systems.
- Eliminates the need for forklifts to enter storage lanes.
- Allows multiple SKUs in the same bay.

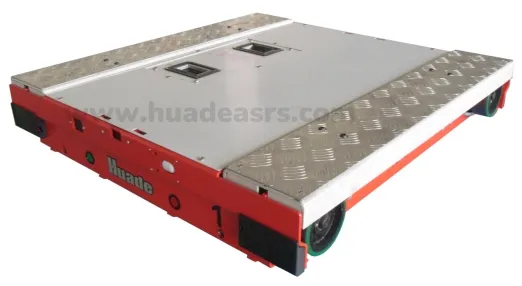

Technical Specifications
| Item | Basic Parameters |
|---|---|
| Applicable Pallet Size | 1.0x1.2m, 1.1x1.2m, 1.2x1.2m |
| Loading Capacity | 1000kg / 1500kg |
| Driving Speed | Empty: 50m/min | Full Load: 40m/min |
| Acceleration | ≤0.3m/s² |
| Motor Type | Brush servo motor 24VDC 650W |
| Hoisting Height | 40mm |
| Battery Type | Lithium iron phosphate power battery |
| Battery Stats | 24V, 55A; 8H use time; 4H charging time |
Advantages of Pallet Shuttle System
- Productivity: Faster order execution and shorter loading cycles.
- Space Saving: Minimal clearance between levels and depth exceeding 60m.
- Cost Effective: Reduced footprint and lower energy consumption in cold storage.
- Flexibility: Compatible with both LIFO and FIFO management.
- Safety: Metal structure remains free from forklift damage.

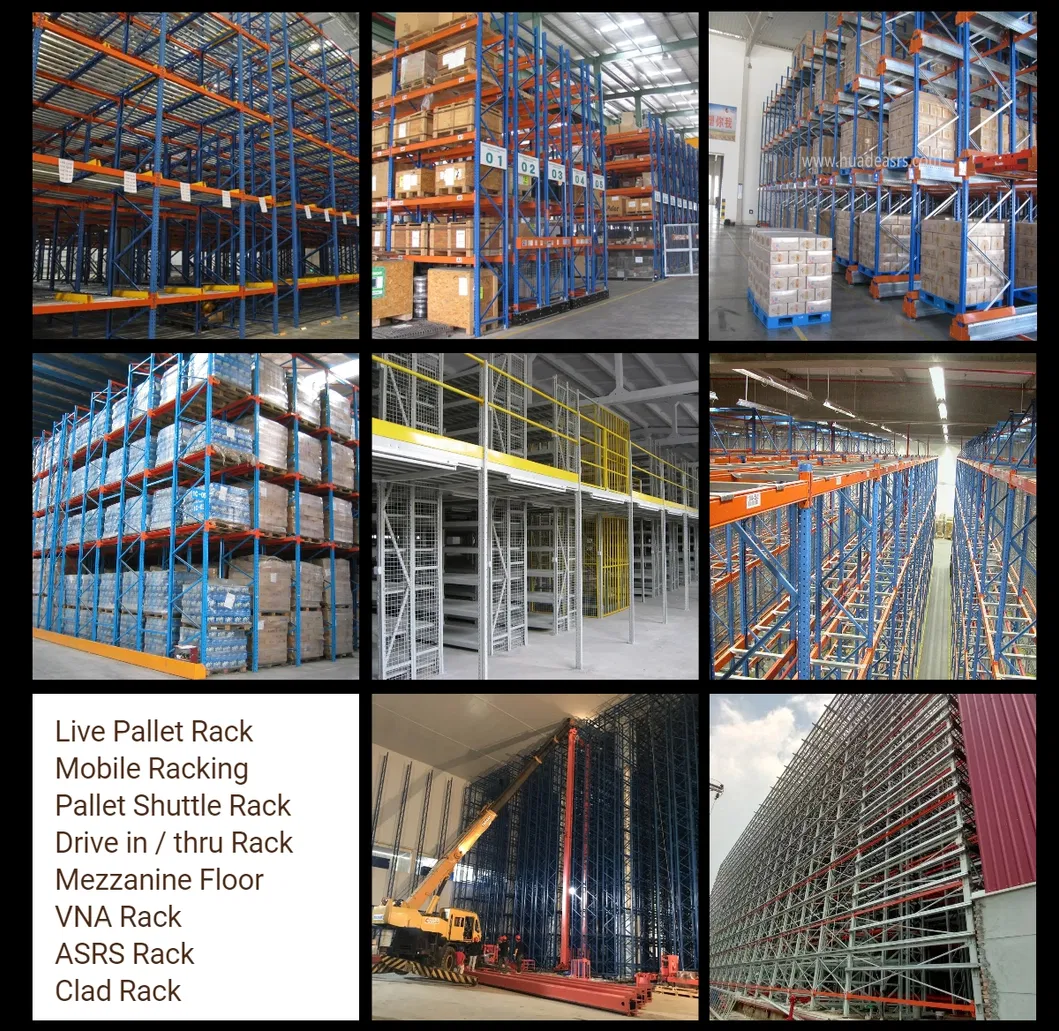

Main Product Family
Frequently Asked Questions
What are your core storage and retrieval solutions?
We provide Unitload AS/RS, Miniload AS/RS, Shuttle Storage & Sequencing systems, Rack-supported buildings, Semi-automated Radio Shuttle systems, and Electrical Mobile Racking.
How do you define project objectives?
Our engineers work closely with project stakeholders to determine specific goals, followed by information collection to understand your unique business needs.
Is the system compatible with cold storage?
Yes, the Pallet Shuttle system is highly effective in cold storage as it reduces the footprint and surface area that needs to be cooled, leading to lower energy costs.
What management strategies does the system support?
The system is fully compatible with both LIFO (Last In, First Out) and FIFO (First In, First Out) inventory management strategies.
How is the system validated before implementation?
We analyze data from your operating systems, create predictive models, estimate system costs, and perform a complete feasibility analysis of all alternatives.
What kind of battery technology is used in the shuttles?
The shuttles utilize Lithium iron phosphate power batteries (24V, 55A) providing 8 hours of effective working time with a 4-hour charging period.
