China Factory ANSI DIN Standard Hollow Pin Oliver Combine Sugar Mill Straight Plate Lifting Stainless Steel Ice Cream Conveyor Roller Chain for Cold Production
Product Description
Our chains are manufactured using modern computerized machinery and equipment, ensuring the highest level of precision and durability. They are designed to meet international advanced standard criteria, guaranteeing exceptional performance in various industries. We are committed to fulfilling your ordering requirements with professional support.

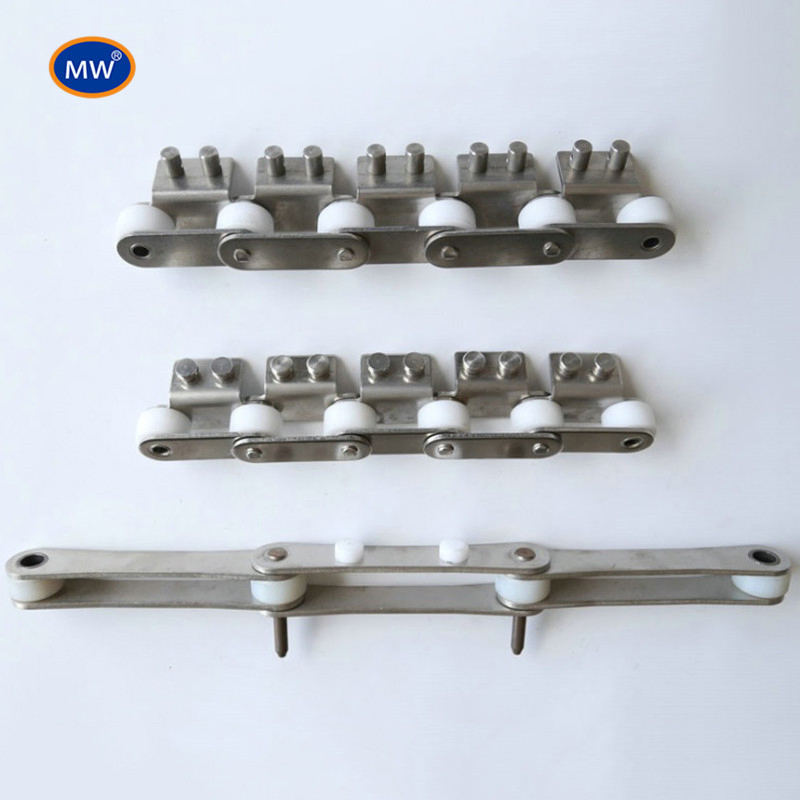

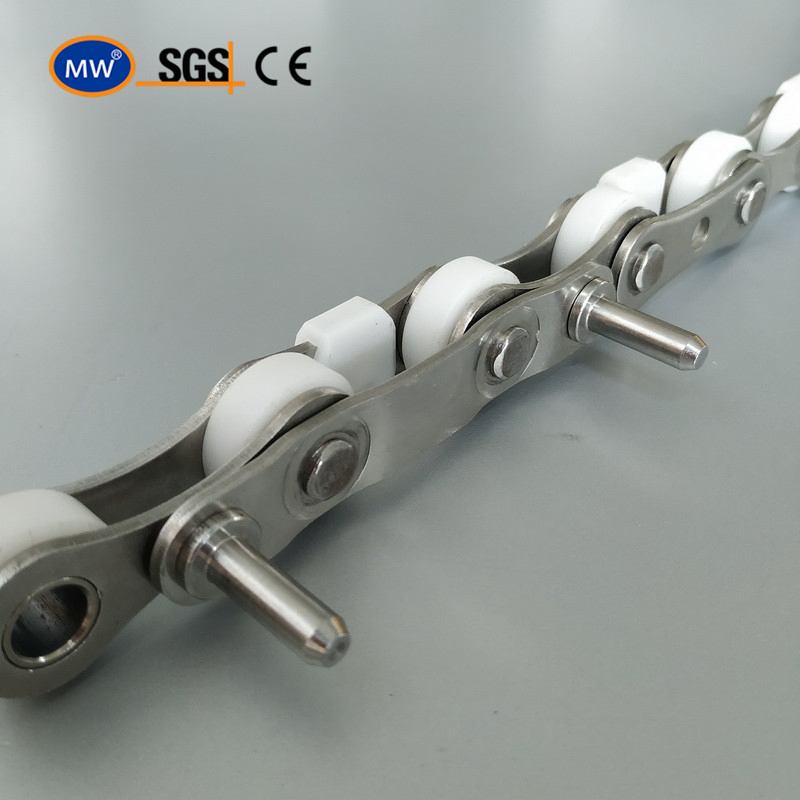

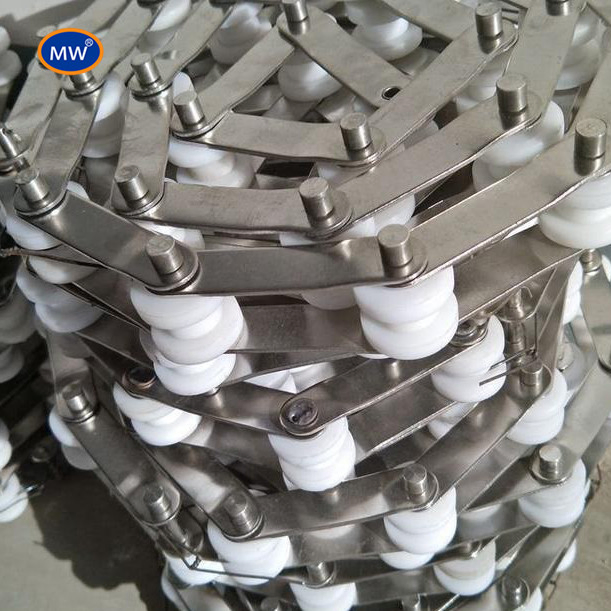

The C216ALSS-I type chain is specifically designed for ice cream production and cold conveying machinery. With a 50.8mm pitch and rollers made of reinforced machined nylon, it offers superior wear resistance and low-temperature performance. The chain links are constructed from high-hardness Stainless Steel 304/SS316, ensuring they remain resilient in cold production environments without breaking. All parameters comply with ISO, ANSI, DIN, BS, and JIS standards.

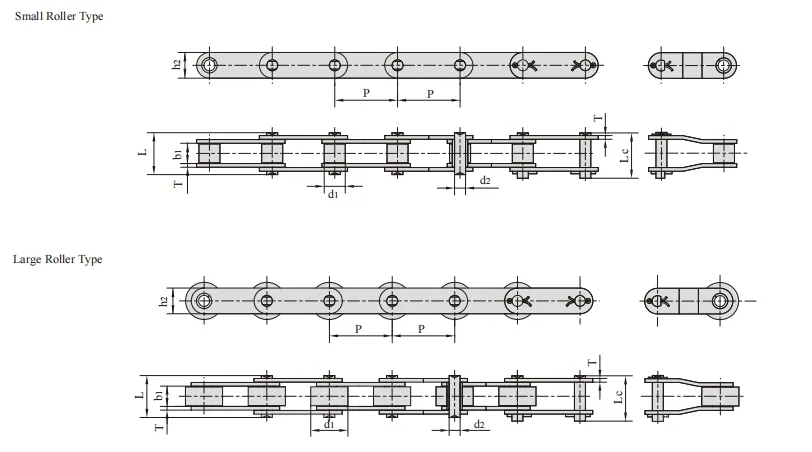

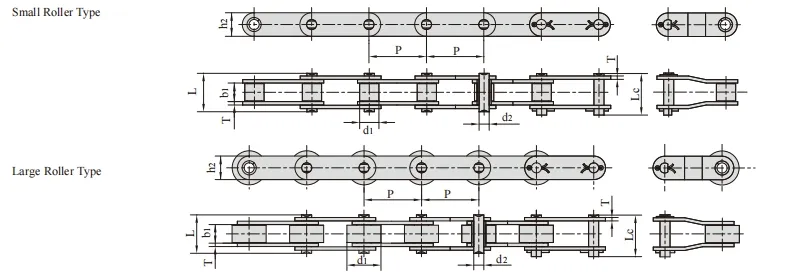

| ISO Chain No. | ANSI Chain No. | Pitch (mm) | Roller Diameter (mm) | Width between Inner Plates (mm) | Pin Diameter (mm) | Tensile Strength (kN) | Weight per meter (kg/m) |
|---|---|---|---|---|---|---|---|
| C208A / C208AL | C2040 / C2042 | 25.40 | 7.95 / 15.88 | 7.85 | 3.96 | 14.1 | 0.50 / 0.84 |
| C210A / C210AL | C2050 / C2052 | 31.75 | 10.16 / 19.05 | 9.40 | 5.08 | 22.2 | 0.78 / 1.27 |
| C212A / C212AL | C2060 / C2062 | 38.10 | 11.91 / 22.23 | 12.57 | 5.94 | 31.8 | 1.12 / 1.61 |
| C216A / C216AL | C2080 / C2082 | 50.80 | 15.88 / 28.58 | 15.75 | 7.92 | 56.7 | 2.08 / 3.12 |
| C220A / C220AL | C2100 / C2102 | 63.50 | 19.05 / 39.67 | 18.90 | 9.53 | 88.5 | 3.01 / 4.83 |
| C224A / C224AL | C2120 / C2122 | 76.20 | 22.23 / 44.45 | 25.22 | 11.10 | 127.0 | 4.66 / 7.66 |

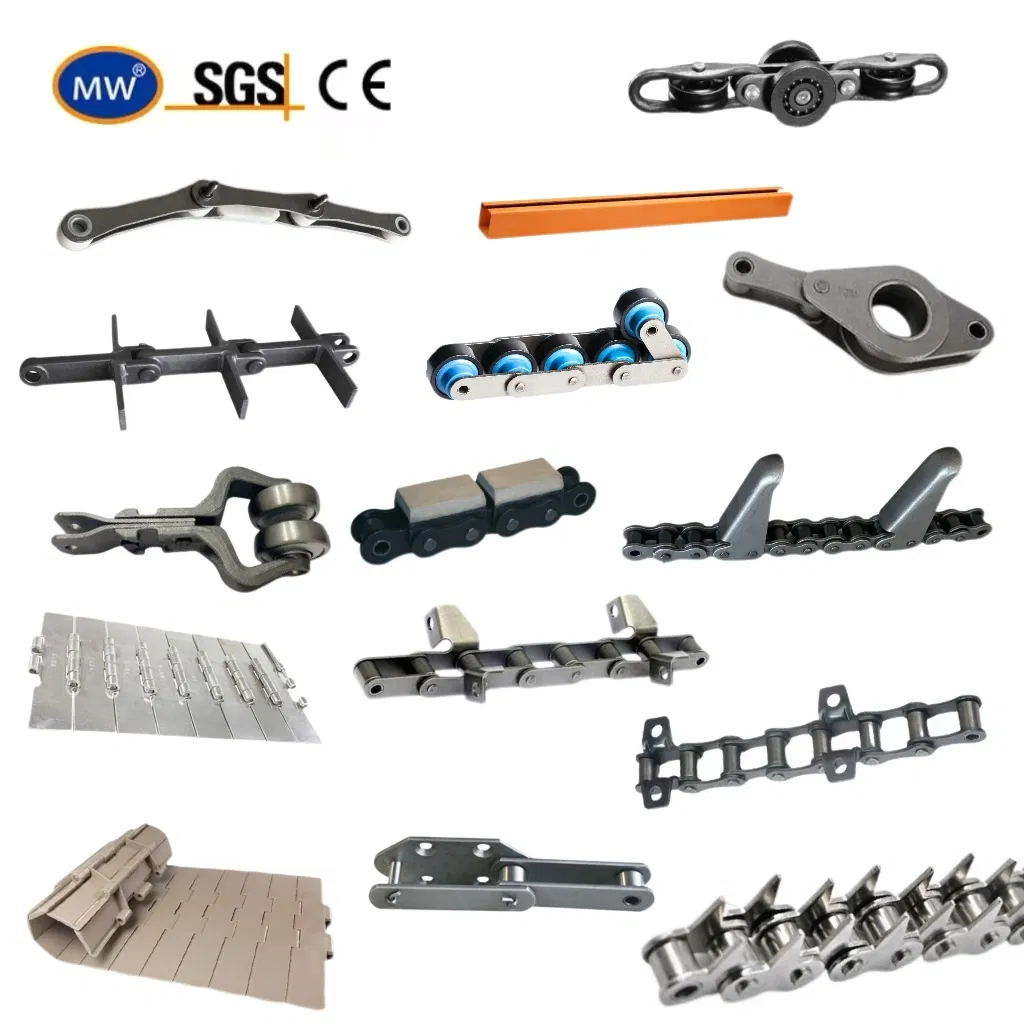

We are a professional manufacturer of a full range of high-quality conveyor line parts including gearboxes, gears, chains, sprockets, pulleys, and CNC machined parts. With extensive experience serving the American, European, and Asian markets, we focus on competitive pricing, timely delivery, and comprehensive after-sales support. Our production processes strictly adhere to ISO9001 standards.
