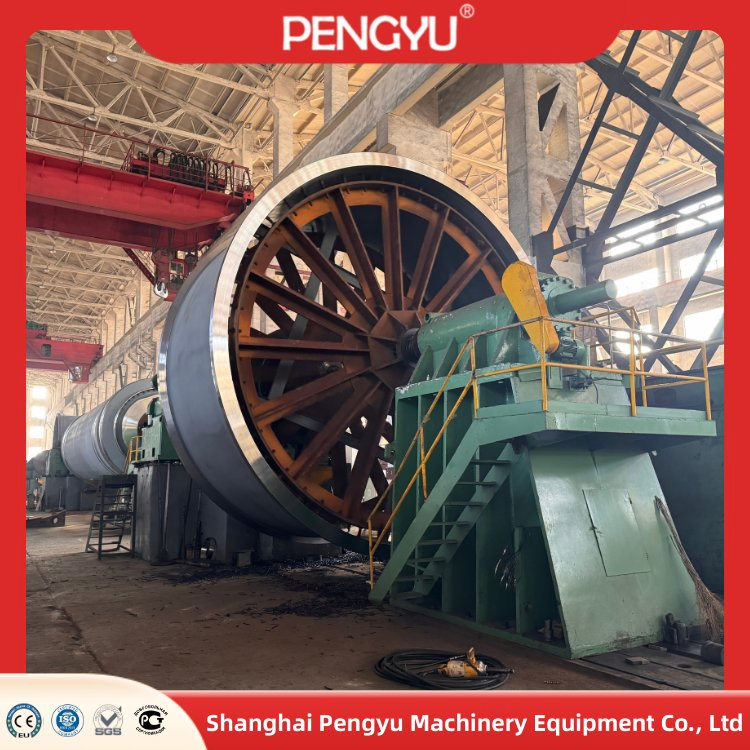

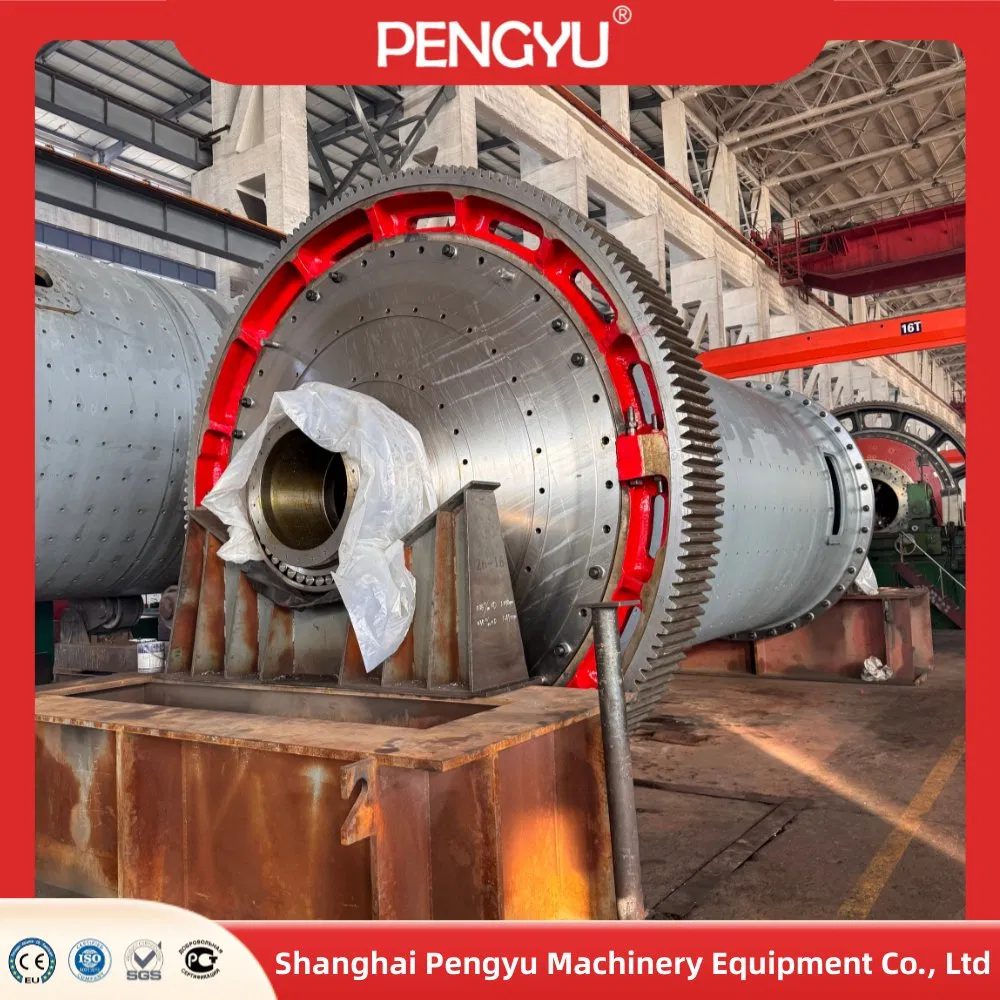

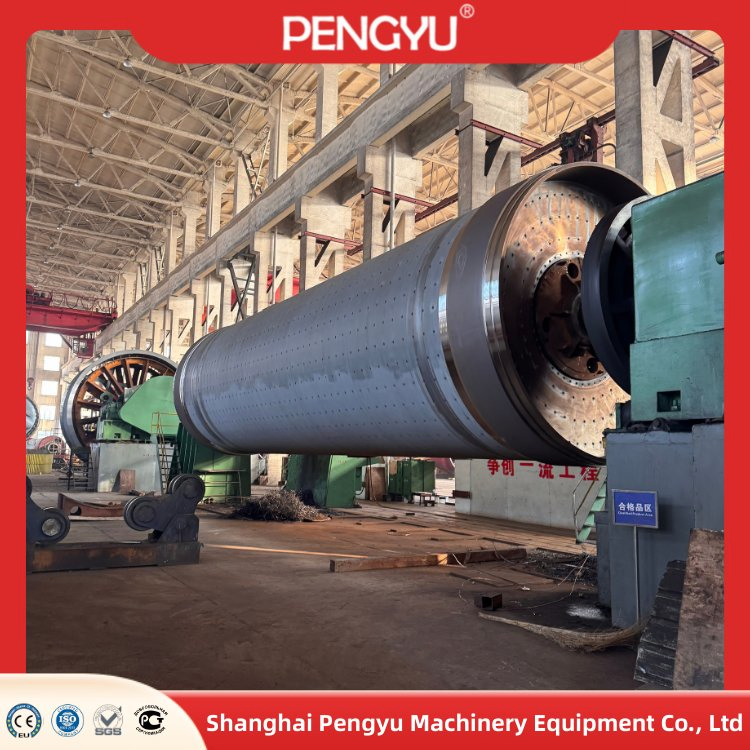

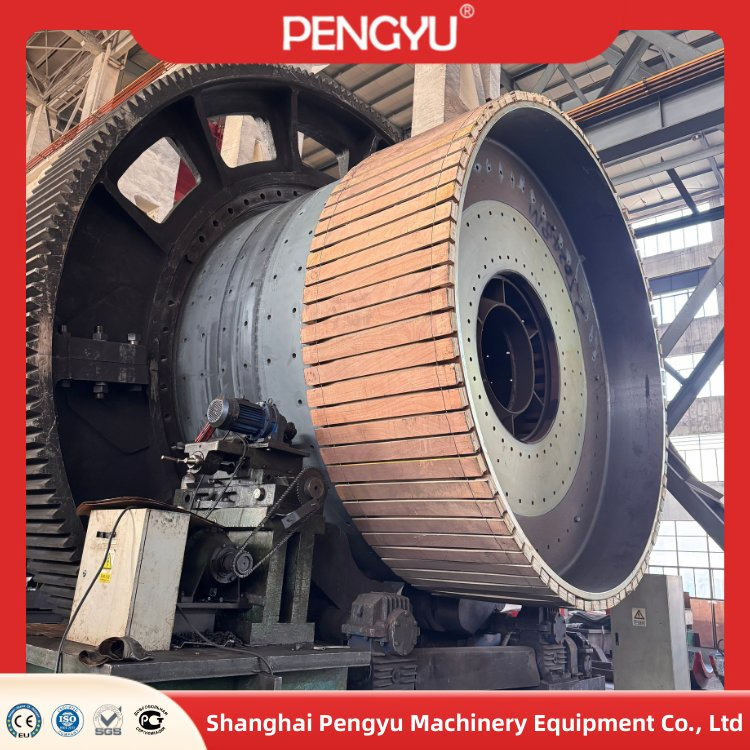

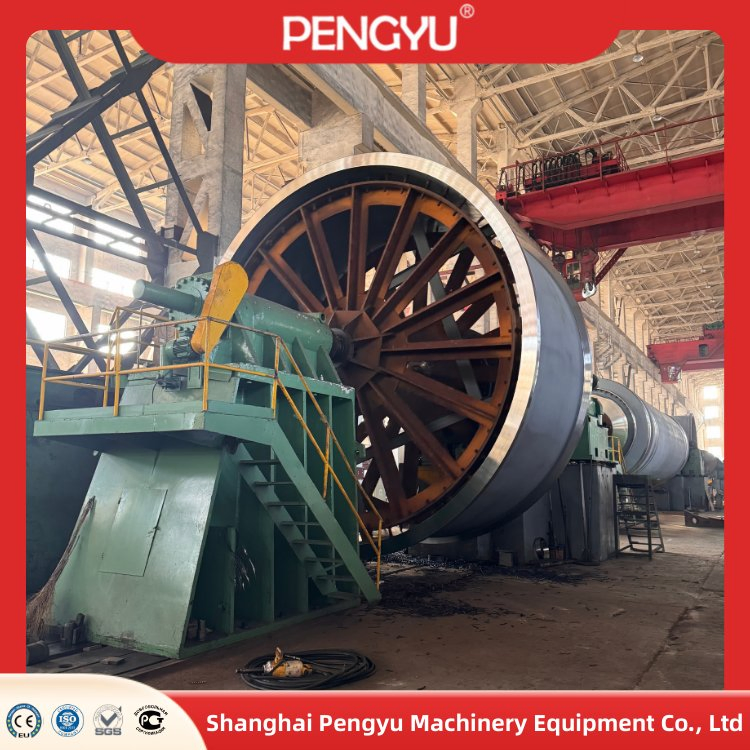

Advanced Chinese Mining Ball Mill for Stable Efficiency
Product Description
We fully consider the user's operating conditions and design the partition plate and discharge grate according to the user's requirements. We continuously improve the internal conditions of the mill, equip it with new liners as needed, adjust the mill speed, optimize the gear design and bearing lubrication parameters, which increases the stability and service life of the mill and improves the grinding efficiency.
| Diameter(mm) | Length (mm) | Shell Effective Area (m³) | Speed (r/min) | Power (KW) |
|---|---|---|---|---|
| 4000 | 1600~3600 | 19~42 | 16.2 | 240~540 |
| 5000 | 2000~4500 | 38~83 | 14.5 | 530~1200 |
| 6100 | 2400~5500 | 69~152 | 13.1 | 1050~2400 |
| 8000 | 3200~7200 | 160~347 | 11.4 | 2800~6200 |
| 8600 | 3400~7700 | 197~429 | 11 | 3500~7900 |
| 10400 | 4200~9400 | 359~770 | 10 | 7000~15400 |
| 12200 | 4900~11000 | 580~1246 | 9.2 | 12000~27000 |
| Diameter(mm) | Length (mm) | Shell Effective Area (m³) | Loadage (t) | Speed (r/min) | Power (KW) |
|---|---|---|---|---|---|
| 4000 | 1600~3600 | 19~42 | 13~29 | 16.2 | 310~710 |
| 6100 | 2400~5500 | 69~152 | 48~106 | 13.1 | 1400~3100 |
| 8600 | 3400~7700 | 197~429 | 137~299 | 11 | 4600~10000 |
| 10400 | 4200~9400 | 359~770 | 250~537 | 10 | 9100~20000 |
| 12200 | 4900~11000 | 580~1246 | 405~869 | 9.2 | 16000~36000 |

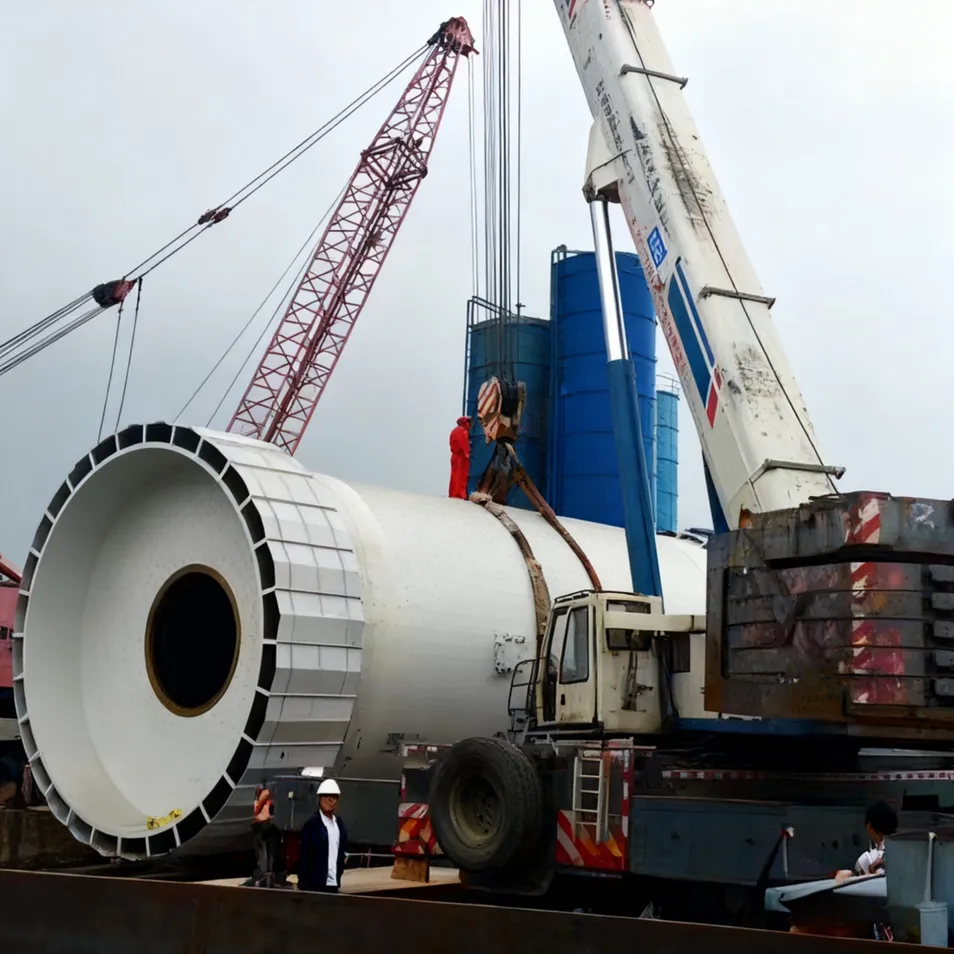

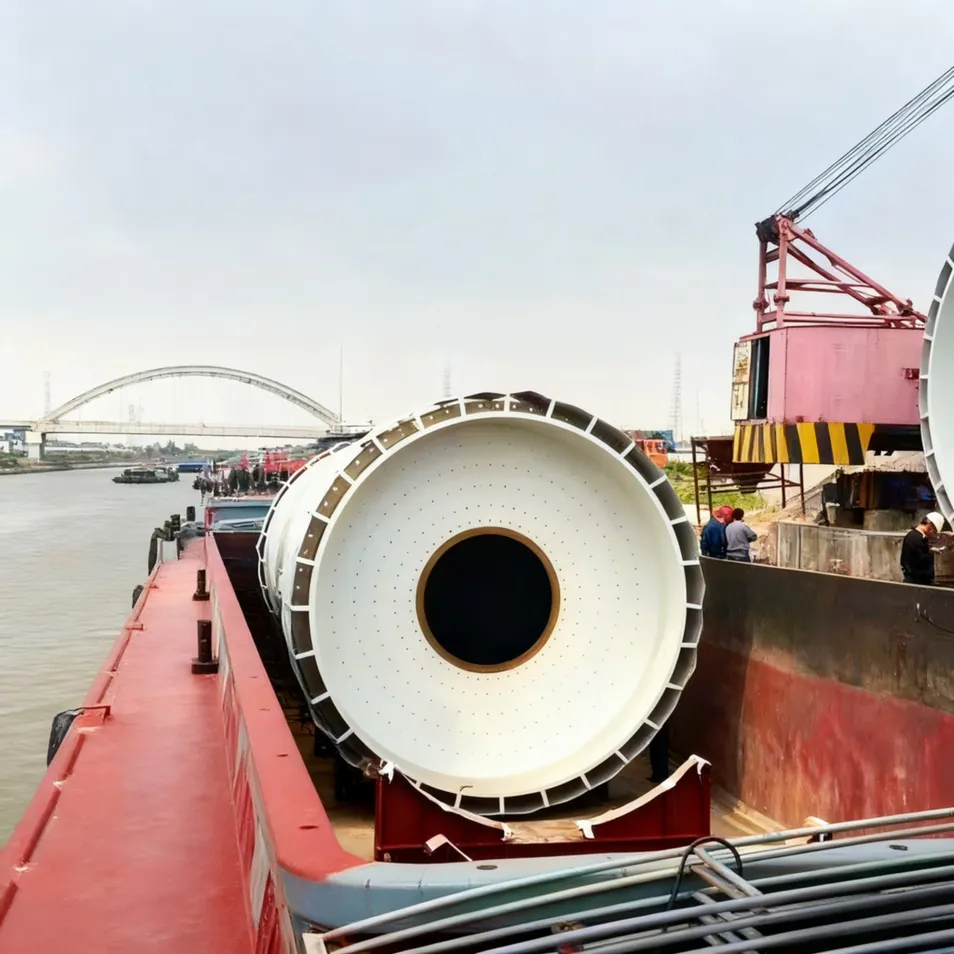

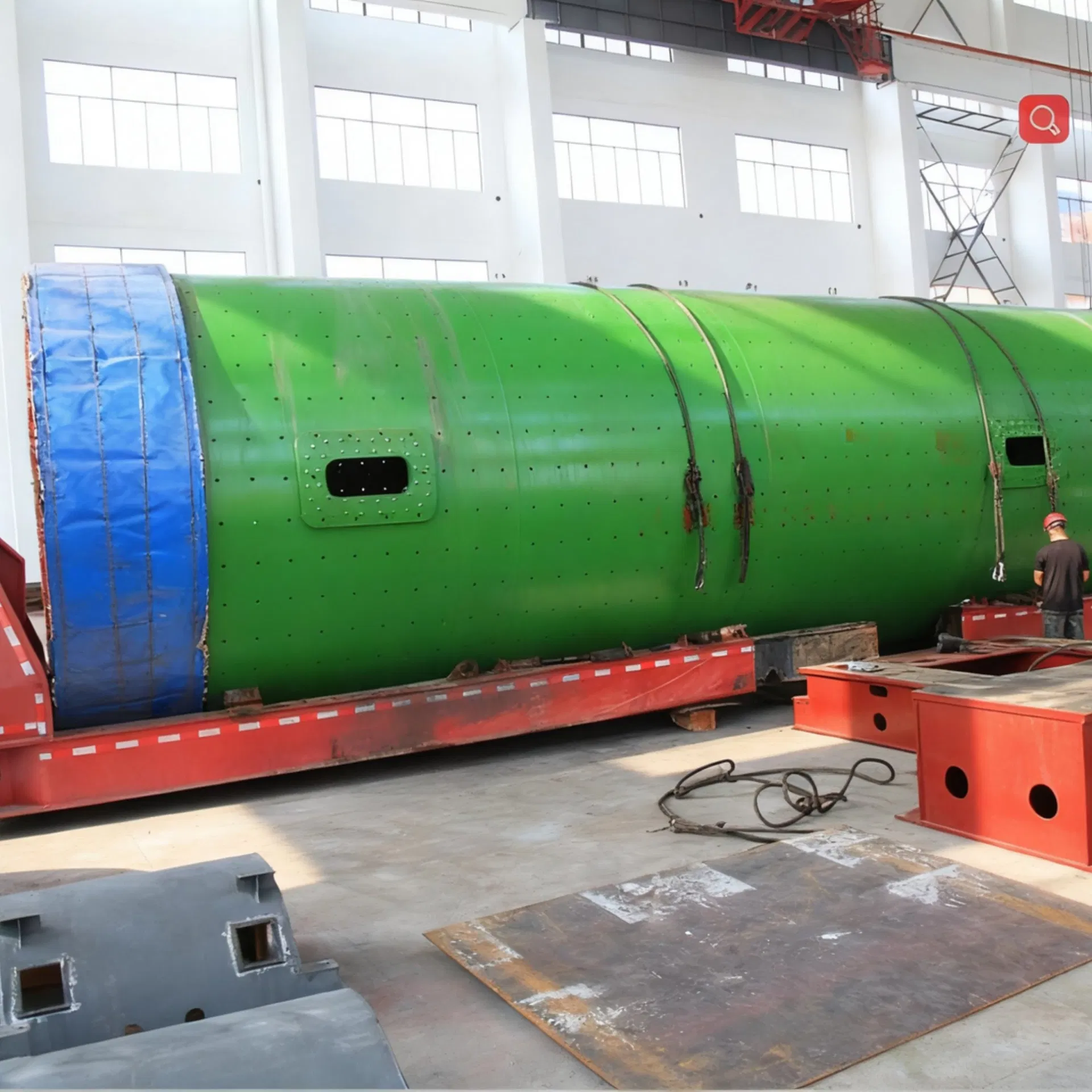

We provide integrated, end-to-end logistics solutions for delivering complete production lines worldwide. Our strategy leverages a multi-modal approach, primarily utilizing ocean freight. Standard components are shipped via containers, while oversized critical equipment like mill shells are securely transported on specialized heavy-lift vessels.

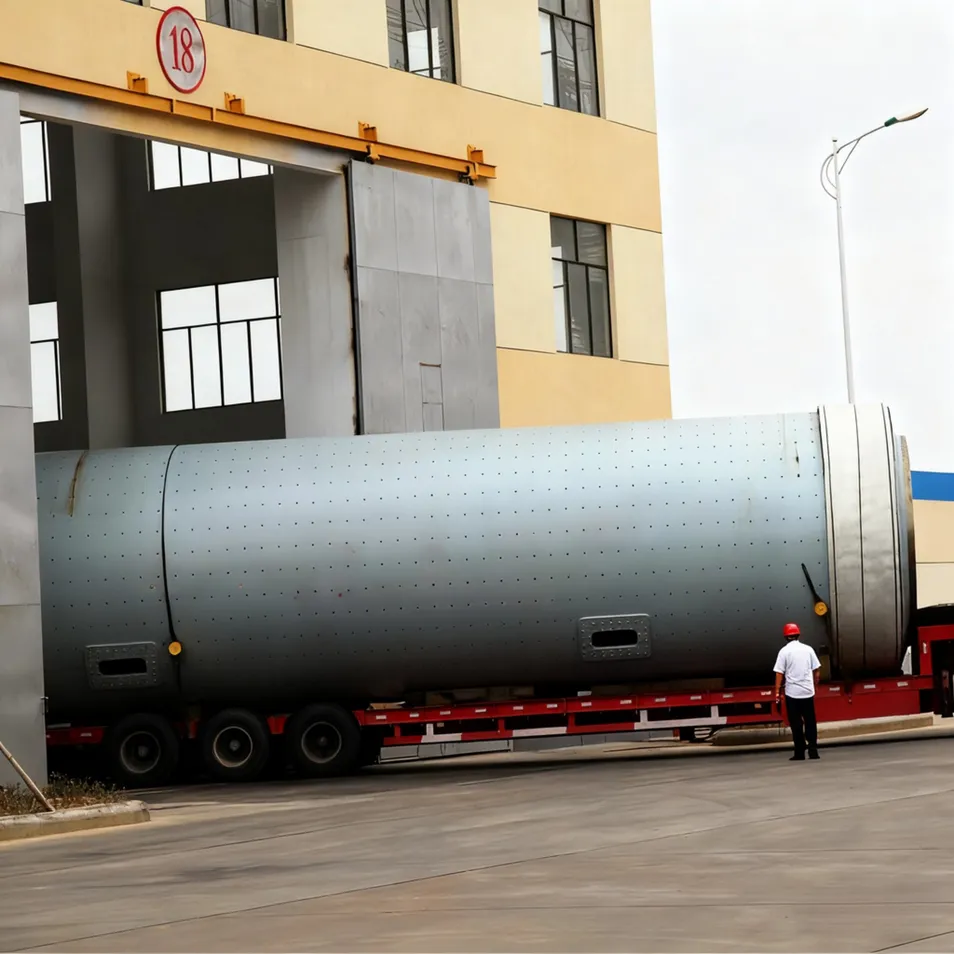

This is complemented by managed inland transport using specialized trailers for final site delivery. Our seamless process covers everything from professional export packaging and customs clearance to port handling and final site positioning.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
● Provide complete set of equipment and integrated service for cement grinding lines of various capacities below 10,000 tons per day.
● Provide engineering and fabrication for energy-saving and environmental protection mills in lime, nickel-iron, lithium battery, coal, chemical, and metallurgy industries.
● Products are exported to more than 70 countries and regions including Germany, Denmark, Russia, Japan, South Korea, Brazil, Egypt, and Vietnam. Ranks highly in global sales of grinding equipment.
