Cold Bed Conveyor Chain for Metallurgy Industry
Product Description
i
Basic Information
Surface Treatment
Polishing
Feature
Heat Resistant
Pitch
135mm
Inner Width
45 mm
Roller Diameter
50 mm
Pin Diameter
30 mm
Plate Height
90 mm
Transport Package
Plywood Case
Specification
ISO, G/B
HS Code
73151190
Production Capacity
10000 PCS Each Month
★
Product Description
Cold bed chain, Fu Style Chain for Architectural Machine Equipment, welded steel mill chain, welded steel drag chain, cast fixed pin chain, conveyor chain for metallurgy industry, drop forged link chain and Engineer Class Driving Chain, with alloy steel and stainless steel selection according to your requirement.
- Chain types: Drop forged rivetless chain, Roller Chain, conveyor chain, agricultural chain, sugar industry chain, palm oil industry chain, asphalt industry chain, elevator conveyor industry chain, double flex chain, pintle chain, weld steel drag chains, malleable chain etc.
- Main materials: 40Mn, 40Cr, 45Mn alloy steel or SUS304 for plates; 10#, 20#, 20CrMnMo, 30CrMnTi for pins and rollers.
- Heat treatment: Carburizing, Austemper Stressing, nitro-carburizing harden etc.
- Surface: Shot peening, black, blue or original.
- Package: Plastic bag + carton box + plywood case.
📷

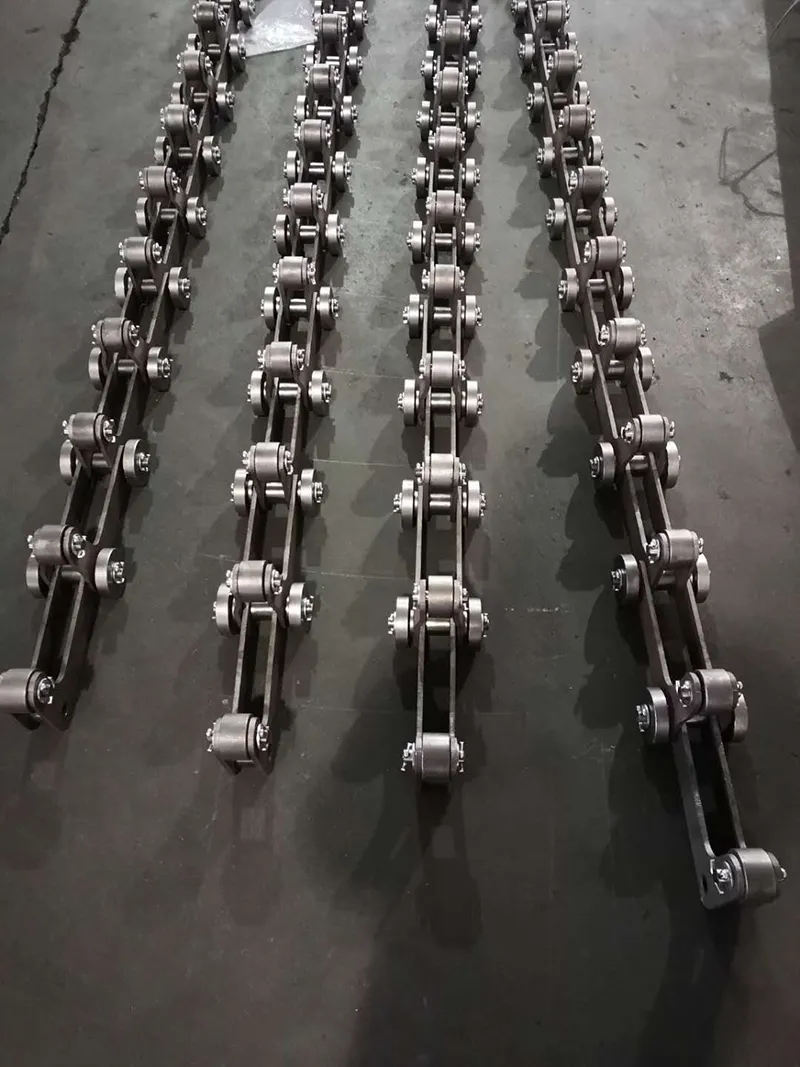

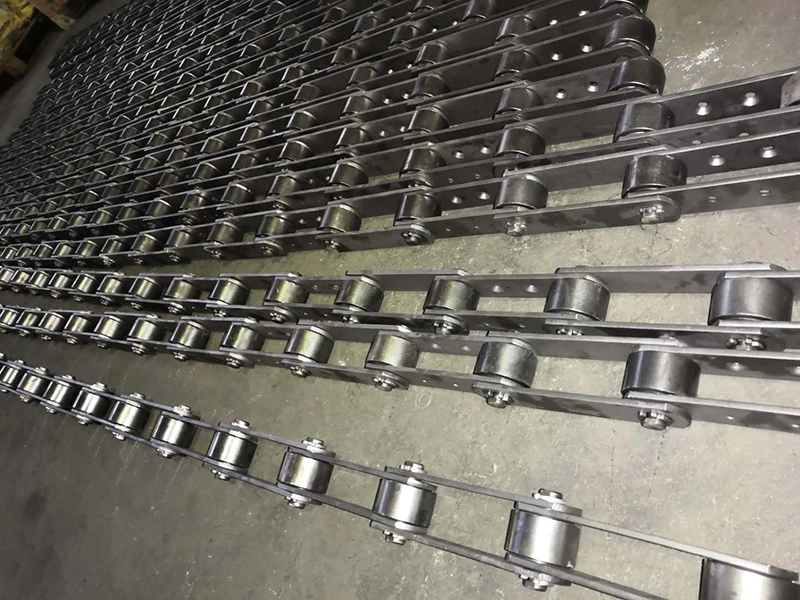

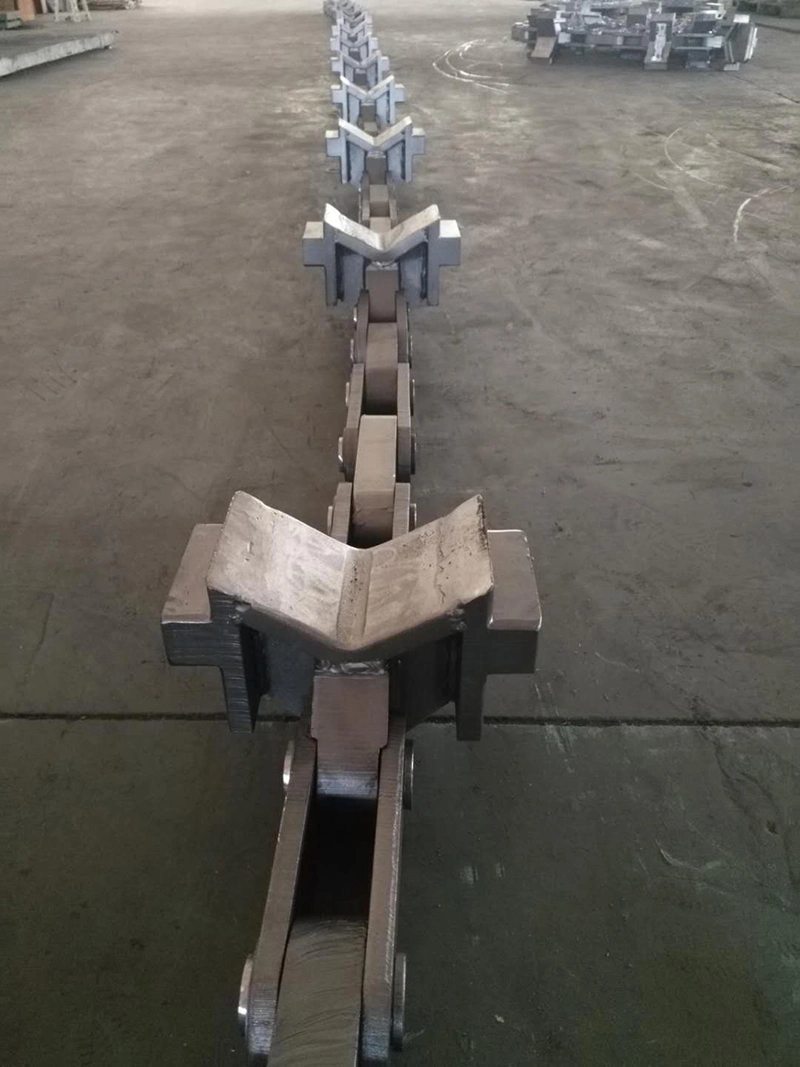

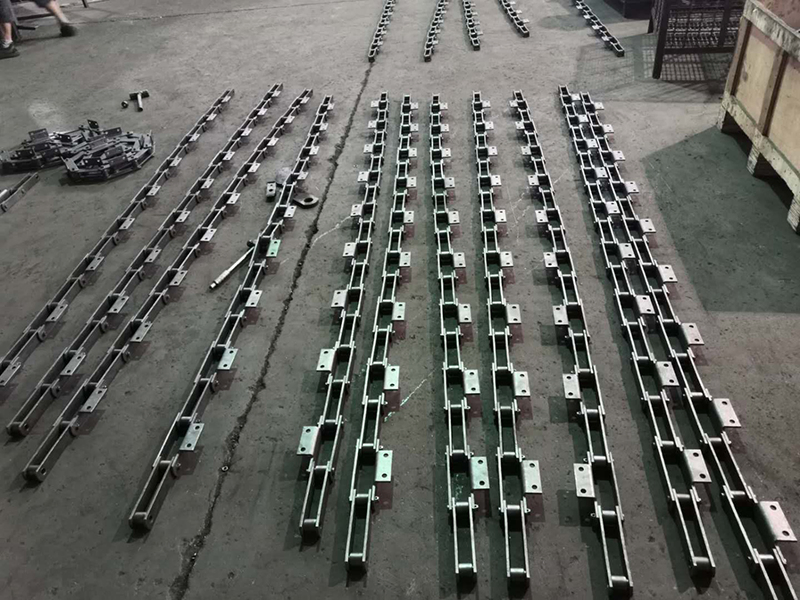

Detailed Photos
📋
Technical Specifications
| Pitch (mm) | Inner Width b1 (min) | Roller Dia d1 (max) | Pin Dia d2 (max) | Pin Length L (min) | Sidebar Height h2 (max) | Sidebar Thickness T | Top Height H2 | Tensile Strength (kN) |
|---|---|---|---|---|---|---|---|---|
| 135 | 45 | 50 | 30 | 103.5 | 90 | 12 | 120 | 500 |
| 135 | 45 | 50 | 25 | 100 | 80 | 8 | 150 | 320 |
| 125 | 40 | 56 | 30 | 176 | 70 | 10 | 120 | 315 |
| 100 | 40 | 46 | 20 | 148 | 60 | 8 | 80 | 175 |
⚙

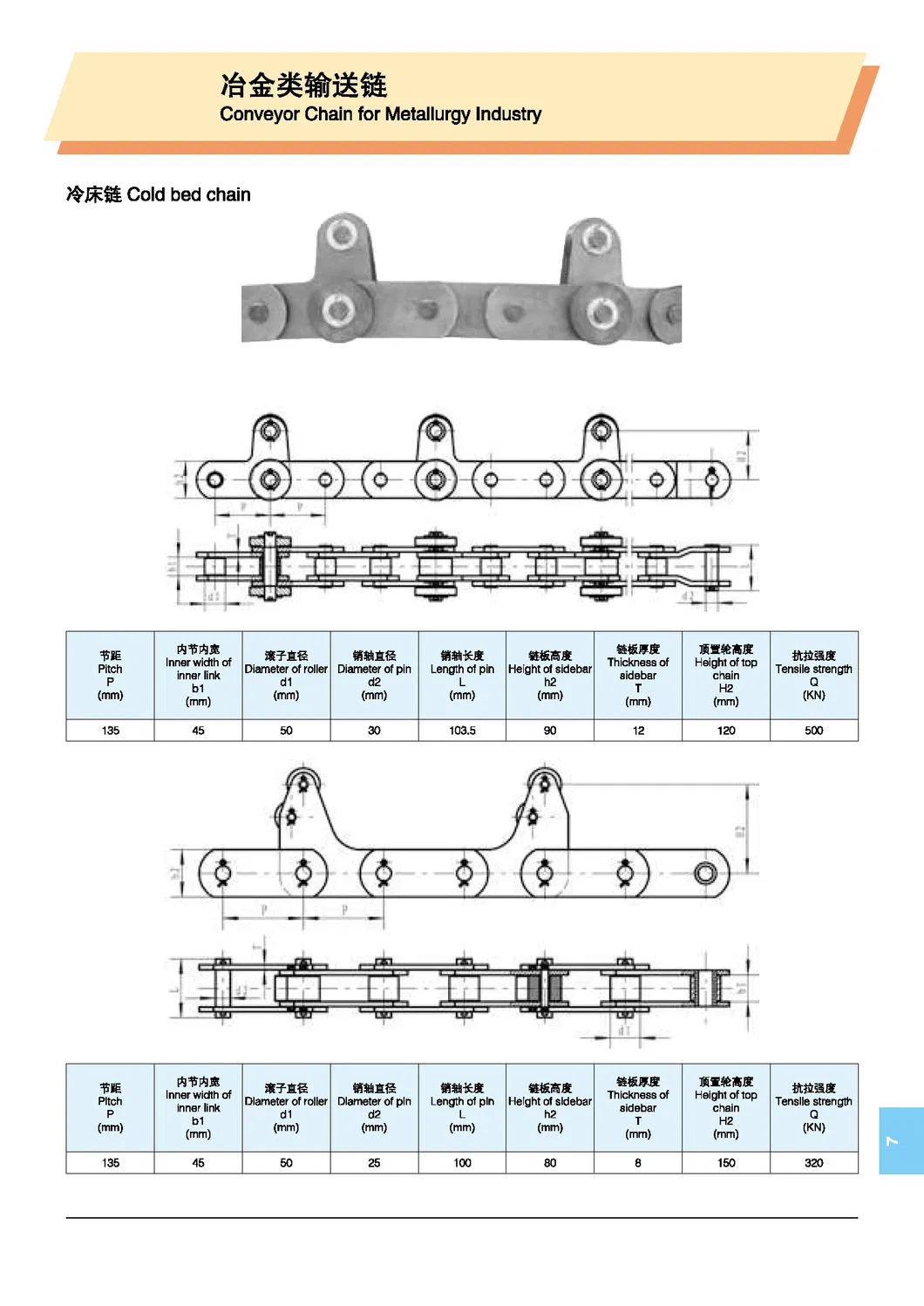

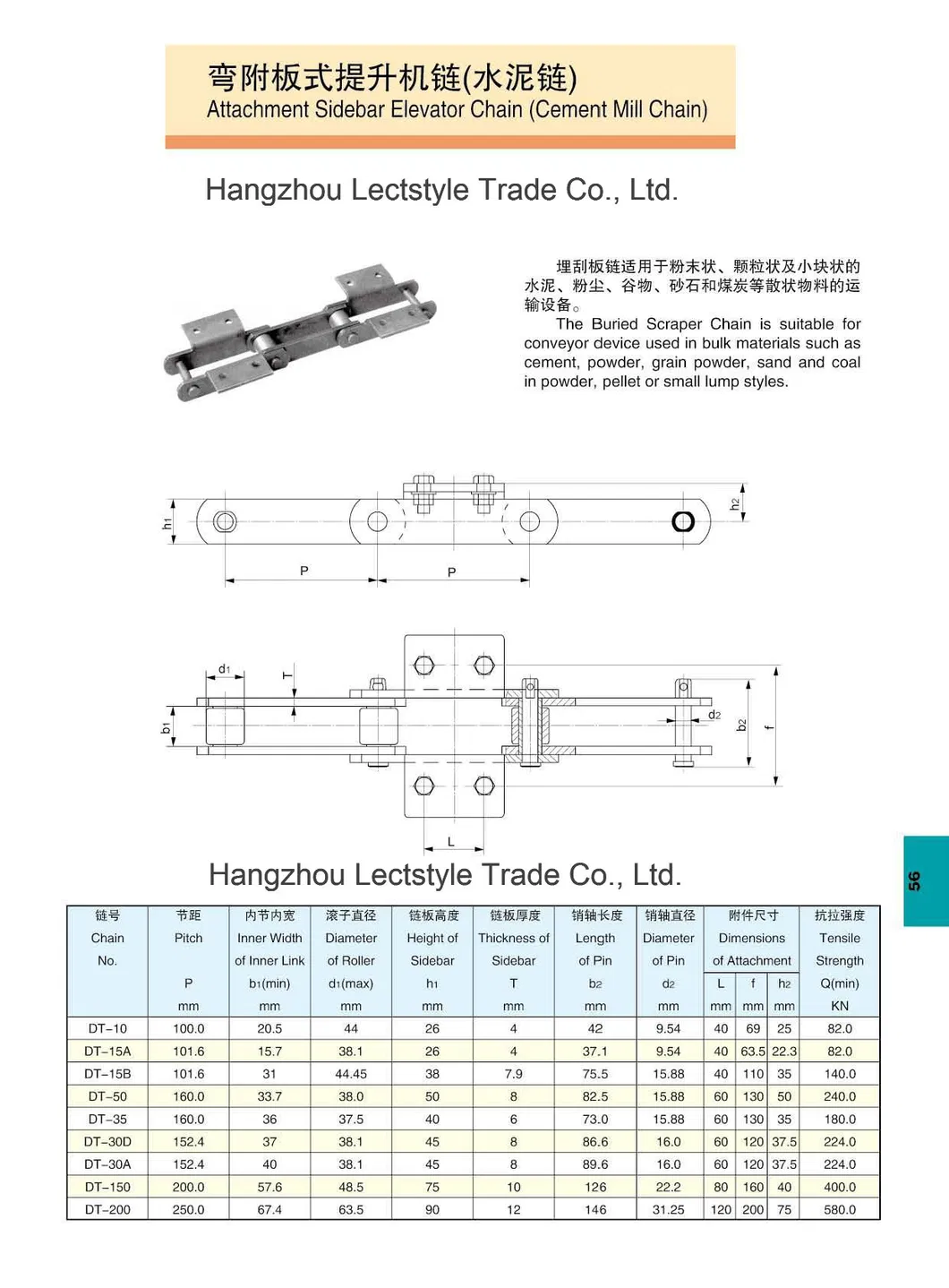

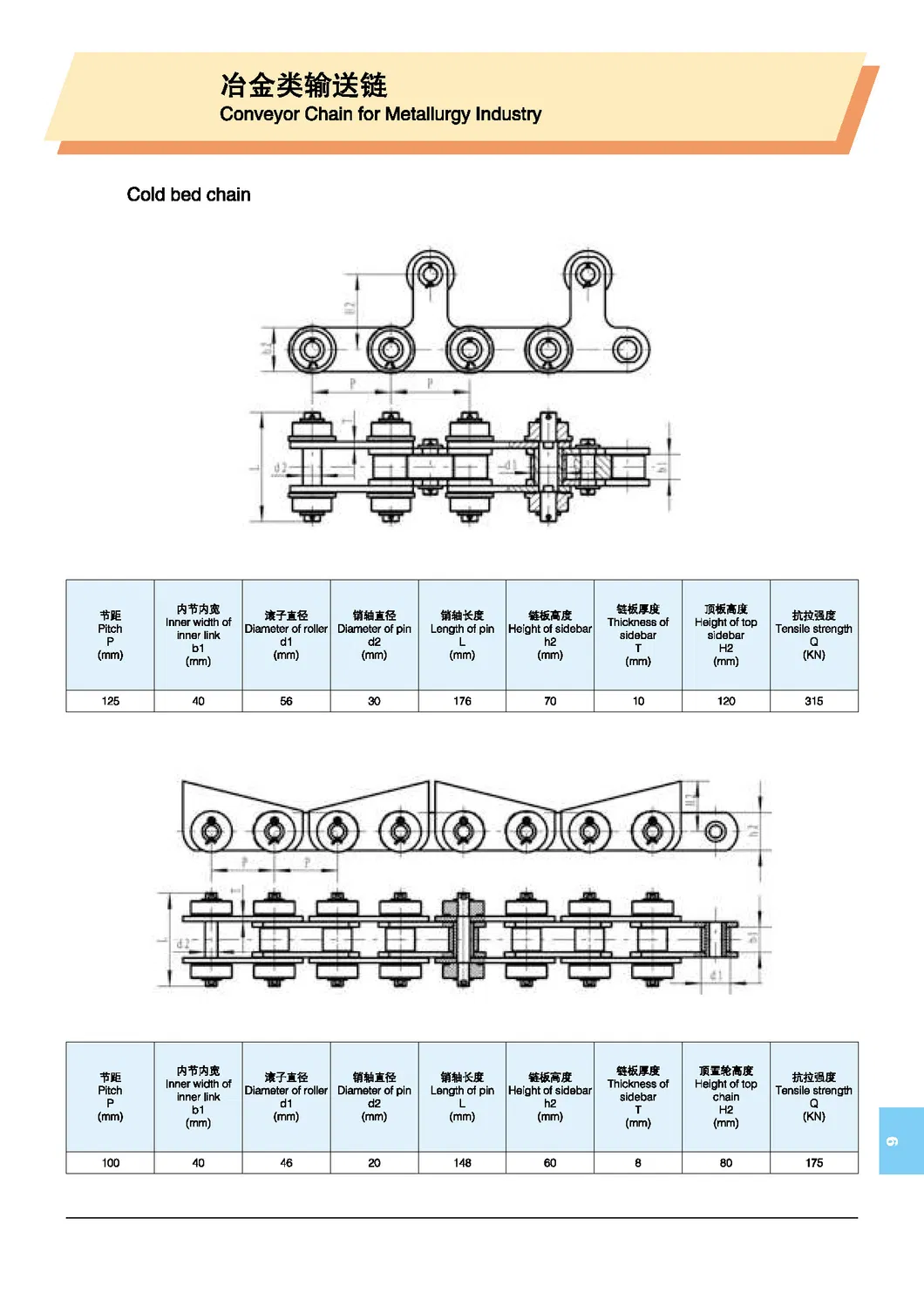

Product Parameters & Drawings
📦

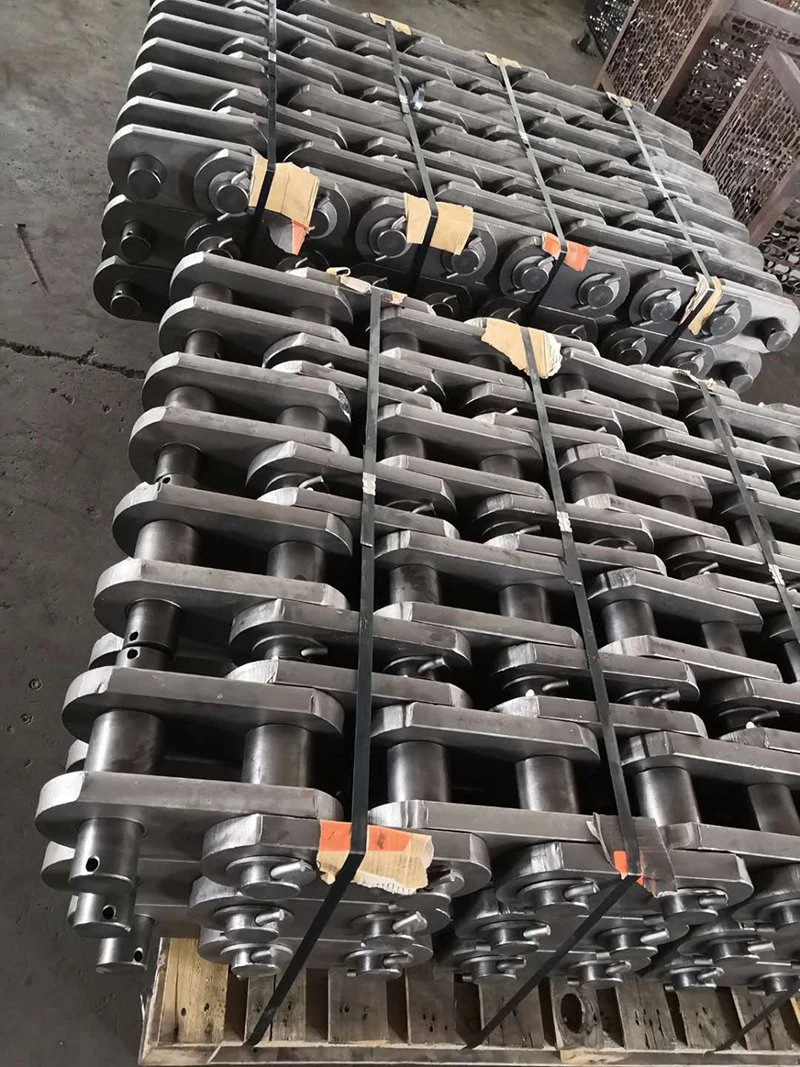

Packaging & Shipping
- Inner packing: Poly bag, air bubble bag, carton according to request.
- Outer packing: OSB case or pallet.
- Reliable delivery processing for global shipping.
🏭
Manufacturing Process

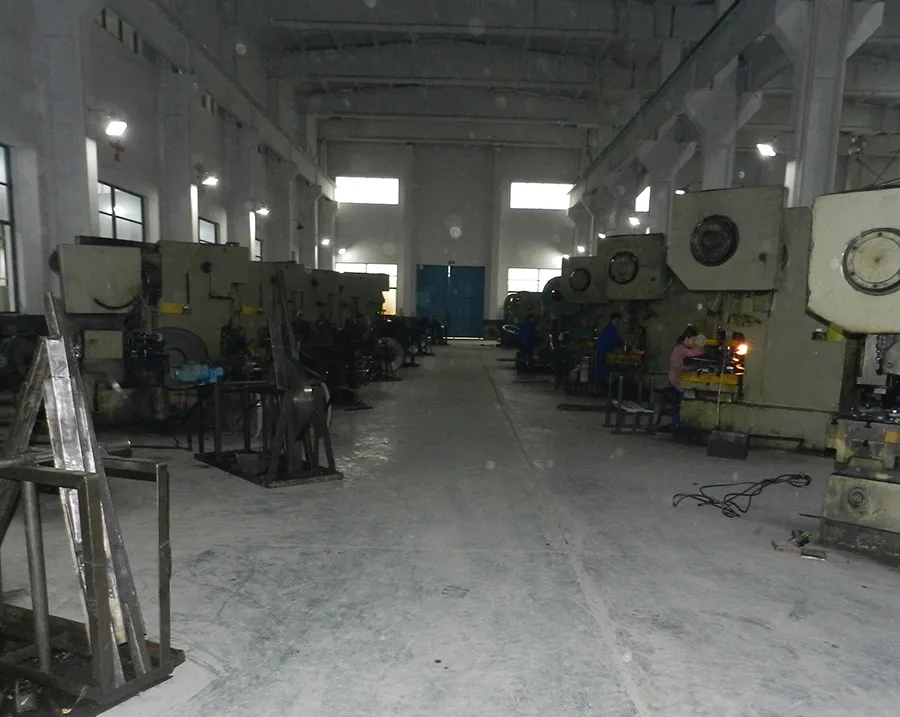

1. Plate Punching
2. Shot Peening

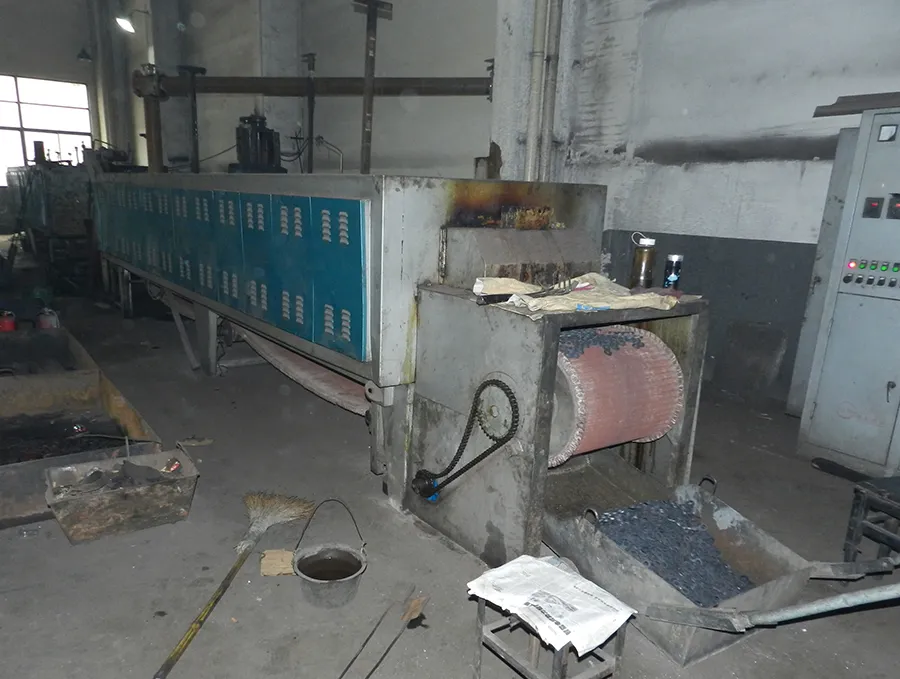

3. Heat Treatment

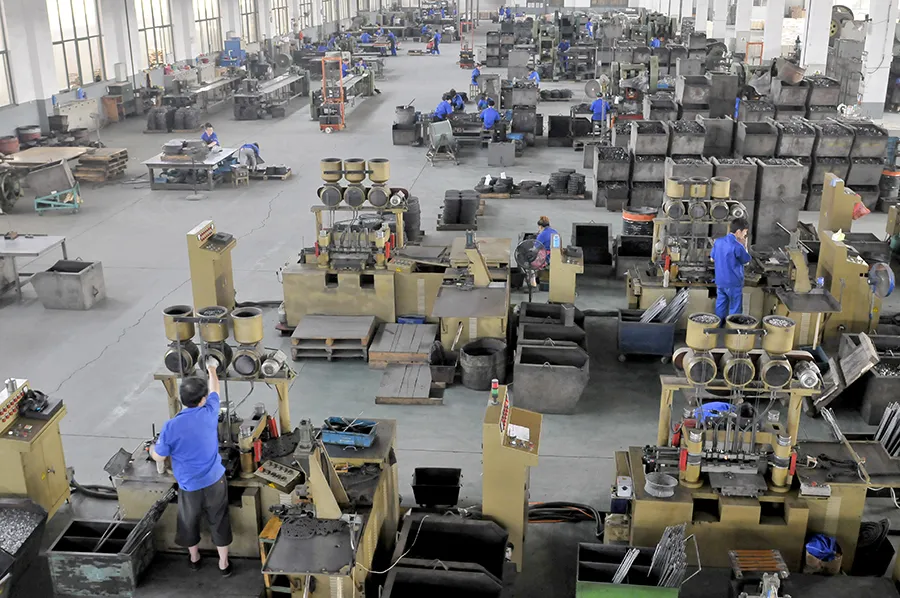

4. Assembly Prep

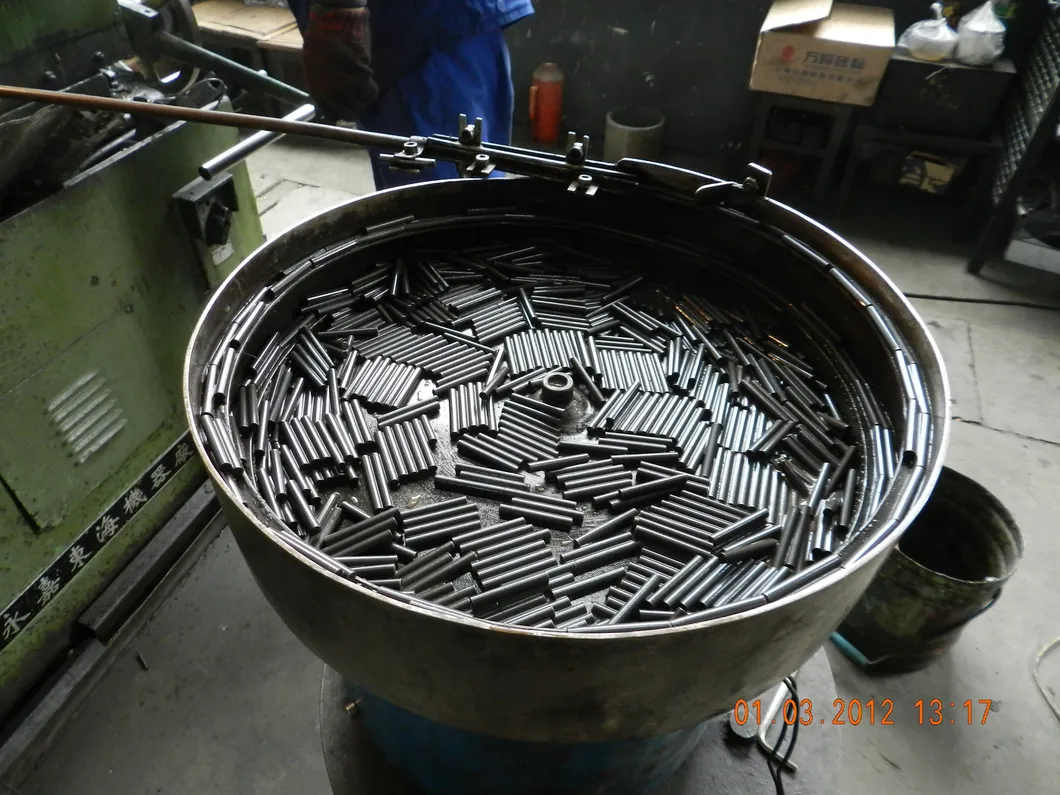

5. Pins Process

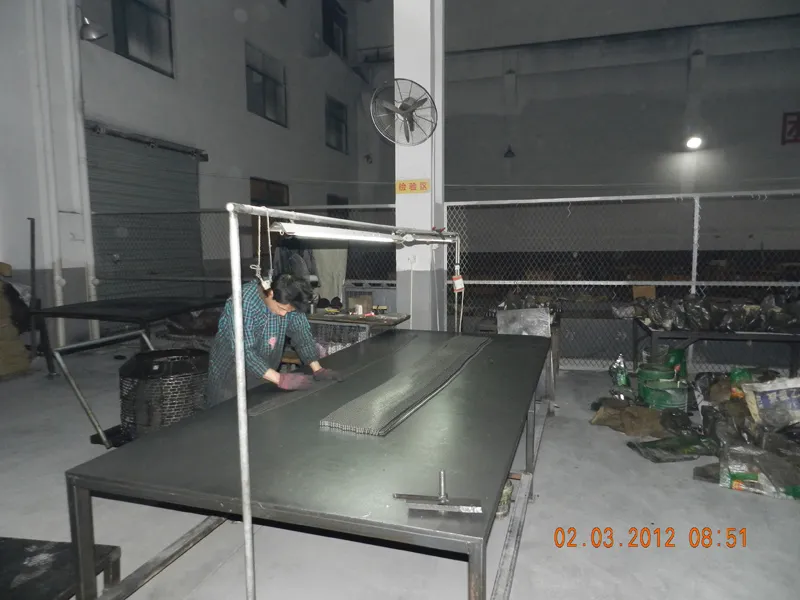

6. Tensile Testing
🛠
After Sales Service
Our products can be repaired or replaced with new parts at no cost within a six-month period, ensuring long-term reliability for your operations.
?
Frequently Asked Questions
How is the mould cost determined?
Mould cost primarily depends on the drawing design, material selection, weight, and quantity. We analyze the structure of each part using complete design drawings, PDF dimensions, or actual samples to provide the best solution.
How do you control the product processing?
We provide transparency through regular processing reports and pictures sent to customers every week or month for review.
Who retains ownership of the moulds?
The customer owns the mould. It can be kept in our factory for future orders to ensure consistency and speed for repeat production.
What is the typical quotation lead time?
After receiving detailed information including technical parameters (pitch, roller diameter, width, etc.), we typically provide a quotation within 1 to 3 days.
What is the Minimum Order Quantity (MOQ)?
MOQ varies by chain size: Small chains (pitch < 38.10mm) require 1500 meters; Large chains (pitch > 76.20mm and thickness > 10mm) require 200 meters.
What technical details are needed for a custom chain?
Please provide the model, pitch, roller diameter, width between inner plates, attachment type, and any outside drawings or surface treatment requirements.
