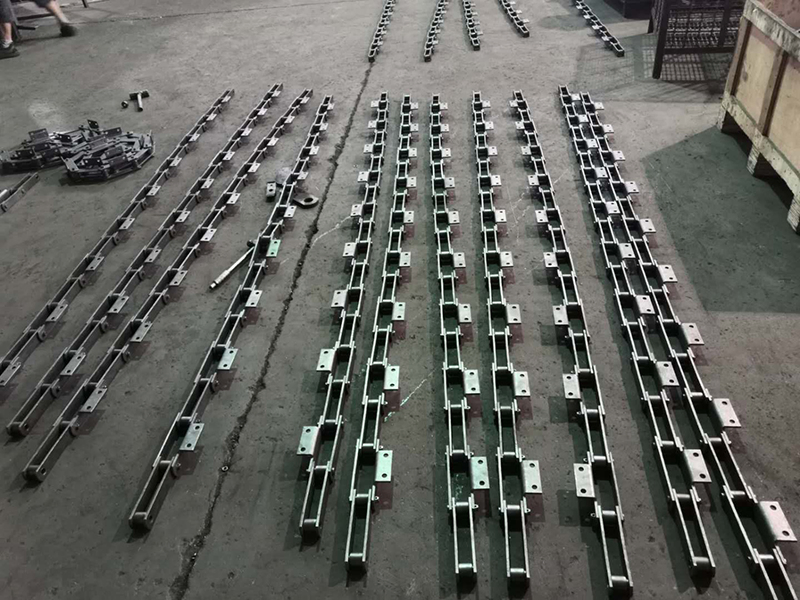

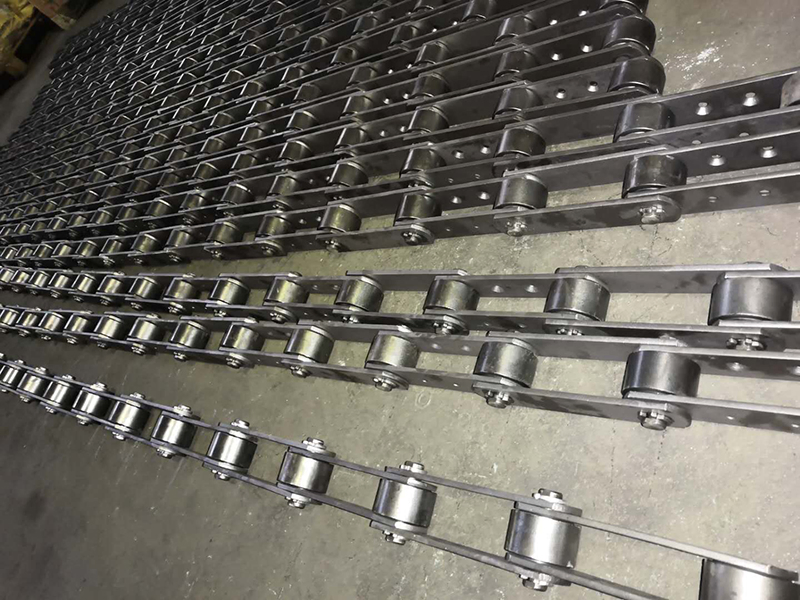

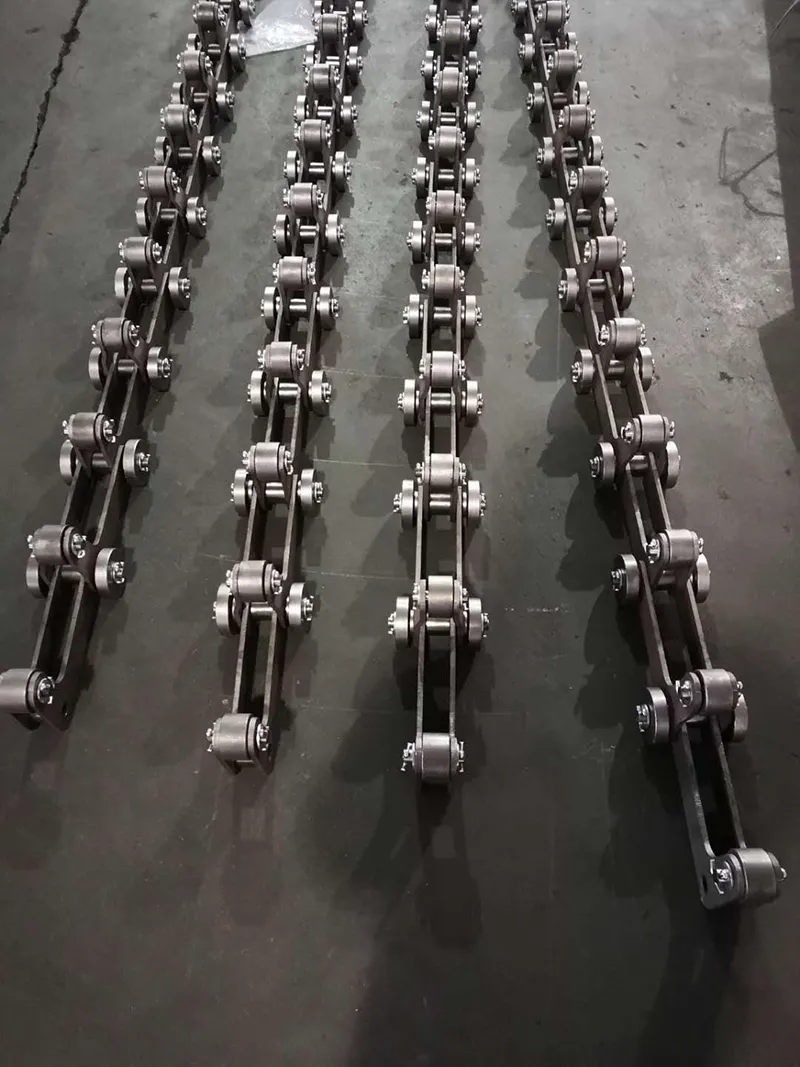

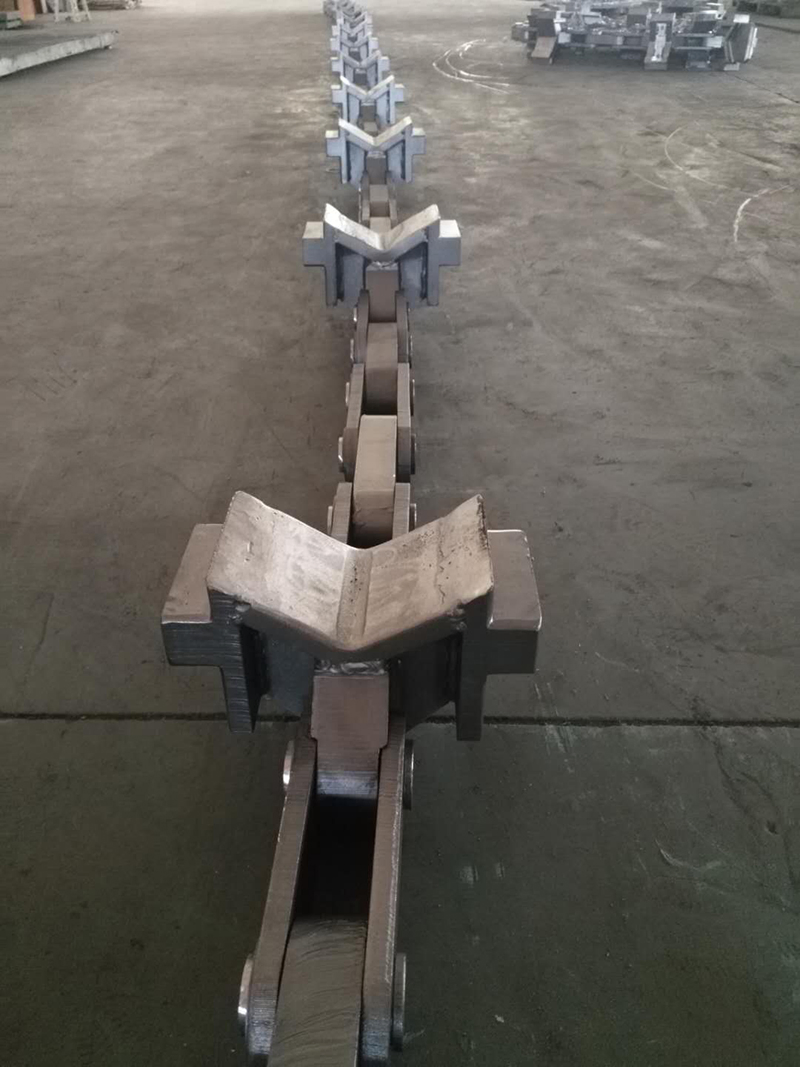

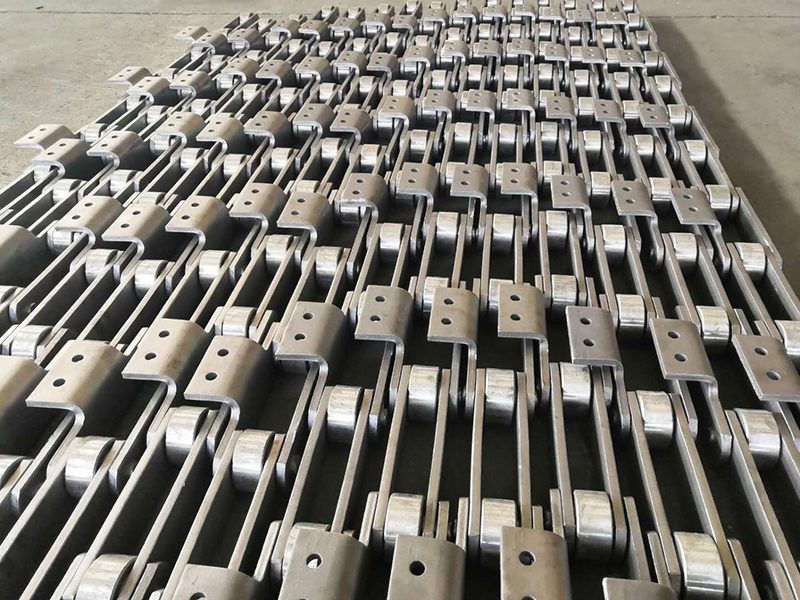

Cold Bed Conveyor Chain on Metallurgy Industry
Product Description
Basic Information
Surface Treatment:Polishing
Feature:Heat Resistant
Pitch:125 mm
Inner Width:40 mm
Roller Diameter:56 mm
Pin Diameter:30 mm
Sidebar Height:70 mm
Thickness of Plate:10 mm
Package:Plywood Case
Specification:ISO, G/B
Origin:China
Capacity:1000 PCS Each Month
Product Description
Our industrial solutions include cold bed chains, welded steel mill chains, drag chains, and cast fixed pin chains. Designed for metallurgical industry conveyors, drop forged link chains, and engineer class driving chains, we utilize premium alloy and stainless steel tailored to your specific operational requirements.
- Chain Varieties: Drop forged rivetless, Roller, Agricultural, Sugar/Palm Oil Industry, Asphalt, and Elevator conveyor chains.
- Premium Materials: Plates made of 40Mn, 40Cr, 45Mn, or SUS304; Pins and rollers utilize 10#, 20#, 20CrMnMo, or 30CrMnTi.
- Advanced Treatment: Carburizing, Austemper Stressing, and Nitro-carburizing hardening processes.
- Surface Finish: Shot peening, black, blue, or original natural finish.

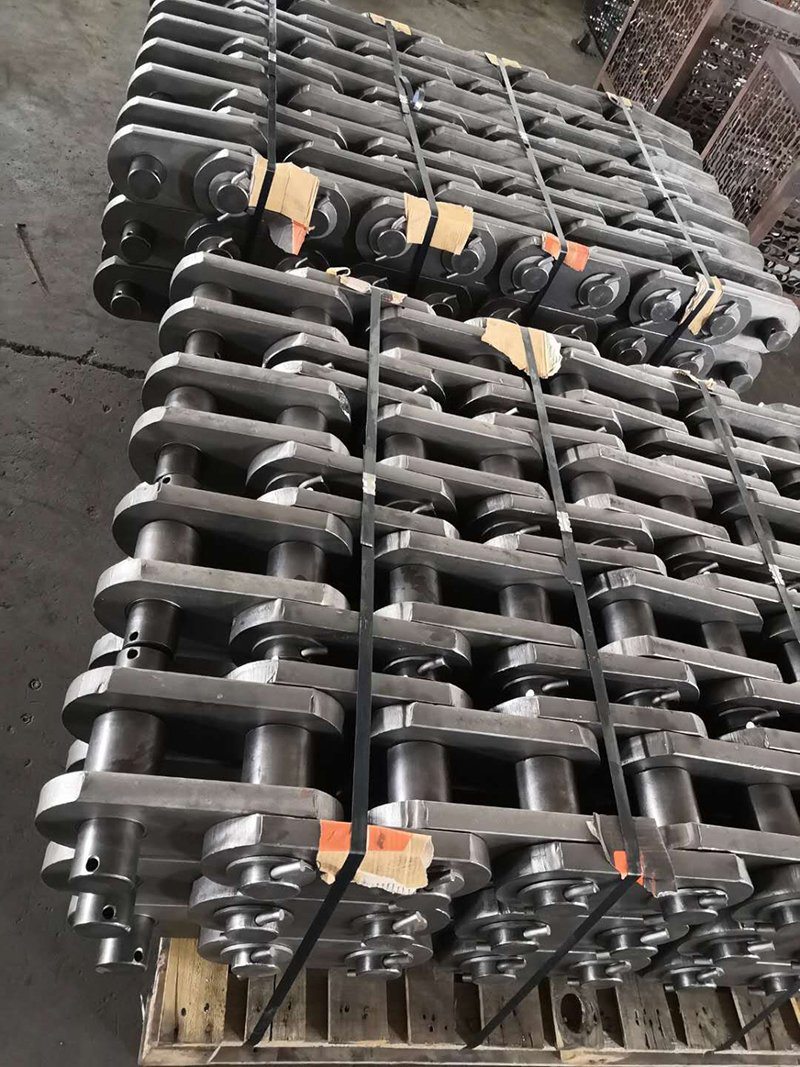

- Secure Packaging: Plastic bag protection followed by carton boxes and sturdy plywood cases.
Detailed Product Gallery

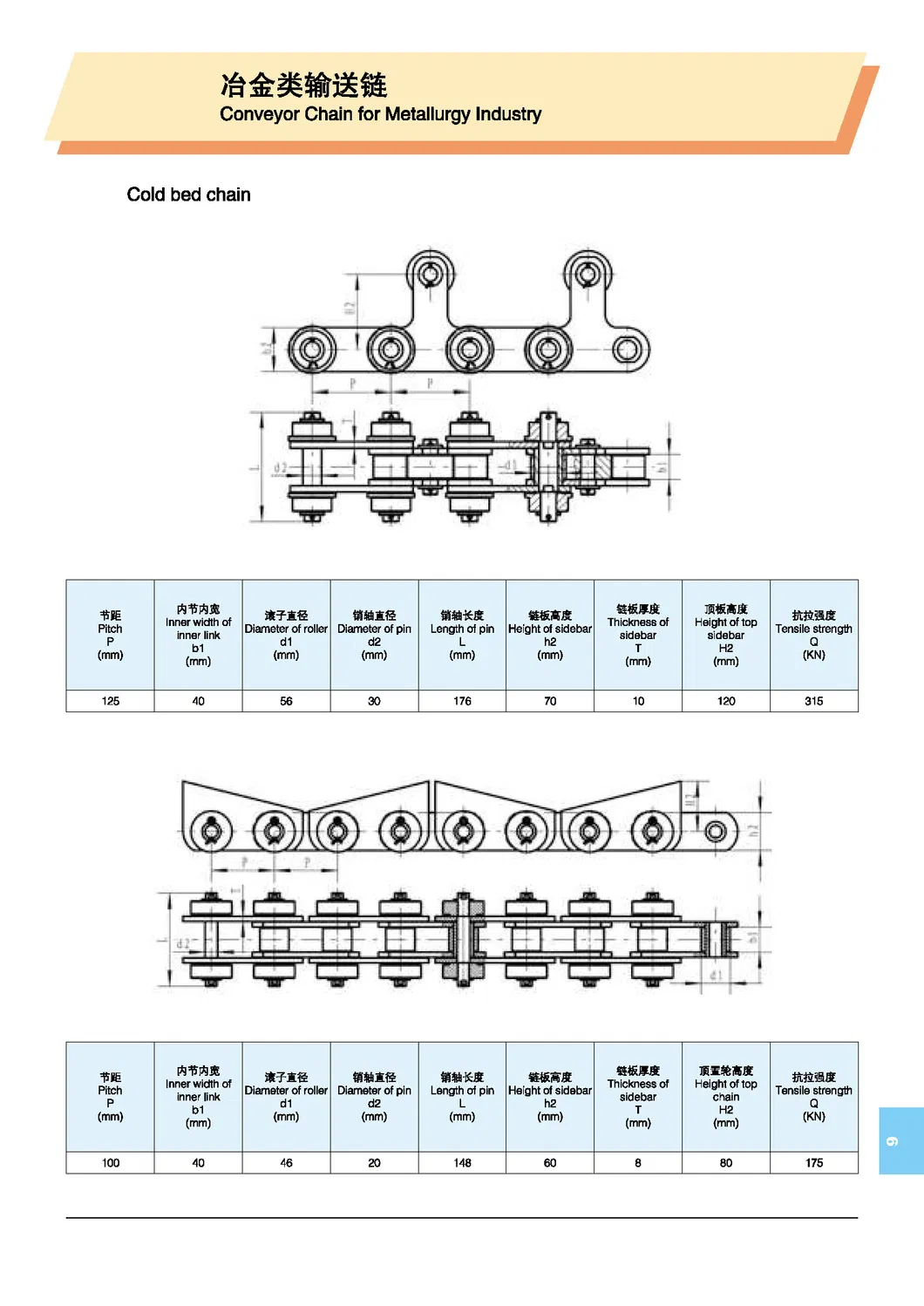

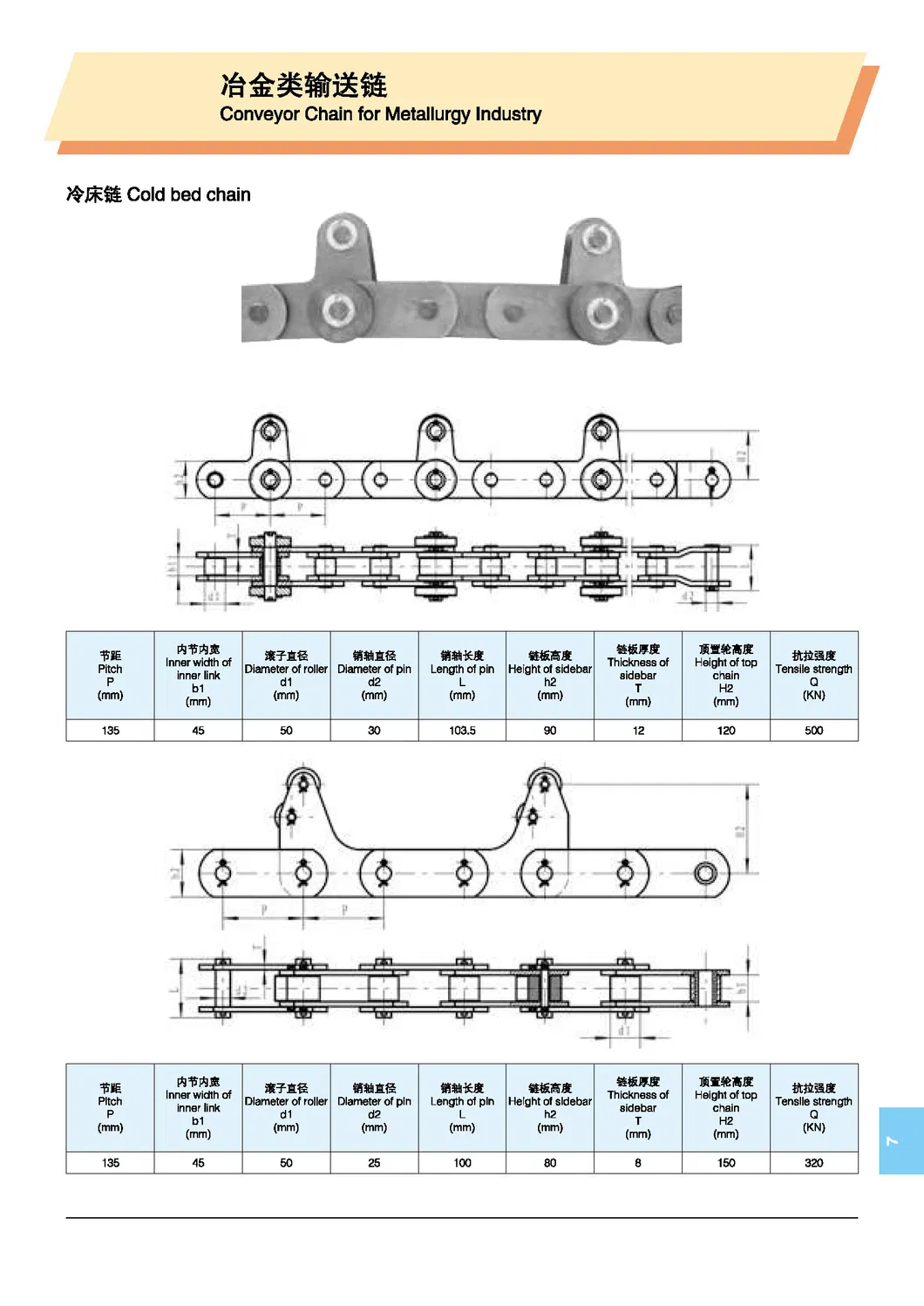

Product Parameters
| Pitch (P) | Inner Width (b1) | Roller Dia (d1) | Pin Dia (d2) | Pin Length (L) | Sidebar H (h2) | Thickness (T) | Top Height (H2) | Strength (kN) |
|---|---|---|---|---|---|---|---|---|
| 135mm | 45mm | 50mm | 30mm | 103.5mm | 90mm | 12mm | 120mm | 500kN |
| 135mm | 45mm | 50mm | 25mm | 100mm | 80mm | 8mm | 150mm | 320kN |
| 125mm | 40mm | 56mm | 30mm | 176mm | 70mm | 10mm | 120mm | 315kN |
| 100mm | 40mm | 46mm | 20mm | 148mm | 60mm | 8mm | 80mm | 175kN |
Manufacturing & Quality Control
As a leading manufacturer of mechanical transmission components, we adhere to ISO, ASME, and DIN standards for global markets. Our production follows rigorous steps to ensure durability:

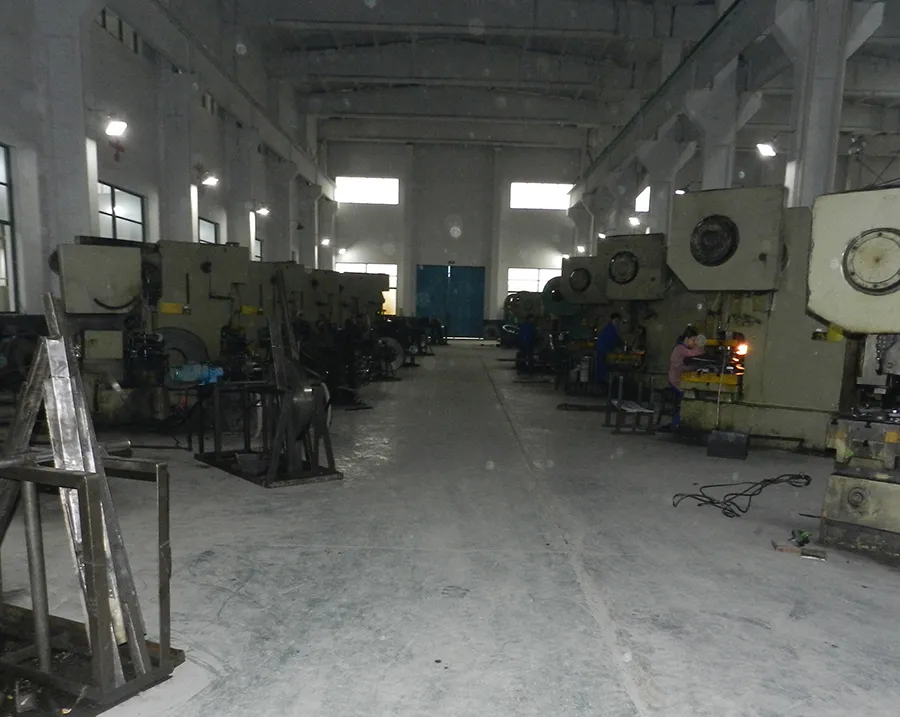

(1) Plate Punching

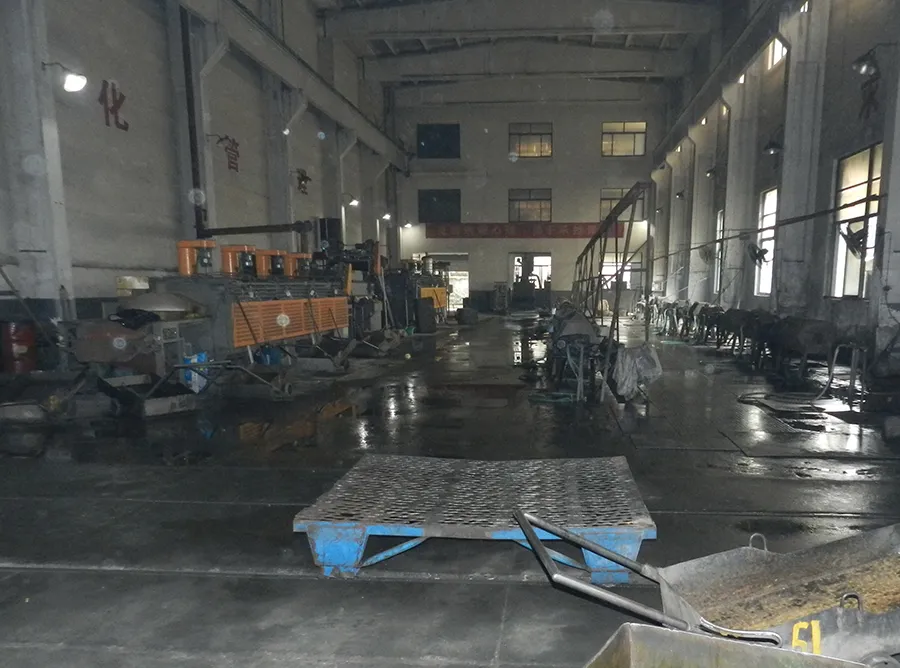

(2) Shot Peening

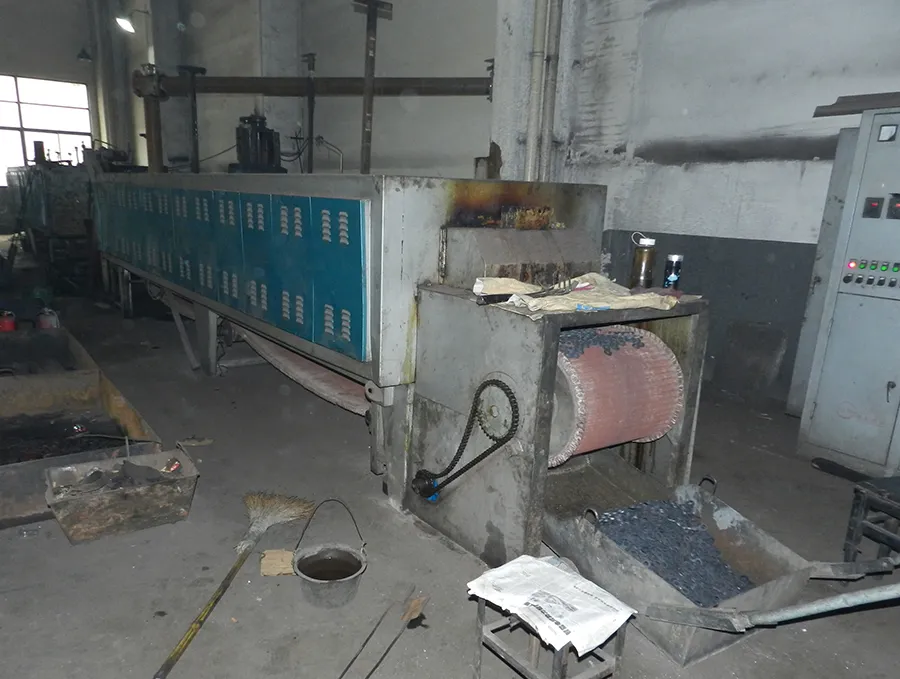

(3) Heat Treatment

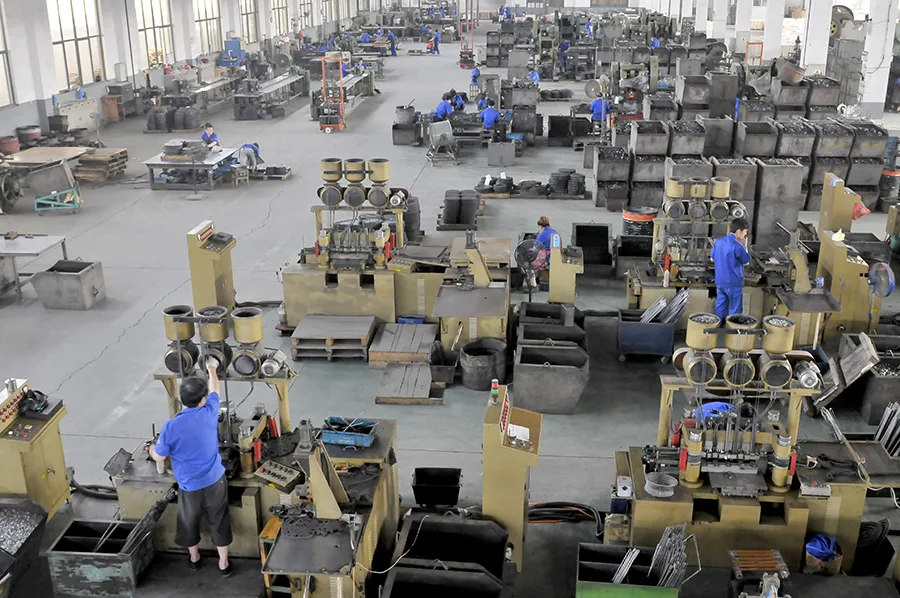

(4) Assembly Prep

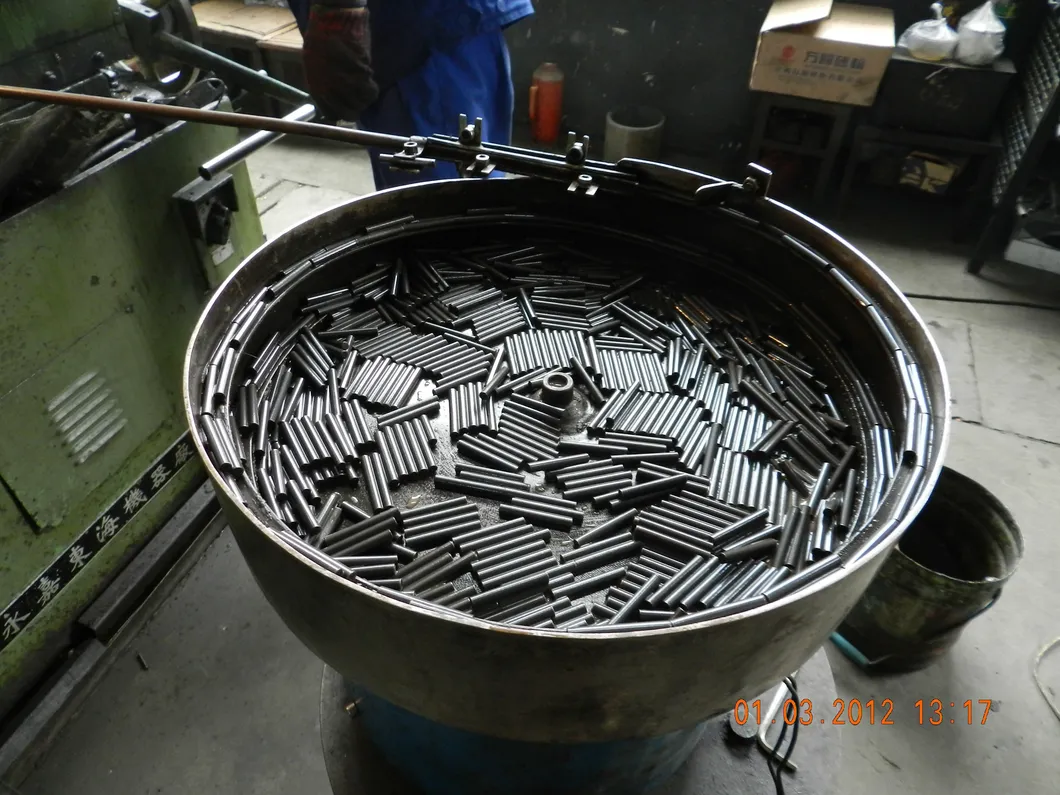

(5) Pin Processing

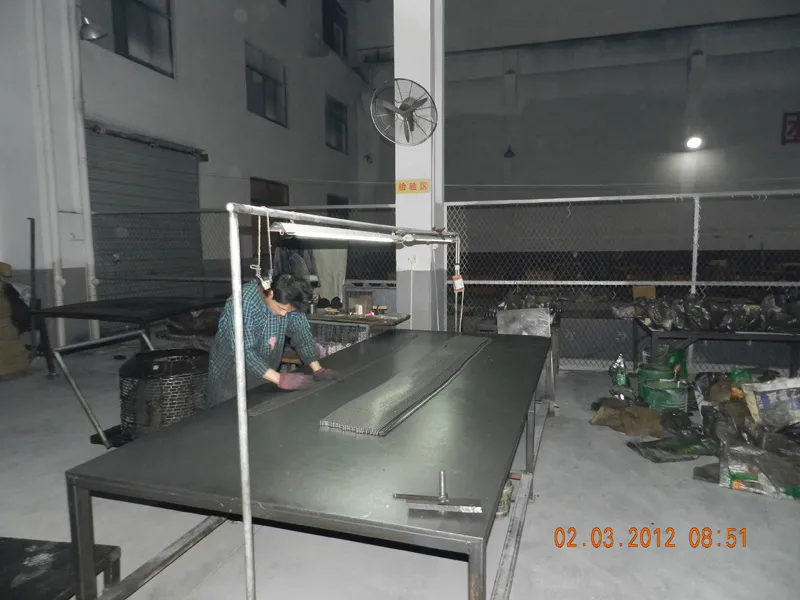

(6) Tensile Testing
After-Sales Service
We provide a comprehensive warranty period of six months, during which products can be repaired or parts replaced at no additional cost.
Frequently Asked Questions
1. What factors determine the mould cost for custom chains?
The mould cost primarily depends on the technical drawings, the specific materials required, the component weight, and the total order quantity. Detailed design drawings or actual samples are the best way to get an accurate analysis.
2. What information is needed for a technical quotation?
To provide a quote, we require product models, pitch, roller diameter, width between inner plates, attachment types, surface treatments, and technical parameters or PDF drawings with complete dimensions.
3. How do you ensure quality control during the production process?
We maintain transparency by sending processing reports and production photos to our customers on a weekly or monthly basis for regular review and approval.
4. Who owns the product moulds once they are created?
The customer owns the moulds. However, we can securely store them in our factory for convenient use in future orders.
5. What is the typical lead time for a quotation?
Once all detailed information and technical specifications are received, we provide a comprehensive quotation within 1 to 3 business days.
6. What is the Minimum Order Quantity (MOQ) for different chain types?
MOQ varies by size: 1500 meters for small chains (pitch < 38.1mm), and 200 meters for large chain types (pitch > 76.2mm and thickness > 10mm).
