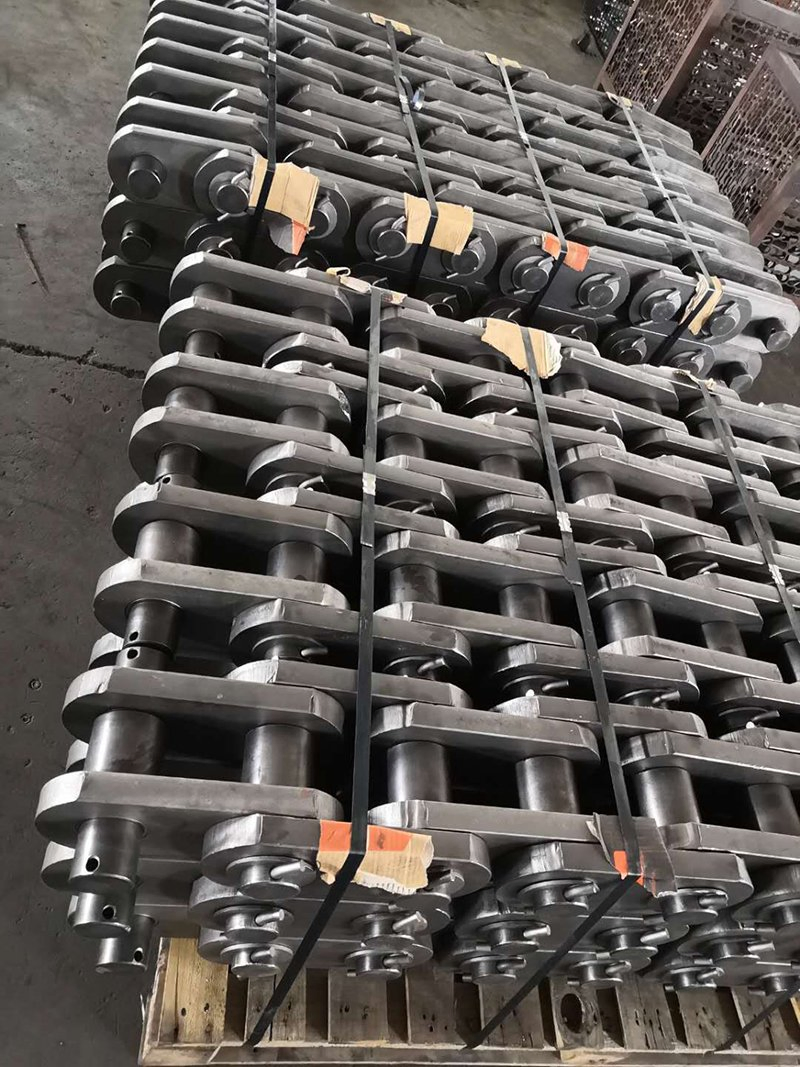

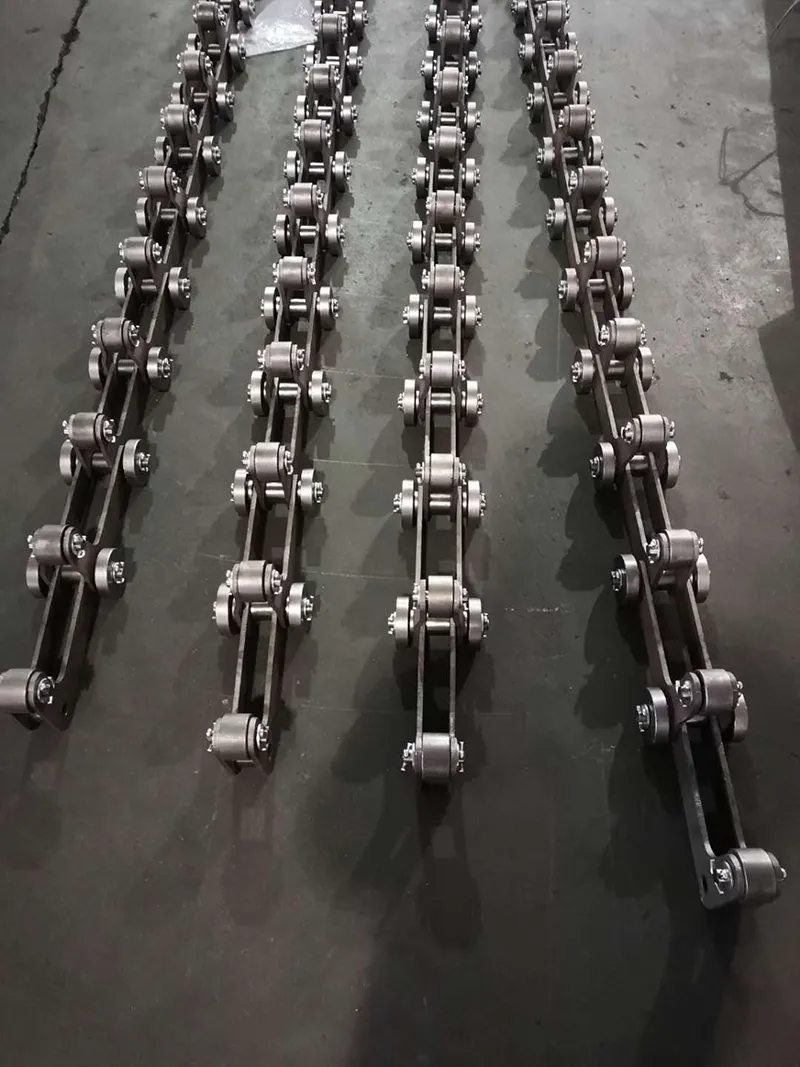

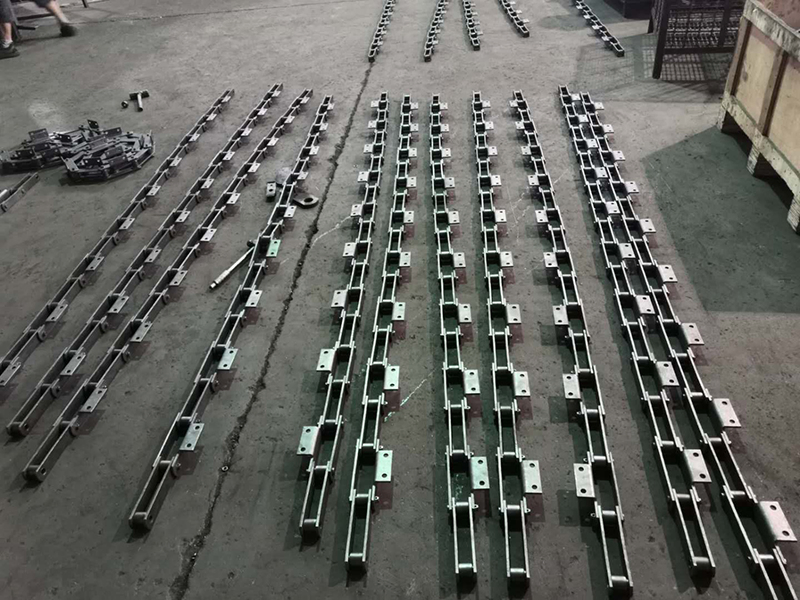

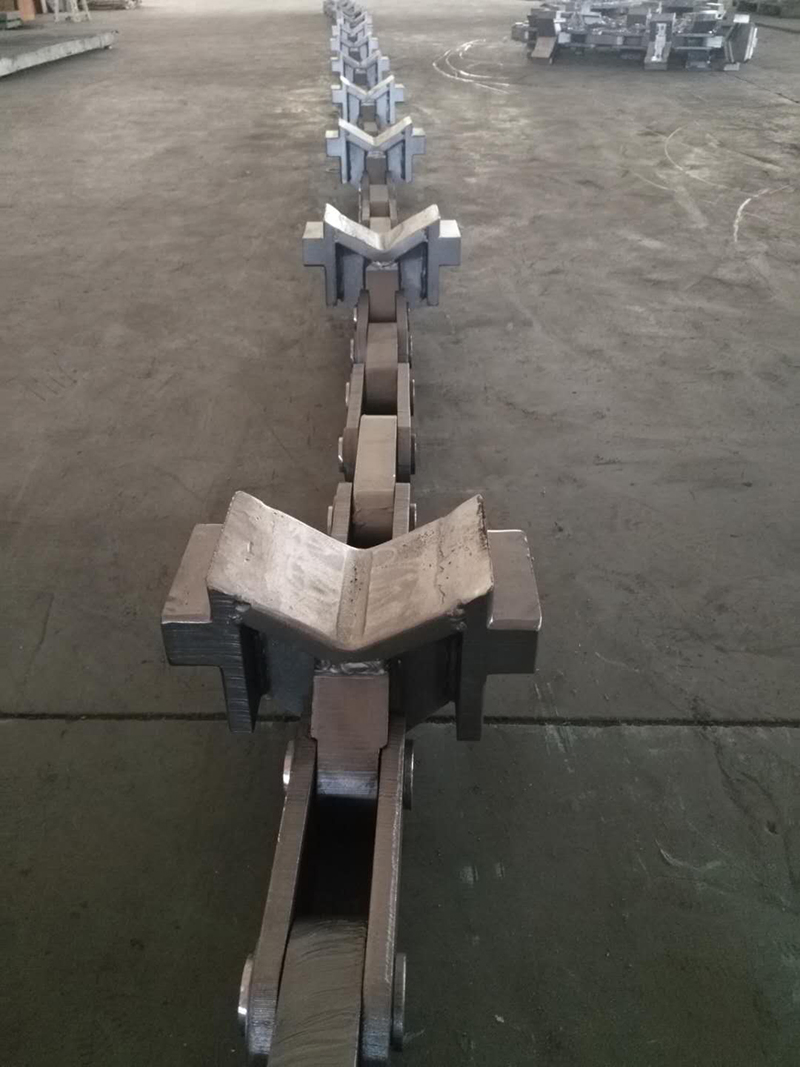

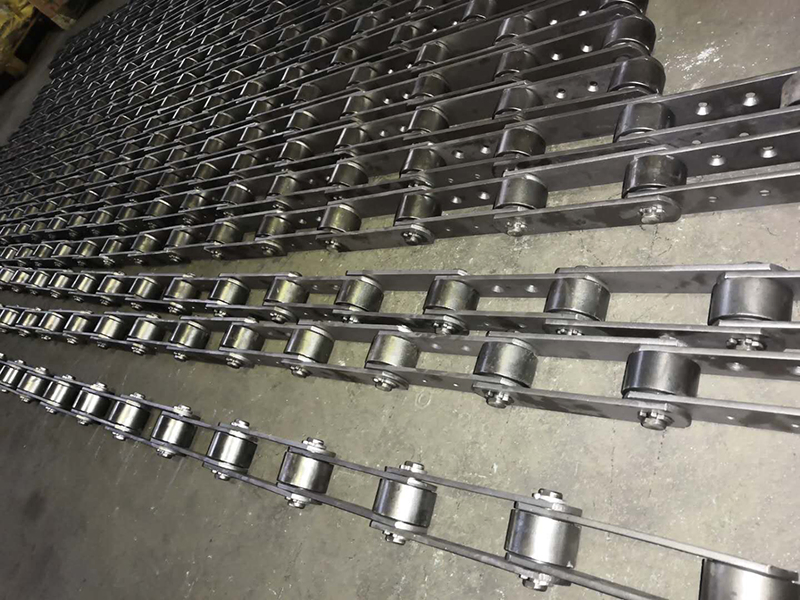

Cold Bed Roll Conveyor Chain for Metallurgy Industry
Product Description
Basic Information
Product Description
Our range includes cold bed chains, Fu Style Chains for Architectural Machine Equipment, welded steel mill chains, welded steel drag chains, cast fixed pin chains, conveyor chains for the metallurgy industry, drop forged link chains, and Engineer Class Driving Chains. We offer alloy steel and stainless steel selections tailored to your specific requirements.
- Chain Types: Drop forged rivetless chain, Roller Chain, conveyor chain, agricultural chain, sugar industry chain, palm oil industry chain, asphalt industry chain, elevator conveyor industry chain, double flex chain, pintle chain, weld steel drag chains, malleable chain, etc.
- Main Materials: 40Mn, 40Cr, 45Mn alloy steel or SUS304 for plates; 10#, 20#, 20CrMnMo, 30CrMnTi for pins and rollers.
- Heat Treatment: Carburizing, Austemper Stressing, nitro-carburizing hardening, etc.
- Surface Finish: Shot peening, black, blue, or original finish.
- Packaging: Plastic bag + carton box + plywood case.
Technical Specifications

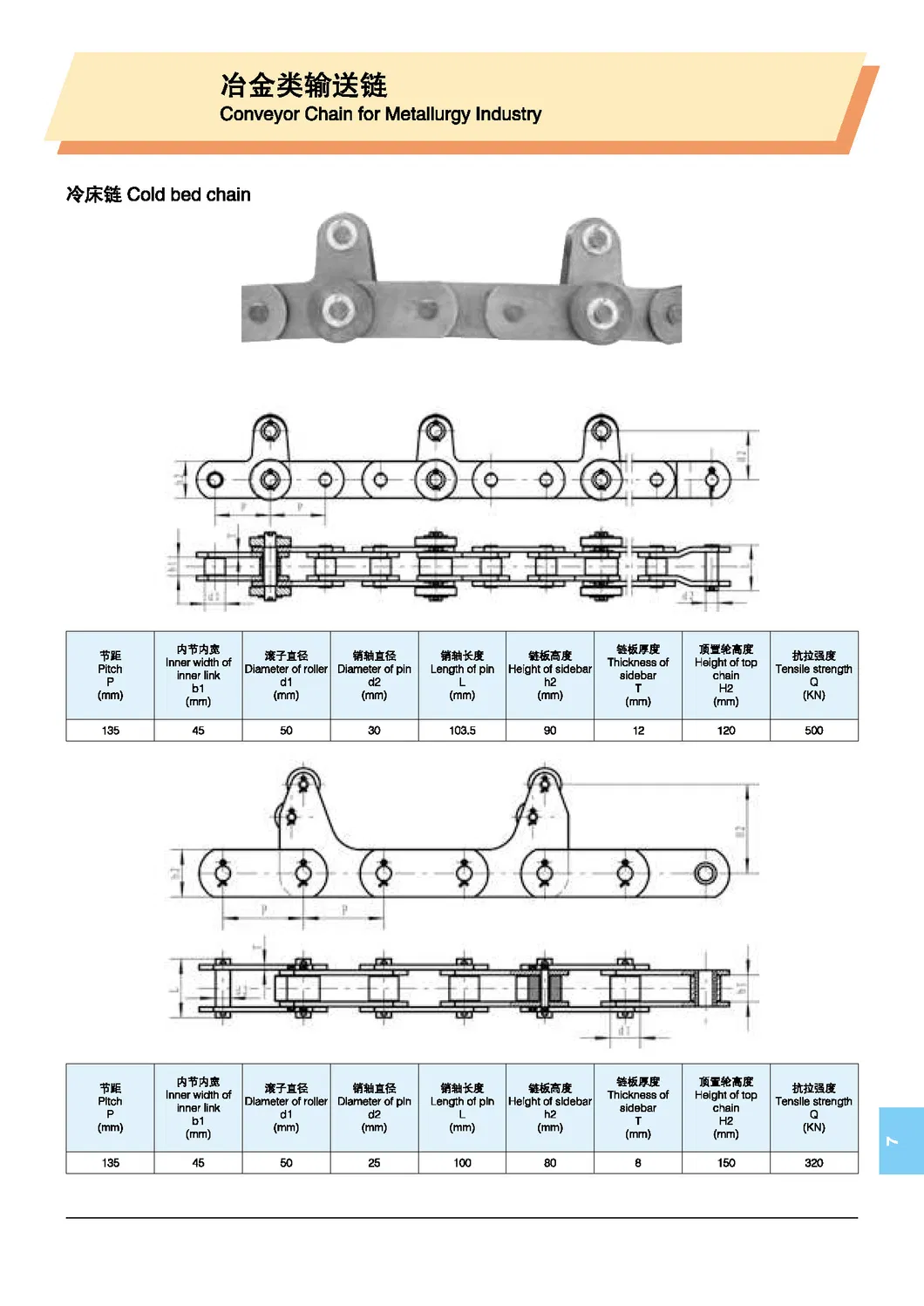

| Pitch (P) mm | Inner Width (b1) mm | Roller Dia (d1) mm | Pin Dia (d2) mm | Pin Length (L) mm | Sidebar Height (h2) mm | Sidebar Thickness (T) mm | Top Height (H2) mm | Tensile Strength (kN) |
|---|---|---|---|---|---|---|---|---|
| 135 | 45 | 50 | 30 | 103.5 | 90 | 12 | 120 | 500 |
| 135 | 45 | 50 | 25 | 100 | 80 | 8 | 150 | 320 |
| 125 | 40 | 56 | 30 | 176 | 70 | 10 | 120 | 315 |
| 100 | 40 | 46 | 20 | 148 | 60 | 8 | 80 | 175 |
Product Parameters
Manufacturing Process
As a leading manufacturer of mechanical transmission spare parts, our products are fabricated according to ISO, ASME, and DIN standards to meet the high demands of South American, European, and Asian markets.

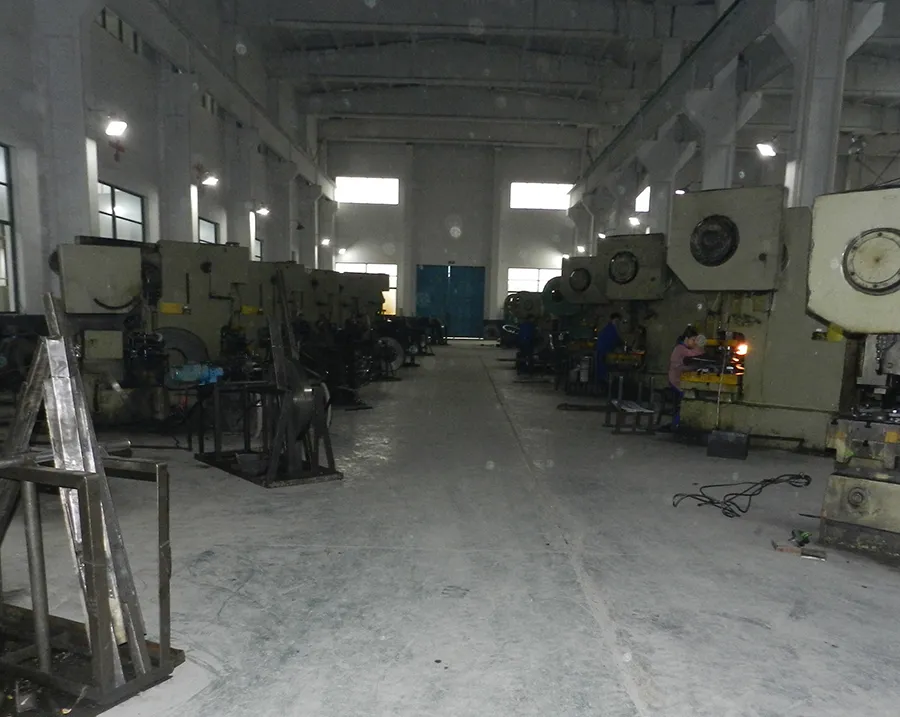

1. Plate Punching

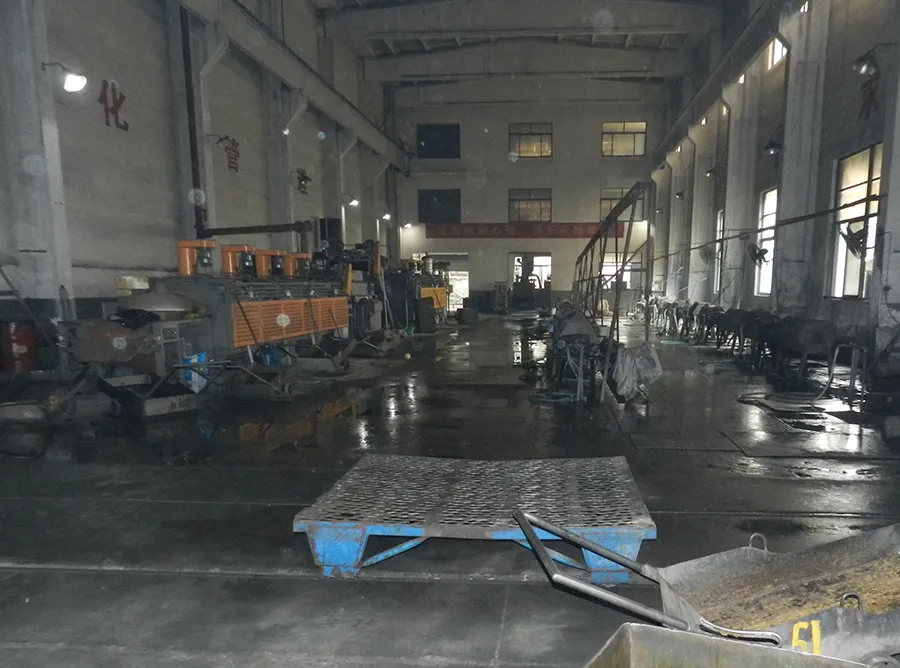

2. Shot Peening

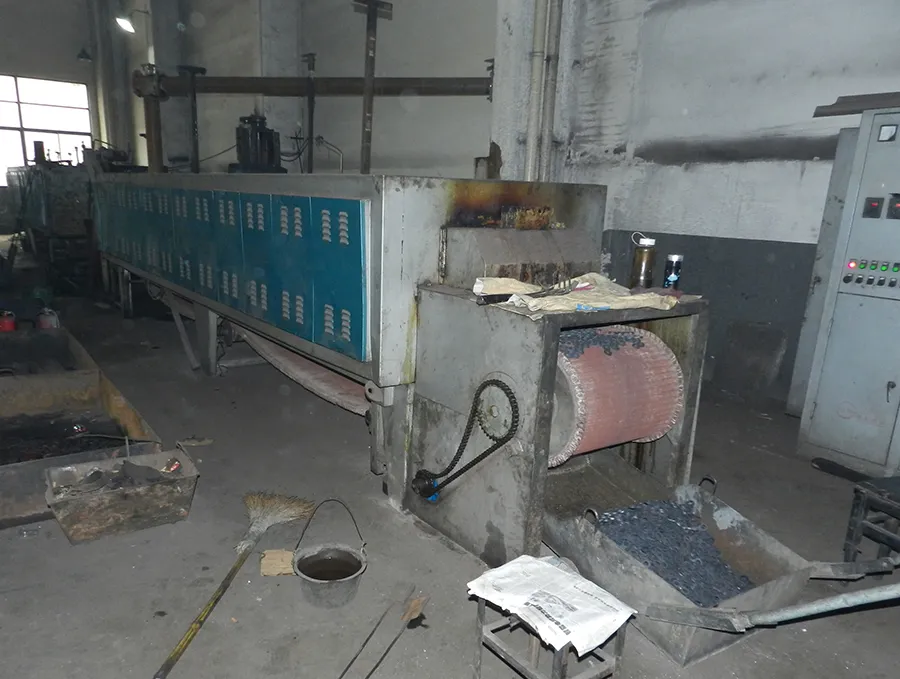

3. Heat Treatment

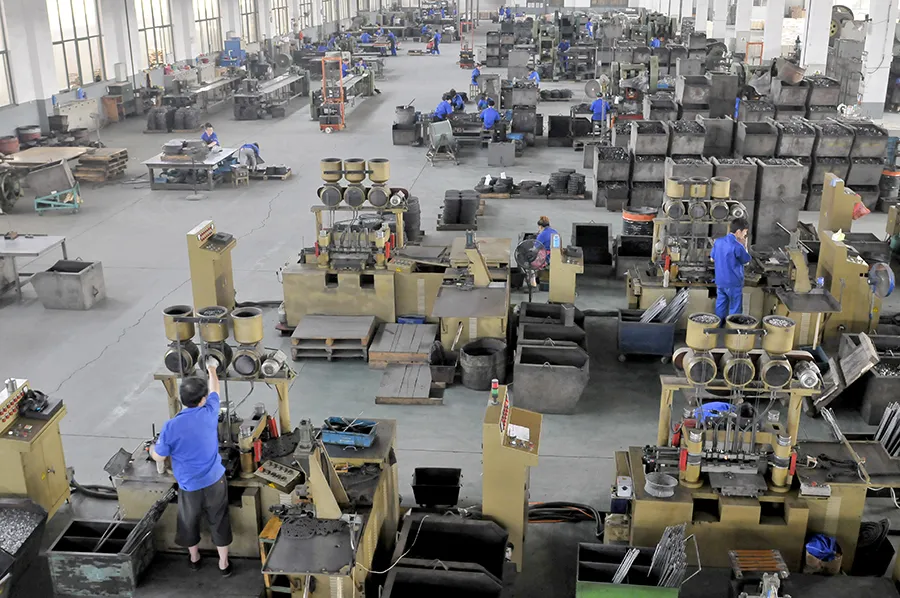

4. Assembly Prep

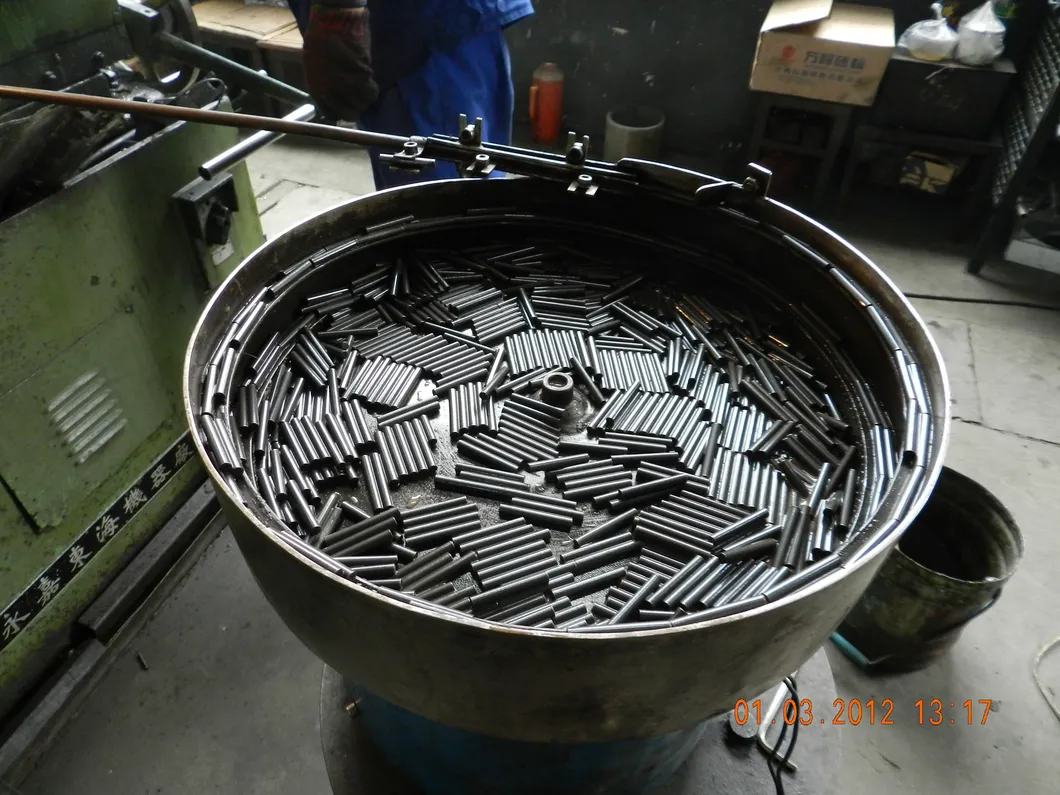

5. Pins Processing

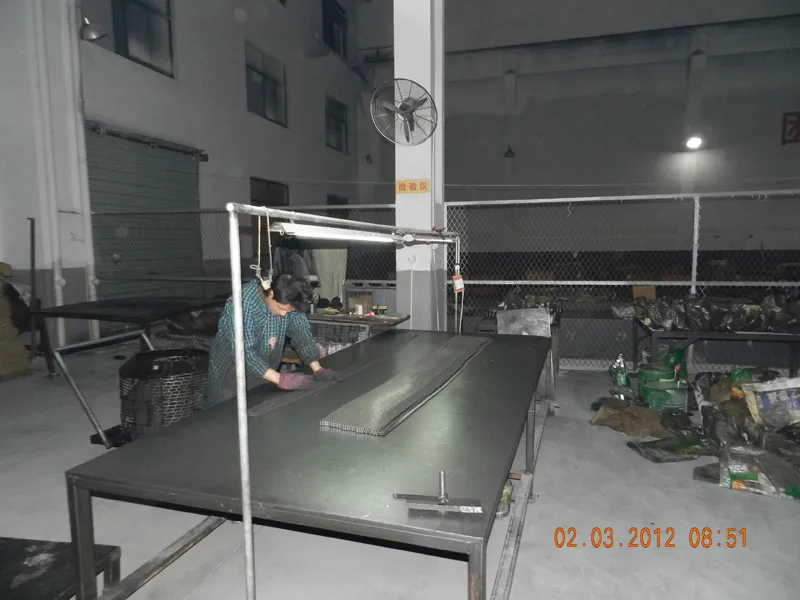

6. Tensile Testing
Service & Logistics
Packaging & Shipping:
- Inner packing: Poly bag, air bubble bag, or carton based on request.
- Outer packing: OSB case or pallet for secure transit.
After Sales Service:
Our products include a six-month warranty period during which parts can be repaired or replaced at no additional cost.
