Dangerous Liquid Scanner for Customs, Airport Security Inspection From Direct China Factory with Patents and Copyrights
Product Description
📋 Basic Information
Model NO.
AT1500
Customized
Non-Customized
Alarm Form
Shutdown Alarm
Type of Use
Dangerous Liquid Detection
Transport Package
Wooden
Specification
CE, SGS, ISO
Origin
China
HS Code
9022191090
Production Capacity
500PCS/Month
🔍 Product Overview

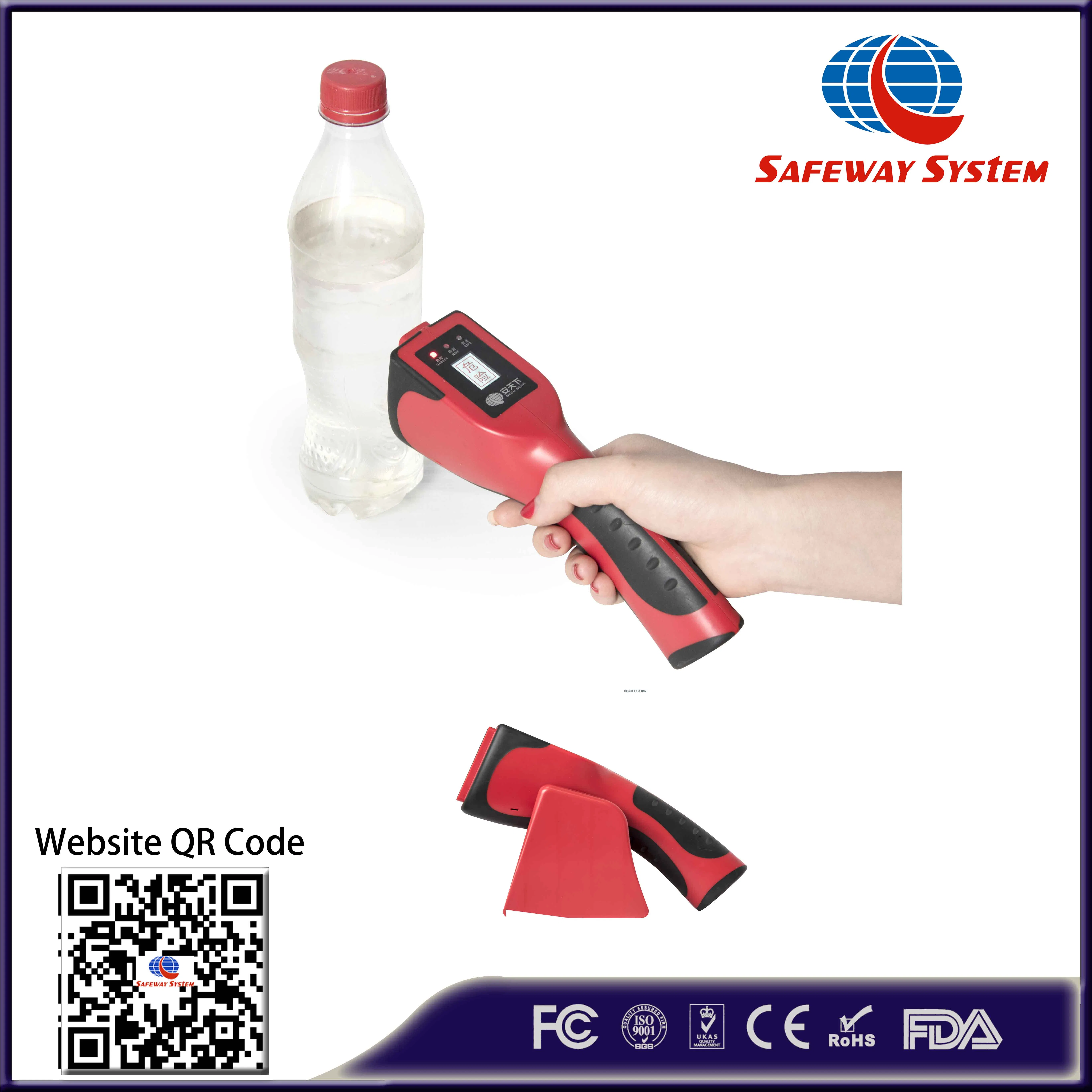

Handheld Bottle Liquid Scanner AT1500 is specifically designed for high-security environments such as airports and customs. As liquid explosives become a significant hazard to aviation security—often disguised as alcoholic beverages or perfumes—this device provides a critical layer of protection.
Core Functions:
- Identify chemical composition of liquids sealed in bottles.

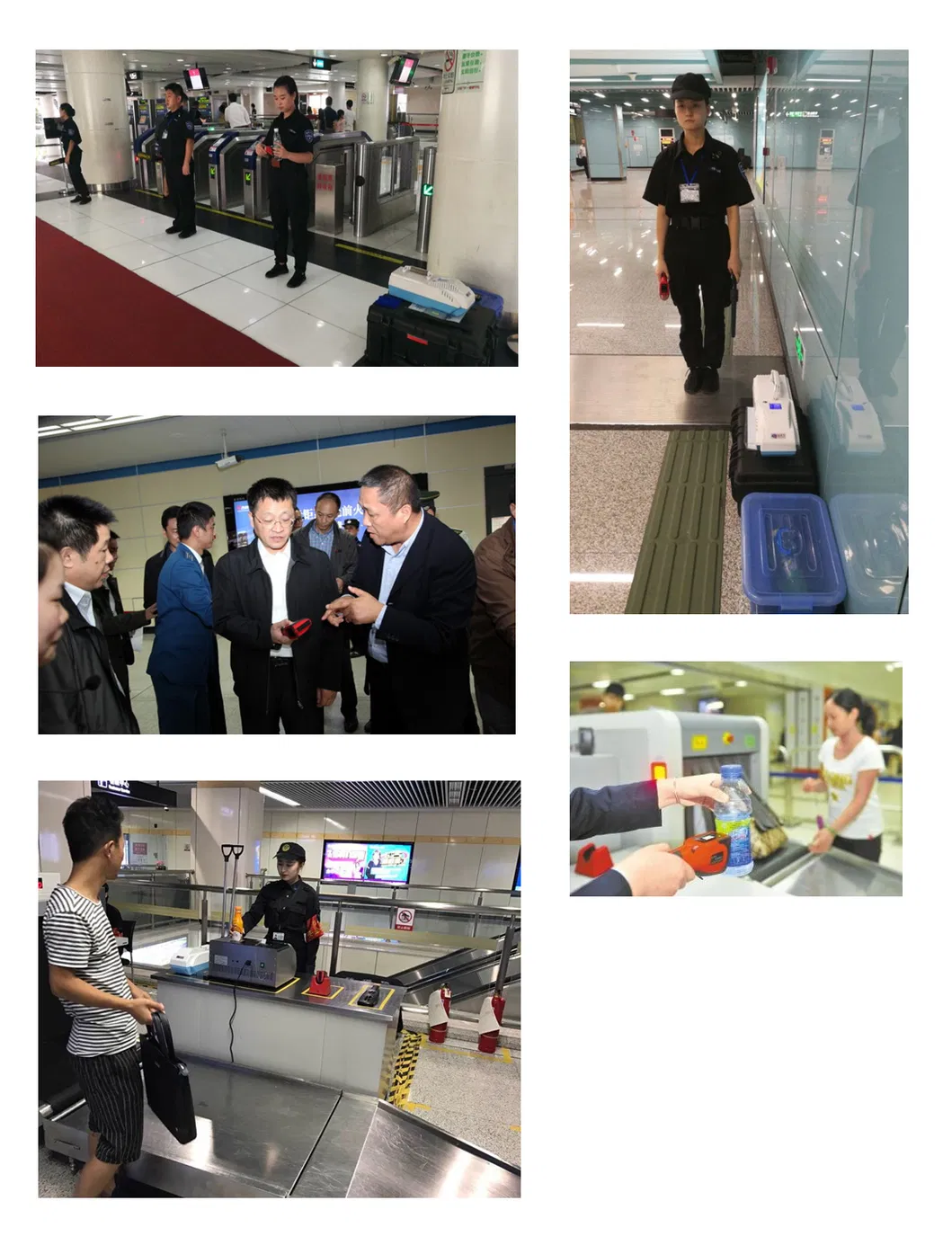

- Enhance security for airports, train stations, subways, and government offices.
- Safe technology: No radiation, harmless to people and test samples.
- Utilizes Ultra-wideband pulse microwave reflection and thermal conductivity technology.
⚙️ Technical Specifications
| Feature | Details |
|---|---|
| Container Material | Plastic, Glass (Wall thickness ≤ 3.5mm) |
| Container Size | Volume ≥ 50ml, Height ≥ 6cm |
| Detection Time | Approx. 1.2 - 2 seconds |
| Detection Range | 30+ types (Gasoline, Kerosene, Diesel, Acids, Alcohols, etc.) |
| Alarm System | Red LED & Long Beep (Dangerous); Green LED & Short Beep (Safe) |
| Weight | < 200g (Ultra-lightweight) |
| Power Supply | Input AC 100-240V; Output DC 5V/2.1A |
| Data Storage | Stores ≥ 200 test results; USB export supported |
| Operating Temp | 0ºC ~ 50ºC |
💡 Functional Characteristics
- Clear Results: Instantly displays "Dangerous" or "Safe" on the OLED screen.
- Alignment Reminder: Features a yellow light and "biased" LCD prompt if the container is not correctly aligned.
- Warning System: Dual buzzer and visual display alarms for immediate threat recognition.
- High-Quality Display: Equipped with a 96x64 Color OLED screen.

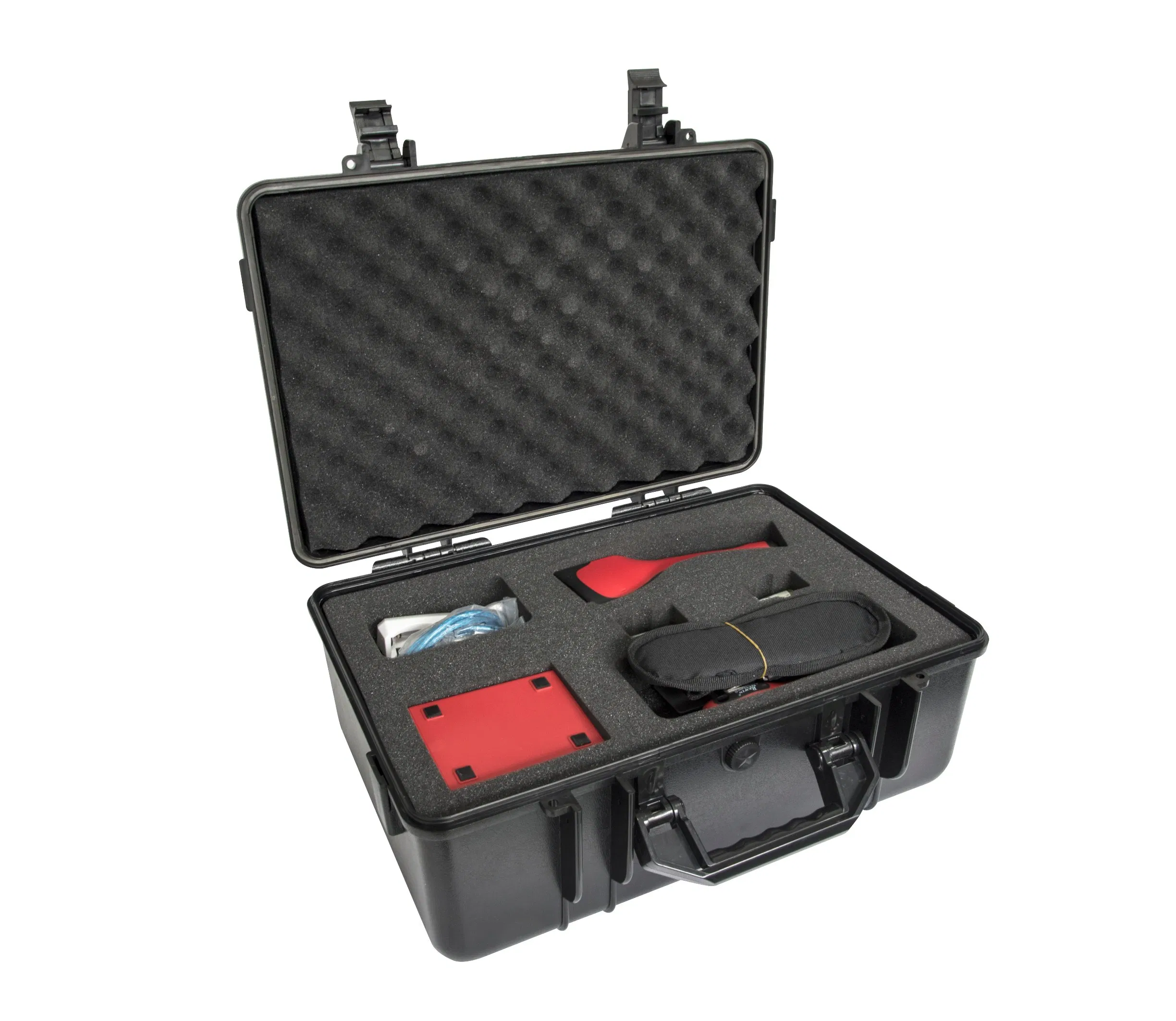

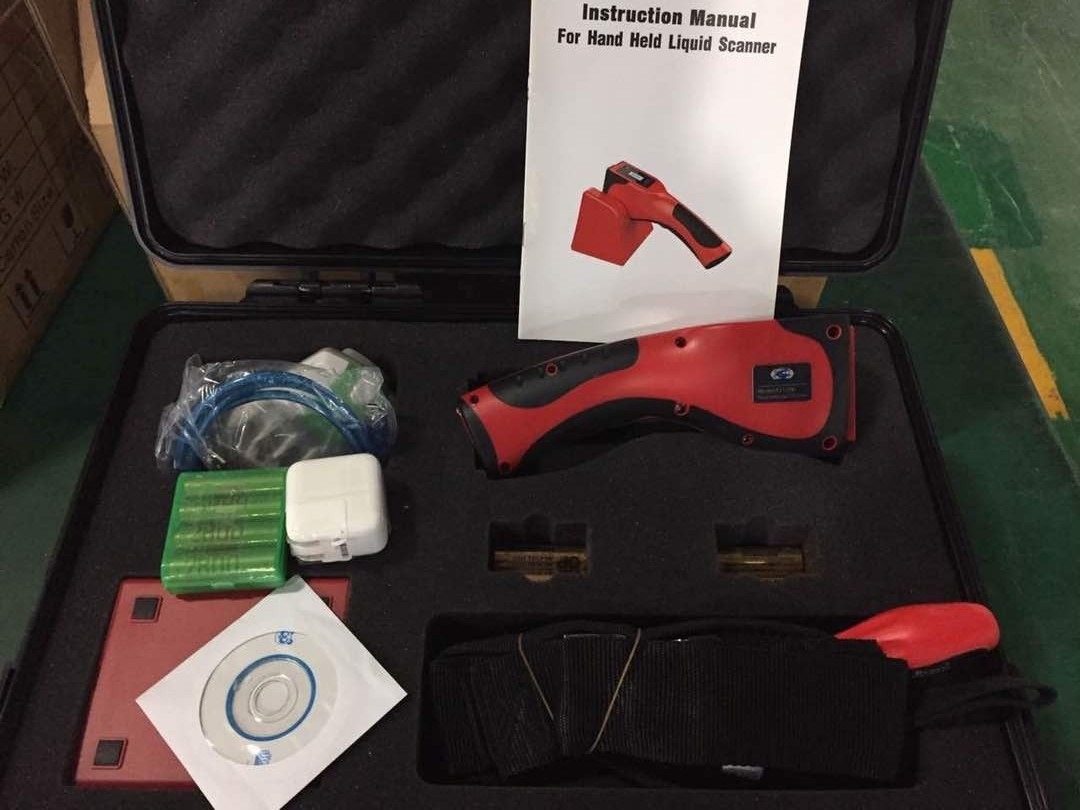

📦 Accessories List
| Item | Quantity |
|---|---|
| AT1500 Handheld Liquid Detector | 1 PCS |

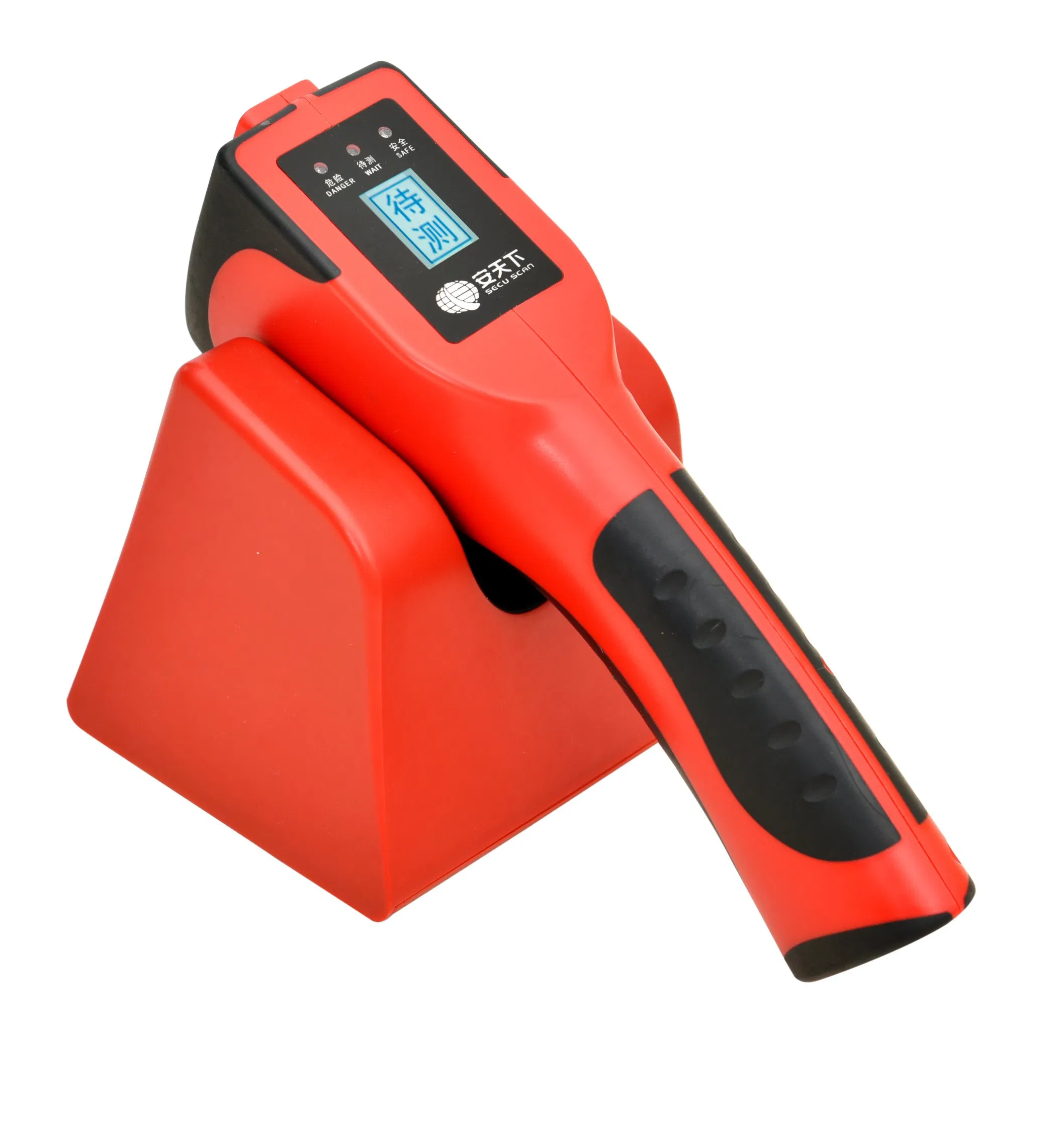

| Charging Base | 1 PCS |
| USB Cable and Adaptor | 1 PCS |
| Rechargeable Battery | 1 PCS |
| Phillips Screwdriver | 1 PCS |
| Manual, CD, and Warranty Card | 1 PCS |
🖼️ Product Gallery
❓ Frequently Asked Questions
What types of containers can the AT1500 scan?
The AT1500 is designed to scan liquids sealed in plastic and glass containers with a wall thickness of no more than 3.5mm.
How many types of dangerous liquids can it detect?
It can identify over 30 sorts of dangerous liquids, including gasoline, kerosene, diesel oil, various acids (hydrochloric, sulfuric, nitric), and flammable solvents like acetone and ethanol.
Is the scanning process safe for the operator?
Yes, the device uses ultra-wideband pulse microwave reflection and thermal conductivity technology, which involves no radiation and is completely harmless to people and the samples being tested.
How long does it take to get a result?
The detection process is extremely fast, providing results within 1.2 to 2 seconds after the device is powered on and positioned.
Can the test data be exported for analysis?
Yes, the AT1500 can store no less than 200 test results, which can be exported via a standard USB interface for reading and analysis on a PC.
What is the weight and portability of the device?
The device is highly portable, weighing less than 200g, making it ideal for handheld security inspections in high-traffic areas.
