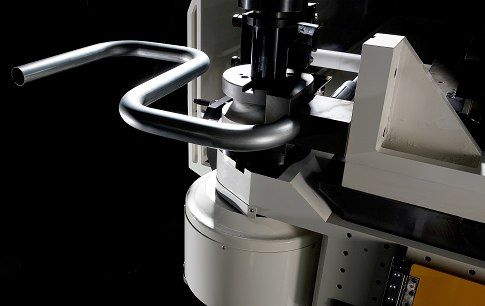

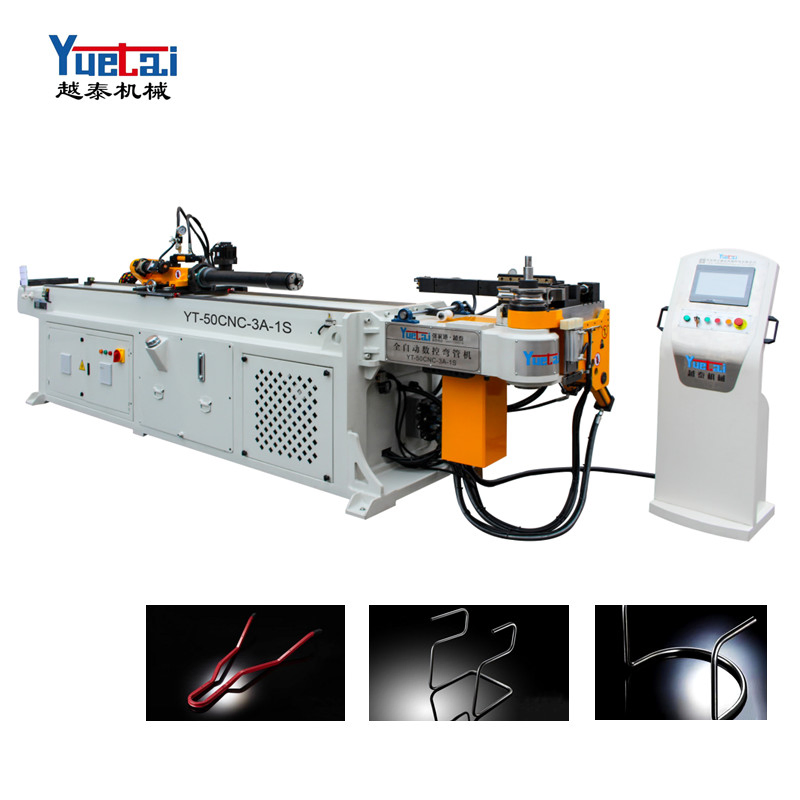

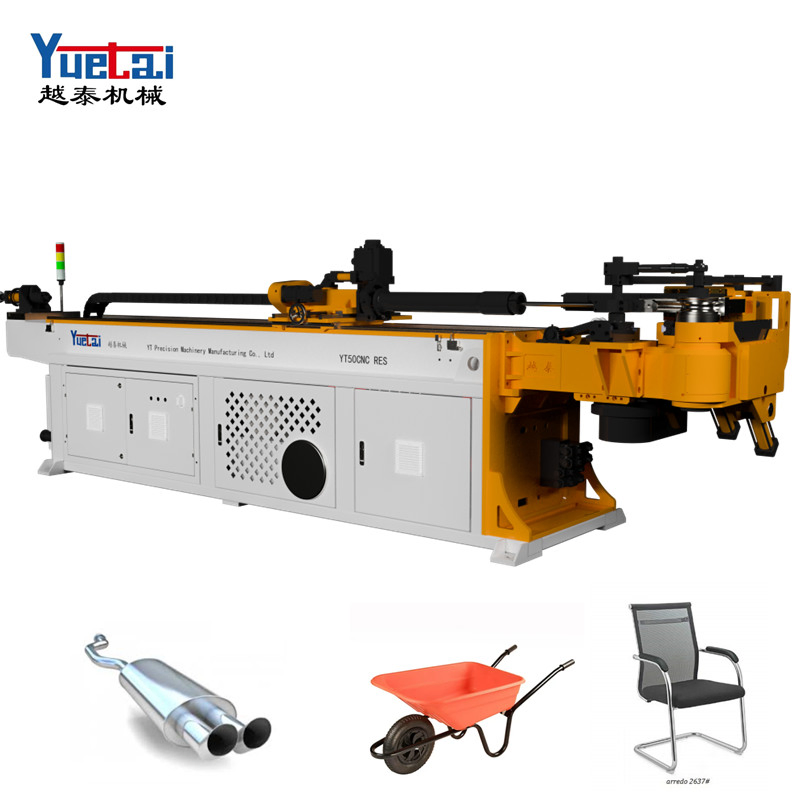

Electric Servo 3D CNC Hydraulic Full Automatic Steel Round Square Tube Pipe Bending Machine Pipe Tube Bender with Mandrel Push Rolling
Product Description
Basic Info.
Automation
Automatic
Applicable Material
Carbon Steel
Applicable Shape
Round
Warranty
3 Years
Bending Radius
1-250mm
Bending Method
1.Servo Bending 2.Hydraulic Bending
Raw Material
Round Pipe Square Tube
Function
Pipe and Tube Bending
Feeding
Servo
Bending Degree
1-190 Degree
Control
Ipc or PLC
Voltage
Customized
Max. Diameter
20-114mm
Certificate
CE ISO SGS
Mandrel
Depends on Product Drawing
Machine Type
Pipe Bending Machine Tube Bender
Bending
Hydraulic/Servo
Capacity
1000 PCS Per Month
Operation
Easy
Specification
Customized

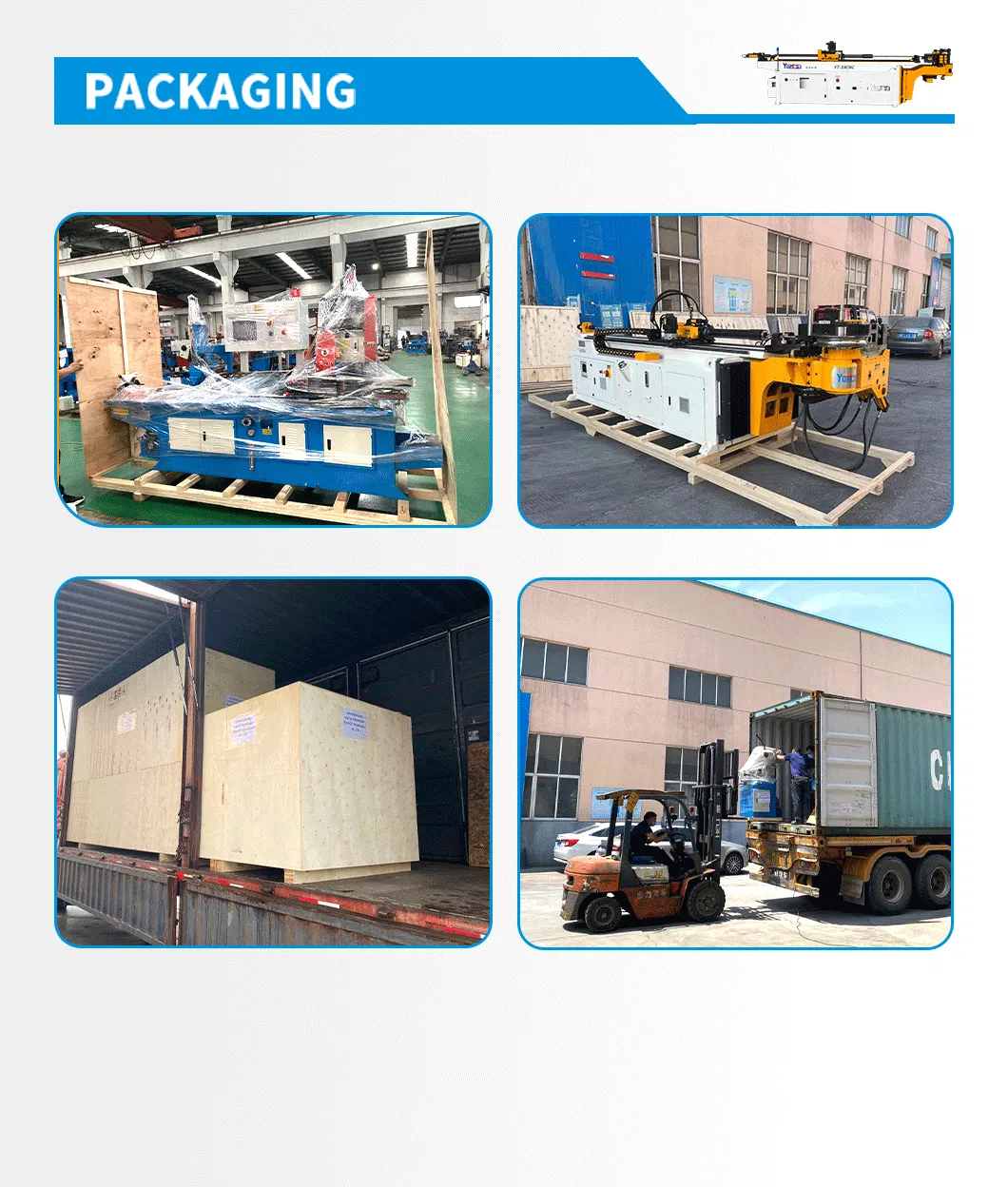

Packaging & Delivery
Package Size
400.00cm * 130.00cm * 150.00cm
Package Gross Weight
3500.000kg
Product Description
| Model | YT-50CNC-2/3A-1S | YT-75CNC-2/3A-1S | YT-89CNC-2/3A-1S |
|---|---|---|---|
| CNC/Full Automatic | Hydraulic/Electric bending | Hydraulic/Electric bending | Hydraulic/Electric bending |
| Max Bending Capacity | 50.5(2.5'')*4mm | 75(2.5'')*4mm | 89(2.5'')*4mm |
| Bending Degree | 0-190° | 0-190° | 0-190° |
| Bending Radius | 30-300mm | 30-300mm | 30-300mm |
| Mandrel Length | 3800mm | 3800mm | 3800mm |
| Bending Accuracy | ±0.1°/±0.05° | ±0.1°/±0.05° | ±0.1°/±0.05° |
| Feeding Accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
Detailed Photos
Frequently Asked Questions
What materials are compatible with this bending machine?
The machine is specifically designed for carbon steel, including round pipes and square tubes, but can be adjusted for other similar metals.
How high is the bending accuracy?
This CNC machine offers high precision with a bending accuracy of ±0.1° to ±0.05° and a feeding accuracy of ±0.05mm.
Does the machine support custom voltage requirements?
Yes, the voltage can be customized according to the specific power standards of your local facility.
What is the warranty period for this tube bender?
We provide a 3-year warranty for this machine, ensuring long-term reliability and support for your production.
Is the operation difficult for new workers?
No, the machine features an IPC or PLC control system designed for easy operation and user-friendly interface management.

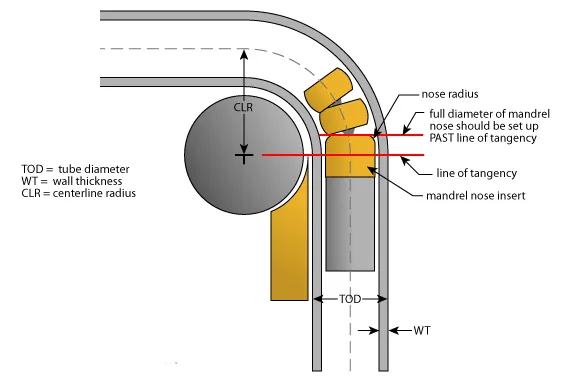

Can the mandrel length be adjusted?
The standard mandrel length is 3800mm, but it can be customized based on your specific product drawings and requirements.
