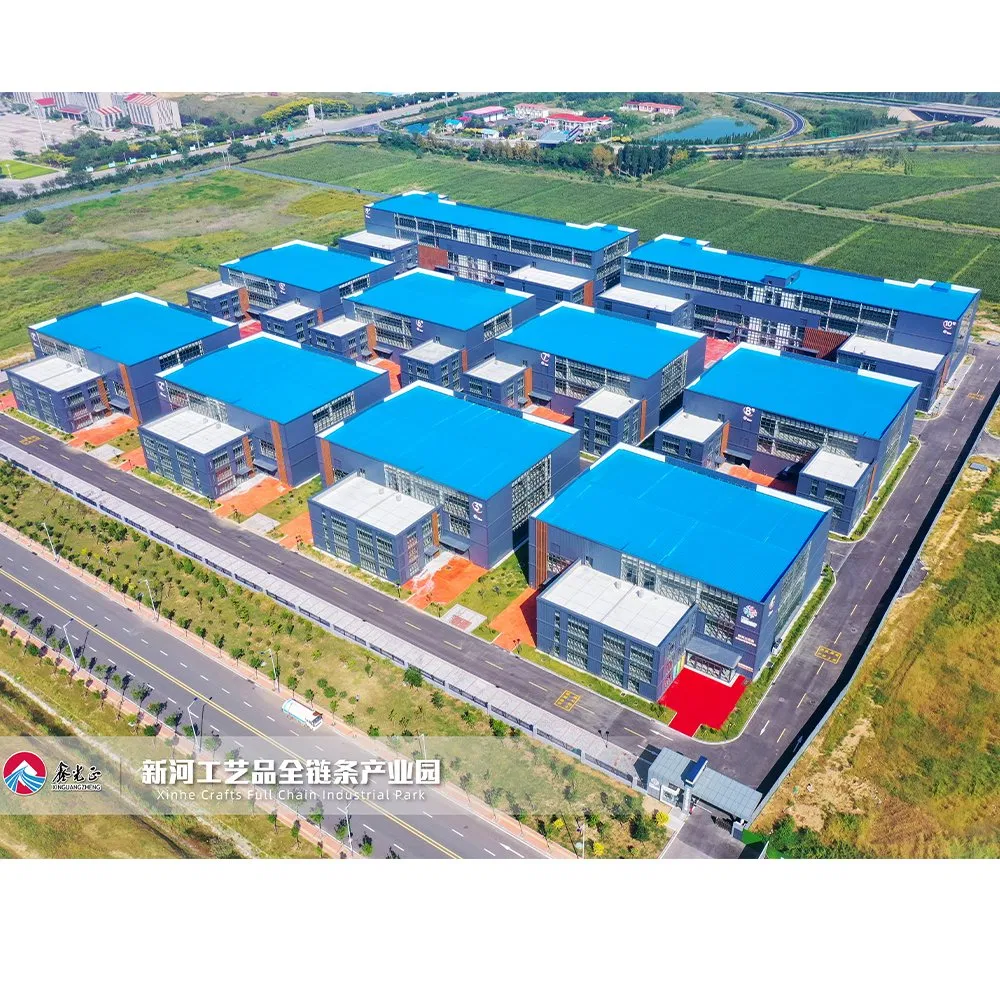

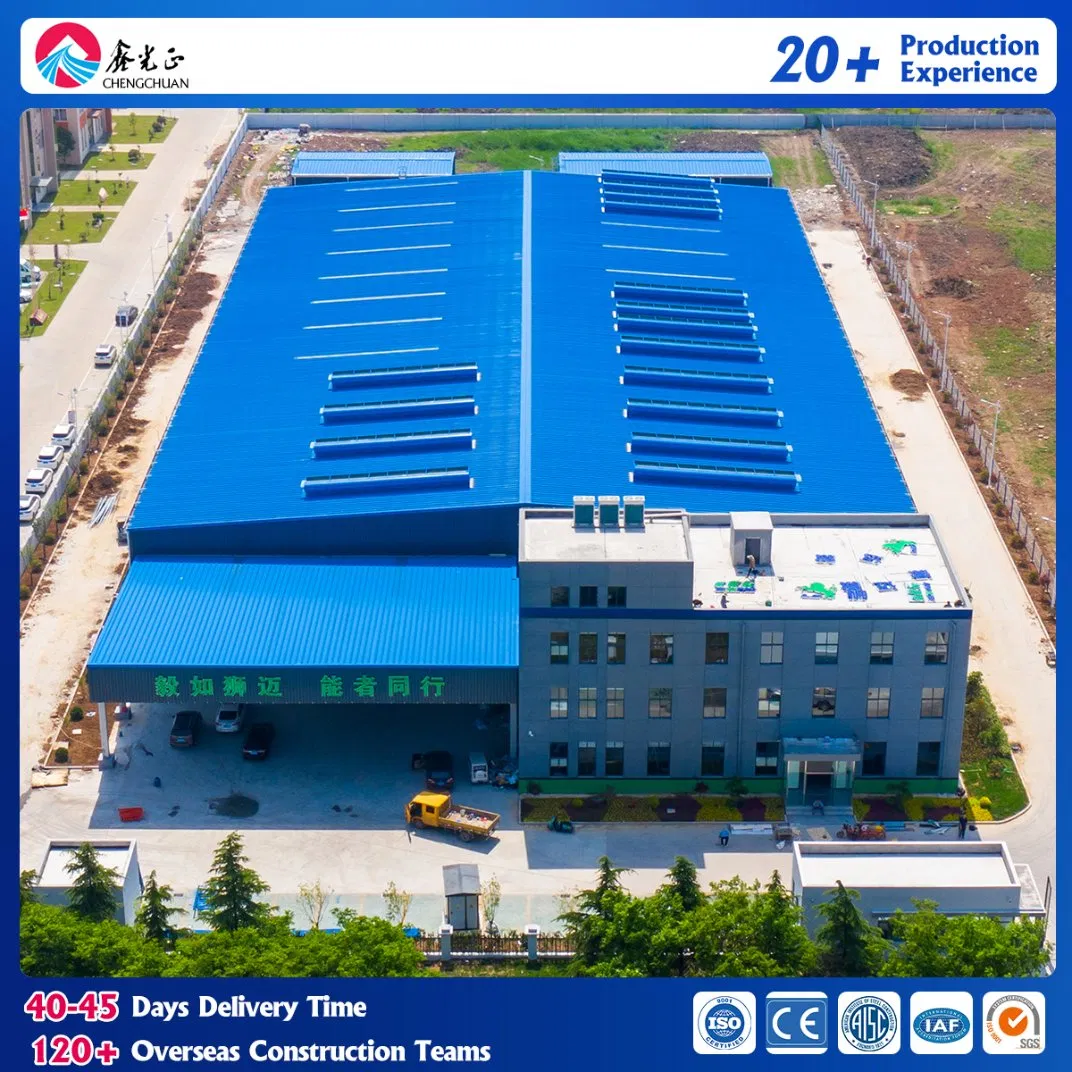

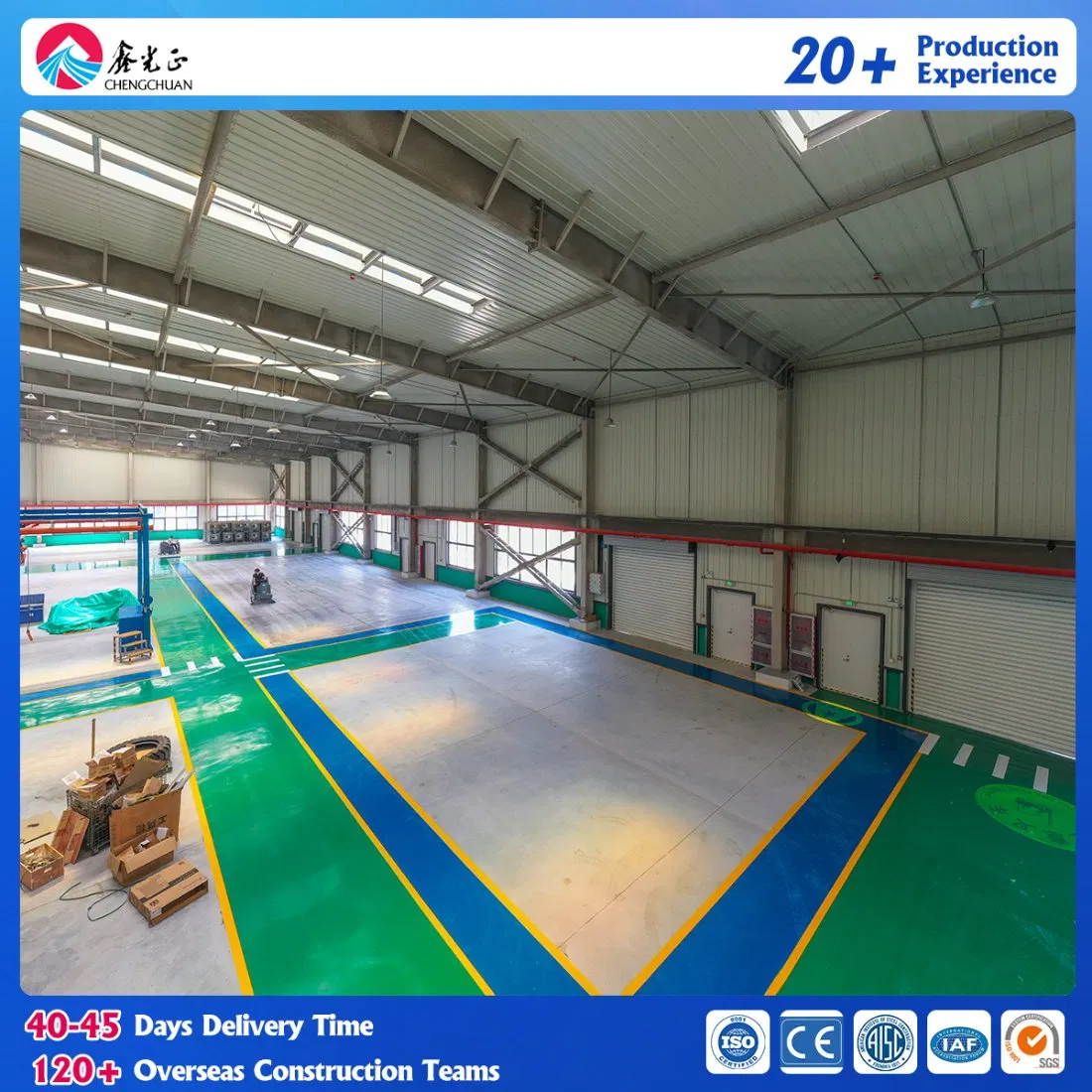

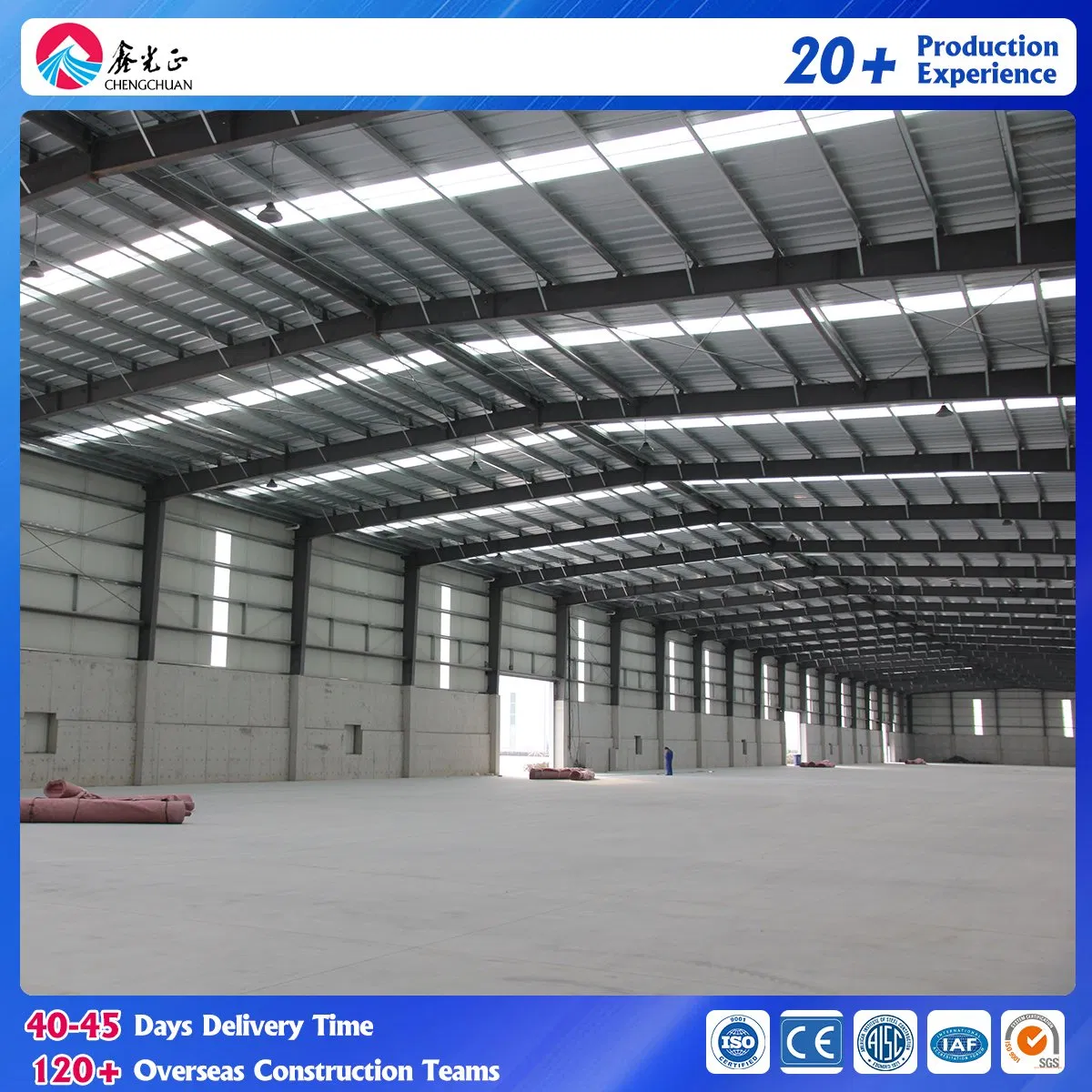

Famous Design Prefab Prefabricated Industrial Metal Workshop Galvanized Heavy Light Structural Steel Construction Frame Steel Structure Shed Warehouse
Product Description
Model NO.
CC-W
Production
Light & Heavy Steel Structure
Application
Workshop, Warehouse, Office
Wall Structure
Corrugated Steel or Sandwich Panel
Steel Type
High-Strength Steel Structure
Roof Material
EPS, Fiberglass, Rock Wool
Column and Beam
H Steel
Service Life
More Than 50 Years
Capacity
2,000,000 Tons Per Year
Carbon Steel
S355 Q235
Package Size
1300cm * 300cm * 300cm
Gross Weight
28000.00kg
Lead Time
70 days (Negotiable for >500sqm)
Comprehensive design and detailing services are provided using modern software such as AUTOCAD, PKPM, 3D3S, SAP2000, Tekla Structures, and 3DS MAX. Professional sketch designs and plans are executed to the highest standards.
| Component | Material & Details |
|---|---|
| Main Steel Structure | Steel Q345(S355JR) or Q235(S235JR) H shape; Straight or Variable cross-section |
| Sub Steel Structure | Q235(S235JR); Bolt connections; Anti-rust painted or galvanized; C/Z Purlins |
| Roof & Wall | Sandwich panel (PU/EPS/Fiberglass/Rock wool) or Colorful steel tile |
| Doors & Windows | Steel rolling shutter or sliding doors; Aluminum Alloy windows |
| Bolts | M24, M22, M16 intensive bolts, high-strength galvanized bolts |
One-stop service from design and manufacture to installation and after-service.
To provide an accurate drawing and quotation, please provide the following information:
✔ 1. Location: Country and City of construction.
✔ 2. Size: Length * Width * Eave Height (mm).
✔ 3. Loads: Wind speed (km/h), Snow load (kn/m2), and Seismic level.
✔ 4. Insulation: EPS, Fiberglass, Rockwool, or PU sandwich panels.
✔ 5. Crane: Lifting capacity (tons) and height (m) if required.
Q: Are you a trading company or manufacturer?
A: We operate our own dedicated steel structure, steel sheet, and sandwich panel manufacturing factories, ensuring direct quality control.
Q: Can you provide on-site installation services?
A: Yes. We provide comprehensive installation guides, including shop drawings and videos. If required, engineers can be sent to the site to guide the erection process.
Q: What is the typical delivery time for a project?
A: Delivery depends on the order volume, but generally ranges between 25 to 60 days.
Q: What is the estimated service life of your steel structures?
A: Our high-quality prefabricated steel structures are designed for long-term durability, with a service life exceeding 50 years.
Q: What materials are available for wall and roof insulation?
A: We offer various options including EPS, fiberglass wool, rock wool, and PU sandwich panels, or simple metal steel sheets for non-insulated requirements.
Q: How can I obtain a customized quotation?
A: Simply provide your project dimensions (length, width, height), local weather data (wind/snow loads), and any specific requirements for doors, windows, or cranes.
