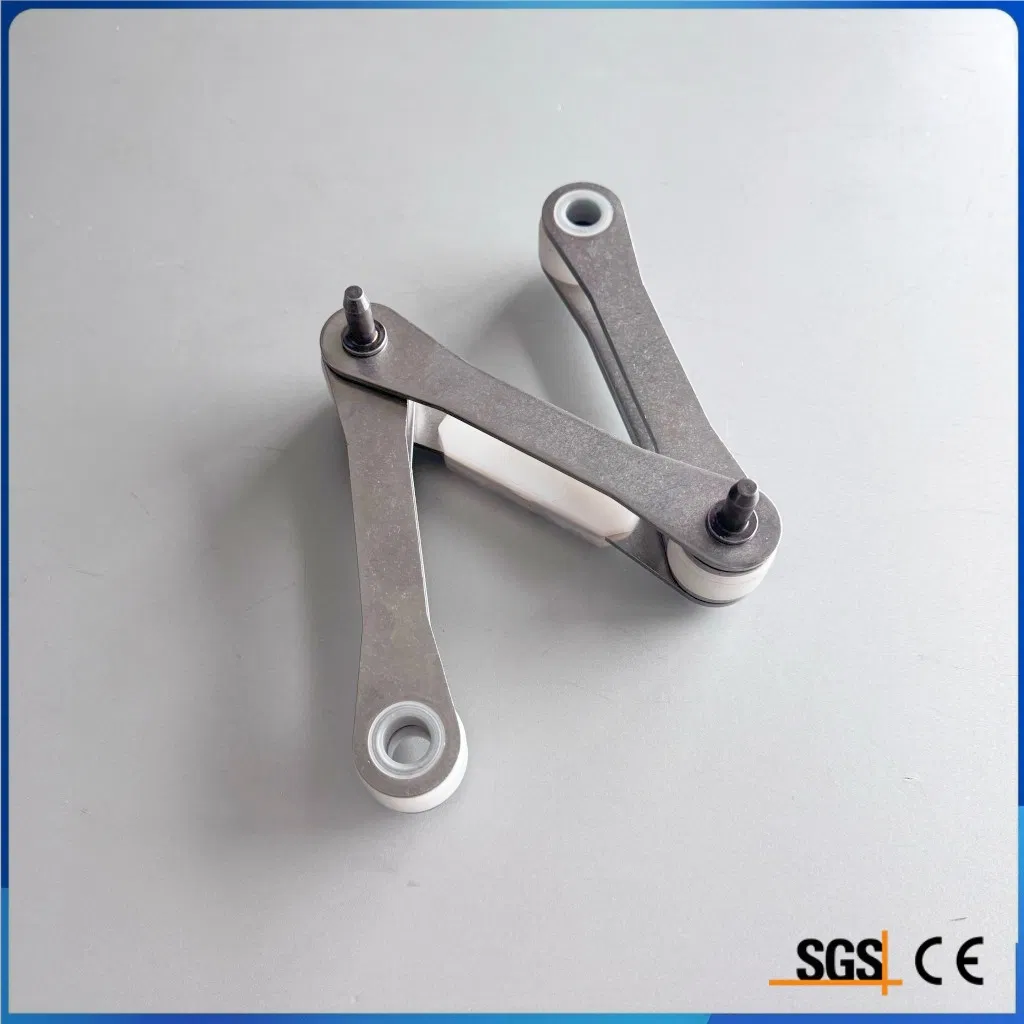

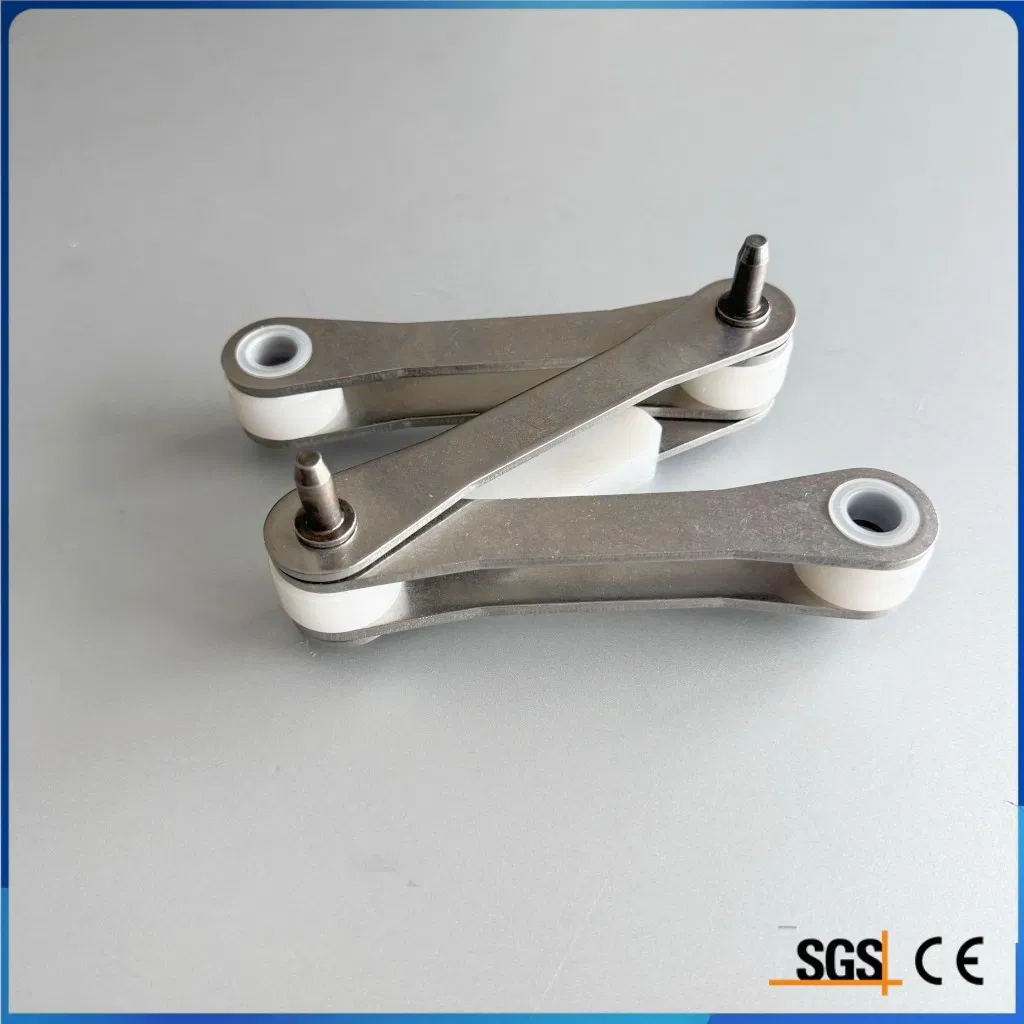

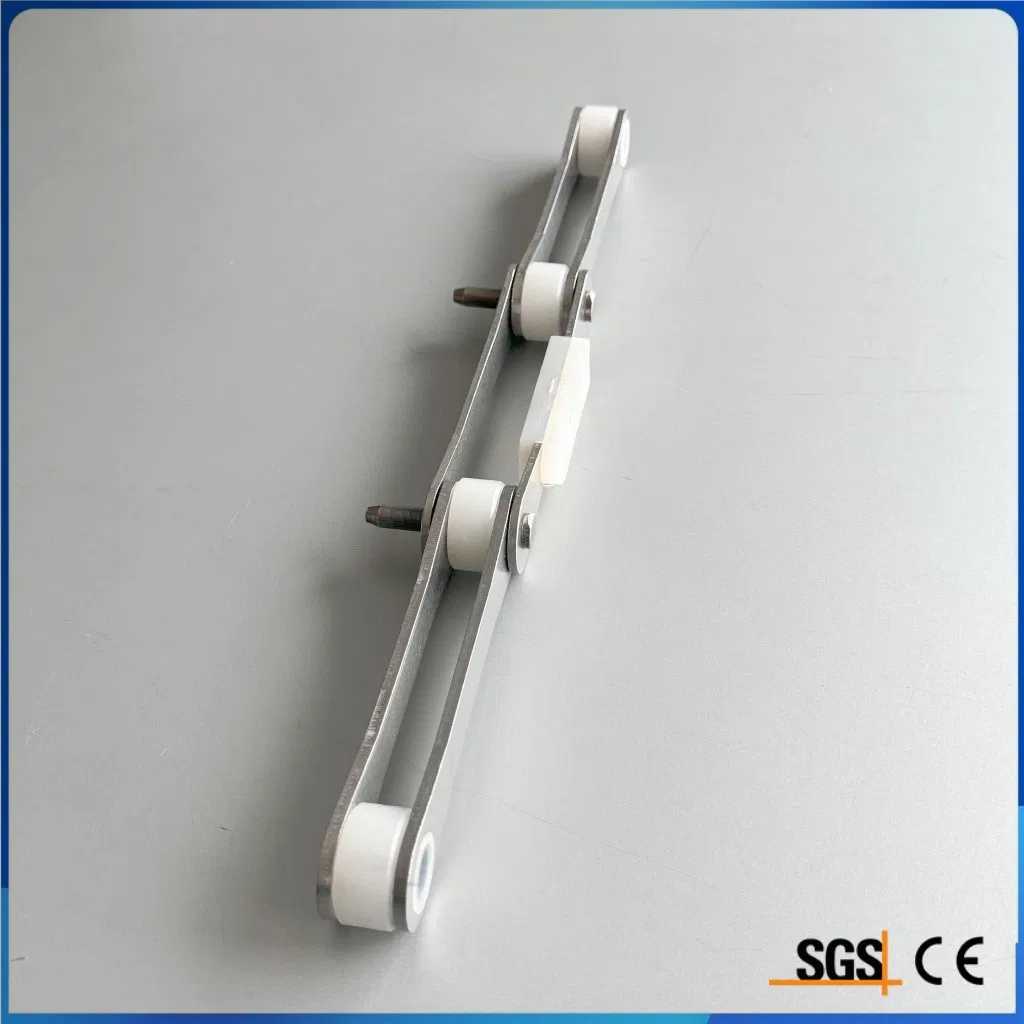

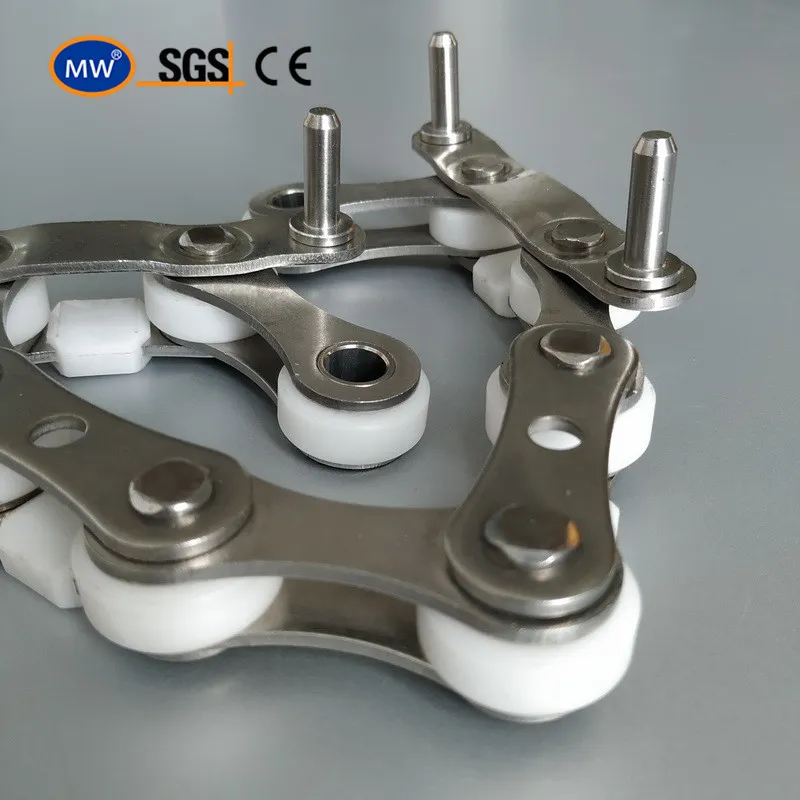

Food Grade SS Ice Cream Freezer Low Temperature Slat Modular Belt Ice Cream Cone Baking Cold Room Hardening Tunnel Conveyor Chain for Freezing Tunnel Conveyor
Product Description
📊
Basic Information
Model NO.:ICE CREAM CHAIN
Surface Treatment:Polishing
Chain Size:1/2"*11/128"
Feature:Oil Resistant
Standard:Nonstandard / ISO
Color:Solid Color
Surface:Zinc Plated, Blacken
Production Capacity:10000 Meters Per Day
Ice Cream Chain serves as a universal, cryogenic-resistant conveying solution designed to operate seamlessly across the entire spectrum of modern frozen dessert manufacturing. From the extreme sub-zero environments of spiral freezers, blast hardening tunnels and plate freezers to the precise synchronization of chocolate enrobing, topping, and decoration lines, these chains provide critical reliability without brittleness or contamination.
⚙️
Product Description
We are a professional manufacturer of high-performance Stainless Steel Ice Cream Conveyor Chains, specialized in supporting the efficient and hygienic operation of frozen dessert production lines. We adopt premium 304/316 Food Grade Stainless Steel as our core material, combined with advanced precision forming and professional cryogenic heat treatment. This ensures reliable wear resistance, corrosion resistance, and low-temperature toughness (no brittleness) in continuous, high-frequency, and wet working conditions.

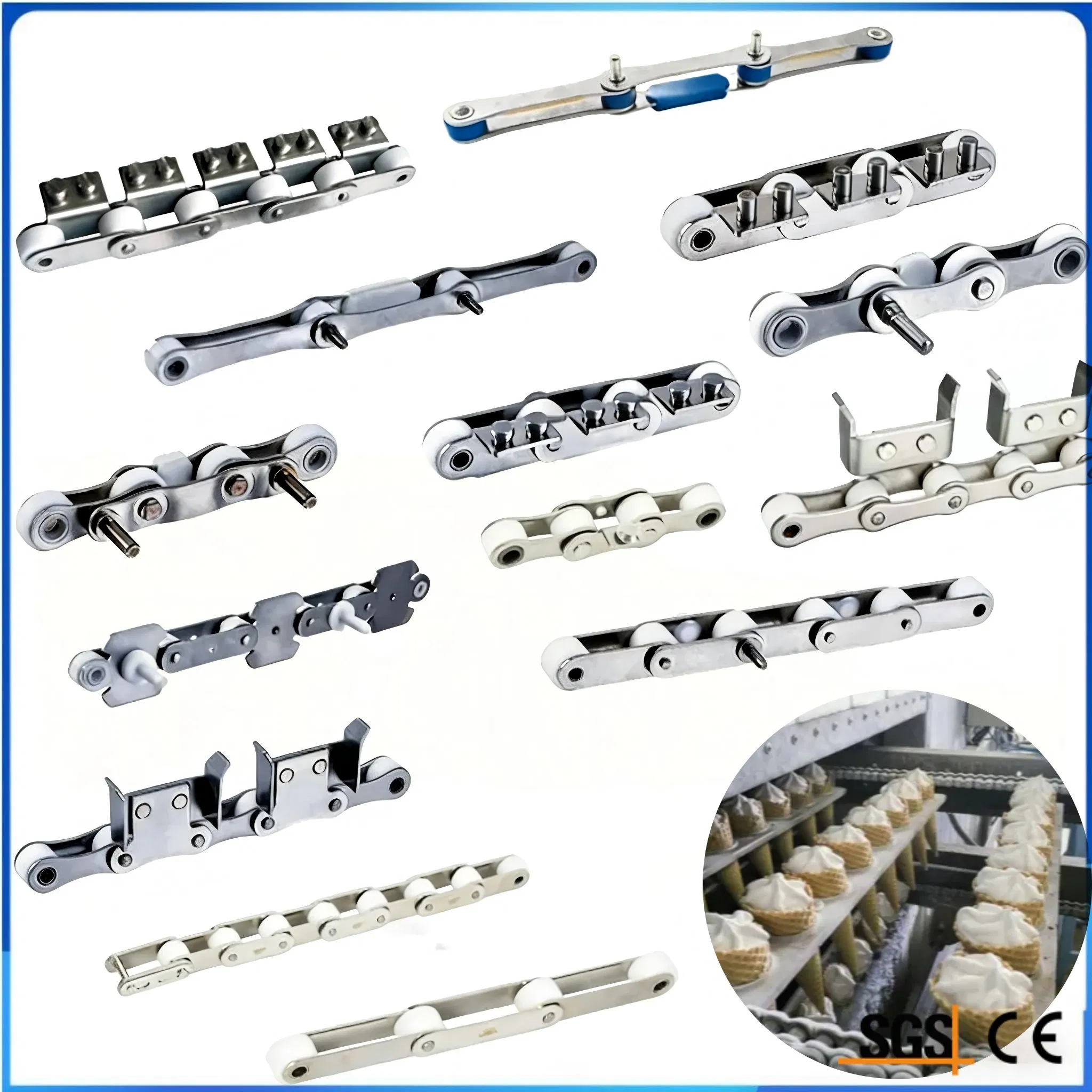

Comprehensive Product Range:
- Modular Belt Series: Plastic & Stainless Steel hybrid modules for freezing tunnels.
- Slat Chain Series: Heavy-duty stainless steel slats for sandwich and cup filling lines.
- Low-Temperature Roller Chains: Designed for -40°C to -60°C environments.
- Specialty Chains: Custom designs for Cone Baking and Stick Dipping.
📏

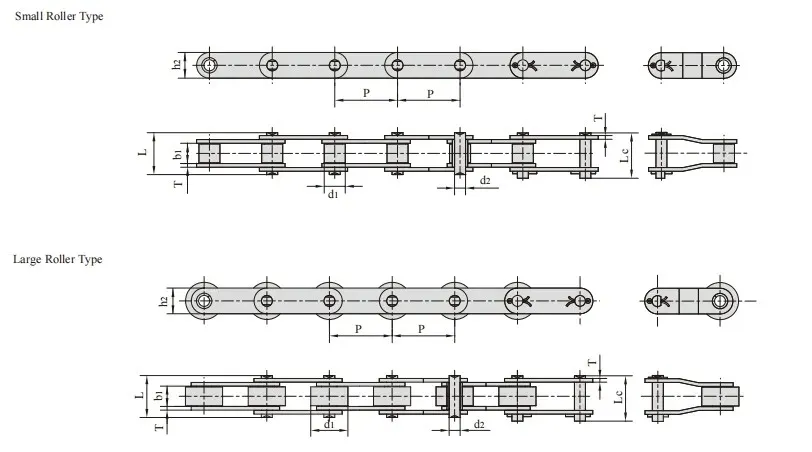

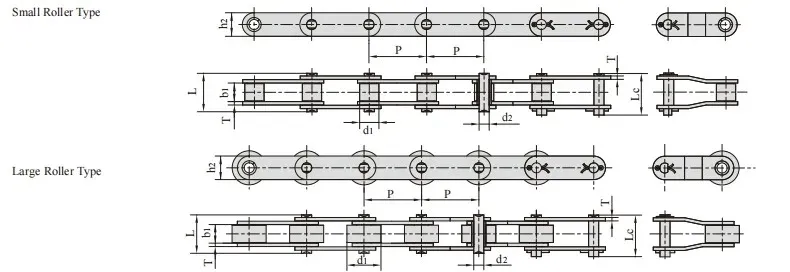

Technical Data
| ISO Chain No. | ANSI Chain No. | Pitch (P) | Roller Dia (d1) | Width (b1) | Pin Dia (d2) | Tensile Strength (kN) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|
| C208A | C2040 | 25.40 | 7.95 | 7.85 | 3.96 | 14.1 | 0.50 |
| C210A | C2050 | 31.75 | 10.16 | 9.40 | 5.08 | 22.2 | 0.78 |
| C212A | C2060 | 38.10 | 11.91 | 12.57 | 5.94 | 31.8 | 1.12 |
| C216A | C2080 | 50.80 | 15.88 | 15.75 | 7.92 | 56.7 | 2.08 |
🚀

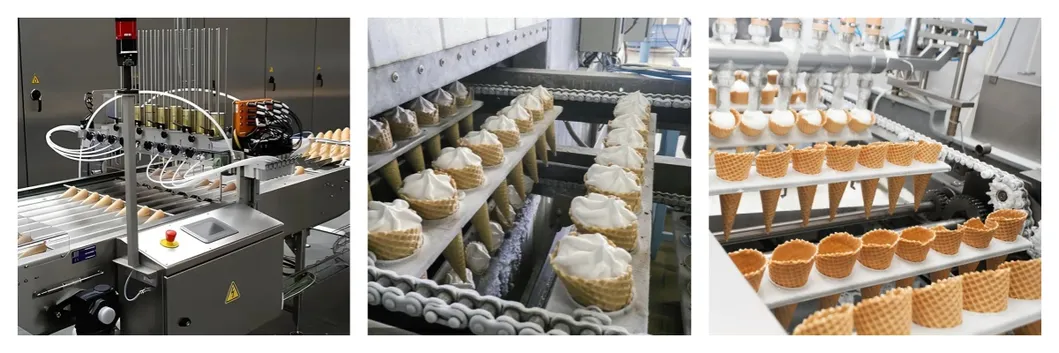

Application Stages
🥣
Mixing Stage
Transporting ingredients through the mixing area to ensure hygienic combination.
❄️
Freezing Stage
Guiding products through cooling tunnels at controlled sub-zero temperatures.
🍦
Filling & Hardening
Precise movement to filling stations and through hardening tunnels.
🧼
Cleaning (CIP)
Corrosion-resistant properties suitable for frequent disinfection and washdowns.
💎
Quality & Customization
Our production procedures are in compliance with ISO9001 standards. We specialize in OEM/ODM services, producing chains strictly according to technical drawings or sample replication. We offer material grades (304/316/316L), custom pitches, and specialized attachment designs (hooks, clips, flights) to match your specific machinery.
🏢
Company Profile

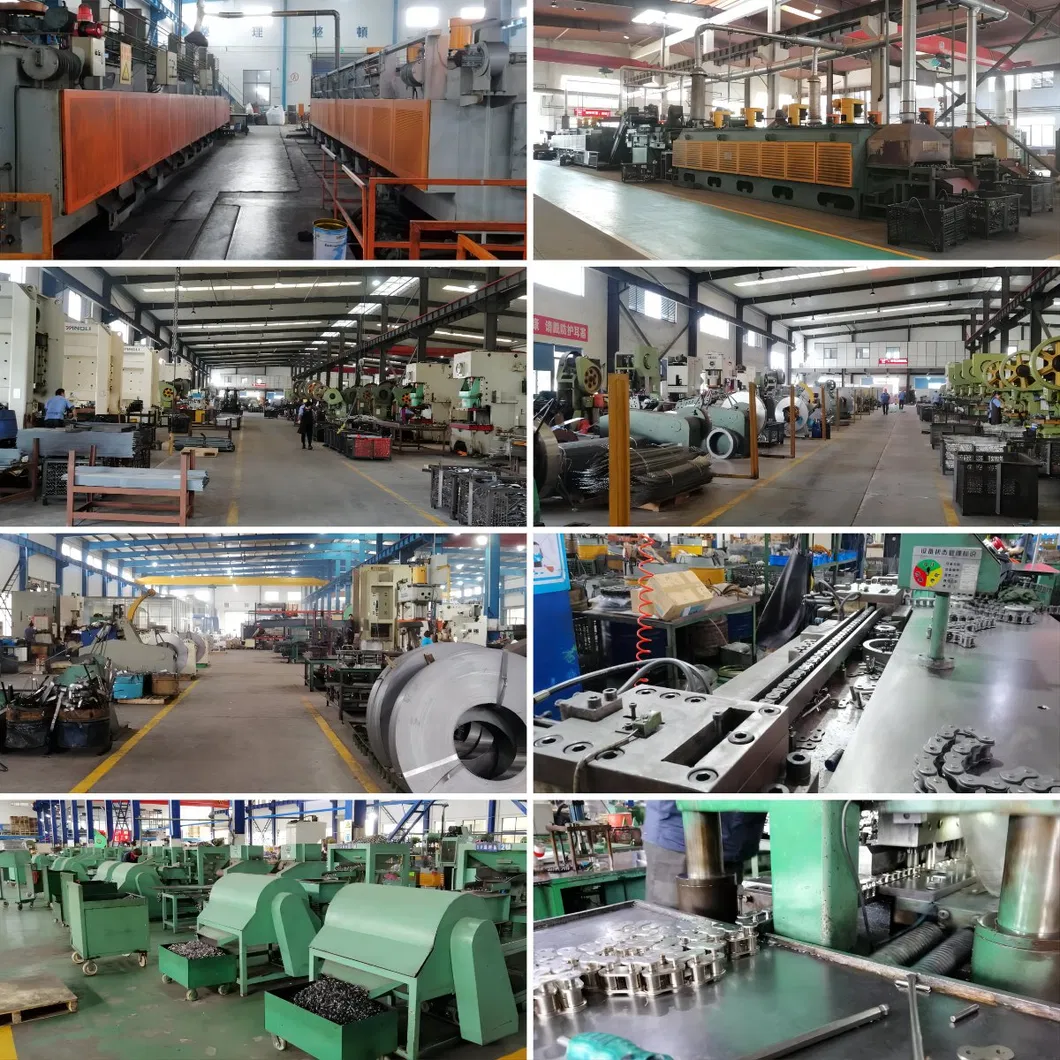

We are a professional group manufacturer of a full range of high-quality conveyor line parts. Our global stature is reinforced by excellent products and commitment to service, earning an esteemed reputation on the international market. Manufactured using modern computerized machinery, our products meet international quality standards and are designed for optimal performance in American, European, and Asian markets.
❓
Frequently Asked Questions
Q1: What materials are used for the ice cream chains?
A: We primarily use premium 304 and 316 food-grade stainless steel to ensure corrosion resistance and hygiene compliance.
Q2: Can these chains withstand ultra-low temperatures?
A: Yes, our chains are specifically engineered for cryogenic environments, maintaining structural integrity at temperatures as low as -60°C.
Q3: Do you provide customization based on drawings?
A: Absolutely. We offer full OEM/ODM services and can manufacture non-standard products based on your specific technical drawings or samples.
Q4: What is the typical delivery time for production?
A: Sample lead times are generally 10 workdays, while mass production typically takes 20-40 workdays after receiving the deposit.
Q5: Are the chains compatible with major dairy equipment brands?
A: Yes, our standardized designs feature universal mounting interfaces compatible with major global brands like JBT, Tetra Pak, and GEA.
Q6: What are your terms of payment?
A: Our standard terms are T/T 30% as a deposit and the remaining 70% before delivery.
