5km 300-6000MHz Full Band Six-Sided Jamming Formation Counter-Drone Defense Jammer System
Product Description
i
Overview
Model NO.:ZD-JM6
Application:Drone Jammer
Frequency Band:300MHz-6GHz
Power Supply:AC 220V to 24V
Operation Conditions:-40℃~+55℃ / ≤93% Rh
Total Transmission Power:≥650W
Weight:<100kg (Without Tripod)
Size:1000*1000*1000mm
Jamming Mechanism:Lora+Vco
Protection Rating:IP64
HS Code:8543209090
Production Capacity:200pieces/Month
P

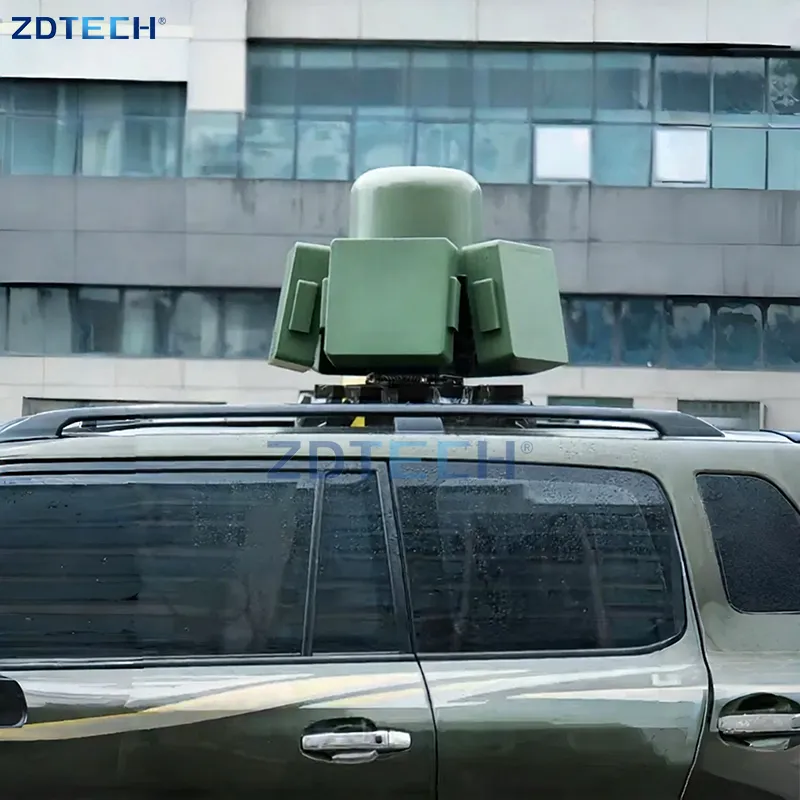

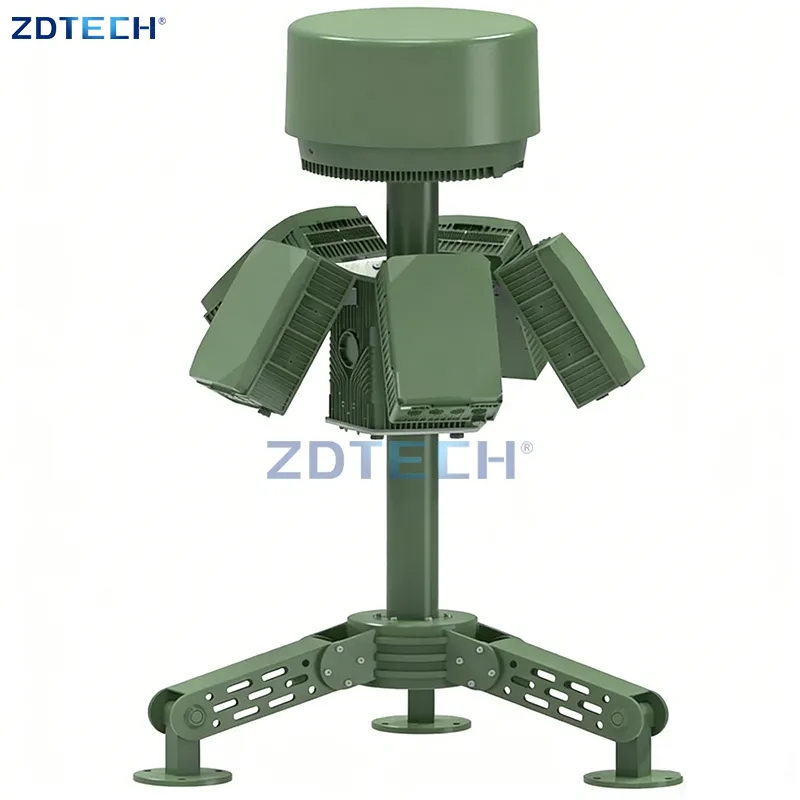

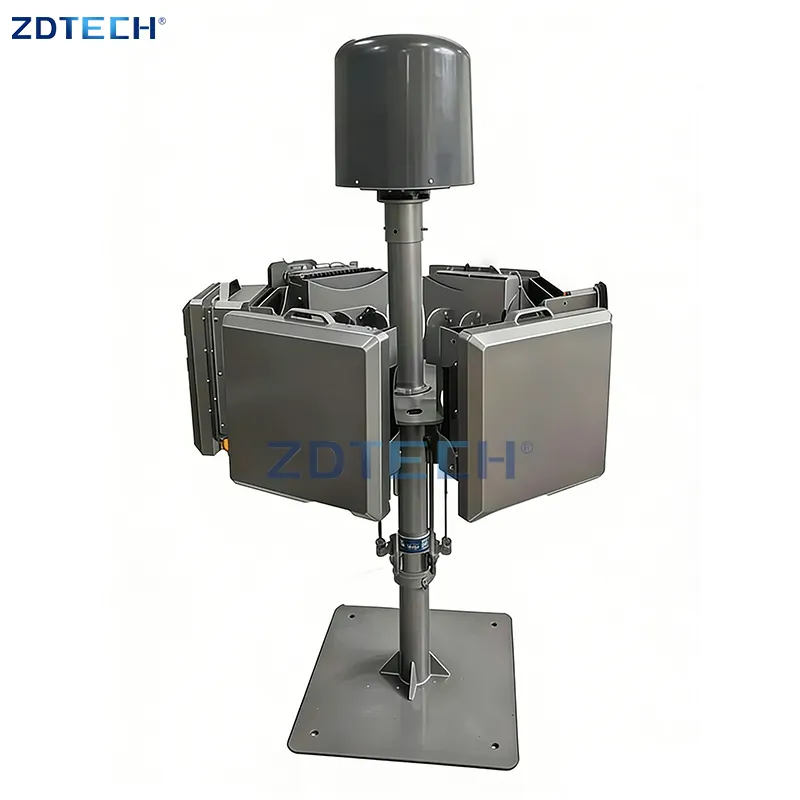

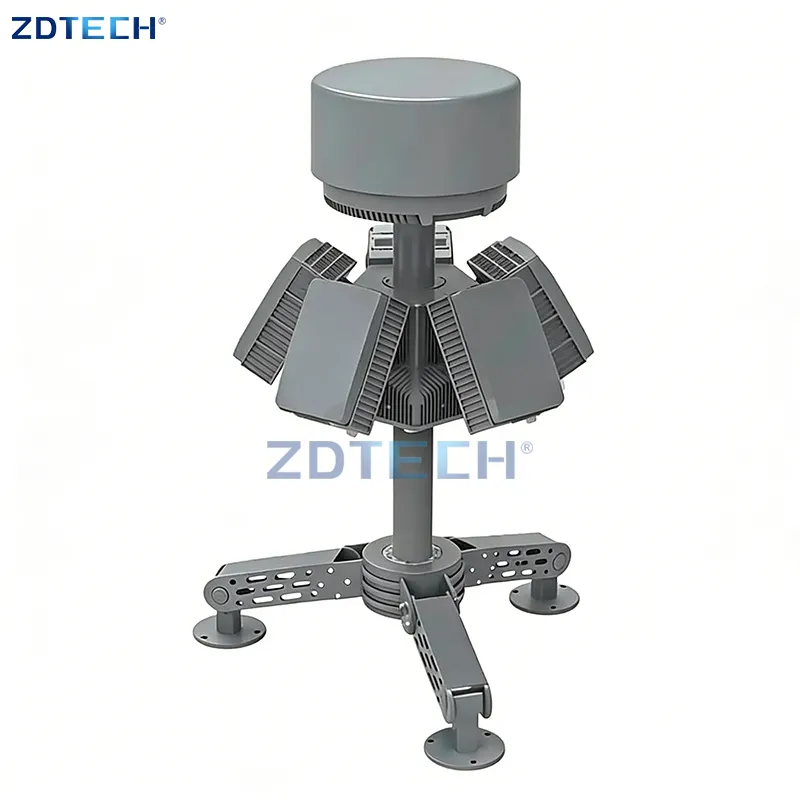

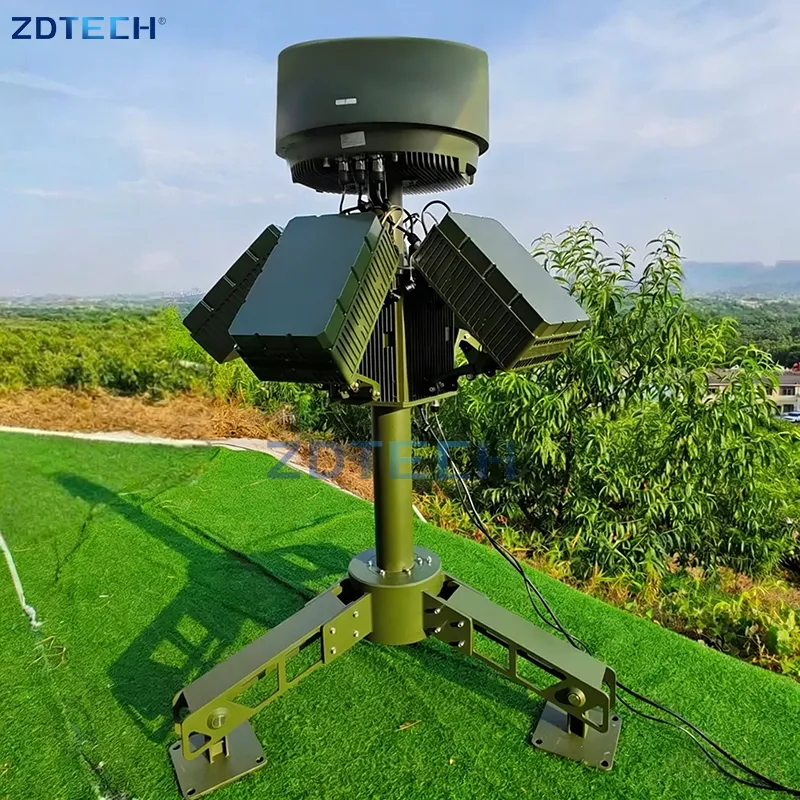

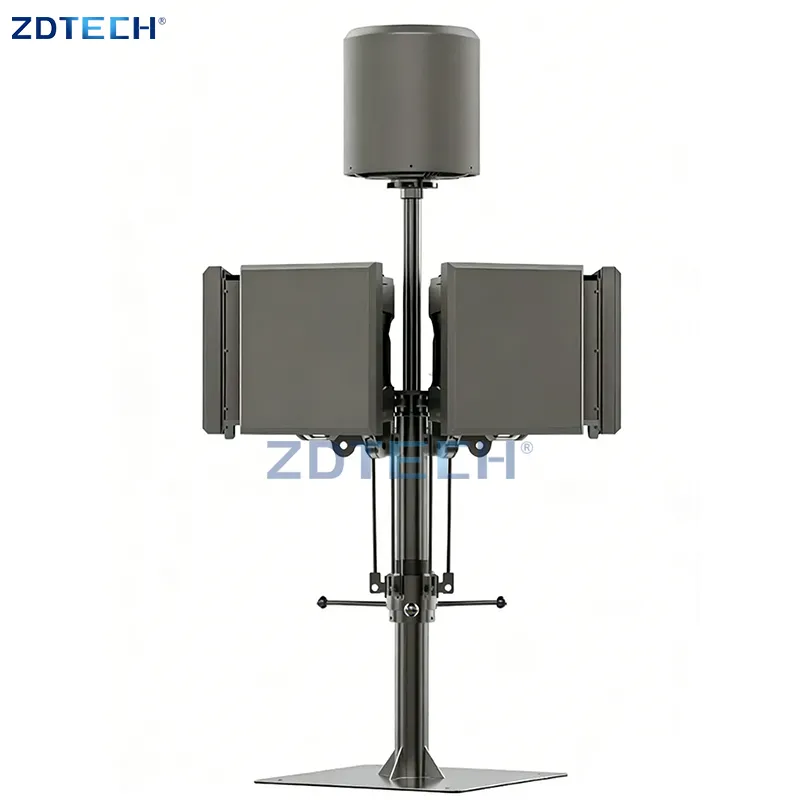

Detailed Photos
D
Product Description
INTRODUCTION
A Six-sided formation counter-drone equipment leveraging DDS+ LORA+VCO technology with multi-band jamming capabilities to effectively block control, video transmission, and navigation signals from both DIY FPV and conventional drones.
The equipment features 8 precision frequency band modules to accurately strike commonly used UAVs. One omnidirectional unit adopts widescreen digital modules, capable of 200MHz bandwidth full-frequency scanning to interfere with unknown UAV frequencies. Range performance: Directional interference up to 5km; Omnidirectional up to 4km.
Multi-Model Jamming
Covers data/video transmission, control, and navigation bands of global consumer drones for effective multi-drone jamming.
TECHNICAL SPECIFICATIONS
| Feature | Details | |
|---|---|---|
| 5x Directional Jamming | Mechanism | LORA+VCO |
| Bands | 300-6000MHz | |
| Signal Type | UAV data/video transmission, Remote control signal | |
| Direction | Horizontal > 60°, tilt > 25° (360° via formation) | |
| Distance | 5km | |
| Power | ≥2000W (400W per unit * 5) | |
| 1x Omni Jamming | Mechanism | LORA+VCO |
| Bands | 300-6000MHz | |
| Signal Type | UAV data/video transmission, Remote control signal | |
| Direction | Horizontal > 360°, tilt > 25° | |
| Distance | 4km | |
| Power | ≥650W | |
| Size / Weight | 1000*1000*1000mm / <100kg (without tripod) | |
| Protection Level | IP64 | |
F
Frequently Asked Questions
What is the maximum effective jamming range?
The system provides a directional jamming range of up to 5km and an omnidirectional jamming range of up to 4km, depending on environmental conditions.
Which frequency bands does the ZD-JM6 cover?
The system covers a full band spectrum from 300MHz to 6000MHz (6GHz), targeting control, video, and navigation signals.
Can it defend against unknown or custom DIY drones?
Yes, by utilizing widescreen digital modules and LORA+VCO technology, it can perform full-frequency scanning to interfere with non-standard or unknown UAV frequencies.
Is the equipment suitable for outdoor use in harsh weather?
The system is IP64 rated and designed to operate in temperatures ranging from -40ºC to +55ºC, making it highly resistant to dust and water splashes.
What is the power requirement for the system?
The system operates on a standard AC 220V power supply, which is converted to 24V for internal operation.
What is the total output power of the 5-sided formation?
In a five-sided formation, the total transmission power reaches ≥2000W, with approximately 400W per individual unit.
