High Speed Automated 4 Way Pallet Shuttle Rack for Smart Supply Chain Warehouse Storage System
Product Description
- Overview
- Product Description
- Applications

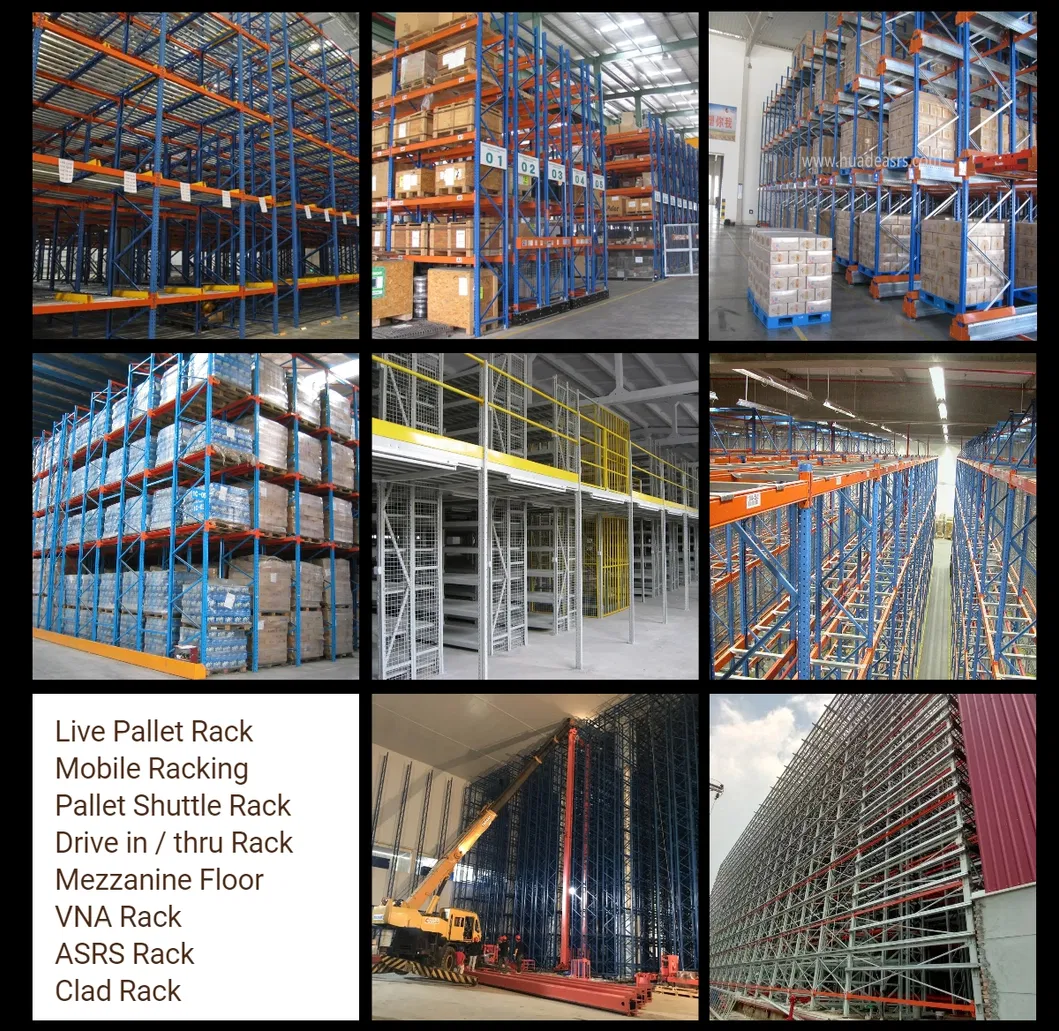

- Racking Product
- FAQ
Basic Information

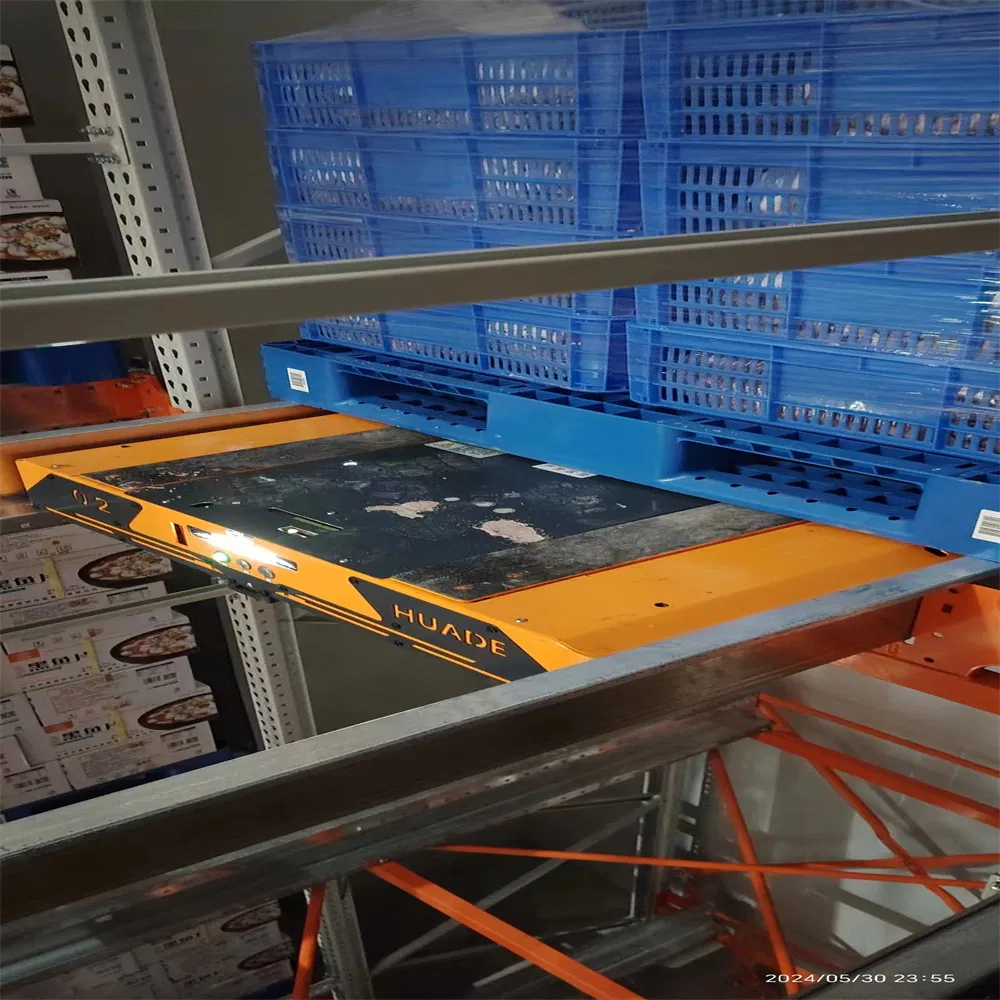

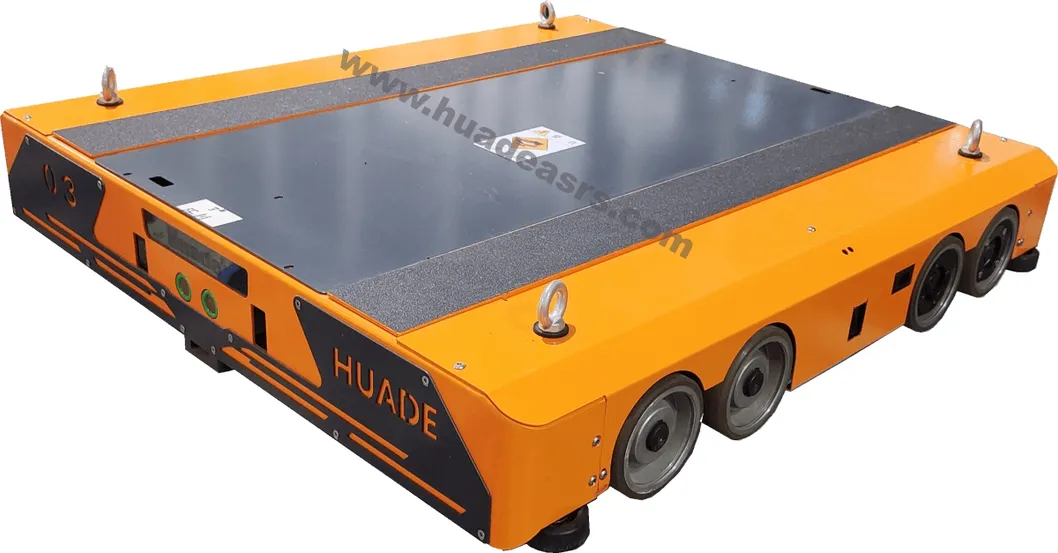

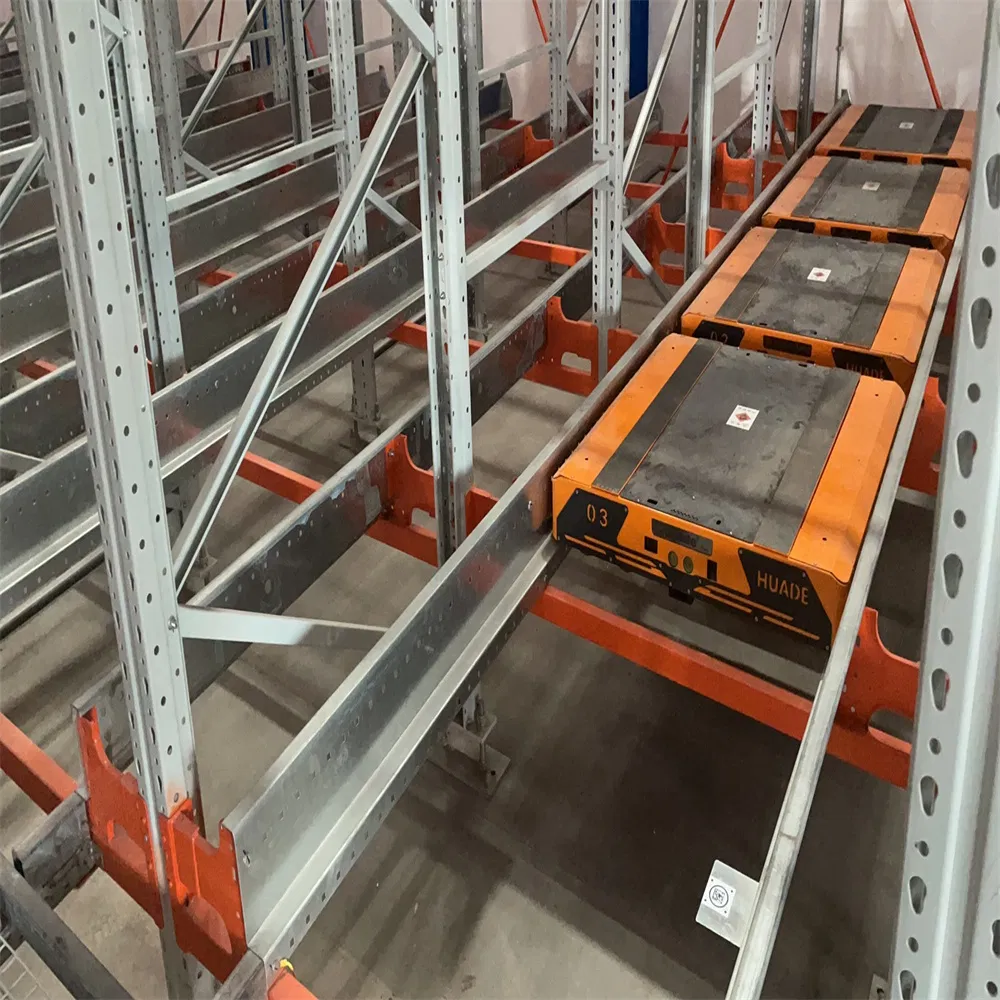

High Speed Automated 4-Way Pallet Shuttle
Although there are many mature solutions for high-density, multi-depth pallet warehouse storing, like Radio Shuttle System and Stacker Crane systems, space is still left for more specific markets. Our team has focused on Four Way Pallet Shuttle research to explore more flexibility and expansion in fully automatic pallet storing and retrieval systems. Our four-way shuttle has been iteratively updated to the third generation, which is faster, thinner, and more accurate.
| ITEM | Shuttle Body (L*W*H) | Pallet Dimension |
|---|---|---|
| Standard Dimensions | 1100L*980W*150Hmm | 1200W*1000D |
| Loading Capacity | 1000kg | - |
| Power Supply | Lithium battery, 48V | ≥8H continuous work |
| Driving Speed | 1.5m/s (empty) / 1.0m/s (load) | - |
| Addressing | Laser, ±2mm | - |

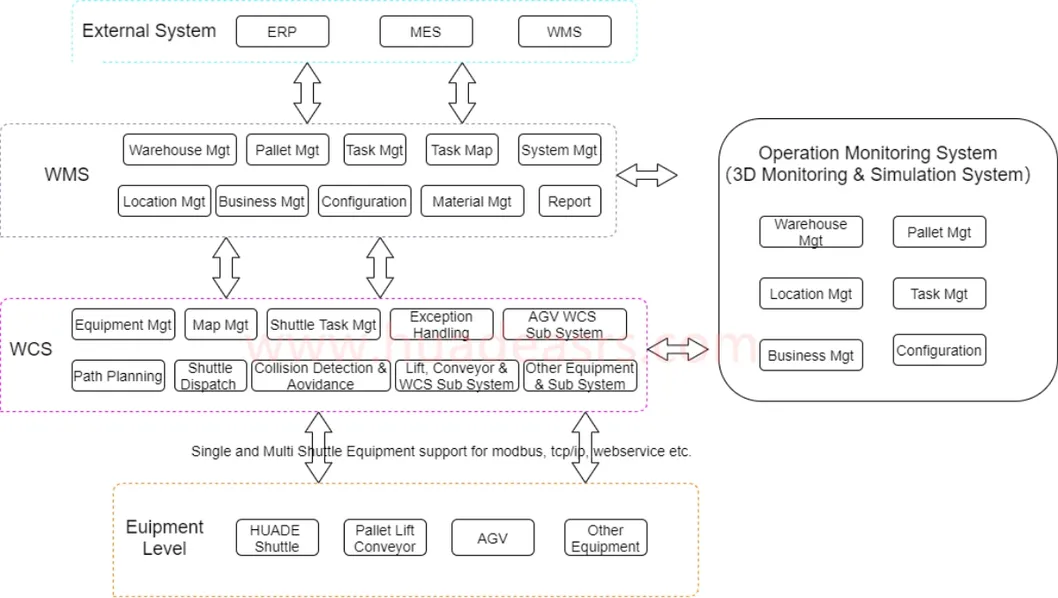

Our hardware results in enhanced safety and design plus advanced technology and functionality, providing you with a unique, automated, high-density storage solution. We believe that "software defines hardware." The system is built on dedicated WMS & WCS, realizing dynamic management of stored items to ensure physical inventory is consistent with accounts.

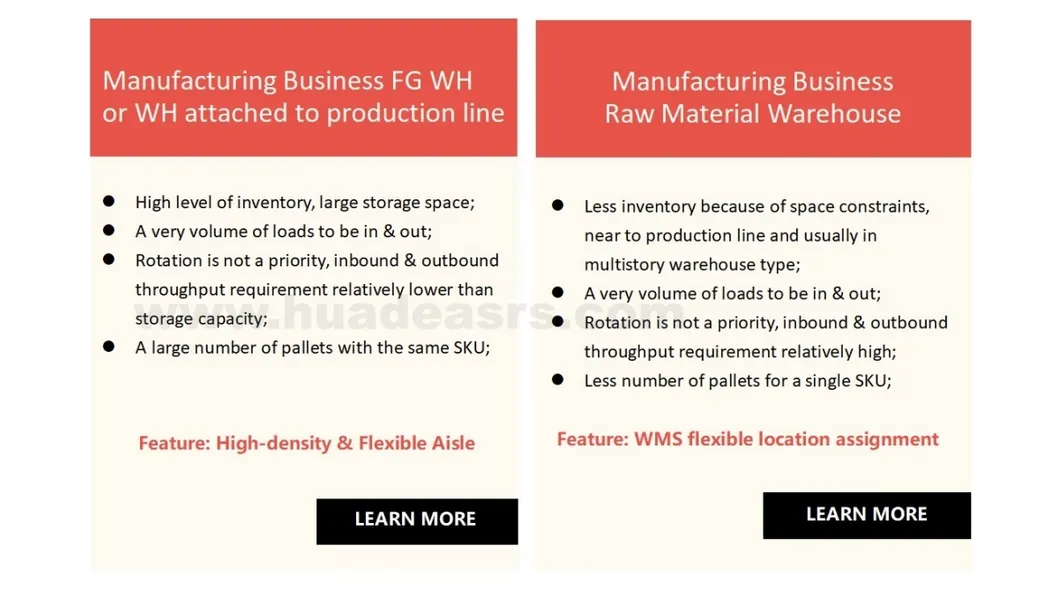

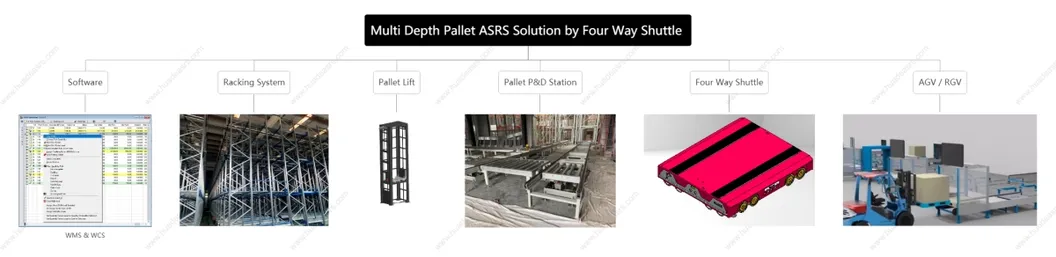

Applications & Components

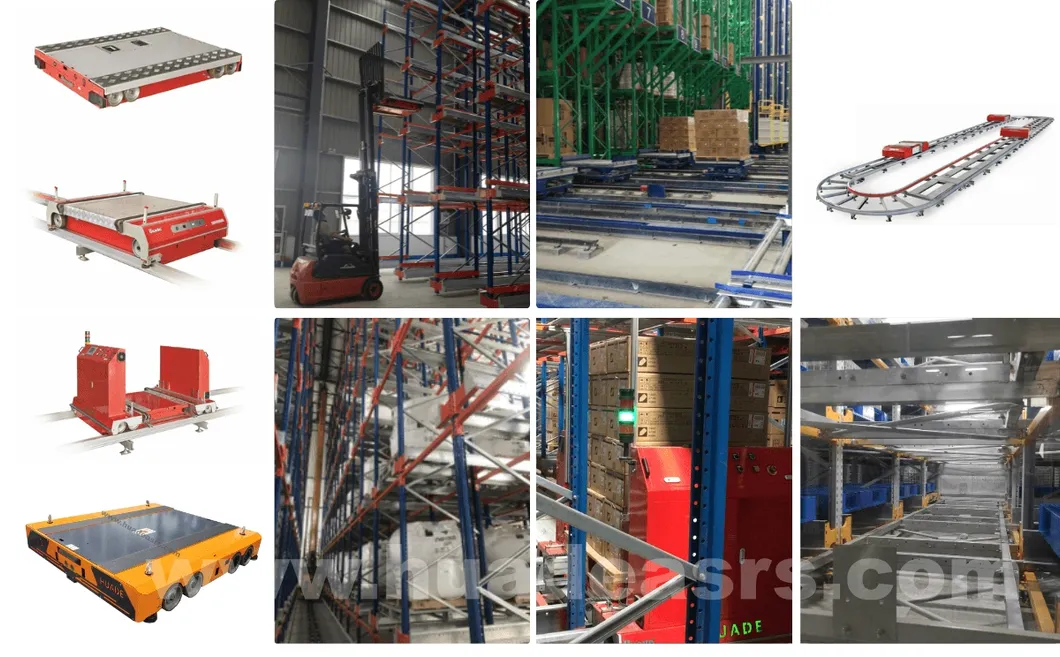

Shuttle Family Series
