High Speed Automated 4 Way Pallet Shuttle Rack for Smart Supply Chain
Product Description

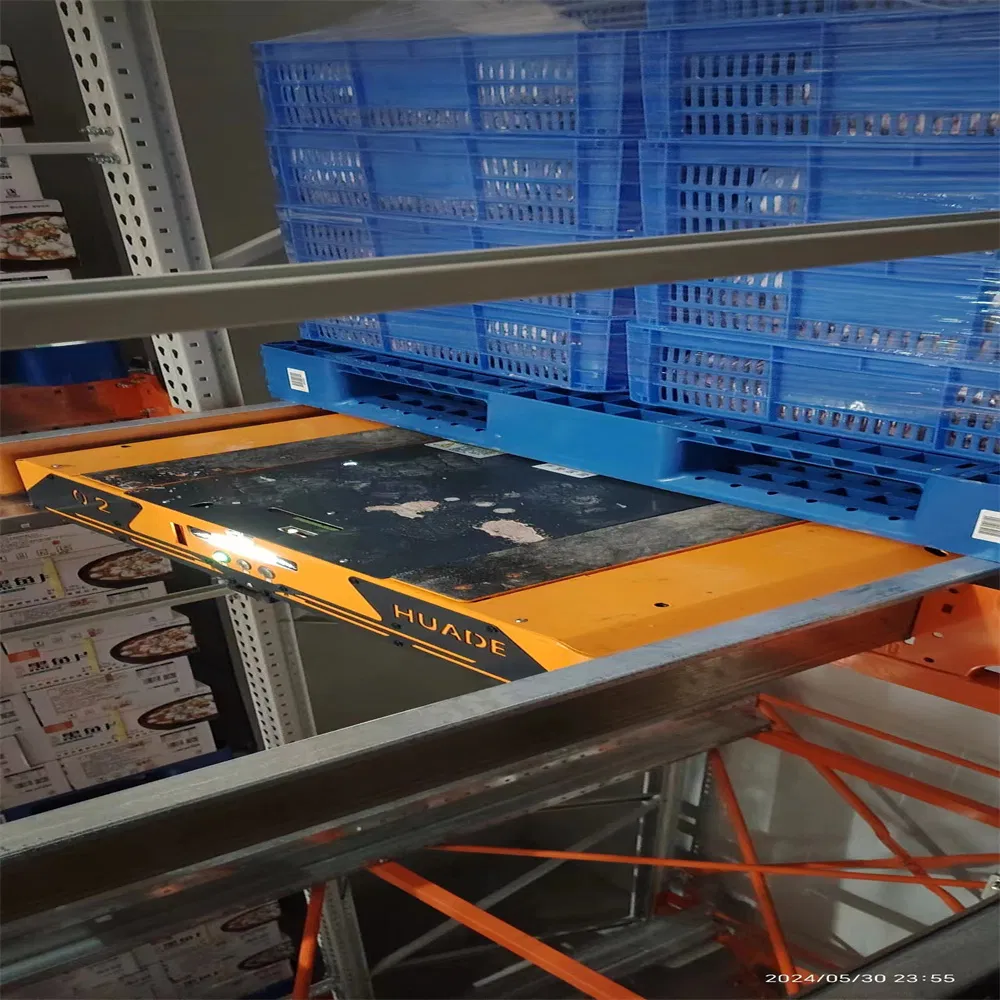

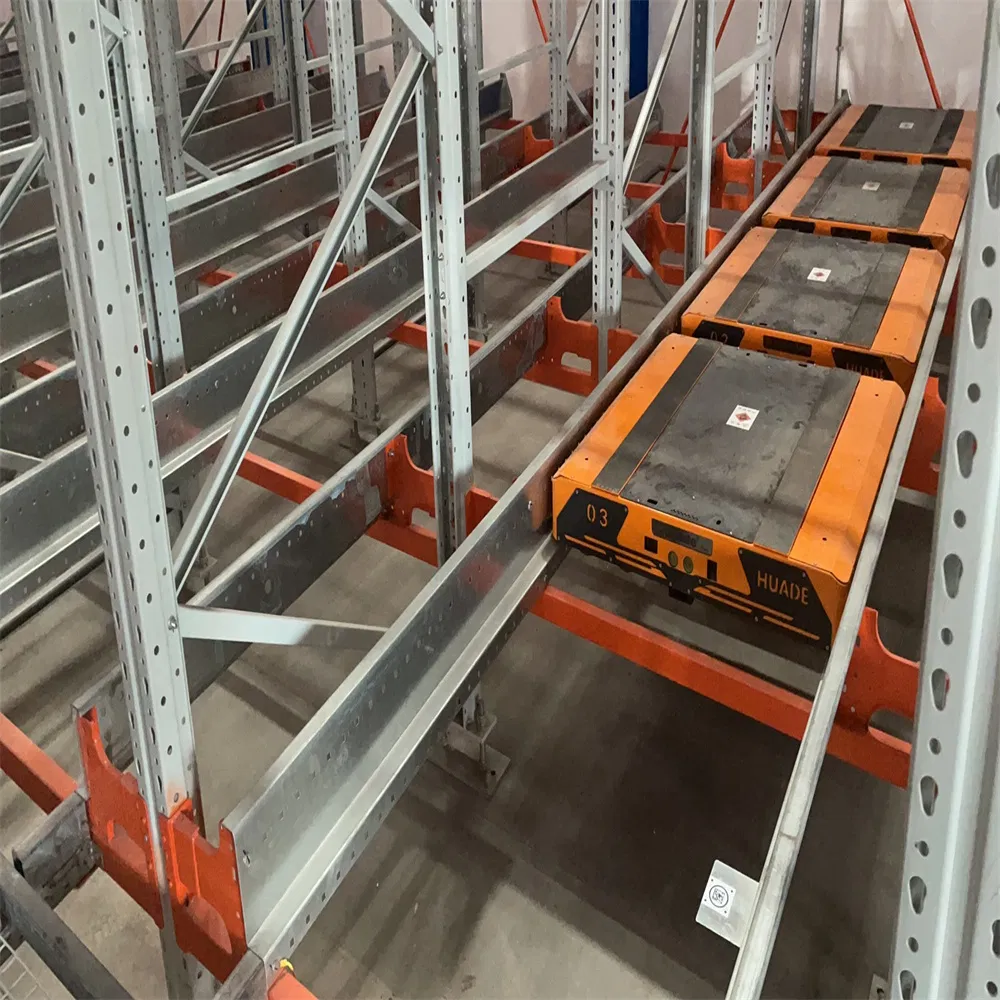

High Speed Automated 4 Way Pallet Shuttle Rack for Smart Supply Chain

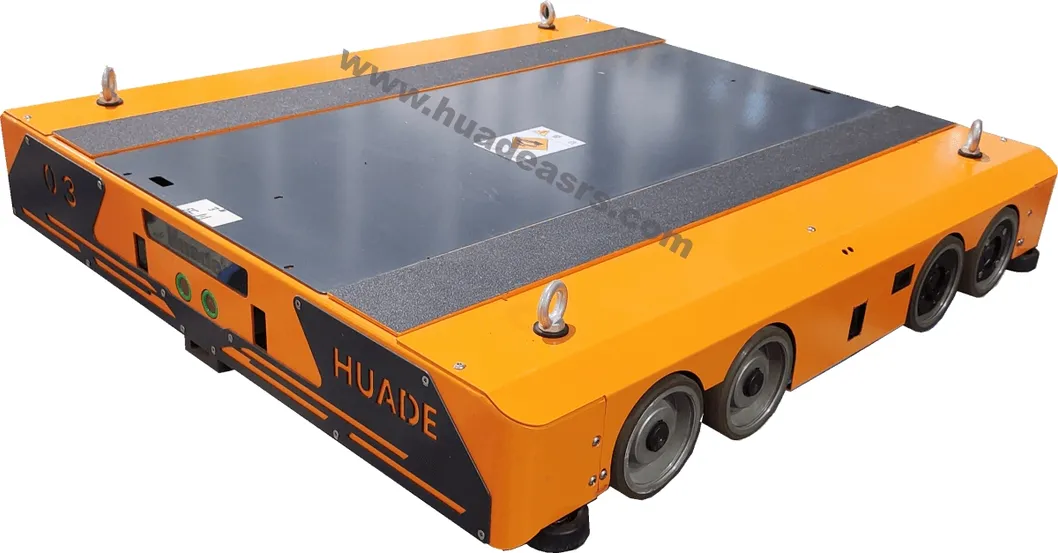

Since 2016, research and development on Four Way Pallet Shuttle have focused on exploring more flexibility and expansion in fully automatic pallet storing and retrieval systems. The third-generation shuttle is designed to be faster, thinner, and more accurate.
| ITEM | Shuttle Body (L*W*H) | Pallet Dimension |
|---|---|---|
| Standard Dimension A | 1100L*980W*150Hmm | 1200W*1000D |
| Standard Dimension B | 1200L*980W*150Hmm | 1200W*1100D |
| Loading Capacity | 1000kg | - |
| Driving Speed (Empty) | 1.5m/s | - |
| Power Supply | Lithium battery 48V | ≥8H continuous work |

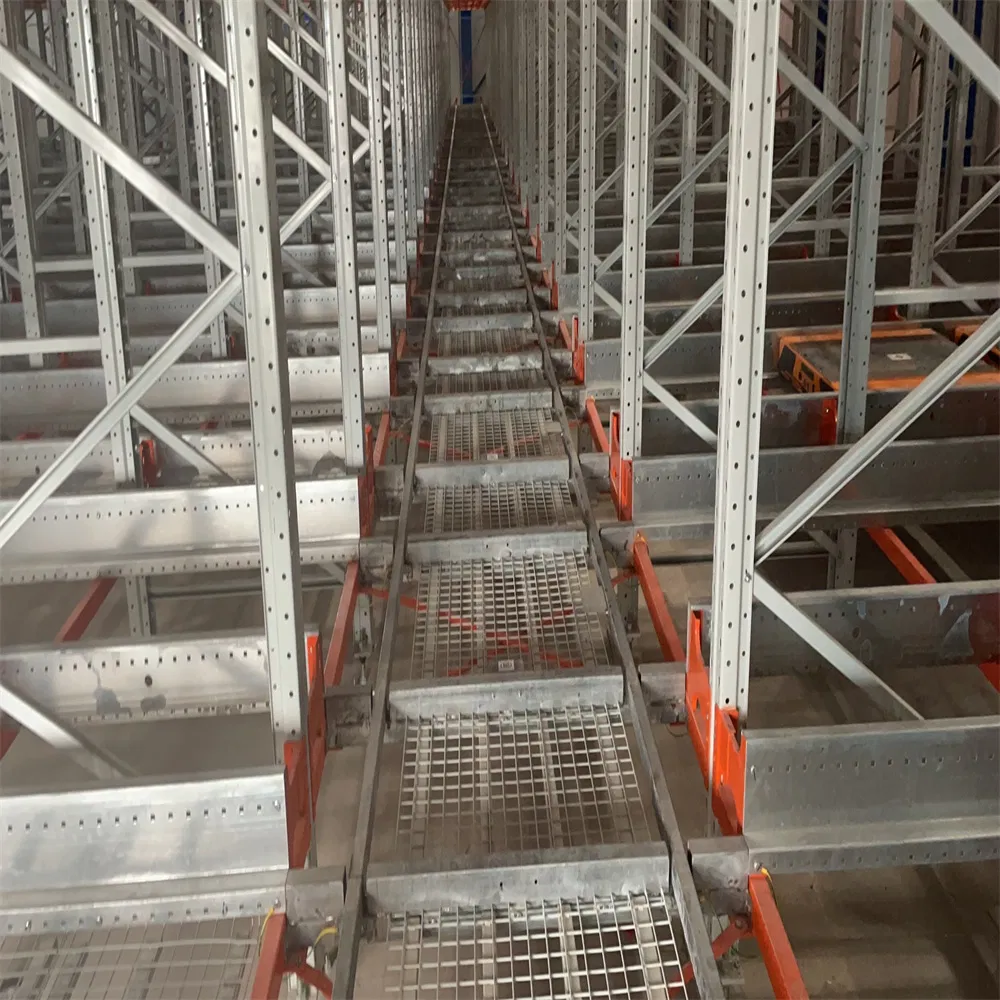

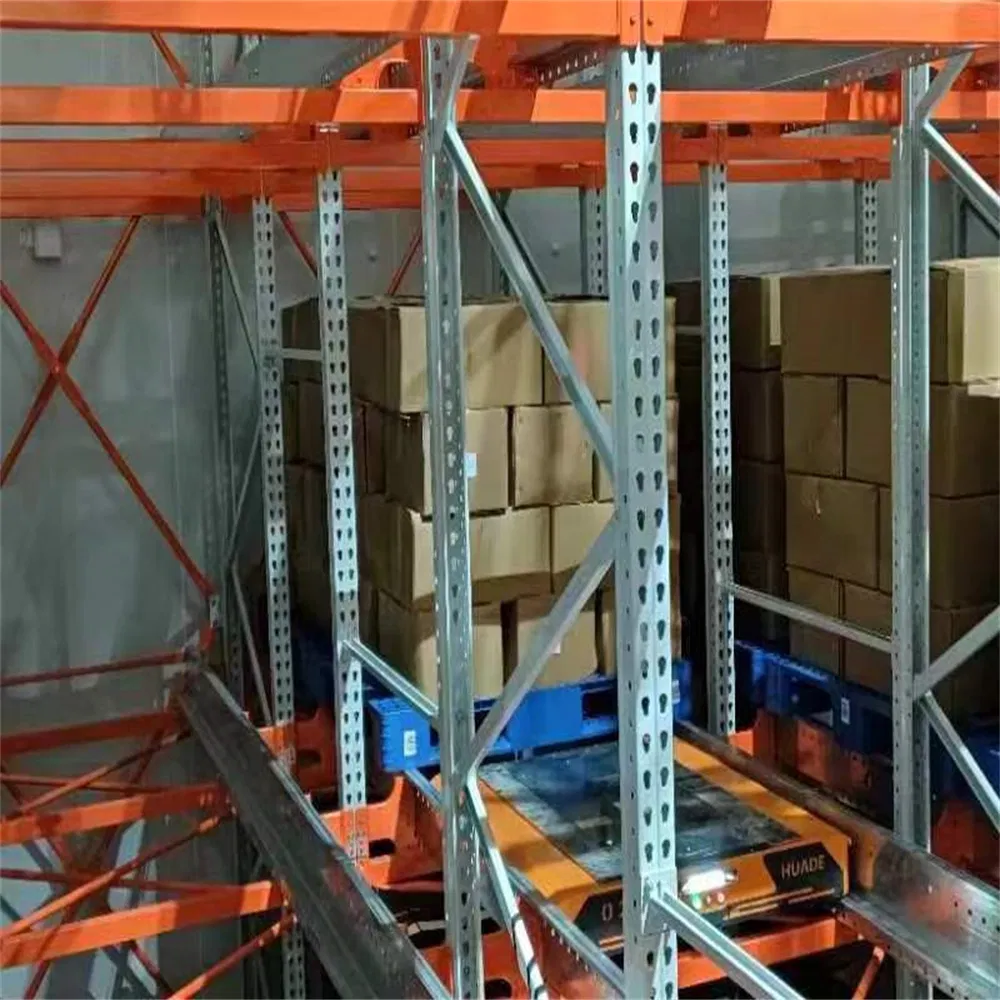

Latest four-way shuttle transport technology enables multiple deep pallets at any level to be accessed. This solution is ideal for smaller building footprints with less impact on the surrounding environment.

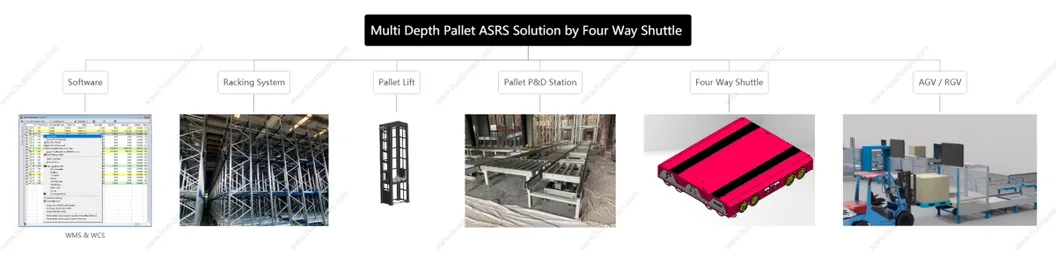

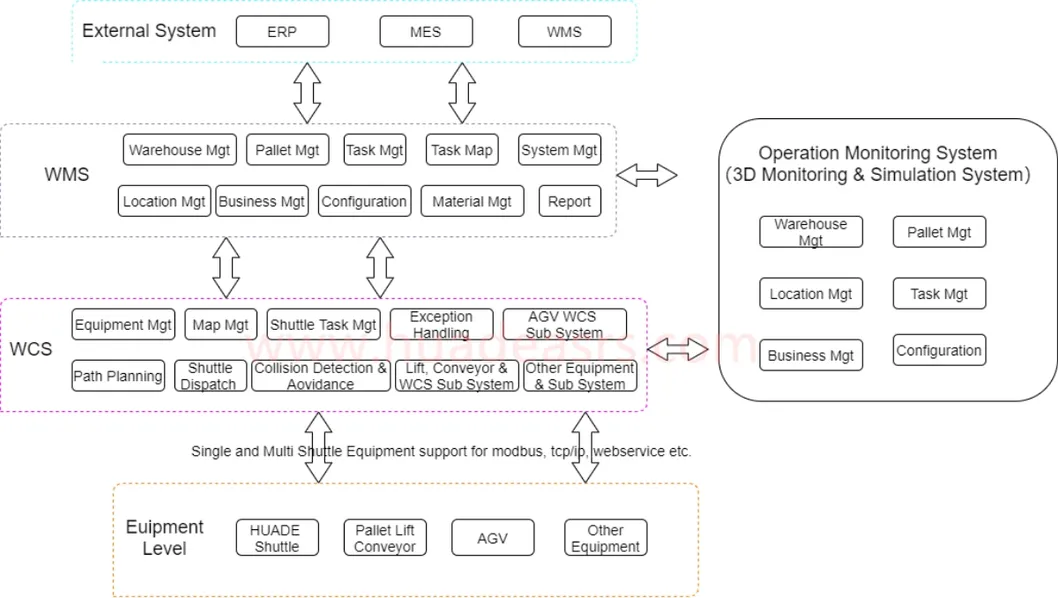

Software-Defined Hardware: The system is built on dedicated WMS & WCS, realizing dynamic management of stored items to ensure physical inventory is consistent. WMS assesses orders, inventory, and labor to execute order fulfillment effectively.
