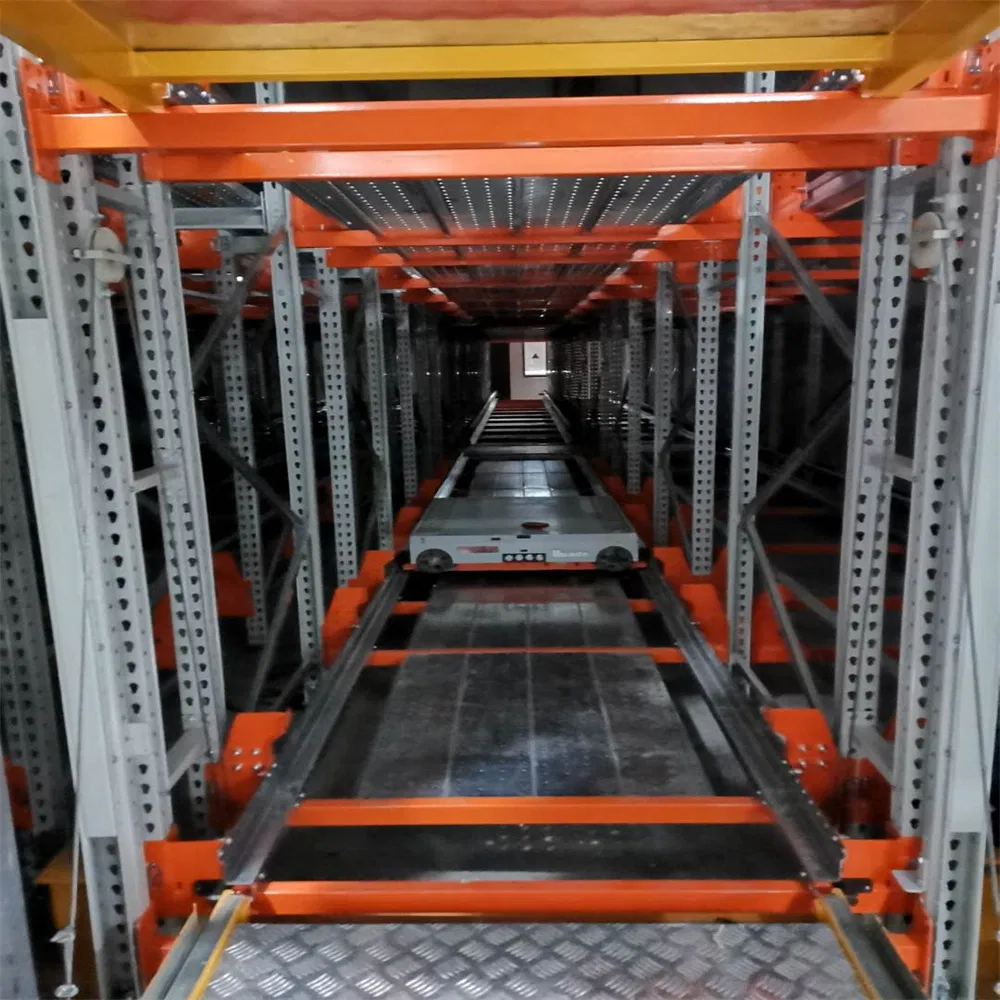

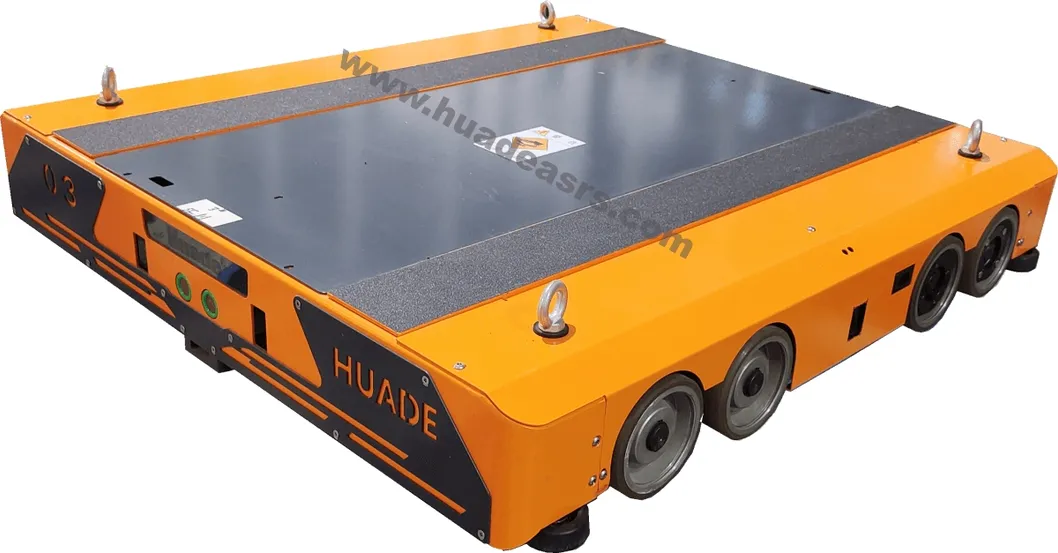

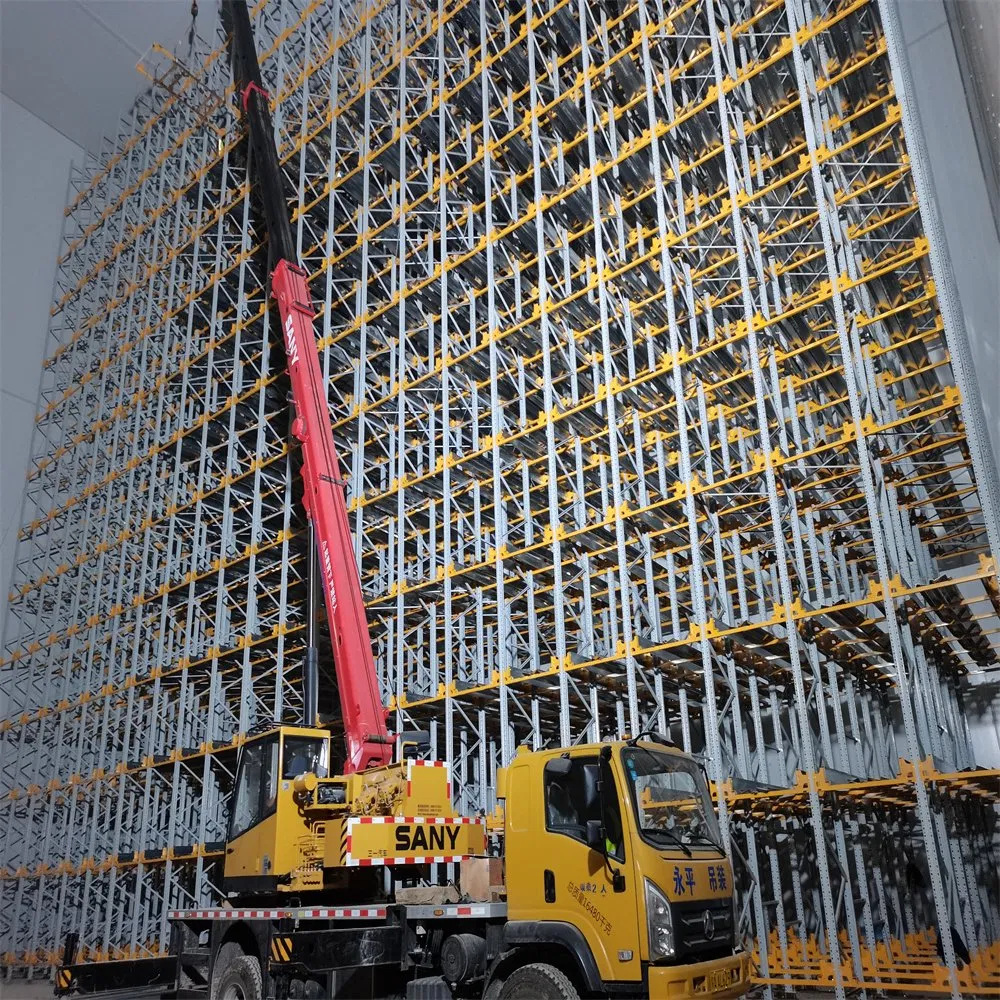

High Speed Automated Warehouse 4 Way Pallet Shuttle Rack for Smart Supply Chain
Product Description
| Model NO. | NDCS11-0.9-1.0 | Type | Shuttle Robot |
| Pallet Size | 1*1.2 or Customized | Warehouse Type | Existing or New Build |
| Type of Package | Carton, Plastics Wrapping or Non Package | Storage Medium | Pallet, Metal Cage or Others |
| Shuttle Weight | 280-290kg | Sub-Rail Height | 170mm |
| Lifting Type | Mechanical | Motor Power | 1000W |

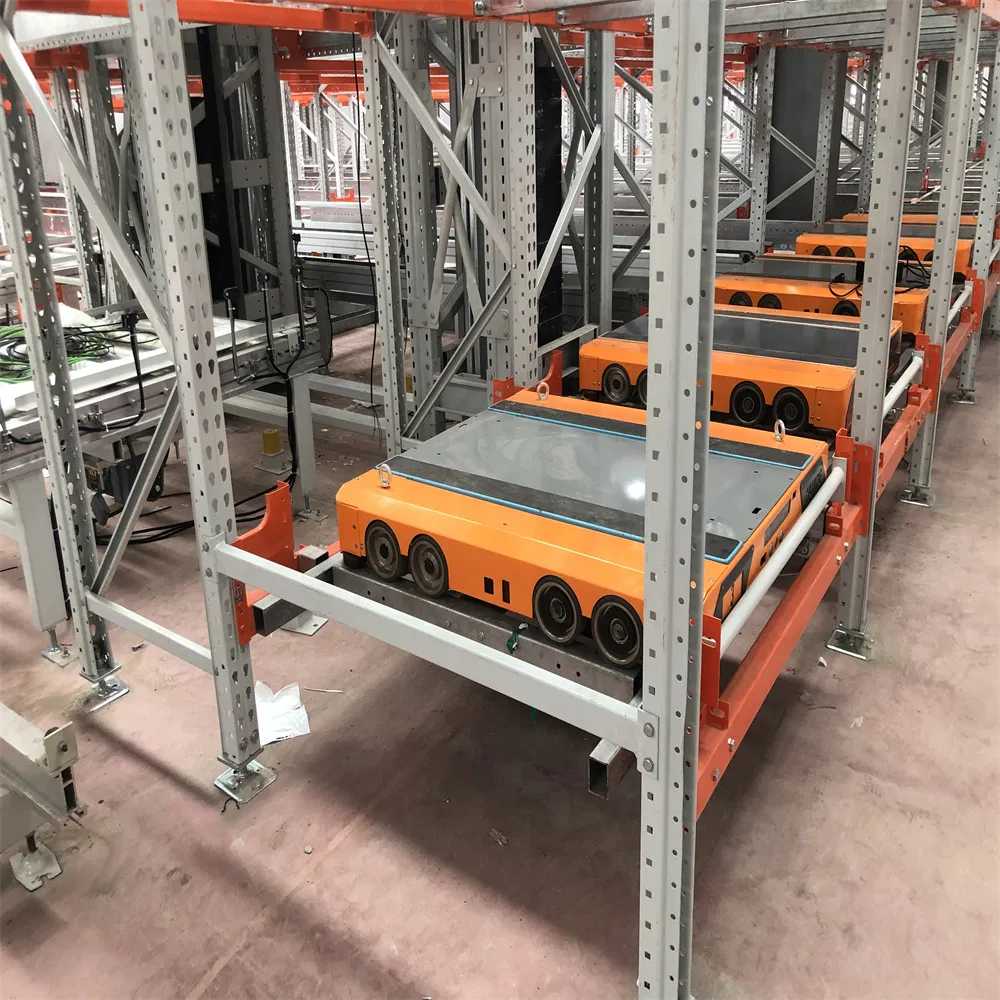

Our four-way pallet shuttle technology offers superior flexibility and expansion for fully automatic pallet storing and retrieval systems. The third generation of this system is faster, thinner, and more accurate, designed to explore more efficiency in smart supply chains.
Technical Performance Data
| ITEM | Shuttle Body (L*W*H) | Pallet Dimension |
|---|---|---|
| Standard Shuttle | 1100L*980W*150Hmm | 1200W*1000D |
| Standard Shuttle | 1200L*980W*150Hmm | 1200W*1100D |
| Loading Capacity | 1000kg | - |
| Driving Speed | 1.5m/s (Empty) / 1.0m/s (Load) | - |
| Power Supply | Lithium battery, 48V | ≥8H continuous work |

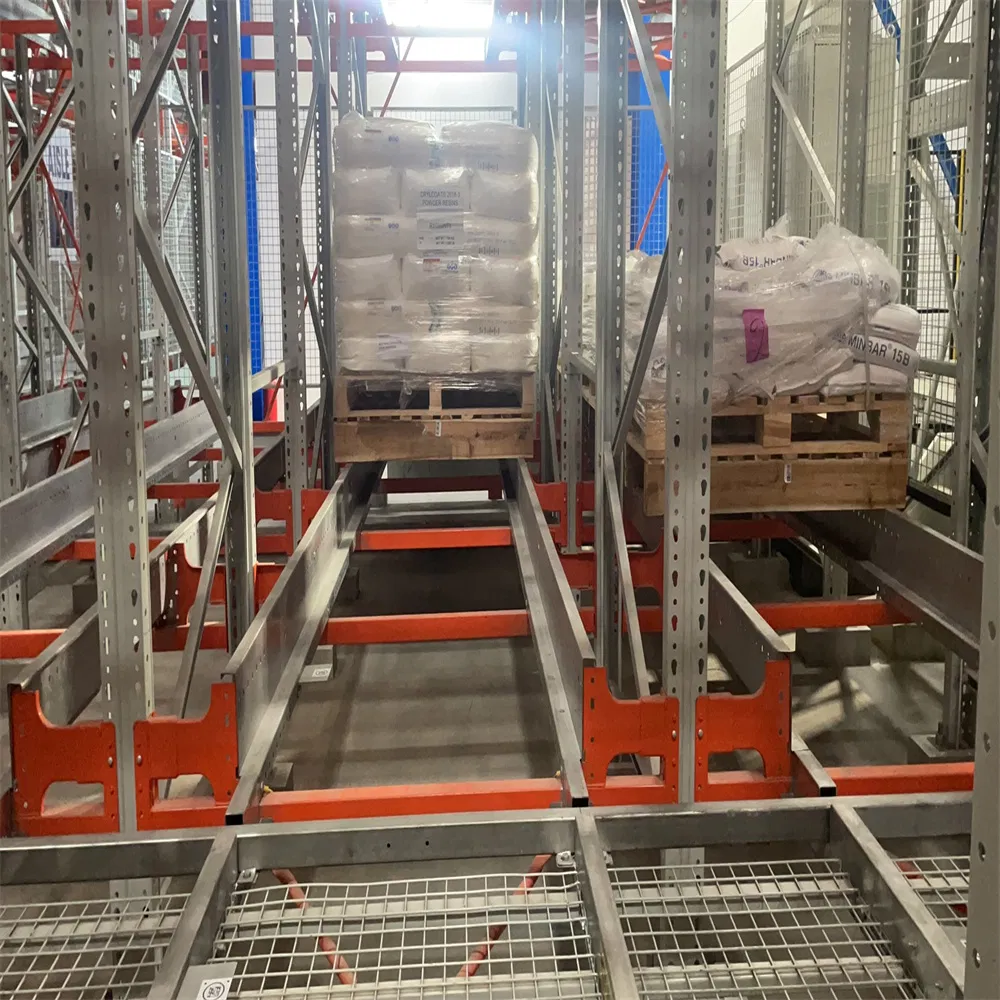

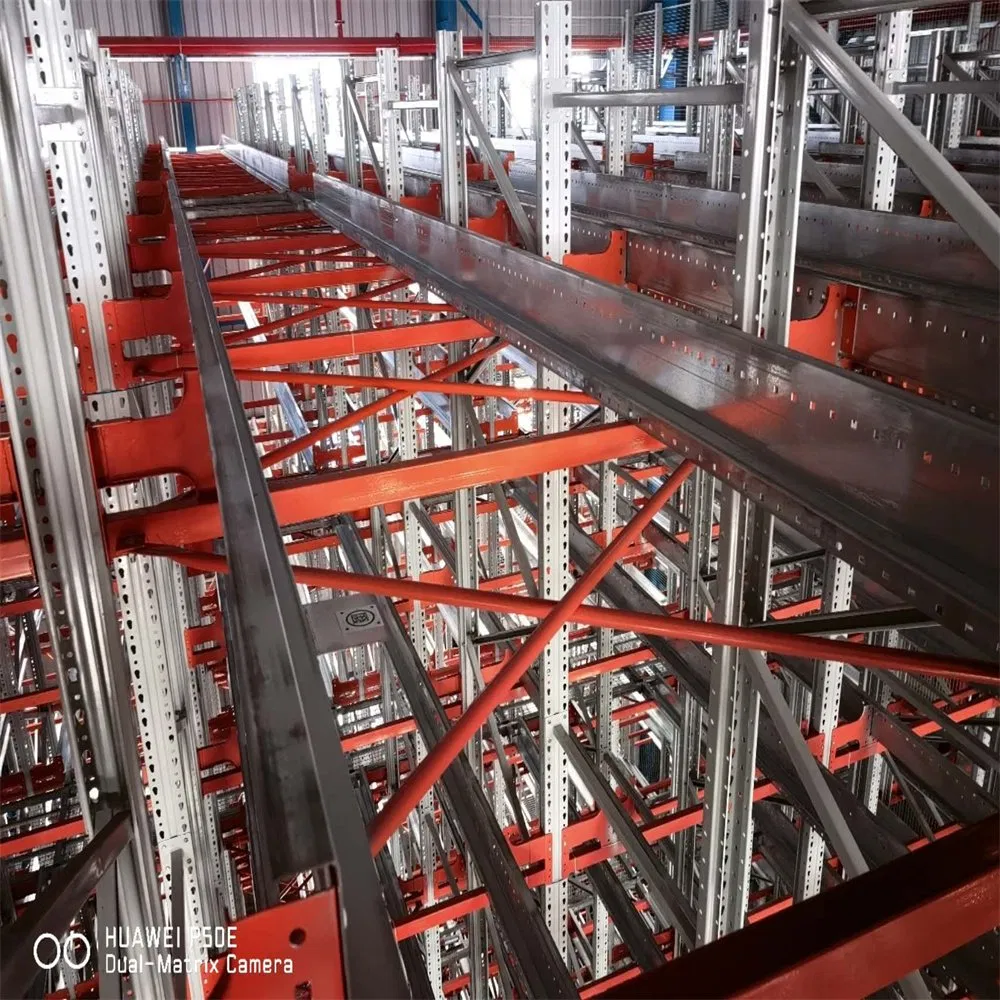

The latest four-way shuttle transport technology enables access to multiple deep pallets at any level. This solution minimizes the building footprint and maximizes storage density.

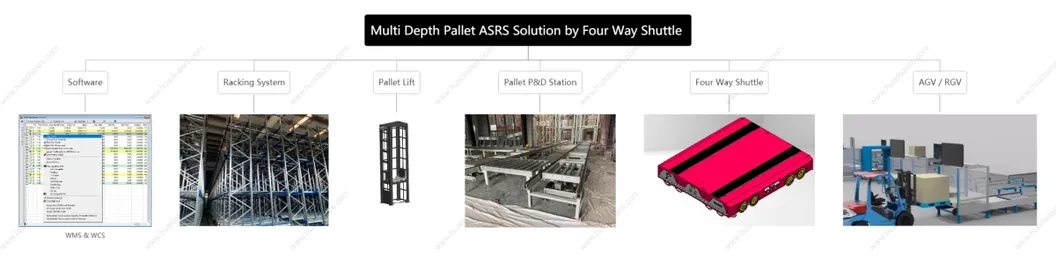

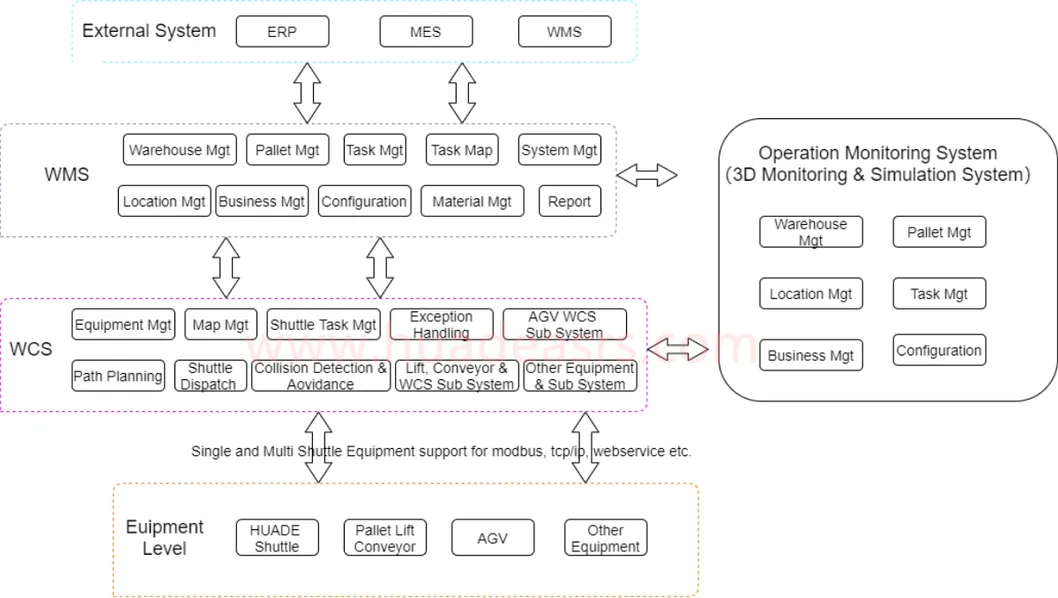

Software Integration: The system is built on dedicated WMS & WCS, realizing dynamic management of stored items. Real-time data transmission ensures physical inventory is consistent with digital accounts, optimizing order fulfillment from picking to shipping.
What core automated storage solutions are provided?

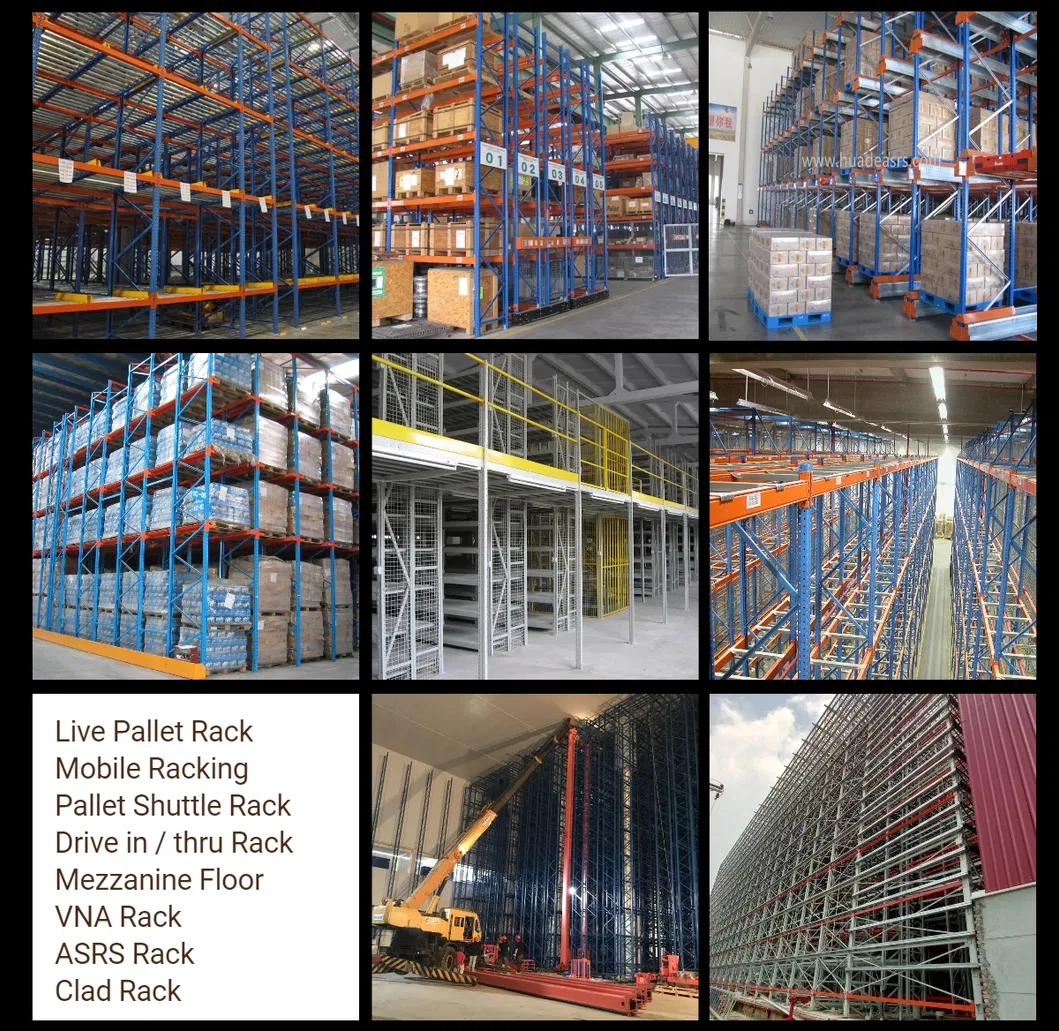

We provide Unitload AS/RS (pallet type), Miniload AS/RS (box/container), 4-way shuttle sequencing systems, electrical mobile racking, and automatic truck loading systems.
What are the advantages of the 4-way shuttle over standard systems?
It offers higher flexibility, allows access to any pallet at any level, reduces the building footprint, and can be easily expanded compared to traditional radio shuttle or stacker crane systems.
How does the system ensure inventory accuracy?
The system utilizes self-developed WMS (Warehouse Management System) and WCS (Warehouse Control System) for real-time tracking and synchronization with your ERP system.
What is the battery performance of the 4-way shuttle?
The shuttles use 48V lithium batteries, supporting over 8 hours of continuous work with a charging time of approximately 1.5 to 2 hours.
Can these solutions be customized for specific warehouse needs?
Yes, we provide turnkey solutions including engineering consulting, customized design, manufacturing, and full commissioning tailored to existing or new-build warehouse requirements.
What is the standard implementation process?
Our process involves six steps: Defining objectives, Measuring business data, Analyzing future states, Designing the solution, Validating feasibility/costs, and final Project Presentation.
