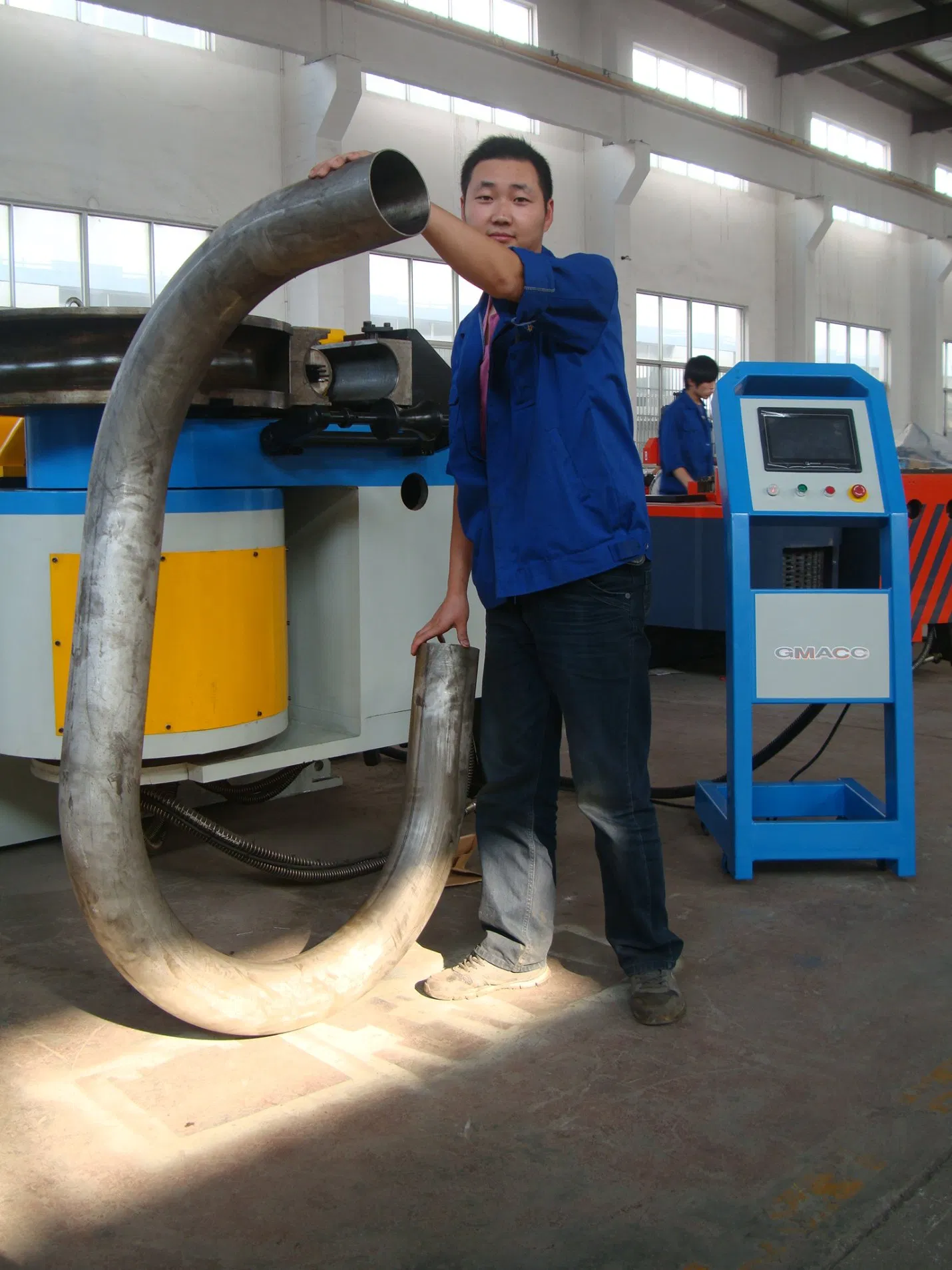

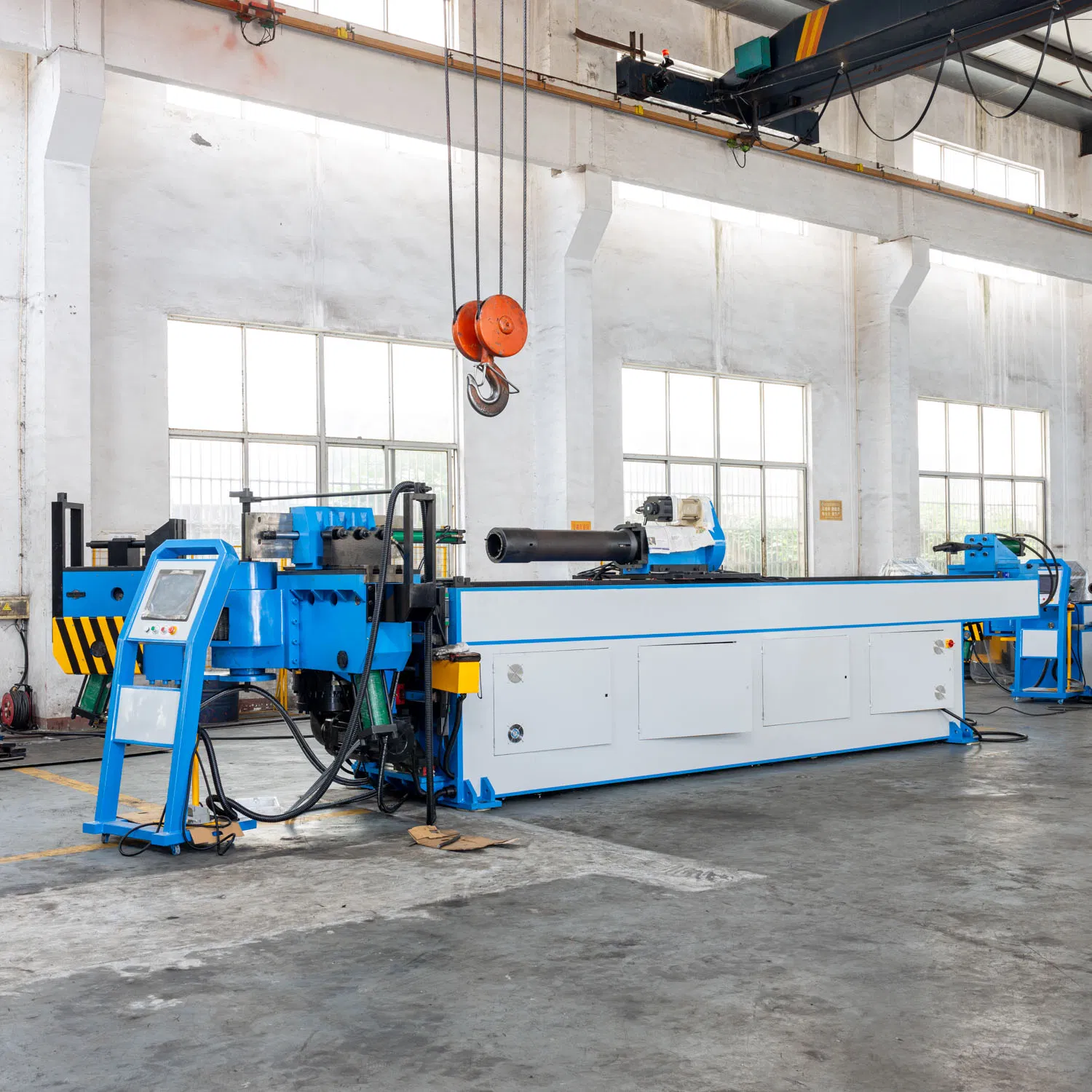

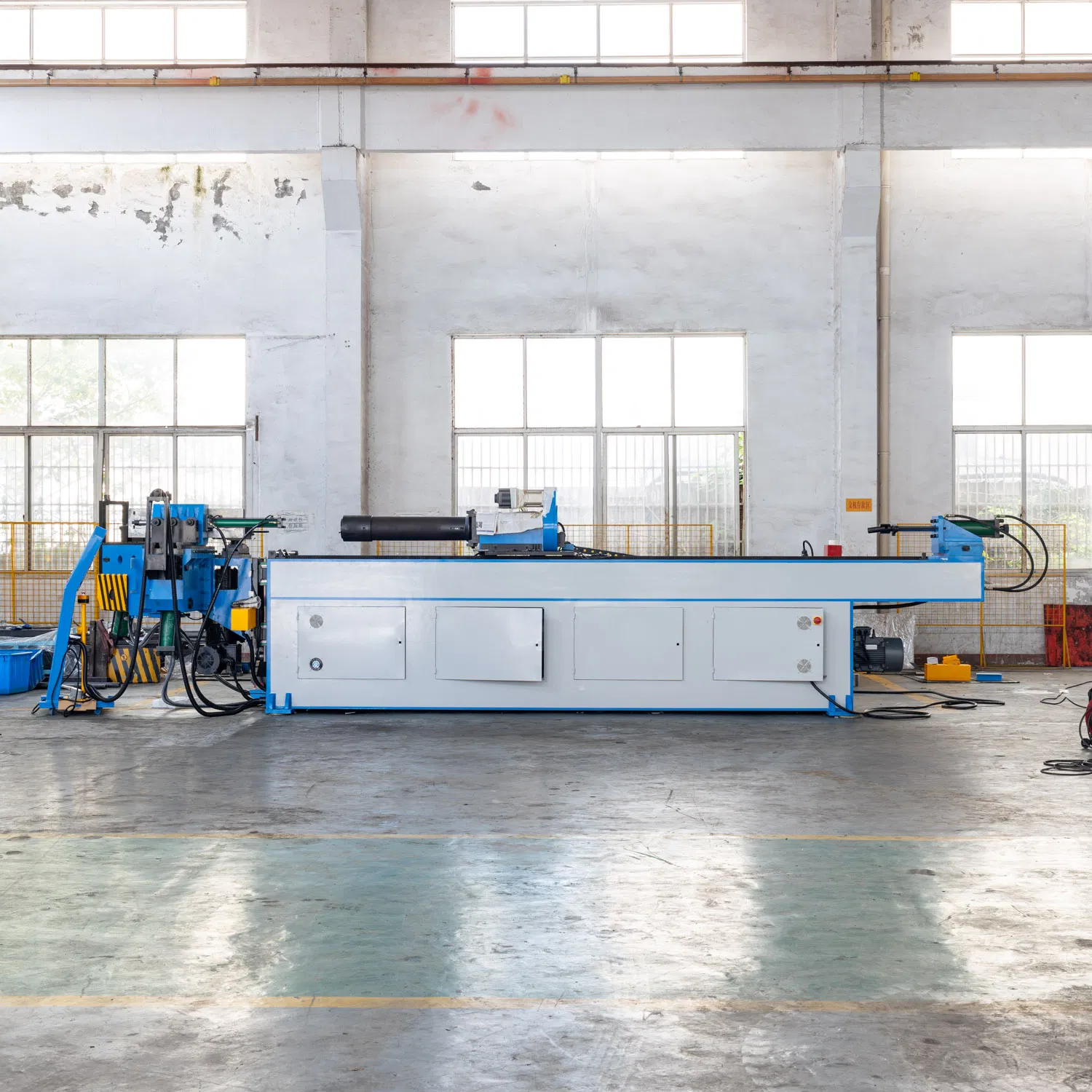

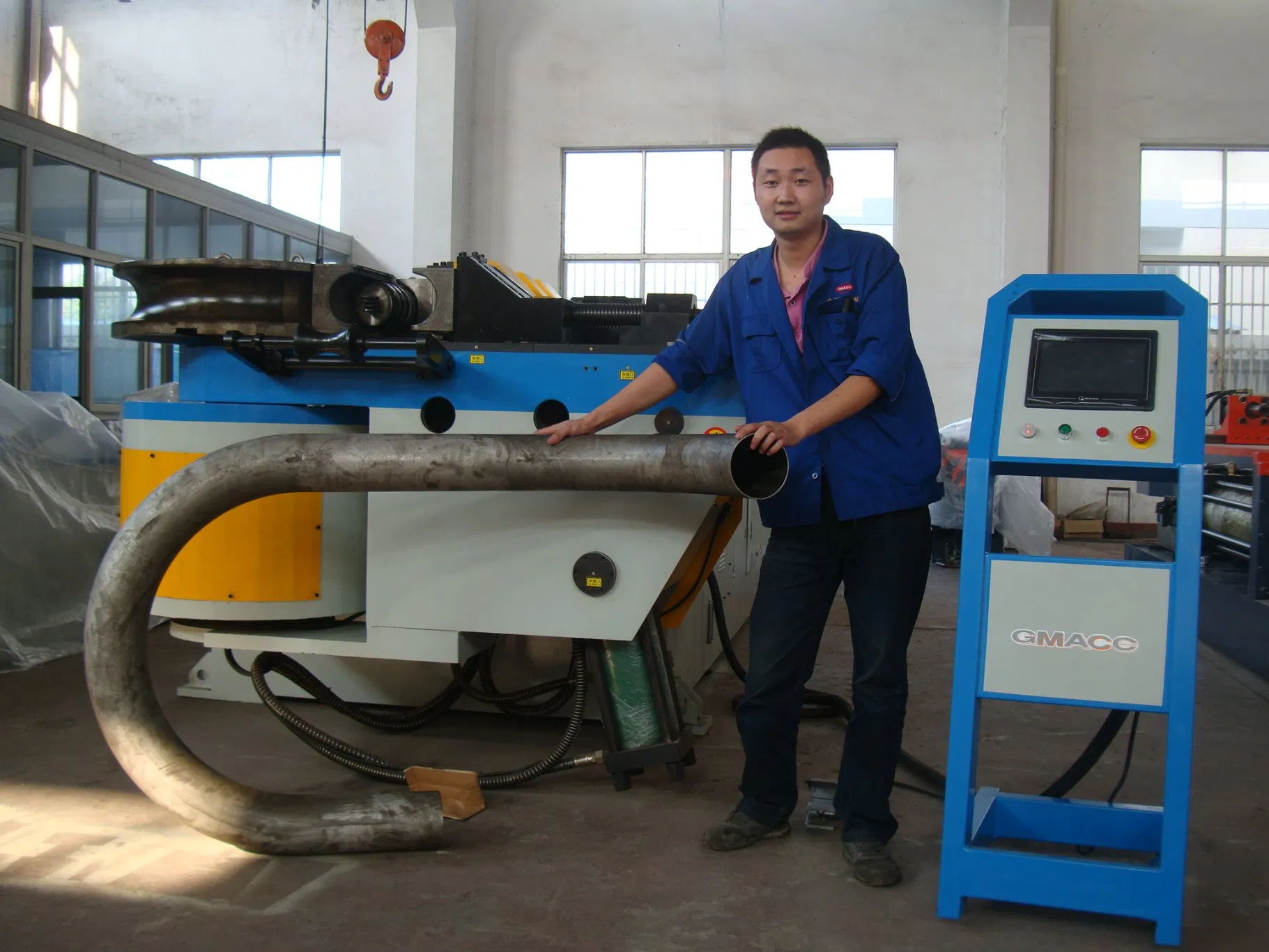

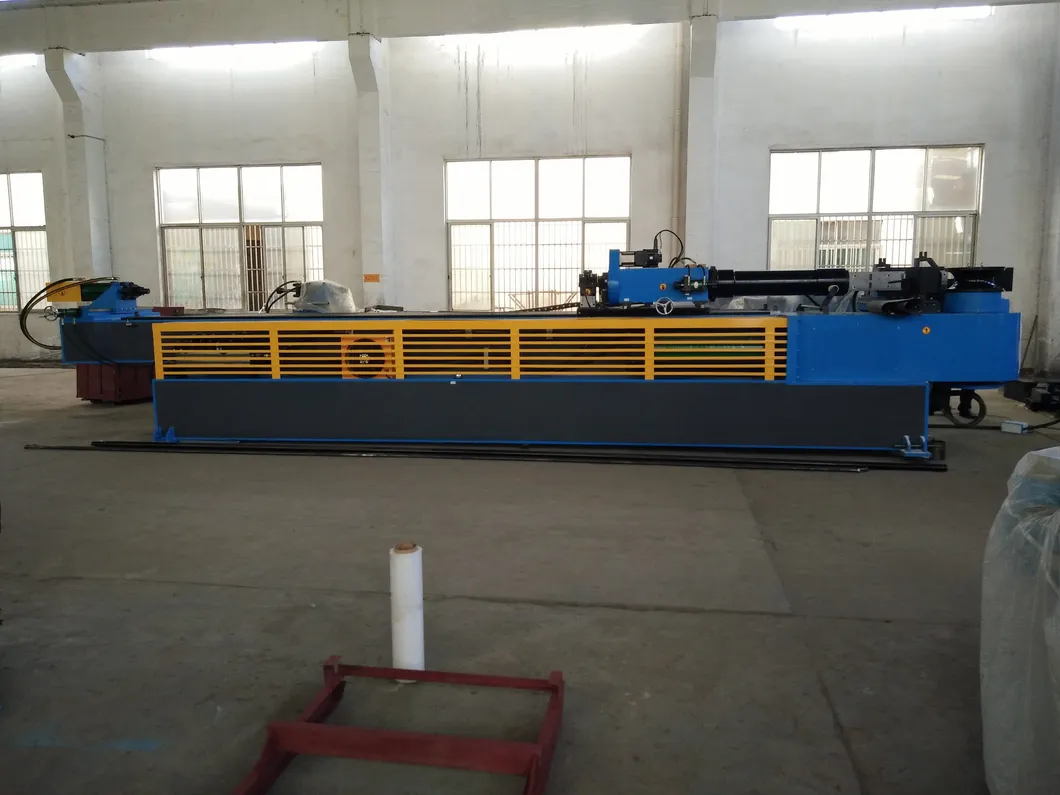

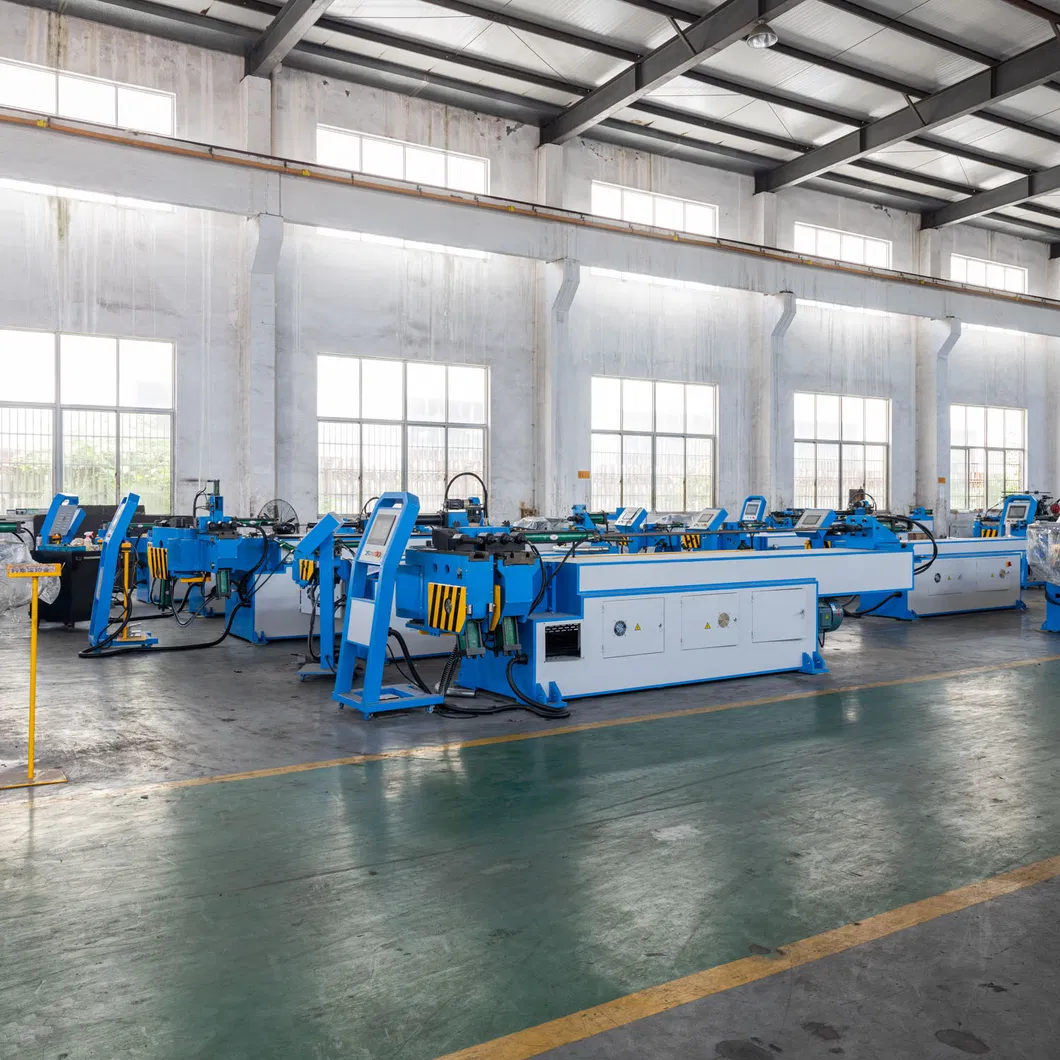

Hydraulic Tube Bender Full Automatic Pipe Bending Machine CNC Pipe Bender
Product Description
Model NO.
GM-168CNC
Automation
Automatic
Applicable Material
S. S, M. S., Copper, Aluminium, Alloy, Galvanized
Applicable Shape
Round, Rectangle, Square, Oval, Solid Bar, Profile
Warranty
2 Years
Certificate
ISO9001: 2000
Bending Drive
Hydraulic
Technical
Cold Bend
Voltage
Customised
Language
Customised
Package Size
720.00cm * 220.00cm * 145.00cm
Gross Weight
14000.000kg
Transport Package
Iron Frame/Wooden Case
Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-168CNC
- Machine Characteristic: The series was adapted in particular to professional world market requirements. All the parts, structure and characters are similar to the standard of mechanical engineering from Europe. Our professional experience and drawings plans for Electric, Electronic, Hydraulic and mechanical from known companies bring to upgrading of the machines' systems to accurate and attractive performance.
- CNC Control System: GM-SB-CNC Series numerical control single-head pipe bending machine integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order.
- Precision Motion: Y, B, C three coordinates of motion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending.
- Advanced Functions: Includes components bending spring back compensation, errors self-diagnose alarm, memory store after power off, automatic lubrication, and safety protection.
- Drive System: Pipe bending (C axis), pipe rotating (B axis), and pipe feeding (Y axis) are all drove by servomotor for high automation reliability.
| Name | Unit | Parameter |
|---|---|---|
| Mild steel round tube | mm | φ168*16 |
| Stainless Steel | mm | φ168*10 |
| Light alloy annealed round tube | mm | φ168*22 |
| Mild steel square tube | mm | 150*150*10 |
| Mild steel round solid bar | mm | Φ90 |
| Min. bending radius | mm | 60 |
| Max. Bending radius(Standard) | mm | 700 |
| Bending centre height (from floor) | mm | 1200 |
| Max. Bending Angle | ° | 190° |
| Bending Speed(Max.) | °/sec | 8 |
| Bending angle Precision | ° | ±0.10 |
| Rotation angle Precision - axis Z | ° | ±0.10 |
| Shifting Precision - axis X | mm | ±0.10 |
| System Motor Power | KW | 22 |
| Machine Weight | T | ABOUT 14 |
| Component Name | Manufacturer |
|---|---|
| Hydraulic Motor | Germany Siemens (BEIDE) / Runmali |
| Hydraulic Valve | Japan Yuken (Imported) |
| Oil way Board | Taiwan Shanghong (Imported) |
| Touch screen | Taiwan Weinview (Imported) |
| PLC | Japan Mitsubishi (Imported) |
| Angle controller | Japan Nemicon (Imported) |
| Switch power | Taiwan Mingwei |

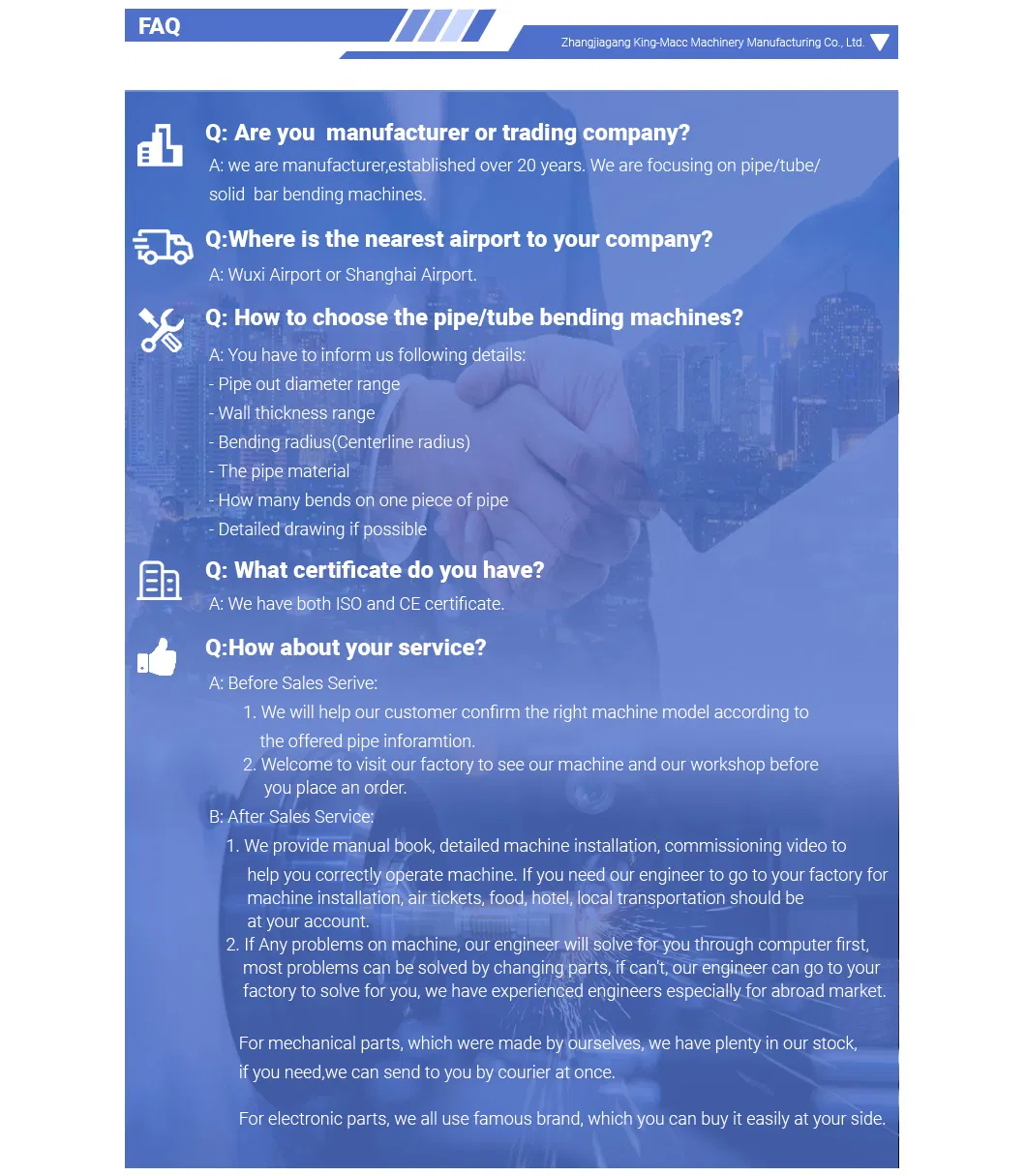

Frequently Asked Questions

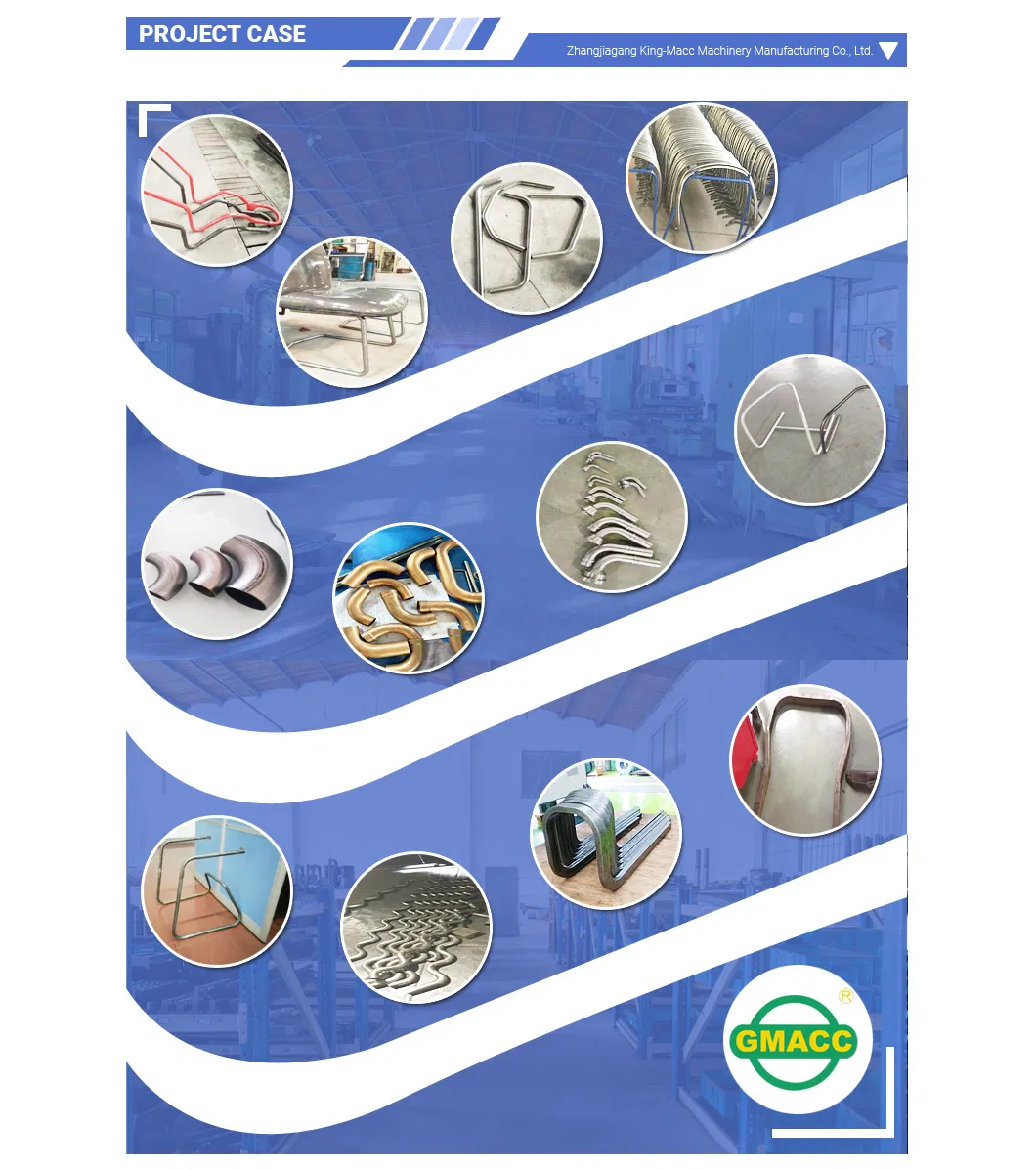

What materials are suitable for the GM-168CNC bending machine?
The machine is compatible with a wide range of materials including Stainless Steel, Mild Steel, Copper, Aluminium, Alloy, and Galvanized steel.
What types of shapes can this CNC pipe bender process?
It can handle various shapes such as round tubes, rectangular tubes, square tubes, oval tubes, solid bars, and other specific profiles.
How long is the warranty period for this equipment?
The machine comes with a 2-year warranty, ensuring long-term reliability and support for your production.
What control system does the machine use?
It utilizes a high-performance Japan Mitsubishi PLC and a Taiwan Weinview touch screen for precise numerical control.
Can the machine's technical specifications like voltage be customized?
Yes, the voltage, machine color, and interface language can all be customized to meet specific factory requirements.
What is the bending precision of the GM-168CNC?
The machine offers high precision with a bending angle tolerance of ±0.10° and shifting precision of ±0.10mm.
