Multi-Function Mineral Stone Grinding Machine/Grinding Ball Mill/Powder Making Mill/Gold Mining Ball Mill
Product Description
📋
Basic Specifications
Model NO.
Mining mill dia. 4000mm
Motor Power
310~710kw
Rotational Speed
16.2 R/Min
Application
Metallurgy, Mining, Cement, Power
Materials
Lead, Silver, Antimony, Molybdenum, Iron, Gold, etc.
Condition
New
Warranty
One Year
Shell Area
19~42 M³
Max. Ball Load
13~29 T
Origin
China
⚙️
Product Description

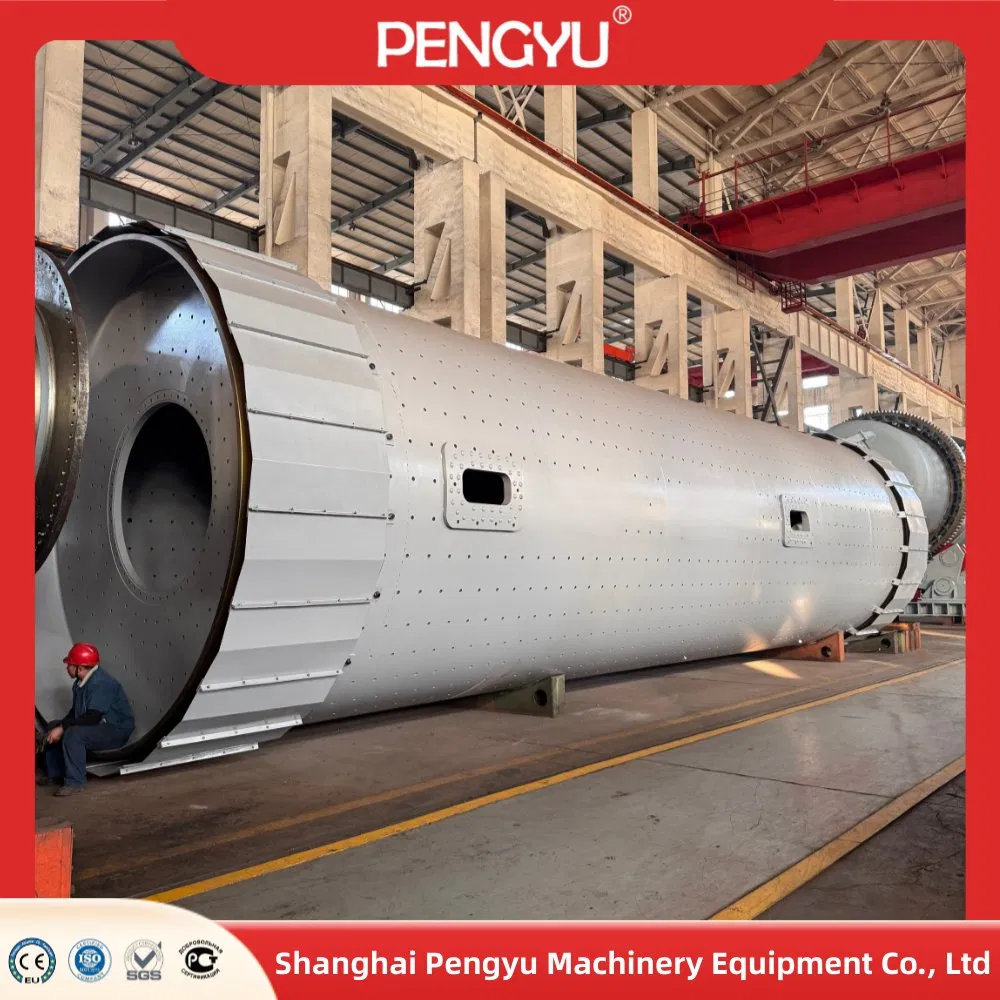

Multi-function Mineral Stone Grinding Machine / Gold Mining Ball Mill
We fully consider operating conditions and design partition plates and discharge grates according to specific requirements. By continuously improving internal conditions, equipping new liners, and optimizing gear design and lubrication, we increase the stability and service life of the mill while significantly improving grinding efficiency.
Autogenous Mill Specifications
| Diameter (mm) | Length (mm) | Shell Area (m³) | Speed (r/min) | Power (KW) |
|---|---|---|---|---|
| 4000 | 1600~3600 | 19~42 | 16.2 | 240~540 |
| 5000 | 2000~4500 | 38~83 | 14.5 | 530~1200 |
| 6100 | 2400~5500 | 69~152 | 13.1 | 1050~2400 |
| 8000 | 3200~7200 | 160~347 | 11.4 | 2800~6200 |
| 10400 | 4200~9400 | 359~770 | 10 | 7000~15400 |
| 12200 | 4900~11000 | 580~1246 | 9.2 | 12000~27000 |
Semi-autogenous Mill Specifications
| Diameter (mm) | Length (mm) | Shell Area (m³) | Loadage (t) | Speed (r/min) | Power (KW) |
|---|---|---|---|---|---|
| 4000 | 1600~3600 | 19~42 | 13~29 | 16.2 | 310~710 |
| 6100 | 2400~5500 | 69~152 | 48~106 | 13.1 | 1400~3100 |
| 8000 | 3200~7200 | 160~347 | 112~242 | 11.4 | 3600~8100 |
| 10400 | 4200~9400 | 359~770 | 250~537 | 10 | 9100~20000 |
| 12200 | 4900~11000 | 580~1246 | 405~869 | 9.2 | 16000~36000 |
🚢
Packaging & Shipping

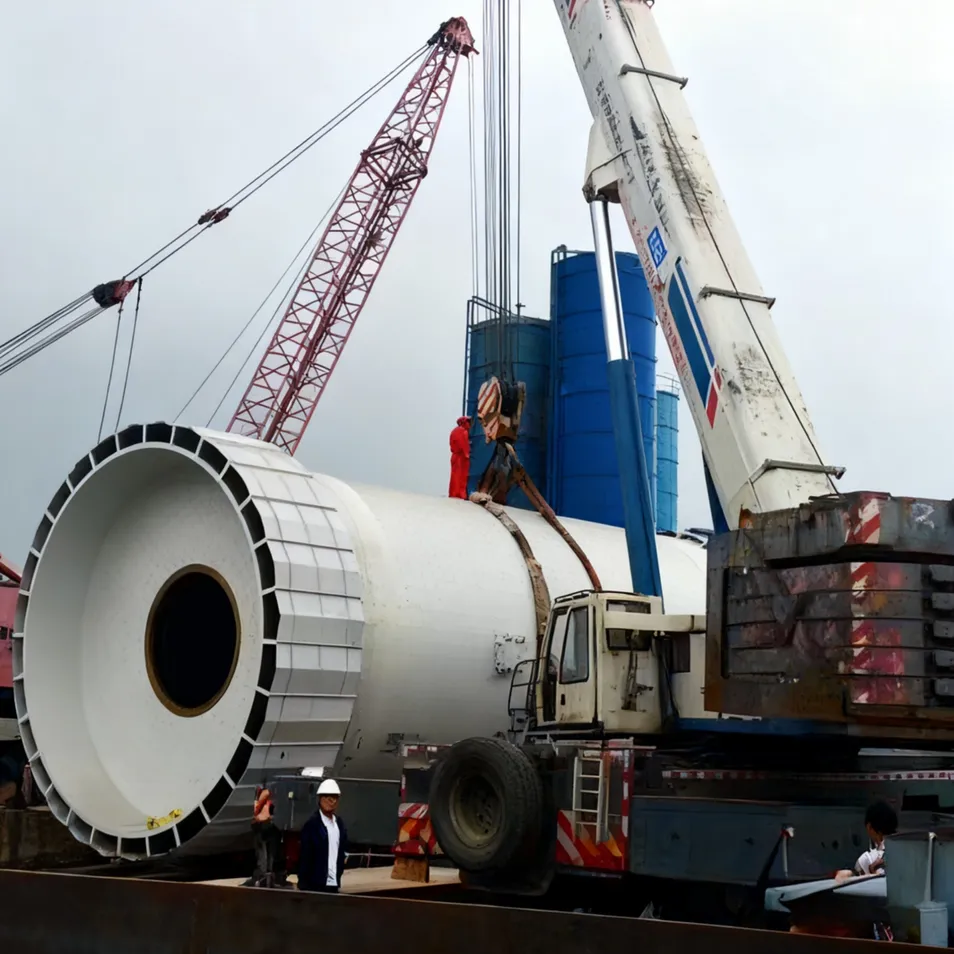

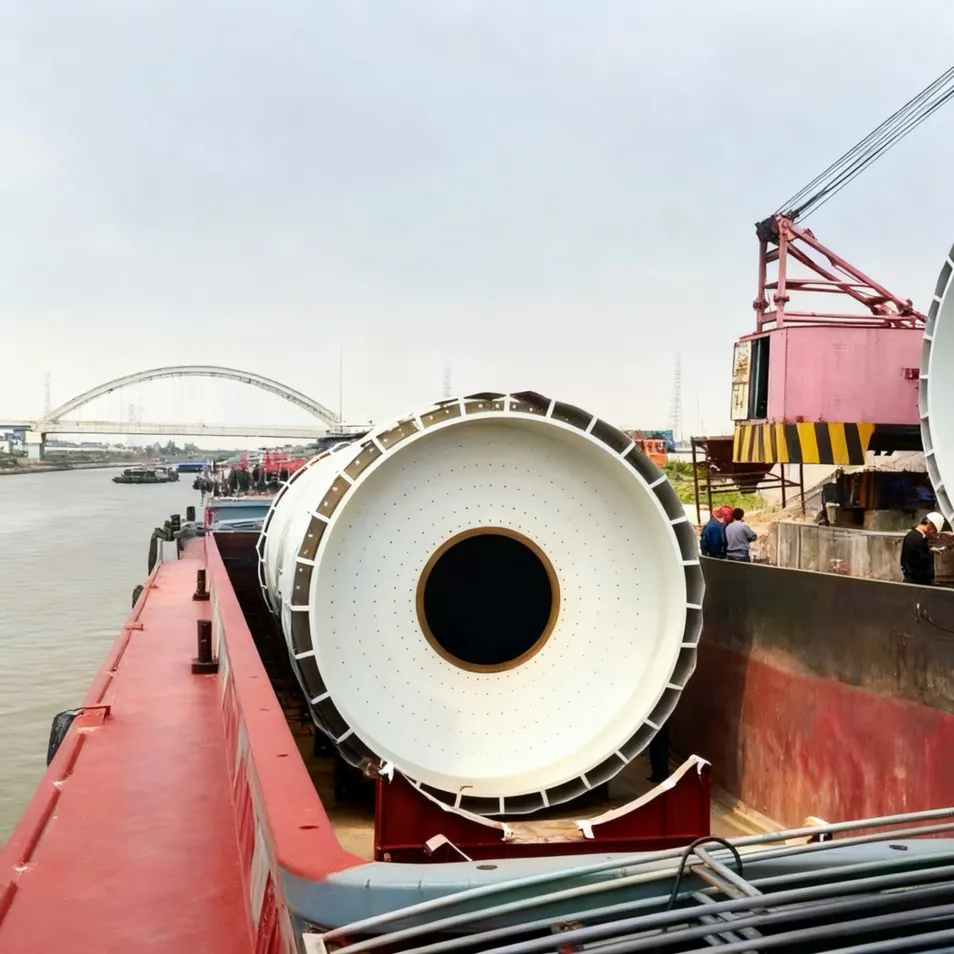

We provide integrated logistics solutions utilizing a multi-modal approach. Standard components are shipped via containers, while oversized equipment like mill shells are transported on specialized heavy-lift vessels. Our process covers professional export packaging, customs clearance, and final site delivery.
🛠️
After Sales Service
✔
Standard Warranty: 12 months or 2,000 operating hours.
✔
Extended Warranty: Optional coverage up to 36 months.
✔
Global Support: 24/7 technical assistance and spare parts supply.
✔
Training: On-site or remote operation and maintenance training.
❓
Frequently Asked Questions
1. What is the standard warranty for the mining mill?
The standard warranty is 12 months or 2,000 operating hours, whichever comes first. Extended warranty options up to 36 months are also available.
2. Can the equipment be customized to specific requirements?
Yes, we provide personalized metallurgical engineering solutions and can customize configurations based on customer drawings and on-site conditions.
3. What industries can use these grinding mills?
Our mills are widely used in metallurgy, mining, cement production, power plants, and chemical industries for processing materials like gold, iron, and copper.
4. Do you provide installation and commissioning services?

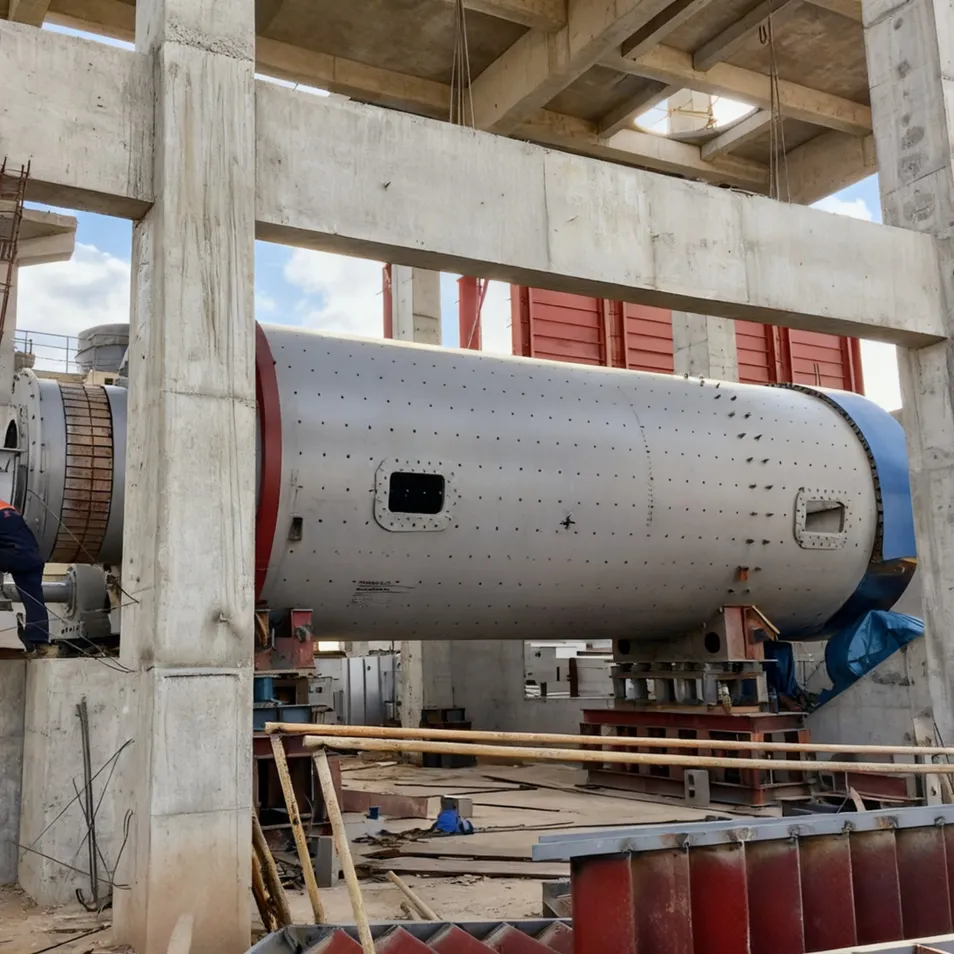

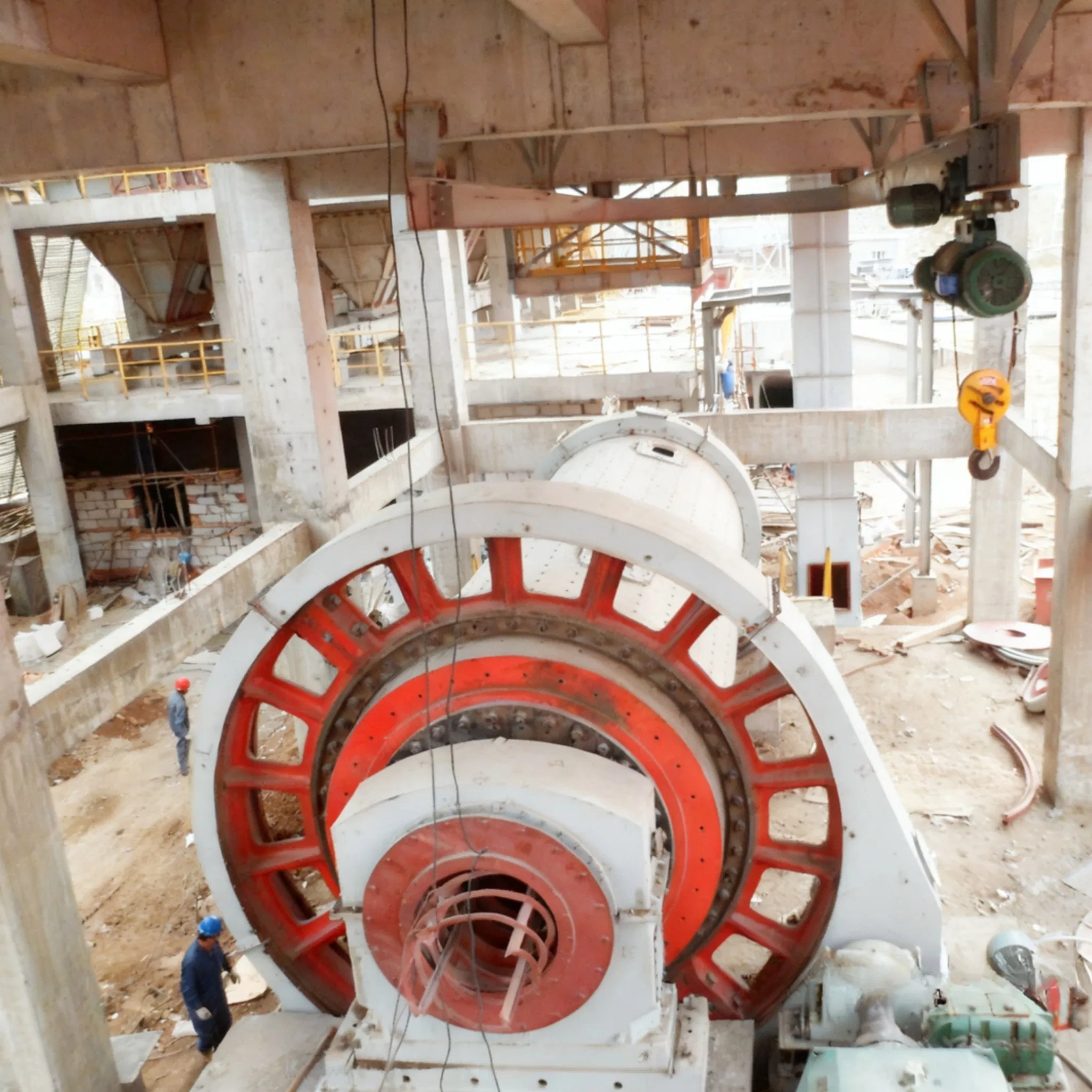

Yes, we have a professional installation team to ensure precise equipment setup and rapid commissioning for immediate production use.
5. How is oversized equipment transported?

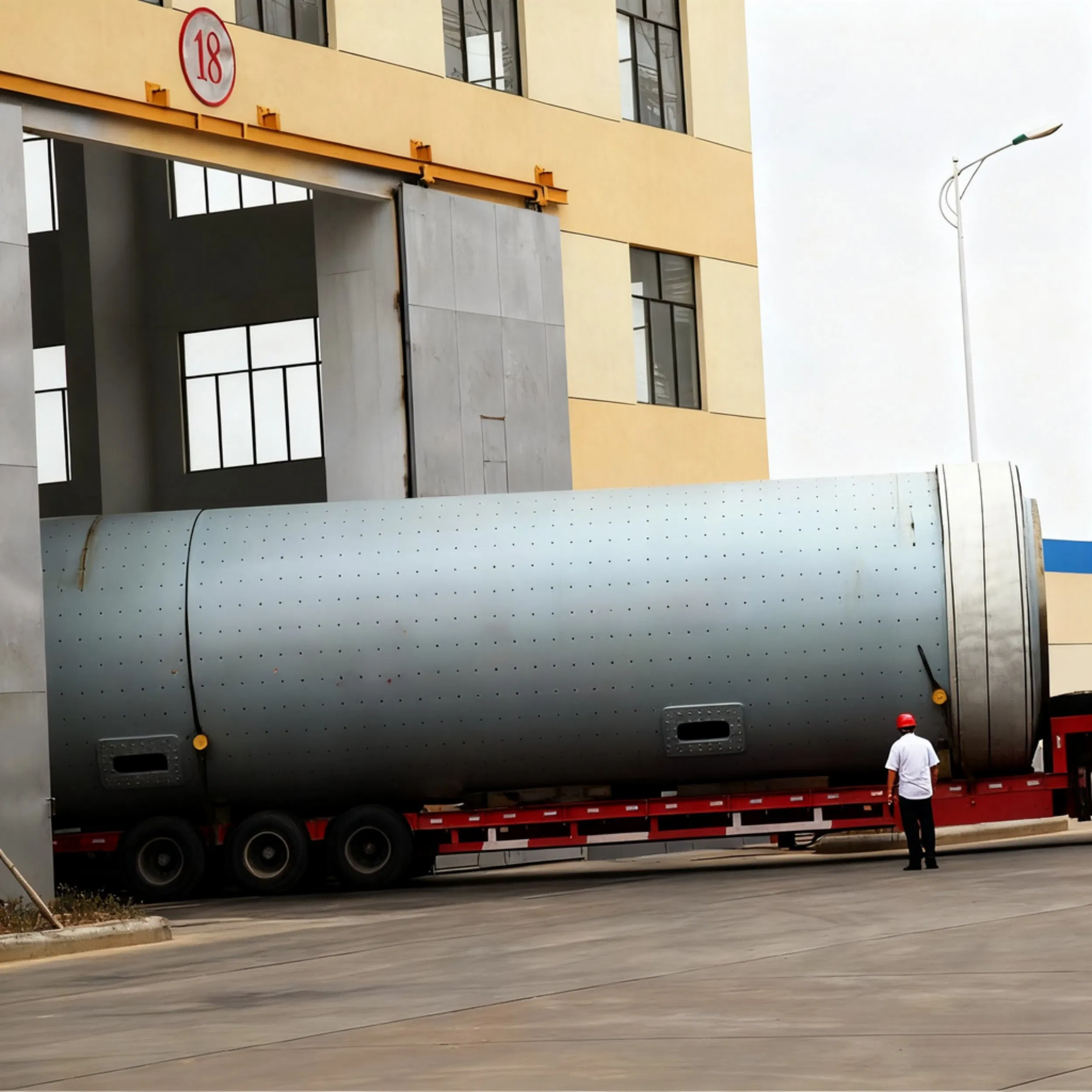

Oversized components like mill shells are securely transported using specialized heavy-lift vessels and specialized trailers for final site delivery.
6. Are spare parts readily available?
We provide a full range of original model spare parts and can also fabricate custom parts according to specific technical drawings.
