New Stationery Desktop Dangerous Liquid Explosive Detector, Liquid Scanner Liquid Trace Detector Direct Factory in China with Copyrights and Patents
Product Description
Basic Specifications
Model NO.
AT1000
Customized
Non-Customized
Alarm Form
Shutdown Alarm
Type of Use
Dangerous Liquid Detection
Transport Package
Wooden
Specification
CE, SGS, ISO
Origin
China
HS Code
9022191090
Production Capacity
500PCS/Month
Product Introduction

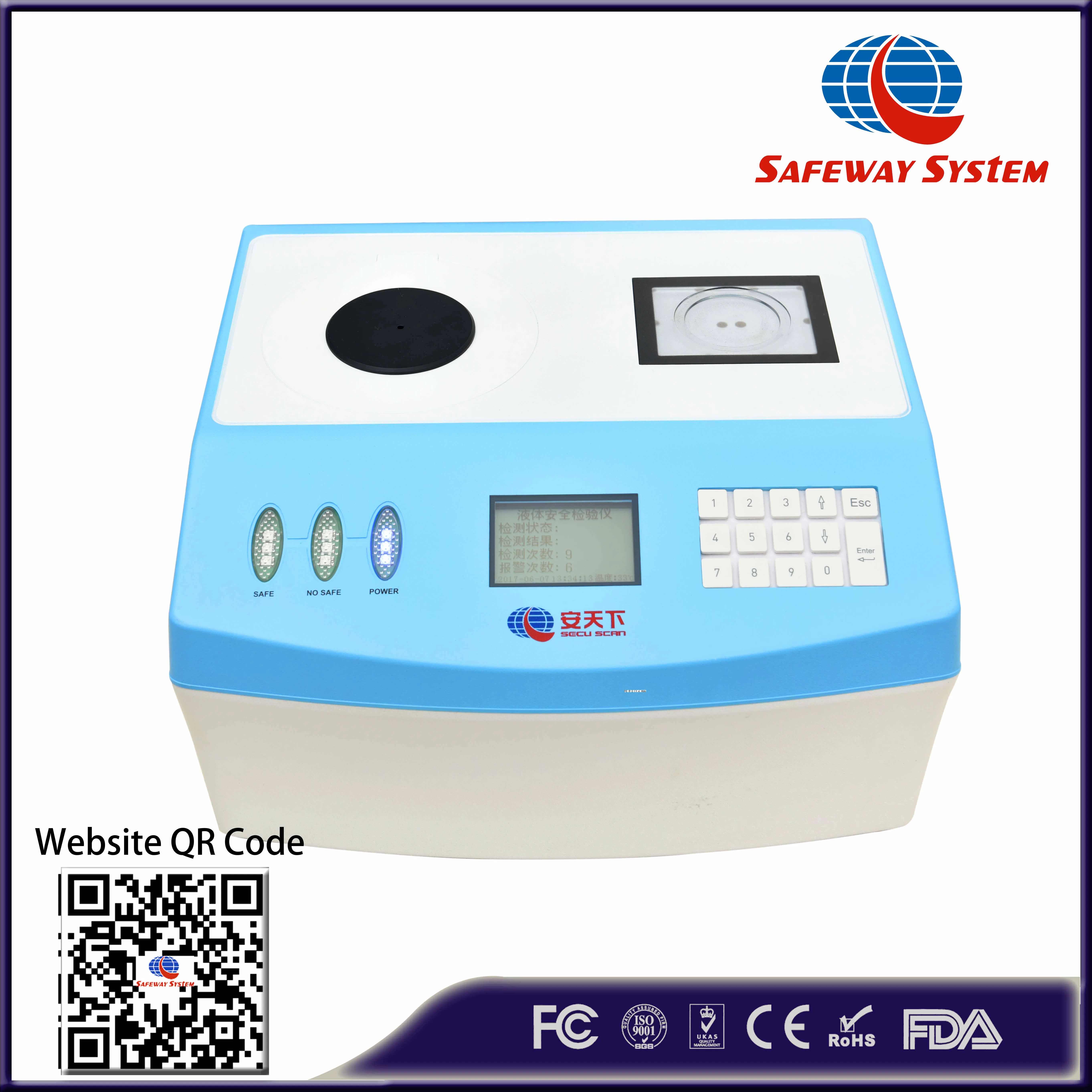

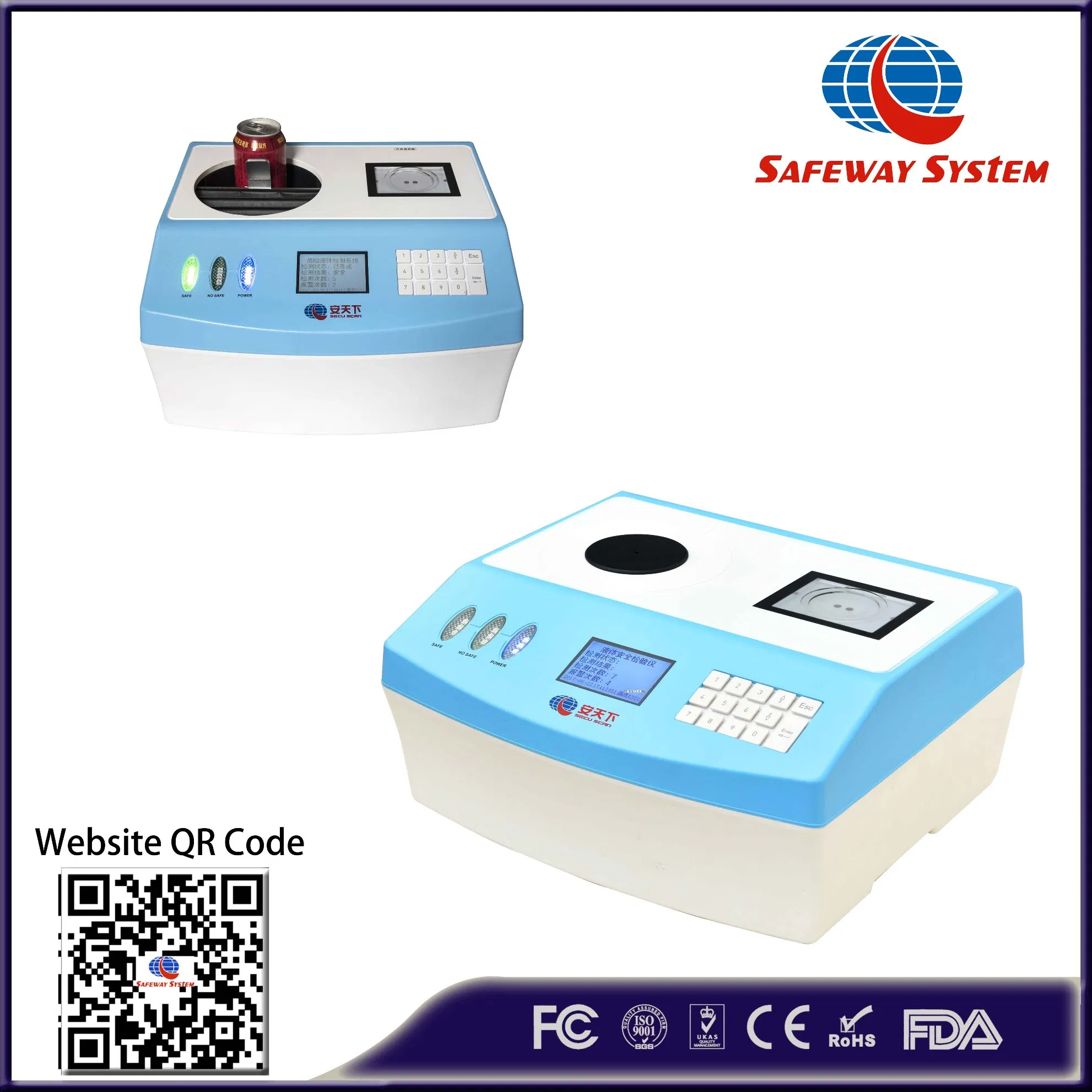

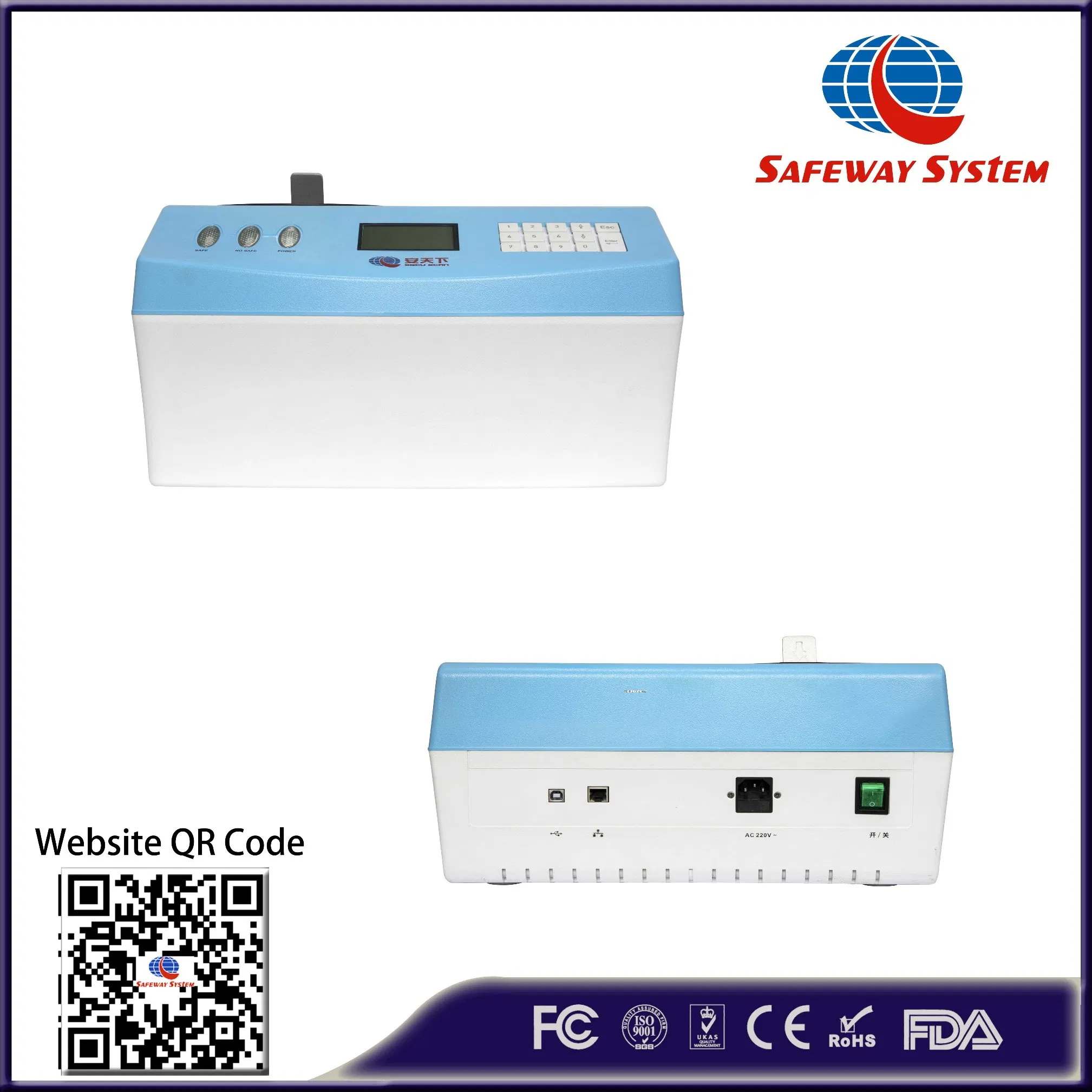

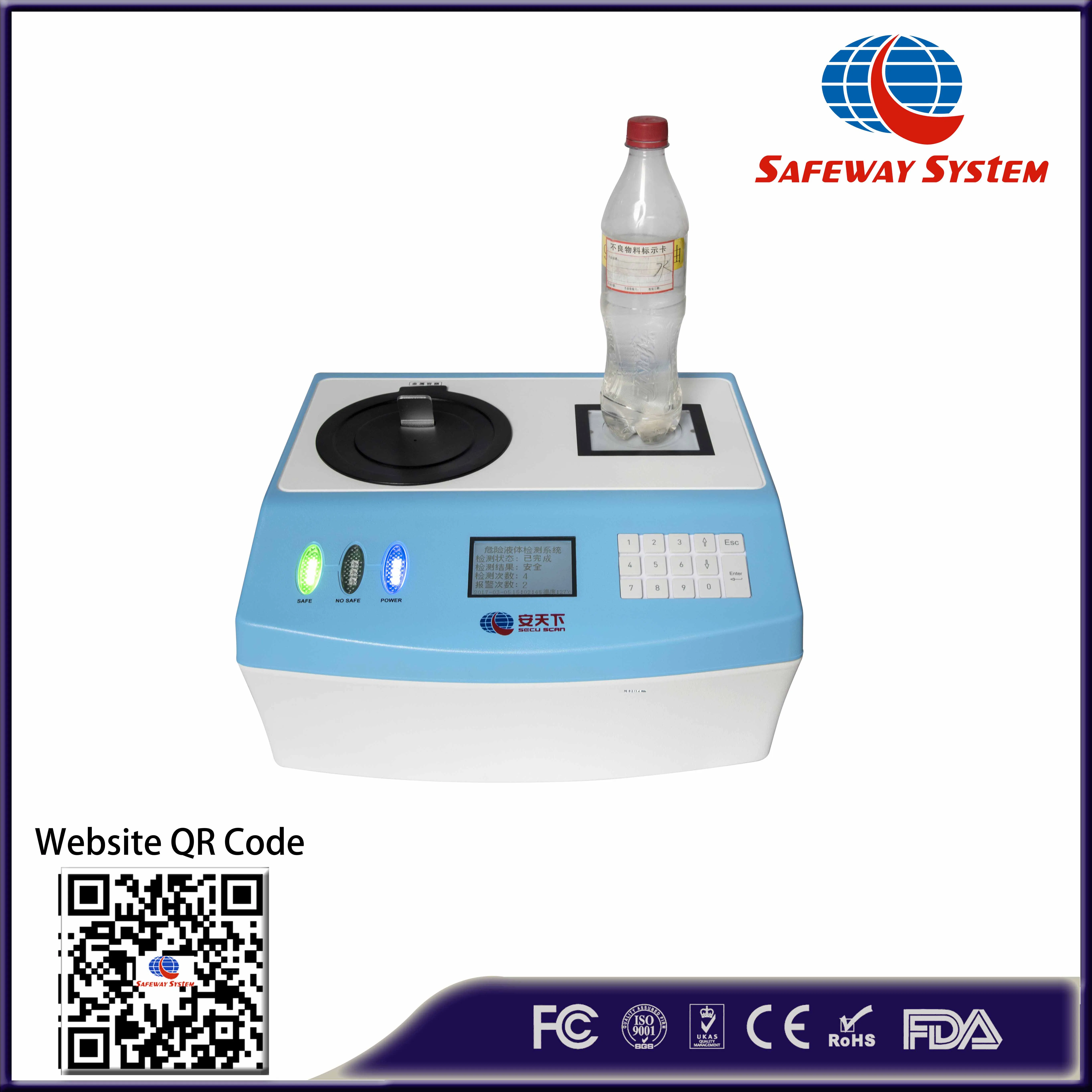

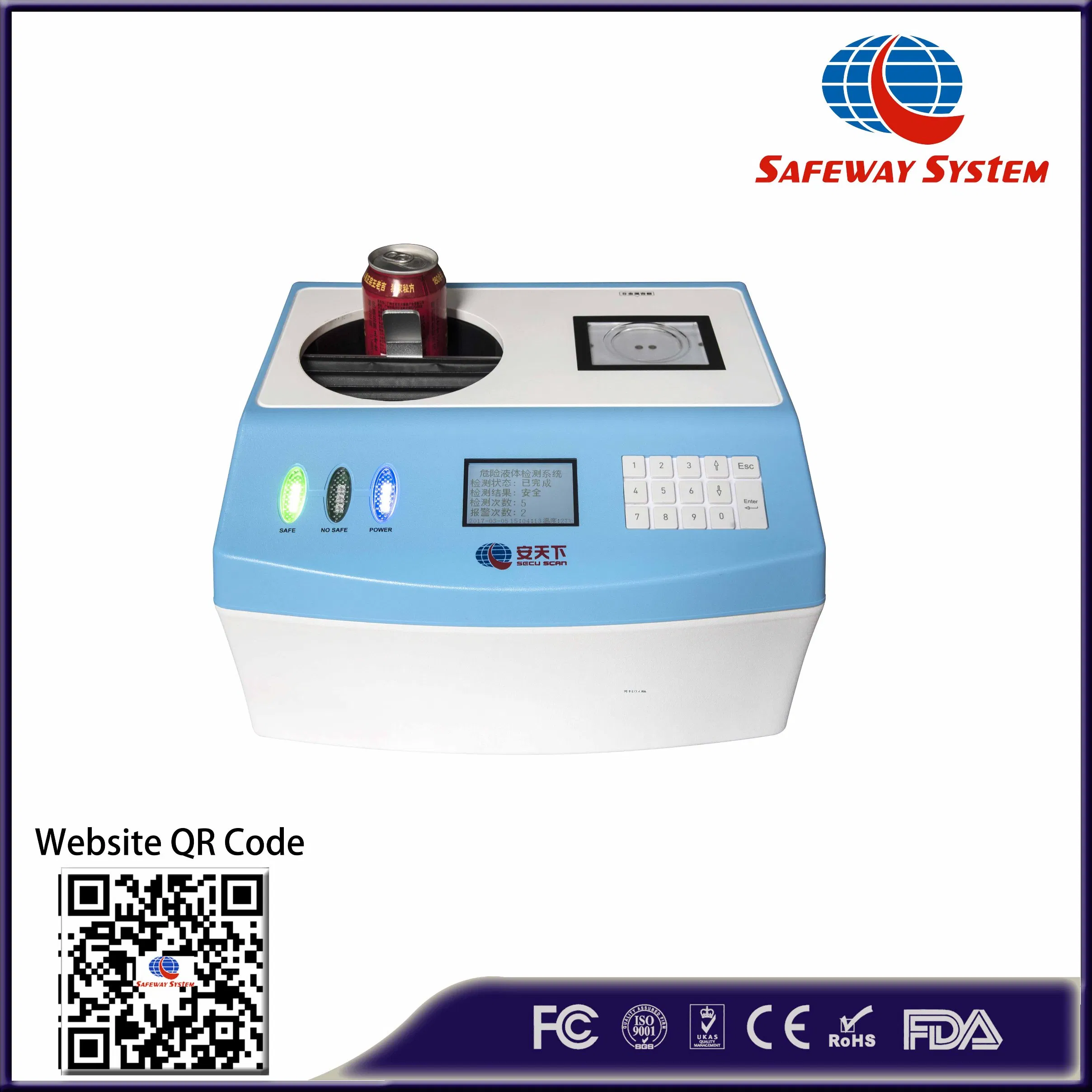

Stationary Dangerous Liquid Explosive Detector
The liquid detector is a security instrument specially used to detect flammable and explosive liquids. It can distinguish liquid explosives, gasoline, acetone, ethanol and other flammable and explosive liquids from safe liquids such as water, cola, milk and juice without directly contacting the liquid.
This product can effectively prevent dangerous liquids from entering safe areas. It is a necessary safety inspection instrument for crowded and important locations such as stations, subways, government agencies, and stadiums.
Technical Parameters
| NO | Parameter | Description |
|---|---|---|
| 1 | Containers Material | Non-metallic: plastic / glass / ceramic; Metal: aluminum, iron |
| 2 | Container Size | Non-metallic: Volume ≥100ml, Height ≥3cm, Diameter 30mm-200mm, Wall thickness ≤8mm. Metal: Volume ≥100ml, Height ≥3cm, Diameter 30mm-150mm, Wall thickness ≤0.5mm. |
| 3 | Detectable Liquids | 93# gasoline, kerosene, diesel, ether, diisopropyl ether, petroleum ether, acetaldehyde, ethylene glycol, nitrobenzene, propylene oxide, n-heptane, acetone, benzene, toluene, xylene, ethanol, methanol, nitromethane, paint thinner, sulfuric acid, nitric acid, etc. |
| 4 | Testing Time | Single item < 8 seconds. Insulated container < 1 second. Metal container < 4 seconds. |
| 5 | Data Storage | ≥ 10,000 test results; supports USB export and PC software analysis. |
| 6 | Environmental | Operating Temp: -10ºC~55ºC; Humidity: 0%~90%; Pressure: 86kPa~106kPa. |
| 7 | Power Supply | AC 180V-240V (50/60Hz); Consumption < 20W. |
| 8 | Weight | Around 8.3Kg. |
Functional Characteristics
| NO | Feature | Description |
|---|---|---|
| 1 | Security | Password protected settings and switchable user accounts. |
| 2 | Interface | 240x160 LCD screen with adjustable contrast; English/Chinese language selection. |
| 3 | Networking | IP settings for communication via network and USB interfaces. |
| 4 | Self-checking | Accuracy adjustment and self-check functions to minimize false alarms. |
| 5 | Alarm System | Sound, light, and LCD display indications; configurable alarm reset modes and sound toggle. |
Key Components & Accessories
Key Components
- High-contrast LCD Screen (240x160)
- Advanced Control-E Main Board
- RF Power Amplifier & Receiver Boards
- Precision Antenna System
- DeZhongHeng Keyboard (English)
Standard Accessories
- AT1000 Detector Unit (1x)
- USB Cable (1.5m) & Power Cable (2m)
- Crossover Internet Cable (2m)
- 250ML Plastic Sampling Cup
- User Manual & Warranty Card
Product Visuals
Frequently Asked Questions
What types of containers can the AT1000 scan?
The AT1000 can detect liquids in both non-metallic containers (plastic, glass, ceramic) and metallic containers (aluminum, iron cans).
How fast does the device provide results?
Detection is extremely rapid. Non-metallic containers take less than 1 second, while metal containers take less than 4 seconds. The total processing time per item is under 8 seconds.
Does the detector need to touch the liquid?
No. It is a non-contact scanner that identifies hazardous substances through the sealed container, ensuring safety for the operator.
Can the detection data be exported for records?
Yes. The device stores over 10,000 test results, which can be exported via a standard USB interface and analyzed using specialized PC software.
What kind of liquids can it identify?
It can identify a wide range of flammable and corrosive liquids including gasoline, diesel, acetone, ethanol, various acids (sulfuric, nitric), and paint thinners.
Where is this equipment typically used?

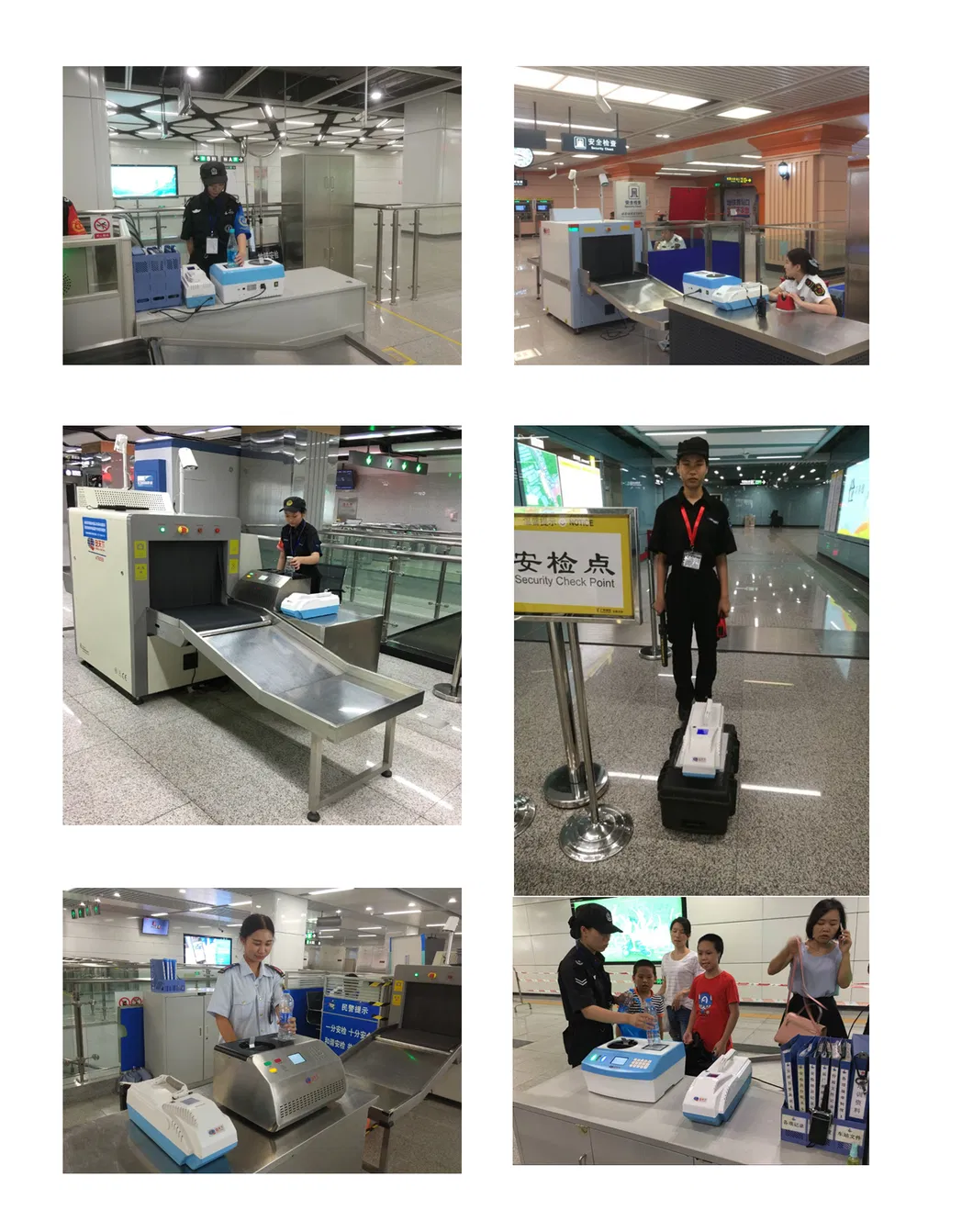

It is ideal for high-traffic security checkpoints such as subway stations, airports, railway terminals, government buildings, and sports stadiums.
