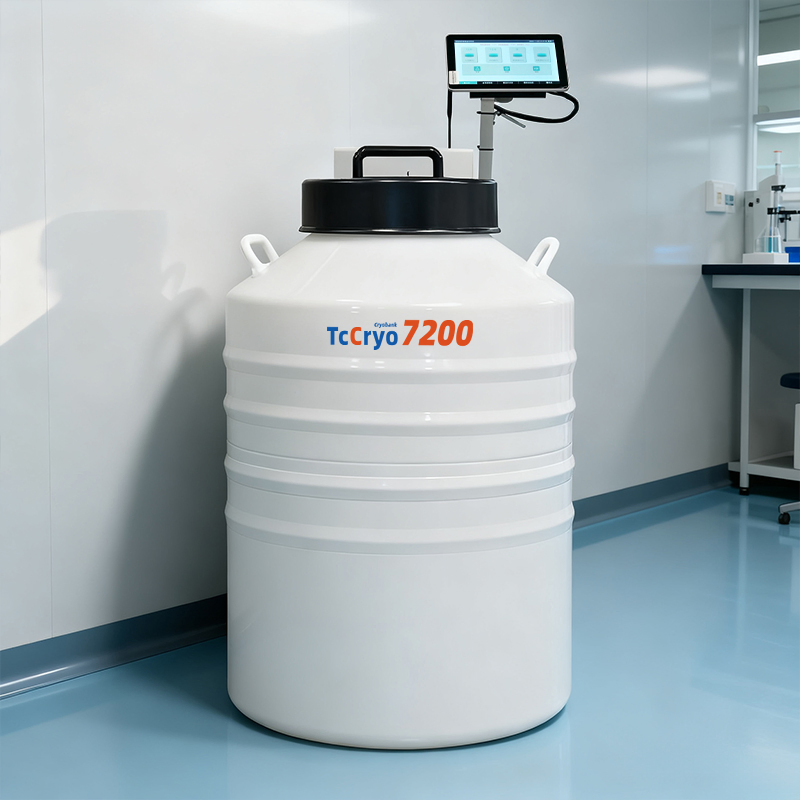

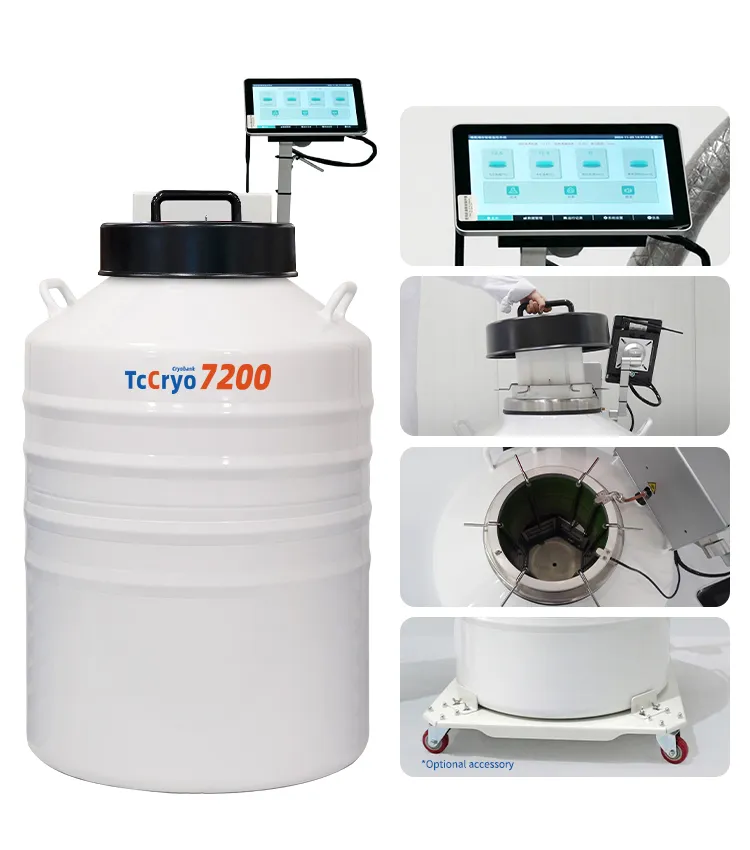

Tccryo Cryobank 7200 Cryogenic Storage Dewar Large Scale Intelligent Control Display System Real Time Parameter Tracking Automated Liquid Nitrogen Bio Container
Product Description
Model NO.
Cryobank Series
Condition
New
Certification
ISO9001, CE
Tank Material
Aluminum Alloy
Type
Cryogenic Equipment
Storage Objects
Liquid / Vapour
Capacity
65.2-209.5L
Feature
Dual Vapour-Liquid Storage

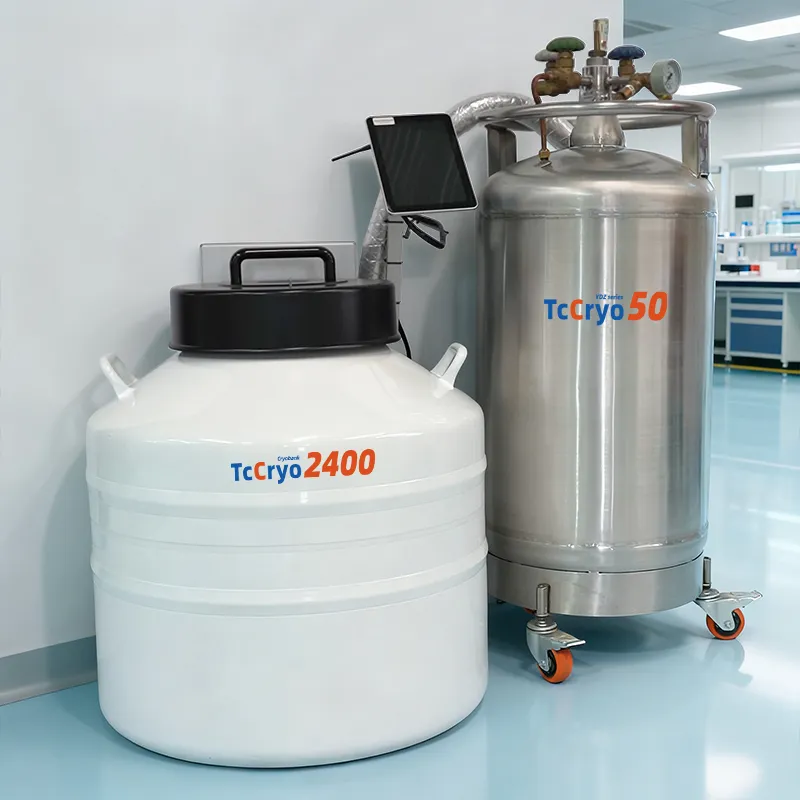

Smart Laboratory Storage

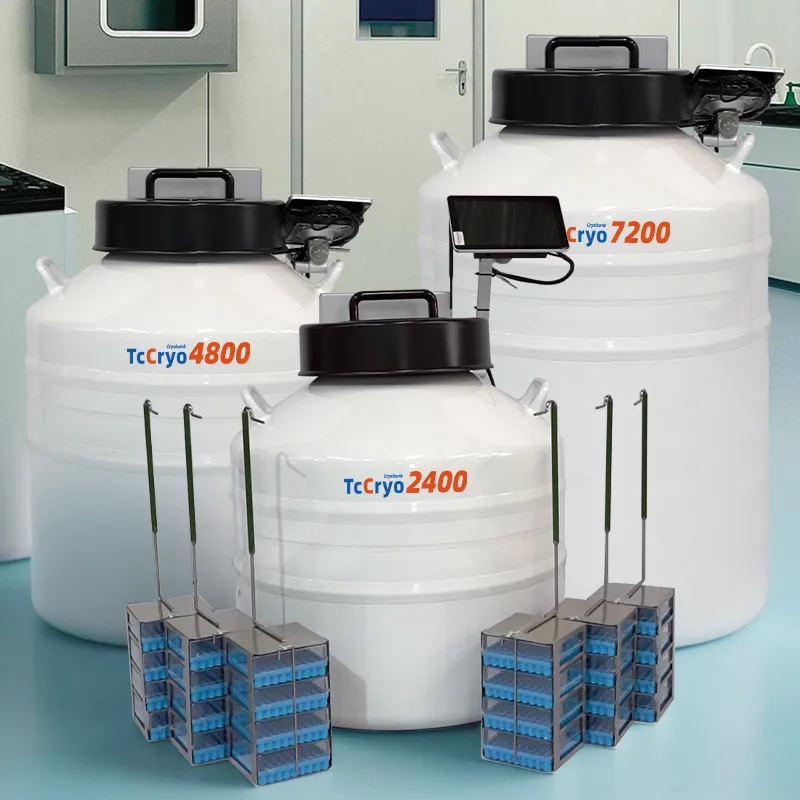

High-Capacity Biobanking
Vapor Phase Tech
Dry storage prevents cross-contamination and ensures sample integrity.

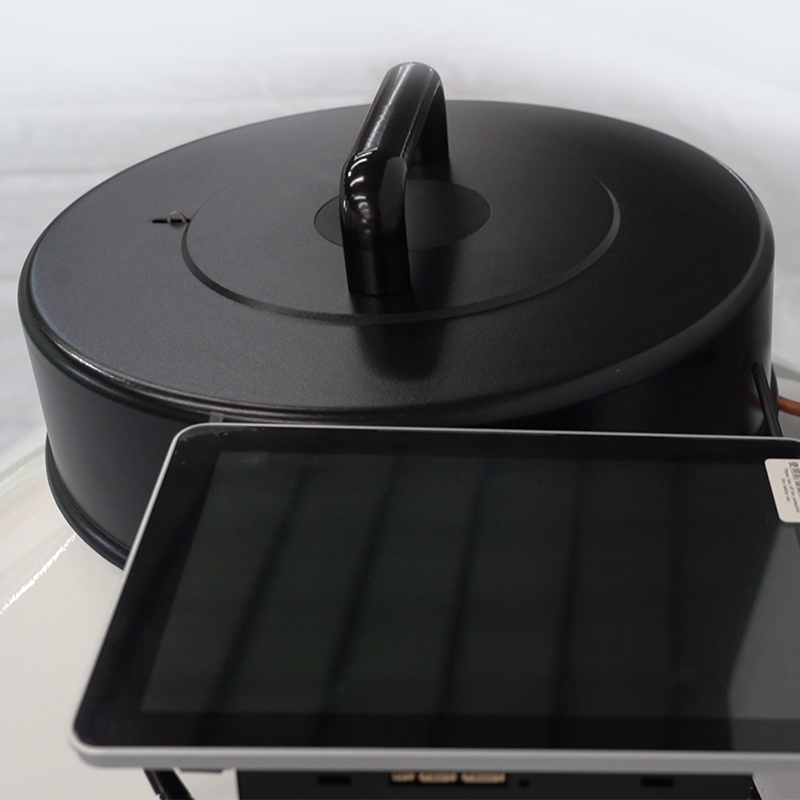

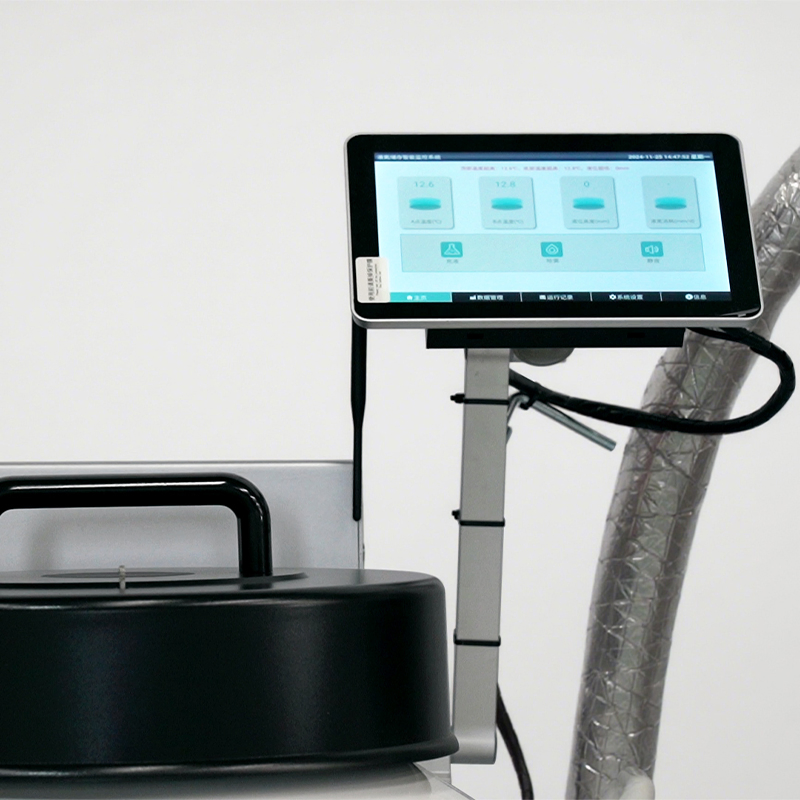

Intelligent Monitor
Real-time temperature and liquid level tracking for ultimate safety.
Massive Storage

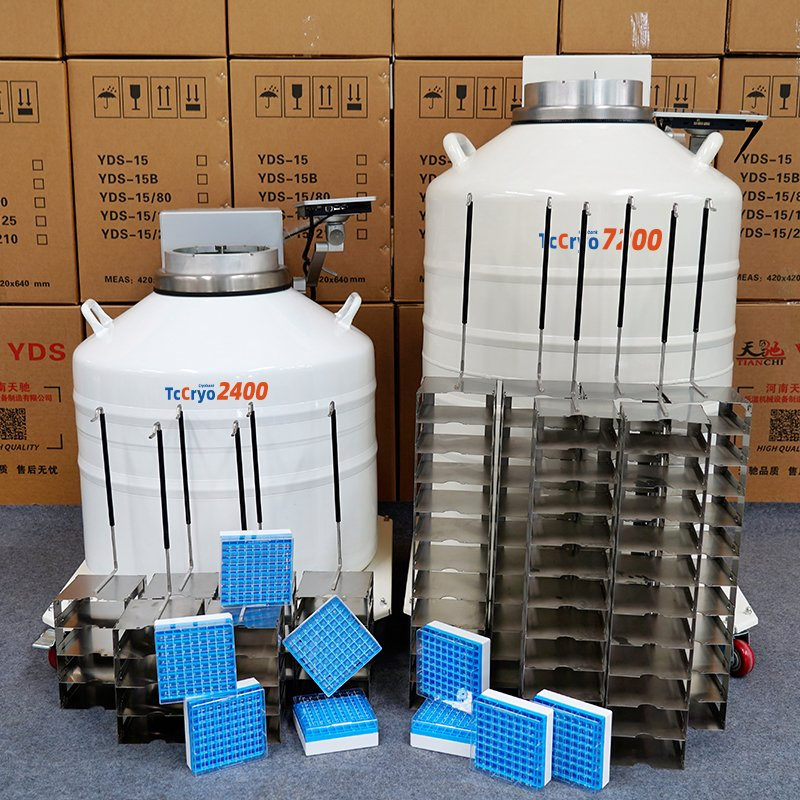

High-density storage capacity, accommodating 2,400 to 7,200+ vials.
Sample Security
Ideal for long-term stem cell, vaccine, and biological sample banking.

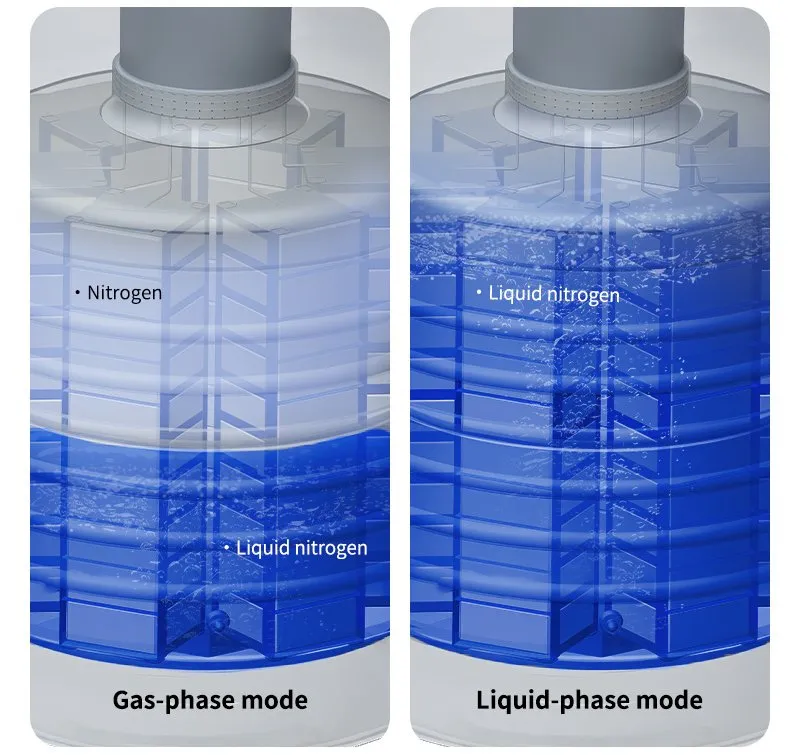

- • Two storage methods: vapor phase and liquid phase.
- • Liquid level sensor for real-time monitoring.
- • Vacuum insulation + hot vapor bypass for temperature stability.

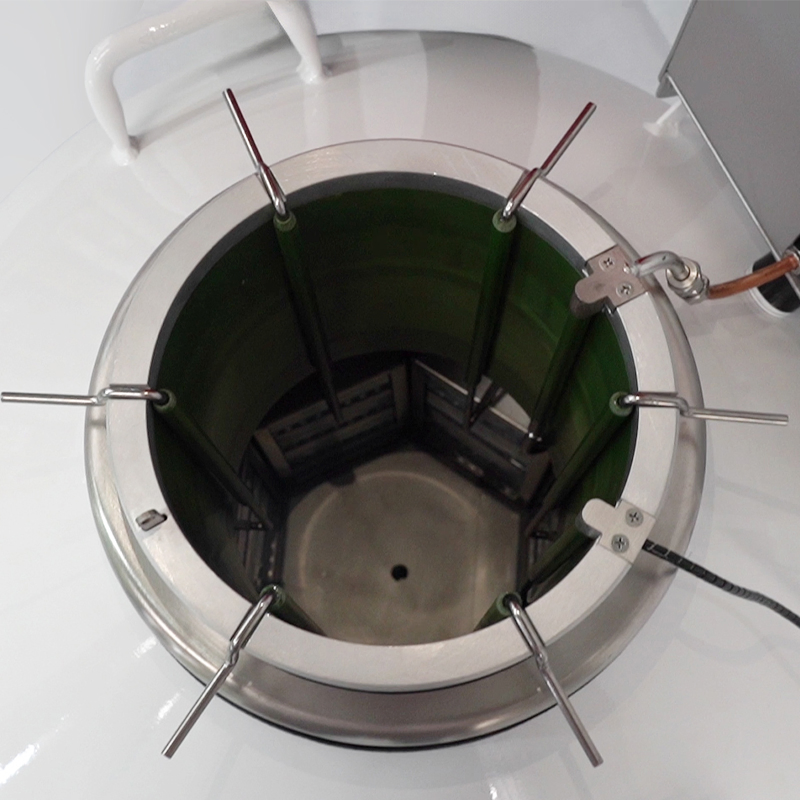

- • Numbered canisters for easy sample identification.
- • High vacuum multi-layer design with 5-year vacuum warranty.

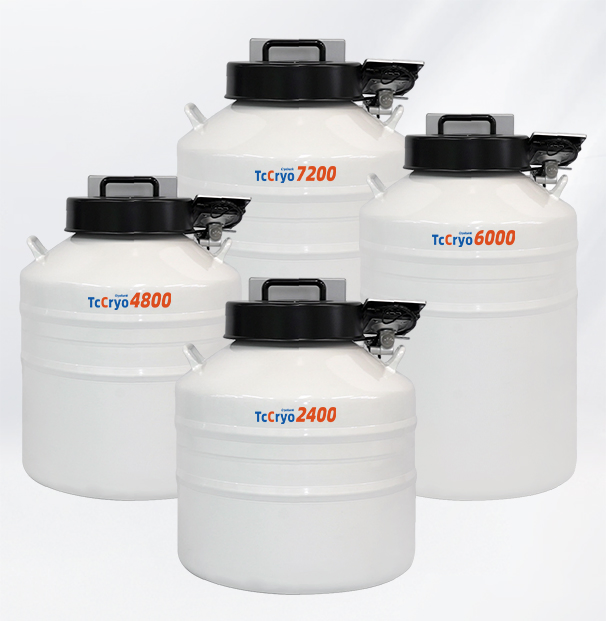

| Model | Cryobank 2400 | Cryobank 3600 | Cryobank 4800 | Cryobank 6000 | Cryobank 7200 |
|---|---|---|---|---|---|
| Square Buckets | 6/7 | 6/7 | 6/7 | 6/7 | 6/7 |
| 2.0ml Vials | 2400/2800 | 3600/4200 | 4800/5600 | 6000/7000 | 7200/8400 |
| LN2 Volume (L) | 65.2 | 115.5 | 145.5 | 175.5 | 209.5 |
| Static Evap (L/D) | 1.2 | 1.2 | 1.5 | 1.5 | 1.8 |
| Outer Diameter (mm) | 678 | 678 | 678 | 678 | 678 |
Pre-sale Support
Expert consultation on detailed specifications, model selection guidance, and technical documentation including user manuals and operational videos.
After-sale Support
24/7 Technical assistance, extended vacuum warranties (up to 5 years), and comprehensive training for proper usage and maintenance.
Frequently Asked Questions
What are the main advantages of vapor phase storage?
Vapor phase storage prevents samples from being directly immersed in liquid nitrogen, which significantly reduces the risk of cross-contamination while maintaining stable cryogenic temperatures.
How long is the vacuum warranty for these tanks?
Our tanks feature an advanced high-vacuum multi-layer insulation design, allowing us to provide a 5-year vacuum warranty and a 1-year overall warranty.
What material is used for the tank construction?
The tanks are constructed using high-strength Aviation Aluminum Alloy, which is rust-proof, lightweight, and durable for long-term use.
Is it possible to monitor the temperature in real-time?
Yes, the systems are equipped with smart monitoring sensors that track both temperature and liquid nitrogen levels, providing real-time data for sample safety.
What certifications do your products hold?
Our cryogenic storage solutions are ISO 9001 and CE certified, ensuring they meet rigorous international quality and safety standards.
What is the capacity range for the Cryobank series?
The series offers a wide range of capacities, storing from 2,400 up to over 7,200 2.0ml vials, depending on the specific model selected.
