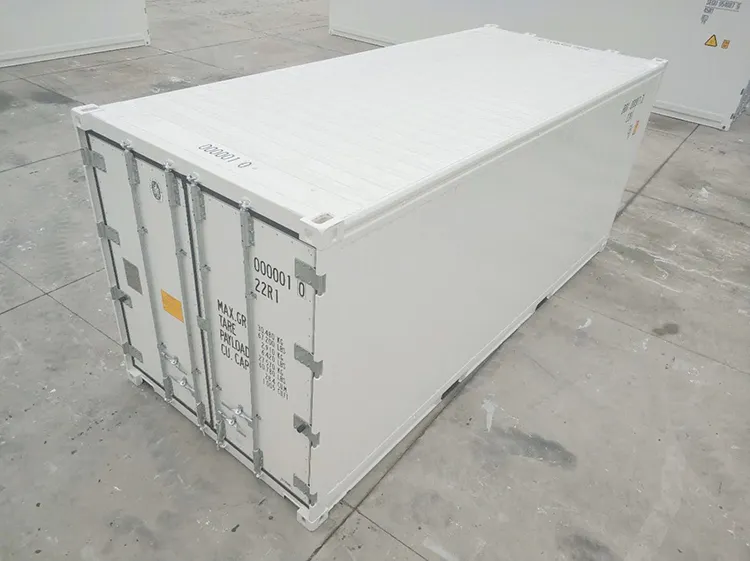

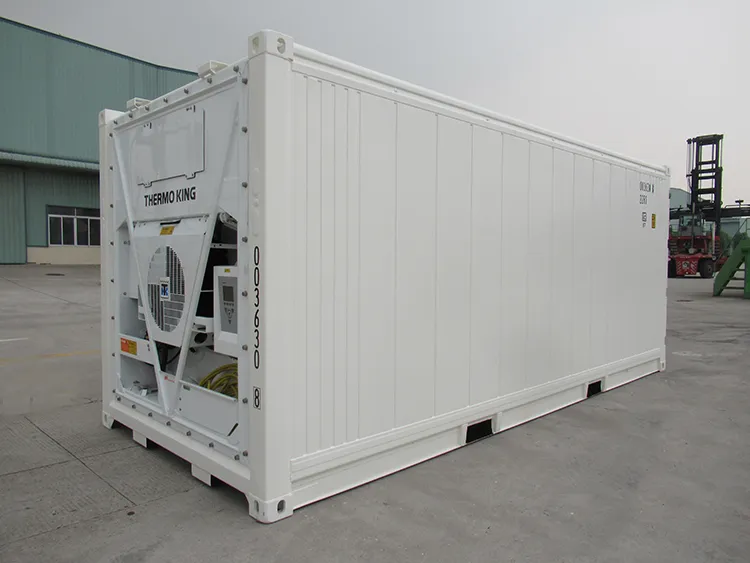

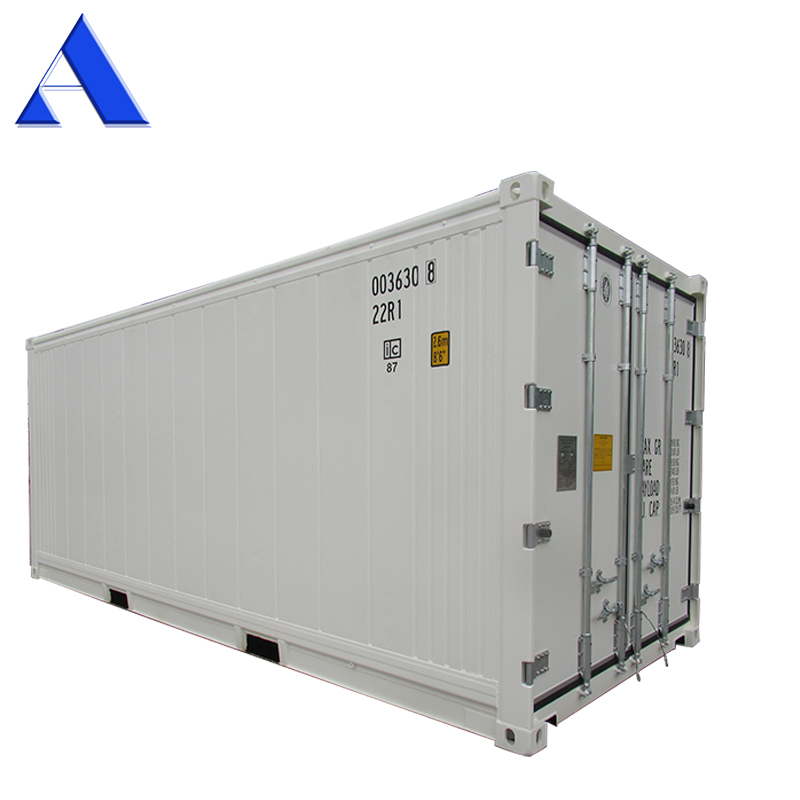

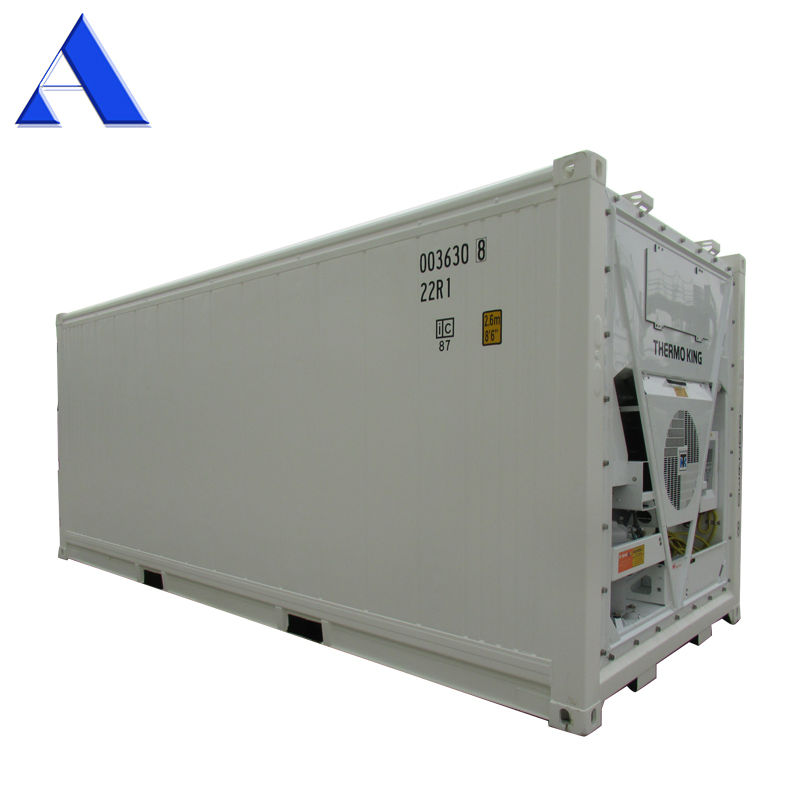

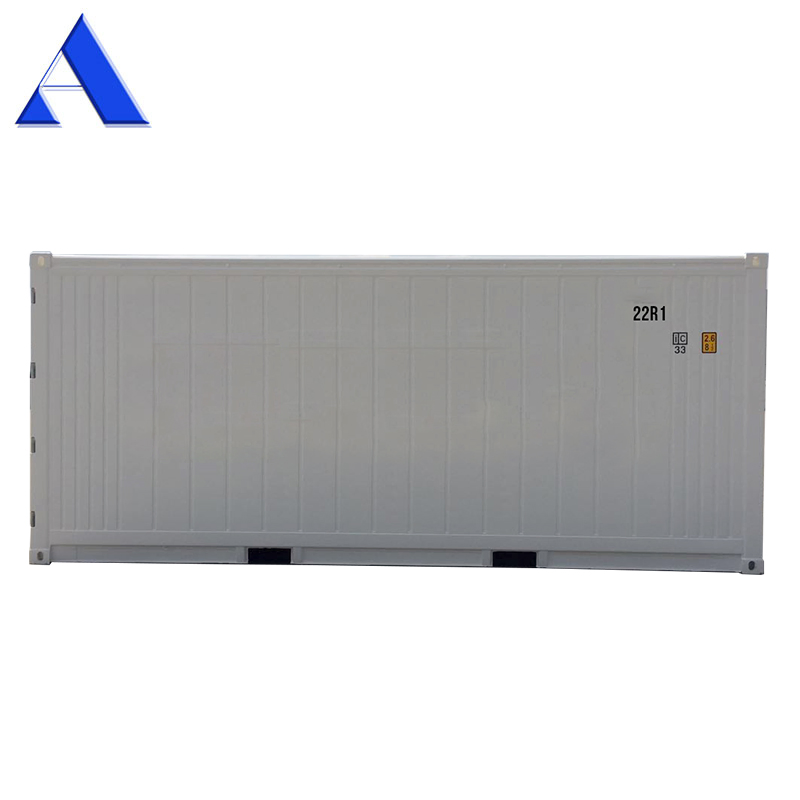

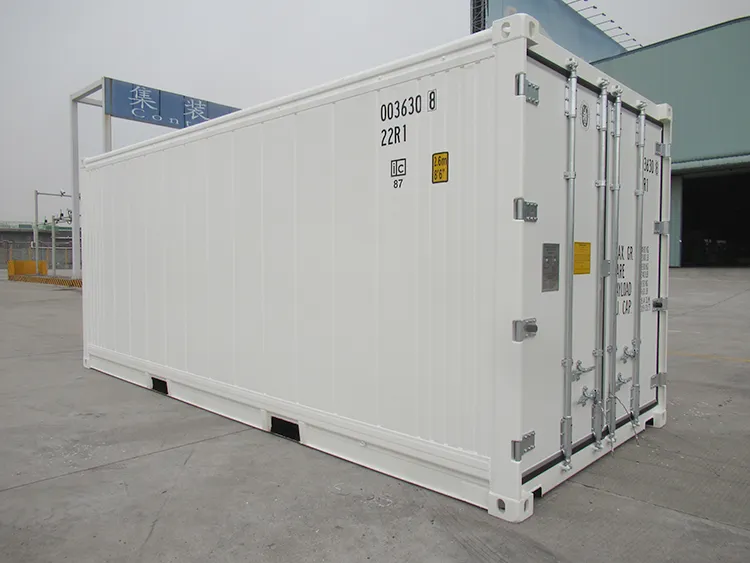

New Thermo King Freezer 6 Meter Length 20FT Reefer Container
Product Description
Model NO.
20RF
Container Material
Steel
Door Type
Swing Doors
Insulation Material
Polyurethane Foam
Size
20 feet
Telematics System
GPS Tracking
Temperature Control
Mechanical Refrigeration
Temperature Range
-25℃ to +25℃
Specification
BV or GL
Origin
China
HS Code
8609009000
Production Capacity
300PCS Per Month
- BV or GL certified quality assurance.

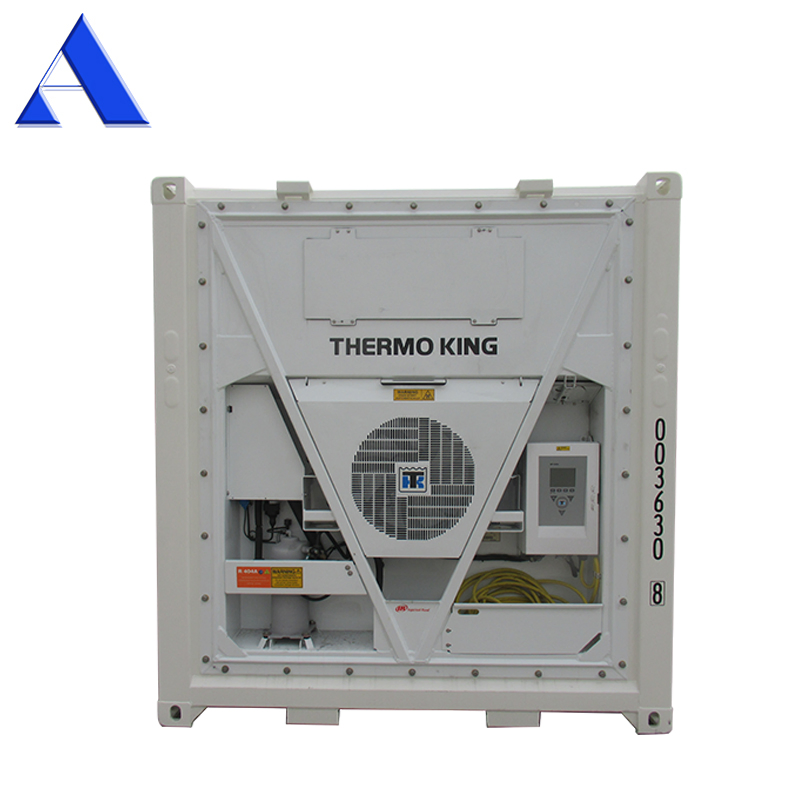

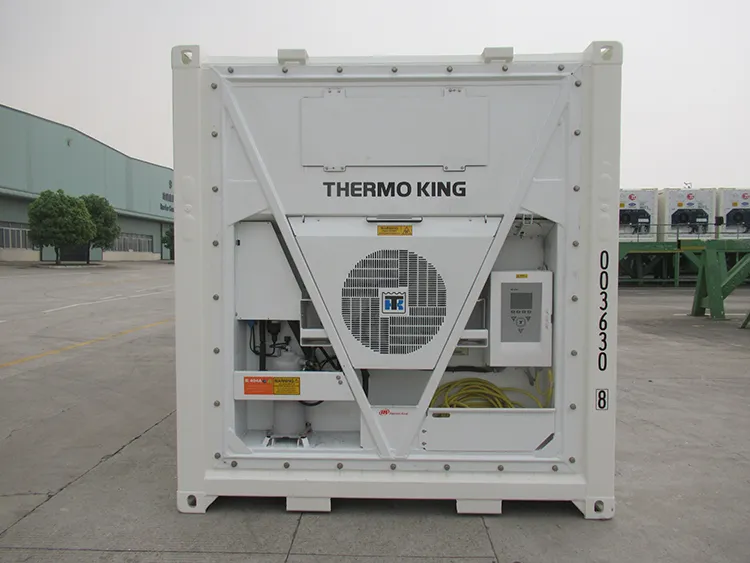

- High-performance Daikin, Thermo King, or Carrier cooler systems.
- Customizable named colors and logo application.
- Minimum Order Quantity: 1 piece.
- Optional offshore reefer container with padeye type available.
| 20ft Reefer Container Specifications | ||||
| Dimensions | MM | FT - IN | ||
| External | Length | 6,058 | 20' | |
| Width | 2,438 | 8' | ||
| Height | 2,591 | 8'-6" | ||

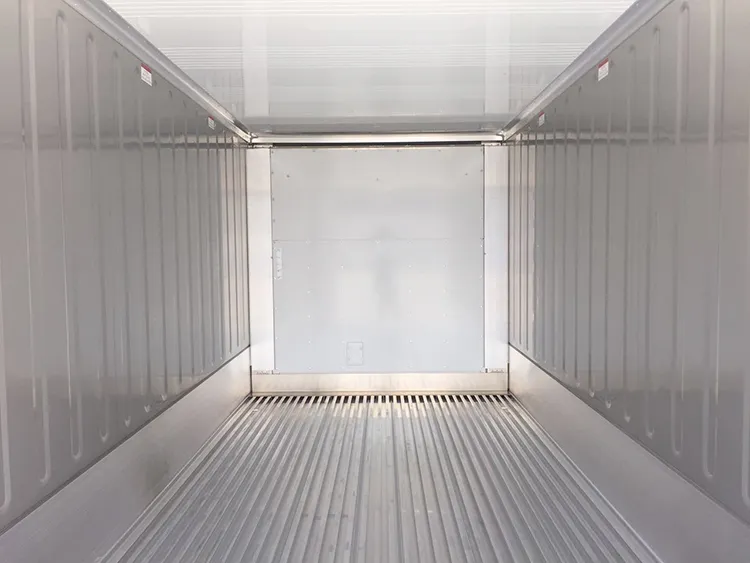

| Internal | Length | 5,468 | 17'-11 17/64" | |
| Width | 2,294 | 7'-6 15/32" | ||
| Height | 2,273 | 7'-5 31/64" | ||

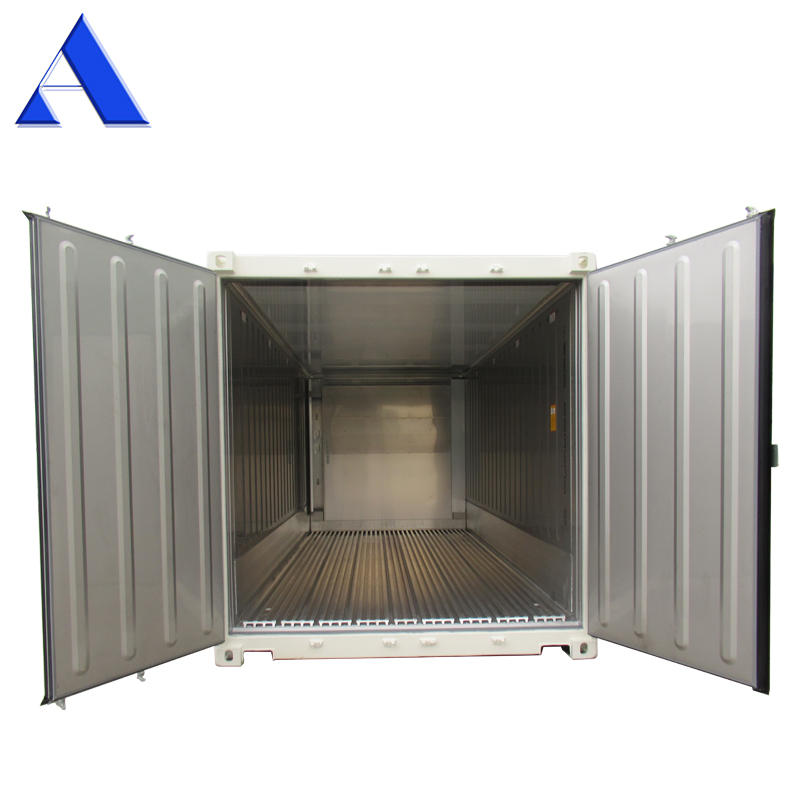

| Door Opening | Width | 2,290 | 7'-6 5/32" | |
| Height | 2,264 | 7'-5 9/64" | ||
| Inside Cubic Capacity | CU.M | CU.FT | ||
| 28.4 | 1,003 | |||
| Weight & Capacity | KG | LBS | ||
| Maximum Gross Weight | 30,480 | 67,200 | ||
| Tare Weight | 2,900 | 6,390 | ||
| Maximum Payload | 27,580 | 60,810 | ||
| Allowable Stacking Weight (1.8G) | 216,000 | 476,200 | ||
| Cooling Capacity(W) | 6300/5580 AT -18°C Inside / 38°C Outside 60/50HZ | |||
| Main Circuit | 3 PHASE AC 440, 460V/380, 400, 415 60/50HZ | |||
| Consumption(KW) | MAX 13.5 (60HZ) | |||
Frequently Asked Questions
What temperature range can the 20ft reefer container maintain?
The container is designed to maintain a stable temperature range from -25℃ to +25℃, making it suitable for both frozen and chilled cargo.
Which cooling systems are available for these containers?
We provide high-quality cooling units from industry-leading brands including Daikin, Thermo King, and Carrier.
Is the reefer container certified for international shipping?
Yes, all units are BV (Bureau Veritas) or GL certified, ensuring they meet strict international maritime and safety standards.
What are the power requirements for the refrigeration unit?
The system operates on a 3-Phase AC supply, compatible with 440V/460V or 380V/400V/415V at 50/60Hz.
Can I customize the container's appearance?
Absolutely. We offer customization options for specific colors and can apply your company logo as per your requirements.
Does the container include a tracking system?
Yes, the units come equipped with a GPS tracking telematics system for real-time monitoring of location and status.
